Nontrivial coupling of light into a defect: the interplay of nonlinearity and topology

ABSTRACT The flourishing of topological photonics in the last decade was achieved mainly due to developments in linear topological photonic structures. However, when nonlinearity is

introduced, many intriguing questions arise. For example, are there universal fingerprints of the underlying topology when modes are coupled by nonlinearity, and what can happen to

topological invariants during nonlinear propagation? To explore these questions, we experimentally demonstrate nonlinearity-induced coupling of light into topologically protected edge states

using a photonic platform and develop a general theoretical framework for interpreting the mode-coupling dynamics in nonlinear topological systems. Performed on laser-written photonic

Su-Schrieffer-Heeger lattices, our experiments show the nonlinear coupling of light into a nontrivial edge or interface defect channel that is otherwise not permissible due to topological

protection. Our theory explains all the observations well. Furthermore, we introduce the concepts of inherited and emergent nonlinear topological phenomena as well as a protocol capable of

revealing the interplay of nonlinearity and topology. These concepts are applicable to other nonlinear topological systems, both in higher dimensions and beyond our photonic platform.

SIMILAR CONTENT BEING VIEWED BY OTHERS DISCRETE NONLINEAR TOPOLOGICAL PHOTONICS Article 09 April 2024 NON-HERMITIAN TOPOLOGICAL PHASE TRANSITIONS CONTROLLED BY NONLINEARITY Article 23

October 2023 THERMAL CONTROL OF THE TOPOLOGICAL EDGE FLOW IN NONLINEAR PHOTONIC LATTICES Article Open access 29 July 2022 INTRODUCTION Topological photonics has become one of the most active

research frontiers in optics over the last decade1,2. The initial ideas were drawn from condensed matter physics, where the concept of topology was found to be crucial for understanding the

celebrated quantum Hall effect (QHE)3,4 and, later on, for the development of topological insulators5,6,7. In 2008, Raghu and Haldane proposed that the Bloch bands of photonic crystals

designed with time-reversal symmetry-breaking elements could have nontrivial topological invariants8,9, namely, the non-zero Chern numbers. When two materials with different topological

invariants are interfaced, bulk-edge correspondence2,10,11 guarantees the existence of topological edge states, which enjoy robust unidirectional propagation. Such correspondence holds in

both quantum and classical wave systems, which inspired the first observation of the unidirectional propagation of electromagnetic waves in the microwave regime12. Topological states of

light and related phenomena were later realized in various systems, including photonic lattices13, ring resonators14, and metamaterials15 (see Ref. 2 for a recent review). In electronic

systems, the interplay of topology and quantum many-body interactions can result in intriguing topological states of matter such as the fractional QHE4,16. An analogous yet distinct avenue

of research addresses the interplay of topology and nonlinearity in photonics. In conventional linear systems, the amount of energy present in each eigenmode remains constant during time

evolution. When nonlinearity is introduced, however, it shuffles the energy between the eigenmodes, which brings back memory of the pioneering numerical experiment by Fermi et al., who

studied the thermalization induced by nonlinear coupling in 195517. Their discovery of the recurrence to a state very close to the initial condition in a surprisingly short time is rooted in

the underlying integrability of the system. Such a recurrence was recently observed with nonlinear optical spatial waves18. It is natural to wonder whether the eigenmodes of a topological

system can be coupled by nonlinearity and, if so, how the nontrivial topology can be reflected in the subsequent dynamics, especially in the coupling of topologically protected edge states.

Thus far, nonlinear topological effects have been investigated far less than their linear counterparts, although nonlinearity inherently exists in many topological photonic platforms, such

as waveguide arrays, coupled resonators, and metamaterials19,20,21,22,23,24,25,26,27,28,29,30,31. Seeking unique functionalities and device applications, research in nonlinear topological

photonics has been focused mainly on edge solitons in topological structures21,23,32,33,34, nonlinearity-induced topological transitions24,25, nonlinear frequency generation35,36,37, and

topological lasing38,39,40. Despite these efforts, the fundamental issue of the nonlinear coupling of eigenmodes in topological systems remains largely unexplored. Here, we demonstrate

nonlinearity-induced coupling of light into topologically protected edge states using a photonic platform and develop a general theoretical framework for interpreting the mode-coupling

dynamics in nonlinear topological systems. The experimental results are obtained in photonic Su-Schrieffer-Heeger (SSH) lattices41 fabricated with a laser-writing technique in a nonlinear

crystal. We observe that only under nonlinear excitation can a light beam traveling from the bulk to the edge of a nontrivial SSH lattice be coupled to a topologically protected edge state.

Furthermore, the nonlinear interaction of two beams at opposite incident angles is also observed, coupling into a topological interface state that depends strongly on their relative phase.

Our theory explains these observations well: under proper nonlinear excitation, the profile of the beam propagating along the edge (or interface) waveguide is inherited from that of the

underlying linear topological system, overlapping more than 98% with the linear topological edge states and with propagation constants residing in the band gap. When the nonlinearity is

stronger than a certain critical value, however, the nonlinear eigenvalue of the edge state moves out of the gap and emerges above the first band, indicating that the localization is now

dominated by nonlinearity. The concepts introduced in this paper are generally applicable to nonlinear topological systems. The SSH lattice exhibits two topologically distinct (Zak) phases,

representing a prototypical one-dimensional (1D) topological system with chiral symmetry2,41,42. SSH models have been implemented in a variety of platforms, including photonics and

nanophotonics43,44,45,46,47,48,49, plasmonics50,51, and quantum optics52,53,54,55, and particularly in the context of topological lasing38,56,57,58. Such SSH-type models with driven

nonlinearity have also attracted great attention19,24,30,32,34,35,36,59. In particular, nonlinearity has been employed for spectral tuning30 and time-domain pumping59 of topological edge

states and for the generation of topological gap solitons32,34 in such systems. RESULTS We study the propagation of light in photonic lattices with a refractive-index variation given by

\(n_0 + \delta n_L\left( {\mathbf{x}} \right) + \delta n_{NL}\left( {\left| \psi \right|^2} \right)\), where _n_0 is the constant part of the material’s index of refraction, _δn__L_(X)

describes the linear photonic lattice, which is uniform along the propagation axis _z_, and \(\delta n_{NL}\left( {\left| \psi \right|^2} \right)\) is the nonlinear index change, which

depends on the intensity of the light (with _ψ_(X, _z_) being the complex amplitude of the electric field). In the paraxial approximation, the propagation of the light is modeled by the

following Schrödinger-type equation with a nonlinear term: $$i\frac{{\partial \psi }}{{\partial z}} = - \frac{1}{{2k_0}}\nabla ^2\psi - \frac{{k_0\delta n_L\left( {\mathbf{x}}

\right)}}{{n_0}}\psi - \frac{{k_0\delta n_{NL}\left( {\left| \psi \right|^2} \right)}}{{n_0}}\psi \left( {{\mathbf{x}},z} \right) = (K + V_L + V_{NL})\psi $$ (1) which includes the kinetic

term _K_, the linear index potential _V__L_ from _δn__L_(X), and the nonlinear index potential _V__NL_ due to \(\delta n_{NL}\left( {\left| \psi \right|^2} \right)\); _k_0 is the wavenumber

of light in the medium. The above equation holds for both 1D and 2D photonic lattices. In 1D systems, the spatial coordinate is a scalar _x_, and in 2D systems, it is a vector \({\mathbf{x}}

= x\hat x + y\hat y\). Here, we consider a 1D topological system; that is, we assume that the photonic lattice _V__L_ can have nontrivial topological invariants. In our experiments and

numerical simulations, we use the SSH lattice for _V__L_(_x_). The photonic lattice and excitation scheme are illustrated in Fig. 1, where Fig. 1(a1) corresponds to a nontrivial lattice (Zak

phase π) with two topological edge modes in the gap, and Fig. 1(c1) corresponds to a trivial lattice (Zak phase 0) without an edge state. In our theory, we use the above continuum model to

describe the wave dynamics rather than its discrete version to obtain better correspondence with the experiments. In our experiment, a 1D SSH photonic lattice, as illustrated in Fig. 1, is

established by the _continuous-wave_ (CW) laser-writing technique, which writes the waveguide lattice site-to-site in the bulk of a 20-mm-long nonlinear photorefractive crystal60. This

technique allows a topological defect to be induced not only at the edge (Fig. 1(a1)) but also at the center, forming an interface (Fig. 2(a1)). Unlike femtosecond-laser writing in fused

silica61, the lattice written in the nonlinear crystal is reconfigurable, so it can be readily changed from a trivial to a nontrivial structure in the same crystal. Once a chosen structure

is written, it remains invariant during the period of experimental measurements (see “Methods”). In fact, since the SSH lattice is established here in a nonlinear crystal, it provides a

convenient platform to investigate nonlinear wave dynamics in such a topological system, where the photorefractive nonlinear index potential _V__NL_ is easily controlled by a bias field and

the beam intensity19,62. Below, we demonstrate nonlinearity-induced coupling of light into topologically protected states in two different cases. In the first case, the topological defect is

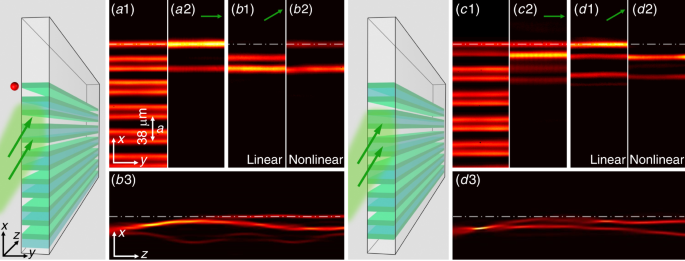

located at the SSH lattice edge (Fig. 1, left panels). When a narrow stripe beam (FWHM 12 μm; input power 2.5 μW) is launched straight into the edge waveguide under linear conditions (the

beam itself does not exhibit nonlinear self-action when the bias field is turned off), it evolves into a topological edge state (Fig. 1(a2)). Such an edge state, with a characteristic

amplitude and phase populating only the odd-numbered waveguides counting from the edge, is topologically protected by the chiral symmetry of the SSH lattice2, as previously observed in the

1D photonic superlattice43. On the other hand, when the excitation is shifted away from the edge with a tilted broad beam to pump the defect (\(k_x = 1.4\pi /a,\) where _a_ = 38 μm is the

lattice constant), we observe that the beam does not couple into the edge channel under linear conditions (Fig. 1b1). However, when the beam experiences a self-focusing nonlinearity (at a

bias field of 160kV/m), a significant portion of the beam is coupled into the edge channel (Fig. 1b2), indicating that the nonlinearity somehow enables the energy to flow from the bulk modes

into the topological edge mode of the SSH lattice. According to Eq. (1), we perform numerical simulation to examine the nonlinear beam dynamics using the parameters from the experiments,

and the results are shown in Fig. 1(b3). We clearly see nonlinear coupling of the beam to the topological edge state of the SSH lattice, in agreement with the experiment. For direct

comparison, in the right panels of Fig. 1, we present the corresponding results obtained with the trivial SSH lattice. A dramatic difference is observed: (1) Under straight excitation, the

input beam transports to quite a few waveguides close to the edge, but there is no dominant coupling to the first waveguide to form an edge state under linear conditions (Fig. 1(c2)). (2)

For tilted excitation, however, the beam can easily enter the edge waveguide under linear conditions (Fig. 1(d1)), while it does not efficiently excite the edge waveguide within 20 mm of

nonlinear propagation (Fig. 1(d2) and (d3)). Simulations for much longer distances beyond the crystal length indicate that the energy of the initial beam will eventually dissipate into the

bulk under linear propagation. There is a key difference between trivial and nontrivial lattices under nonlinear propagation for tilted excitation: a distinct edge state persists in the

nontrivial lattice, but no edge state exists in the trivial lattice. The underlying mechanism is analysed below in detail on the basis of nonlinear wave theory. In the second case, the

topological defect is located inside the SSH lattice (Fig. 2). To validate the nontrivial lattice established by laser writing, as shown in Fig. 2(a1), a single probe beam is launched

straight into the defect channel, which leads to a topological interface state (Fig. 2(a2)). Then, two tilted beams are launched from opposite directions (\(k_x = \pm 1.4\pi /a\)) to pump

the interface defect simultaneously, as illustrated in the left panel of Fig. 2. When the two beams are in-phase, light cannot couple into the defect channel in the linear condition (Fig.

2b1), but significantly enhanced coupling into the channel occurs in the nonlinear condition (Fig. 2(b2)). For comparison, similar experiments were performed on the same lattice under the

same conditions except for two out-of-phase beams, which cannot couple into the defect channel under either linear or nonlinear excitation conditions (Fig. 2(c1) and (c2)). For linear

excitation, topological protection prevents energy from flowing into the defect. For the nonlinear excitation, the nonlinear interaction of the two out-of-phase beams leads them to repel

each other. This remarkable difference can be seen more clearly in the numerical simulation, where the nonlinearity-induced coupling (Fig. 2(b3)) and “repulsion” (Fig. 2(c3)) are evident.

These results clearly show that optical beams from different directions can be pumped into a nontrivial defect channel due to optical nonlinearity under proper excitation conditions. Now

that we have presented our experiment and simulation results, which demonstrate nonlinear coupling into topologically protected states, we develop a general theoretical protocol for

interpreting dynamics in nonlinear topological systems and employ it for our experiments. Let us assume that the linear component of the index of refraction _V__L_(X) in Eq. (1) represents a

topological photonic lattice, which is characterized by a topological invariant such as the Chern number for 2D lattices or the Zak phase for 1D lattices. The initial excitation is given by

\(\psi ({\mathbf{x}},z = 0)\). The subsequent propagation, governed by Eq. (1), gives us the complex amplitude of the electric field _ψ_(X, _z_) along the propagation direction, which in

turn modulates the total index potential (linear and nonlinear) for any _z_: \(V\left( {{\mathbf{x}},z} \right) = V_L\left( {\mathbf{x}} \right) + V_{NL}({\mathbf{x}},z)\). To determine and

interpret the topological properties of the dynamically evolving nonlinear system, we use _the total index potential V_(X, _z_). The corresponding nonlinear eigenmodes \(\varphi

_{NL,n}\left( {{\mathbf{x}},z} \right)\) and nonlinear eigenvalues \(\beta _{NL,n}(z)\) are defined by the equation: $$(K + V_L + V_{NL})\varphi _{NL,n} = - \beta _{NL,n}\varphi _{NL,n}$$

(2) We note that nonlinear eigenmodes and their eigenvalues are a function of the propagation distance _z_ because nonlinear beam dynamics are generally not stationary. In contrast, the

topological invariants of a linear system are drawn from the linear eigenmodes \(\varphi _{L,n}({\mathbf{x}})\) with propagation constants _β__L_,_n_, obtained from $$(K + V_L)\varphi _{L,n}

= - \beta _{L,n}\varphi _{L,n}$$ (3) which are obviously not _z_-dependent. In both cases, _n_ denotes the “quantum” numbers associated with the eigenmode, which can be associated with the

Bloch wavevector and the band index for periodic photonic structures. We emphasize several consequences of this approach: (i) The topological properties depend on the state of the system

_ψ_(X, _z_) (this is natural because the system is nonlinear). These properties can be _inherited_ from the underlying linear topological system, or they can _emerge_ due to nonlinearity

(see, e.g., Ref. 24). The _inherited_ and _emergent_ topological properties should be distinguished, as explained in the “Discussion” section below. (ii) The topological properties can

change along the propagation direction. For example, we envision that for some initial conditions, the gap in the nonlinear spectrum \(\beta _{NL,n}(z)\) could dynamically close and re-open,

leading to a topological phase transition driven by nonlinearity. (iii) The evolution of the topological properties depends on the initial condition \(\psi ({\mathbf{x}},z = 0)\). For a

given initial condition, the subsequent dynamics yielding _V_(X, _z_) are unique. Let us apply the protocol to interpret the dynamics observed in the experiment of Fig. 1 (left panel). The

linear SSH lattice with _V__L_(_x_) is in the topologically nontrivial regime, which has two degenerate edge states, as illustrated in Fig. 3a. The propagation constants of the linear

eigenmodes _β__L_,_n_ are illustrated in Fig. 3b, c (they are plotted in the region _z_ < 0 for clarity, although they are _z_-independent); there are two bands corresponding to extended

states, while the propagation constants of the localized edge states are in the middle of the gap as expected41. However, they are not at “zero energy” because we employ a continuous model

with the experimental parameters. One can obtain the zero-energy states by adjusting the bottom of the linear potential through a transformation \(V_L\left( x \right) \to V_L\left( x \right)

+ {\mathrm{constant}}\), but shifting the zero energy by a constant does not change the physics. First, we analyse the initial excitation, which has the shape of the left edge state

(colored red in Fig. 3a): \(\psi \left( {{\mathbf{x}},z = 0} \right) = \sqrt {I_0} \varphi _{L,edge}\). This corresponds to the observation of Fig. 1a2. This linear edge state \(\varphi

_{L,edge}\) has a typical mode profile of topological characteristics: populating only odd-numbered waveguides with alternating opposite phases along the SSH lattice44. It is convenient to

introduce the following quantities: (i) the edge state of the nonlinear system, \(\varphi _{NL,edge}({\mathrm{x}},z)\), as the eigenmode of the potential _K_ + _V_, which has the largest

overlap with the linear edge state \(\varphi _{L,edge}\), defined as \(F_{edge}\left( z \right) = \left| {\left\langle {\varphi _{NL,edge}{\mathrm{|}}\varphi _{L,edge}} \right\rangle }

\right|^2\); (ii) the overlap of the overall complex amplitude \(\psi \left( {{\mathrm{x}},z} \right)\) with the linear edge state, defined as \(F_{all}\left( z \right) = \left|

{\left\langle {\psi \left( {{\mathrm{x}},z} \right){\mathrm{|}}\varphi _{L,edge}} \right\rangle } \right|^2/\left| {\left\langle {\psi {\mathrm{|}}\psi } \right\rangle } \right|^2\). The

values of the overlaps _F_edge(_z_) and _F_all(_z_) are always between 0 and 1 by definition; the former tells us how similar the nonlinear and linear edge states are, and the latter tells

us how much of the power of the beam populates the linear topological edge state. In Fig. 3b, we show the eigenvalue evolution of the nonlinear system \(\beta _{NL,n}(z)\) for a low

nonlinearity (see the Supplementary Material for the calculation details and parameter values). The bands and the nonlinear eigenvalue of the right edge state (plotted for _z_ > 0) are

essentially identical to those of the linear spectrum \(\beta _{L,n}\) (for comparison, \(\beta _{L,n}\) is also plotted for _z_ < 0, even though it is independent of _z_). However, the

nonlinear eigenvalue \(\beta _{NL,edge}\) of \(\varphi _{NL,edge}\) (for the left edge state) is pushed towards the higher band, although it is still in the gap34. The nonlinear spectrum

\(\beta_{NL,n}(Z)\) is almost _z_-independent for this initial excitation. Our calculation shows that in this case, _F_edge(_z_) ≈ 0.99, while most of the power populates the left edge

state, as _F_all(_z_) ≈ 0.99. The inset in Fig. 3b shows the profile of the topological linear edge state \(\varphi_{L, edge},\), along with that of the nonlinear edge state \(\varphi

_{NL,edge}\) (at _z_ = 15 mm). We see that the profile of the nonlinear edge state has the proper oscillations pertaining to the topological edge state, with the amplitude in odd waveguides

(starting from the edge waveguide as the first one) and opposite phases in neighboring peaks. The edge state has an amplitude mainly in the first (edge) waveguide and then the third

waveguide. If the nonlinearity is increased above some threshold value, the nonlinear eigenvalue \(\beta _{NL,edge}\) moves across the band to appear above the first band, as illustrated in

Fig. 3c. From the mode profiles shown in the inset of Fig. 3c, we find that the nonlinear edge state is essentially identical to the linear one in the edge waveguide, but it lacks an

amplitude in the third waveguide. This difference is more easily seen when we use a larger lattice coupling than the one obtained from the experimental parameters. We conclude that for the

initial excitation \(\psi \left( {{\mathbf{x}},z = 0} \right) = \sqrt {I_0} \varphi _{L,edge}\), when \(\beta _{NL,edge}\) is in the gap, the localization is induced by the topology, and the

nonlinear edge state can be regarded as a topological edge state. When \(\beta _{NL,edge}\) is above the upper band (in the semi-infinite gap), the localization is induced by nonlinearity.

Even though the mode profile in the edge channel is _inherited_ from the linear topological system (see the inset in Fig. 3c), due to the lack of mode features in the third waveguide, the

nonlinear edge mode should not be characterized as topological when \(\beta_{NL,edge}\) is in the semi-infinite gap. A related analysis of similar scenarios can be found in Refs. 30,59. A

theoretical analysis of the experiments corresponding to tilted excitation in Fig. 1(b2) is more involved because in this case, the dynamics are far from stationary, yet this case captures

the essence of the theoretical protocol. The beam is launched at _x_ = 1.2_a_ at an angle \(k_{x}=-1.4 \pi/a\) towards the edge located at _x_ = 0 (see Fig. 3a). For this initial excitation,

_F_all(_z_ = 0) ≈ 0; i.e., at the input of the medium, the beam does not excite the linear edge state. Figure 1(b1) is easily understood, as _F_all(_z_) is _z_-independent in the linear

dynamics. The evolution of the nonlinear spectrum \(\beta _{NL,n}(z)\) is depicted in Fig. 3d. First, we note that the band structure (thick blue lines) corresponding to the bulk states is

essentially _z_-invariant and is equivalent to that of the linear system. Due to the self-focusing nonlinearity, the dynamics are manifested in the localized modes of \(V\left( {x,z} \right)

= V_L\left( x \right) + V_{NL}(x,z)\); there are quite a few evolving localized modes of _V_(_x_,_z_), with eigenvalues \(\beta _{NL,n}(z)\) indicated by the dotted blue lines in Fig. 3d.

We focus only on the nonlinear edge state \(\varphi _{NL,edge}\) and its eigenvalue \(\beta _{NL,edge}\), plotted in Fig. 3d with a solid red line. From Fig. 3e, f, which illustrate

_F_all(_z_) and _F_edge(_z_), respectively, we see that the dynamics can be divided into three stages. More specifically, the sudden drop of _F_edge(_z_) at _z_ = 5 mm indicates the end of

the first stage, while the sudden increase at _z_ = 11 mm indicates the end of the second stage of the dynamics (see Fig. 3f). In the first stage (shaded magenta in Fig. 3d, f), the launched

beam travels towards the edge, and the edge state is not populated, as \(F_{all}(z) \approx 0\); consequently, \(\beta _{NL,edge}\) is in the gap (see the left red line in Fig. 3d), and

_F_edge(_z_) is close to unity. In the second stage (shaded gray), when the beam is at the edge, the linear edge state becomes populated, and _F_all(_z_) increases. In this stage, the beam

strongly perturbs the local structure of the lattice at the edge, as seen from the drop in _F_edge(_z_) in Fig. 3f, which means that none of the nonlinear localized states are similar to

\(\varphi _{L,edge}\) (thus, none of the nonlinear eigenvalues is colored red in Fig. 3d in the second stage). In the third stage (shaded green), a large portion of the beam is reflected,

but ~30% of the beam becomes trapped in a localized edge state: _F_all(_z_) ≈ 0.3, as shown in Fig. 3e. There is a well-defined nonlinear edge state with eigenvalue \(\beta _{NL,edge}\)

above the first band, not in the gap, as indicated by the right red line in Fig. 3d. The profile of this nonlinear edge state is mostly inherited from the topology of the linear structure,

as seen in the inset of Fig. 3e and the overlapping _F_edge(_z_) ≈ 0.98 shown in Fig. 3f; however, it lacks the topological mode feature in the third waveguide. We conclude that the

localization is dominantly induced by nonlinearity. We should emphasize that the linear edge state does not continuously transform into the nonlinear edge state during propagation, because

of the strong deformation of the lattice in the second stage of the dynamics. After this distortion, one of the localized states from stage two re-emerges as the new nonlinear localized edge

state in stage three, as can be traced by following the nonlinear eigenmodes alongside the _F_-functions plotted in Fig. 3d, e. The details of the theoretical analysis corresponding to the

right panel of Fig. 1 (for the SSH lattice in the topologically trivial regime) and Fig. 2 (for excitation of the topological defect with two beams) are shown in the Supplementary Material

and summarized here. The results in the right panels of Fig. 1 can be interpreted as follows: all the linear modes are extended, as the SSH lattice is in the topologically trivial regime.

The beam initially excites many of these states. In the linear regime illustrated in Fig. 1(d1), the beam approaches the waveguide at the edge and then travels along the edge for the length

of the crystal. In other words, for short propagation distances (smaller than the length of the crystal), the phases of all linearly excited (extended) modes add together such that the

intensity of the beam populates the waveguides close to the edge in Fig. 1(d1). However, for a very long propagation distance, due to the de-phasing of the excited bulk modes, the beam will

spread into the lattice. In the nonlinear case corresponding to Fig. 1(d2), (d3), the nonlinearity creates evolving localized states, which are not related to the topological origin, as none

of the nonlinear modes resemble the linear topological edge state. In fact, in this trivial lattice structure, the localized modes arise purely due to the nonlinear index change, as is

typically the case with optical solitons. A light beam forms a few self-trapped filaments around these states and evolves in this fashion for the propagation distance of the crystal length

in the experiment. As the initial excitation is not at the edge, the location of the self-trapped filaments is also not at the edge, as illustrated in Fig. 1(d2), (d3). Regarding the

excitation of the defect mode with two beams at opposite angles, when the beams are in phase, there are again three stages of the dynamics, which are equivalent to those shown in Fig. 3d–f.

In the first stage, the beams travel towards the linear defect channel in the center of the lattice; the defect state is not yet populated, and its eigenvalue is in the gap. Many evolving

nonlinear localized states arise due to nonlinearity but not to topology. In the second stage, the linear defect state starts to become populated, but the lattice is distorted locally due to

nonlinear action, so none of the nonlinear states are similar to the linear defect state. In the third stage, some of the incident light (~20–30% for the parameters used here) is trapped in

the defect state, while the rest is repelled. There is a well-defined nonlinear defect state with a profile in the defect channel inherited from the linear defect state and a nonlinear

eigenvalue emerging above the first band. Thus, conceptually, an identical scenario to that shown in Fig. 3d–f occurs. The difference is that the defect state can now be coupled from both

sides, and this could be extended to coupling light from all directions in a 2D SSH-type system, leading to a nonlinear “tapered” topological waveguide. Such potential applications certainly

merit further research. When the two incident input beams at opposite angles are out of phase, again there are three stages of the dynamics analogous to those presented above (see the

Supplementary Material). However, the linear defect state is not populated by any of them. The eigenvalue of the nonlinear defect state is within the gap in the first and third stages of the

dynamics. In the second stage, when the light is close to the defect state, the lattice structure is distorted, and none of the nonlinear localized states are very similar to the linear

defect state. In fact, the two beams stay away from each other, and the defect in this case is related to the nonlinear interaction of out-of-phase soliton-like beams rather than to

topology. DISCUSSION The interplay of nonlinearity and topology is somewhat analogous to the interplay of locality and globality, as most of the studied optical nonlinearities are local, and

the topology describes the global properties of a system. To analyse nonlinear topological systems, one must find an appropriate way to connect the local and global properties of the

underlying systems. The proposed theoretical protocol does just that: it takes the total change in the index potential \(V\left( {{\mathbf{x}},z} \right) = V_L\left( {\mathbf{x}} \right) +

V_{NL}({\mathbf{x}},z)\) (which includes the nonlinear term), and analyses the topological properties of the nonlinear system. Our theory is designed to unravel non-stationary dynamics,

which are at the heart of the nonlinear coupling presented here. In this case, the potential \(V\left( {x,z} \right) = V_L\left( x \right) + V_{NL}(x,z)\) evolves along _z_ (_z_ is the

“time” in our system), and the topological quantities can in principle change during the evolution. In the specific lattice system studied above, the gap in the nonlinear spectrum \(\beta

_{NL,n}(z)\) does not close at any _z_, and the bands remain fairly intact in the presence of nonlinearity. However, we observe that the interplay of nonlinearity and topology can couple

light into the topological edge state of the linear system, which is inadmissible for entirely linear dynamics (e.g., see Fig. 1(b2) and Fig. 3d–f). When this happens, we can identify the

nonlinear edge mode \(\varphi _{NL,edge}\), which inherits the profile of the linear edge mode \(\varphi _{L,edge}\) in the edge channel and is quantified by _F_edge(_z_) ≈ 0.98 after the

nonlinear coupling has occurred, although it lacks the amplitude in the third waveguide. Thus, for a high nonlinearity, the eigenvalue of \(\varphi _{NL,edge}\) moves outside the gap (see

Fig. 3c), and the edge mode is dominated by nonlinearity but has some features inherited from the linear topological edge mode; for a low nonlinearity, its eigenvalue stays inside the gap,

so it is dominated mainly by the topology. For the other initial conditions studied in the experiment, presented in Fig. 2, the interplay of topology and nonlinearity is conceptually the

same. Let us comment on the calculation of topological invariants in finite nonlinear lattices. Topological invariants for periodic lattices, the Chern number for 2D lattices and the Zak

phase for 1D lattices, are calculated for an infinite periodic system by integrating over the Brillouin zone2. These invariants, in a finite lattice, are manifested by edge states (edge

modes), such as those in the SSH model. When we deal with a finite nonlinear system, we cannot straightforwardly use the formulae for calculating the Chern number and the Zak phase for

infinite periodic systems. This problem has already been addressed in the literature; see, e.g., Refs. 63,64, where the so-called Bott index was calculated. Here, we develop an approach that

explores nonlinear eigenmodes and compares them with the relevant linear eigenmodes. This approach relies on the following facts: (i) the Zak phase (as well as the Chern number) is

calculated from the eigenmodes, and (ii) for a linear system, the Zak phase is well known in the topologically trivial or nontrivial regime. Thus, we focus on how the eigenmodes change when

we introduce nonlinearity. This is quantified by the overlaps of the linear and nonlinear modes and shown in the mode profiles and the positions of their eigenvalues in the spectrum. Before

closing, let us discuss the distinction between _inherited_ and _emergent_ nonlinear phenomena. If the underlying nonlinear system is topological, this distinction is manifested in the

topological invariants pertinent to the edge modes of the system and perhaps in other quantities. During nonlinear evolution, some of the local quantities, such as the edge modes, can be

modified by nonlinearity without closing the gap or changing the topological invariants. If these modified nonlinear modes are similar according to some measure (such as the quantity _F_edge

used here) to the modes of the underlying linear system, we say that their properties are _inherited_. However, if the underlying linear system is initially topologically trivial, under

some conditions, it may happen that the nonlinear dynamics change the topological invariants and turn the system into a topologically nontrivial regime. Because the action of nonlinearity is

normally local, for such a scenario to occur, it appears that the excitation must be extended. For this type of scenario, which is in principle possible, we say that the topological

properties of the nonlinear system are _emergent_ because they are not present in the corresponding linear system. Although emergent nonlinear phenomena such as band inversion and

topological phase transitions have not been observed in the particular setting employed in this study, we believe that they should exist in some nonlinear topological systems. In conclusion,

we have established trivial and nontrivial photonic SSH lattices by direct cw-laser writing in a bulk nonlinear crystal and thereby experimentally demonstrated the nonlinearity-induced

coupling of light into a topological edge state. In particular, we have shown that two optical beams from different directions can couple into (stay away from) a nontrivial defect channel

under nonlinear (linear) excitation upon collision. We have developed a theoretical protocol to explain the dynamics observed in this lattice system. Our theory shows that, by nonlinear

excitation of bulk modes, depending on the input power (i.e., the strength of the nonlinearity), the trapped light beam can evolve into a nonlinear edge mode with a profile featuring a

topological edge state fully inherited from the underlying linear system. These features exemplify the interplay of topology and nonlinearity in topologically nontrivial systems. The

protocol presented in this work is general, applicable not only to non-stationary and dynamically evolving systems such as the one studied here but also to systems other than SSH lattices

and even to systems beyond the photonic platform. For future research, we envision that many fundamental issues could arise from systems with _emergent_, rather than solely _inherited_,

nonlinear topological phenomena, where nonlinear dynamics can close and reopen the gap and induce topological phase transitions. A toolkit for such studies is presented here. Our results may

bring about insights and advances in the nonlinear control of topological quantum states in similar systems28,36,54,55 as well as in photonic parity-time-symmetric and anomalous Floquet

topological systems where the excitation can be tuned by nonlinearity48,65. MATERIALS AND METHODS Our experimental method for laser-writing the 1D SSH photonic lattice is shown in Fig. 4,

where Fig. 4a illustrates the idea of establishing the superlattice by overlapping two periodic index potentials of different periods43 and Fig. 4b shows the experimental setup. The two

periodic potentials are indicated by the dashed curves in Fig. 4a, which are written into the nonlinear SBN crystal one after another due to the optically induced local index change.

Superposing these two potentials produces the SSH lattice (solid curve), where the coupling of neighboring sites can be fine-tuned by shifting their relative position. When the lattice is

terminated at the strong-coupling “bond” denoted by _t_, this corresponds to the nontrivial case shown in the left panels of Fig. 1, since in this case the intra-cell coupling is weaker than

the inter-cell coupling. The opposite case occurs when the lattice is terminated at the weak-coupling “bond” denoted by _t_′, which represents the trivial lattice shown in the right panels

of Fig. 1. Since the cw-laser writing technique60 is used to induce the potential one by one, the lattice edge (and interface) can be readily reconfigured by this method. In the setup of

Fig. 4b, the upper and lower paths correspond to the lattice-writing and probing beams, respectively. A collimated laser beam (with wavelength 532 nm and power 100 mW) illuminates a

programmable spatial light modulator (SLM), which alternatively generates the writing and probing beams. In the writing path, the beam exiting the SLM is collimated and spatially filtered

with a narrow single slit and then further compressed into a narrow stripe beam with an FWHM of ~10 μm by a pair of cylindrical lenses, so it is long enough to cover the entire 20-mm-long

SBN:61 crystal. Its input position to the crystal is precisely controlled by the SLM. Through a multi-step writing process in the biased crystal (with an applied field 240 kV/m), the desired

SSH lattice is established with a lattice constant of 38μm. Because of the “memory” effect of the photorefractive crystal, this index lattice remains intact for more than one hour, enough

time to measure the beam dynamics. In the lower path, the probe (stripe) beam is launched into the lattice, and its input size, position, and direction can all be adjusted by the SLM. In

addition, the probe beam can undergo linear or nonlinear propagation through the lattice, depending on whether or not a proper bias field is applied62. The CCD camera in the writing beam

path is used to examine the position of the stripe writing beam, and the other CCD is used to monitor the input and output of the probe beam propagating through the lattice. To image a

particular SSH photonic lattice after it is written, a single stripe beam is launched into the crystal to probe the waveguides one by one, and then all guided outputs of the probe beam are

superimposed to obtain the lattice structure of Fig. 1(a1), (c1). REFERENCES * Lu, L., Joannopoulos, J. D. & Soljačić, M. Topological photonics. _Nat. Photonics_ 8, 821–829 (2014). ADS

Google Scholar  * Ozawa, T. et al. Topological photonics. _Rev. Mod. Phys._ 91, 015006 (2019). ADS  MathSciNet  Google Scholar  * Klitzing, K. V., Dorda, G. & Pepper, M. New method for

high-accuracy determination of the fine-structure constant based on quantized Hall resistance. _Phys. Rev. Lett._ 45, 494–497 (1980). Article  ADS  Google Scholar  * Thouless, D. J. et al.

Quantized Hall conductance in a two-dimensional periodic potential. _Phys. Rev. Lett._ 49, 405–408 (1982). ADS  Google Scholar  * Kane, C. L. & Mele, E. J. Z2 Topological order and the

quantum spin Hall effect. _Phys. Rev. Lett._ 95, 146802 (2005). ADS  Google Scholar  * Kane, C. L. & Mele, E. J. Quantum spin Hall effect in graphene. _Phys. Rev. Lett._ 95, 226801

(2005). ADS  Google Scholar  * Qi, X. L. & Zhang, S. C. Topological insulators and superconductors. _Rev. Mod. Phys._ 83, 1057–1110 (2011). ADS  Google Scholar  * Haldane, F. D. M. &

Raghu, S. Possible realization of directional optical waveguides in photonic crystals with broken time-reversal symmetry. _Phys. Rev. Lett._ 100, 013904 (2008). ADS  Google Scholar  *

Raghu, S. & Haldane, F. D. M. Analogs of quantum-Hall-effect edge states in photonic crystals. _Phys. Rev. A_ 78, 033834 (2008). ADS  Google Scholar  * Hatsugai, Y. Chern number and edge

states in the integer quantum Hall effect. _Phys. Rev. Lett._ 71, 3697–3700 (1993). ADS  MathSciNet  MATH  Google Scholar  * Jackiw, R. & Rebbi, C. Solitons with fermion number 1/2.

_Phys. Rev. D._ 13, 3398–3409 (1976). ADS  MathSciNet  Google Scholar  * Wang, Z. et al. Observation of unidirectional backscattering-immune topological electromagnetic states. _Nature_ 461,

772–775 (2009). ADS  Google Scholar  * Rechtsman, M. C. et al. Photonic Floquet topological insulators. _Nature_ 496, 196–200 (2013). ADS  Google Scholar  * Hafezi, M. et al. Imaging

topological edge states in silicon photonics. _Nat. Photonics_ 7, 1001–1005 (2013). ADS  Google Scholar  * Khanikaev, A. B. et al. Photonic topological insulators. _Nat. Mater._ 12, 233–239

(2013). ADS  Google Scholar  * Tsui, D. C., Stormer, H. L. & Gossard, A. C. Two-dimensional magnetotransport in the extreme quantum limit. _Phys. Rev. Lett._ 48, 1559–1562 (1982). ADS

Google Scholar  * Fermi, E. et al. _Studies of the Nonlinear Problems_. (Los Alamos Scientific Lab, 1955). * Pierangeli, D. et al. Observation of Fermi-Pasta-Ulam-Tsingou recurrence and its

exact dynamics. _Phys. Rev. X_ 8, 041017 (2018). Google Scholar  * Malkova, N. et al. Transition between Tamm-like and Shockley-like surface states in optically induced photonic

superlattices. _Phys. Rev. A_ 80, 043806 (2009). ADS  Google Scholar  * Manela, O. et al. Hofstadter butterflies in nonlinear Harper lattices, and their optical realizations. _N. J. Phys._

12, 053017 (2010). Google Scholar  * Lumer, Y. et al. Self-localized states in photonic topological insulators. _Phys. Rev. Lett._ 111, 243905 (2013). ADS  Google Scholar  * Chen, S. Q. et

al. Broadband optical and microwave nonlinear response in topological insulator. _Optical Mater. Express_ 4, 587–596 (2014). ADS  Google Scholar  * Leykam, D. & Chong, Y. D. Edge

solitons in nonlinear-photonic topological insulators. _Phys. Rev. Lett._ 117, 143901 (2016). ADS  Google Scholar  * Hadad, Y., Khanikaev, A. B. & Alù, A. Self-induced topological

transitions and edge states supported by nonlinear staggered potentials. _Phys. Rev. B_ 93, 155112 (2016). ADS  Google Scholar  * Bleu, O., Solnyshkov, D. D. & Malpuech, G. Interacting

quantum fluid in a polariton Chern insulator. _Phys. Rev. B_ 93, 085438 (2016). ADS  Google Scholar  * Zhou, X. et al. Optical isolation with nonlinear topological photonics. _N. J. Phys._

19, 095002 (2017). Google Scholar  * Kartashov, Y. V. & Skryabin, D. V. Bistable topological insulator with exciton-polaritons. _Phys. Rev. Lett._ 119, 253904 (2017). ADS  Google Scholar

  * Mittal, S., Goldschmidt, E. A. & Hafezi, M. A topological source of quantum light. _Nature_ 561, 502–506 (2018). ADS  Google Scholar  * Shalaev, M. I. et al. Robust topologically

protected transport in photonic crystals at telecommunication wavelengths. _Nat. Nanotechnol._ 14, 31–34 (2019). ADS  Google Scholar  * Dobrykh, D. A. et al. Nonlinear control of

electromagnetic topological edge states. _Phys. Rev. Lett._ 121, 163901 (2018). ADS  Google Scholar  * Smirnova, D. et al. Nonlinear topological photonics. _Appl. Phys. Rev._ 7, 021306

(_2020_). ADS  Google Scholar  * Solnyshkov, D. D. et al. Chirality of topological gap Solitons in Bosonic dimer Chains. _Phys. Rev. Lett._ 118, 023901 (2017). ADS  Google Scholar  *

Marzuola, J. L. et al. Bulk Soliton dynamics in Bosonic topological insulators. https://arxiv.org/abs/1904.10312 (2019). * Smirnova, D. A. et al. Topological edge states and gap solitons in

the nonlinear Dirac model. _Laser Photonics Rev._ 13, 1900223 (2019). ADS  Google Scholar  * Kruk, S. et al. Nonlinear light generation in topological nanostructures. _Nat. Nanotechnol._ 14,

126–130 (2019). ADS  Google Scholar  * Wang, Y. et al. Topologically enhanced harmonic generation in a nonlinear transmission line metamaterial. _Nat. Commun._ 10, 1102 (2019). ADS  Google

Scholar  * Smirnova, D. et al. Third-harmonic generation in photonic topological Metasurfaces. _Phys. Rev. Lett._ 123, 103901 (2019). ADS  Google Scholar  * St-Jean, P. et al. Lasing in

topological edge states of a one-dimensional lattice. _Nat. Photonics_ 11, 651–656 (2017). ADS  Google Scholar  * Bahari, B. et al. Nonreciprocal lasing in topological cavities of arbitrary

geometries. _Science_ 358, 636–640 (2017). ADS  Google Scholar  * Bandres, M. A. et al. Topological insulator laser: experiments. _Science_ 359, eaar4005 (2018). Google Scholar  * Su, W. P.,

Schrieffer, J. R. & Heeger, A. J. Solitons in Polyacetylene. _Phys. Rev. Lett._ 42, 1698–1701 (1979). ADS  Google Scholar  * Zak, J. Berry’s phase for energy bands in solids. _Phys.

Rev. Lett._ 62, 2747–2750 (1989). ADS  Google Scholar  * Malkova, N. et al. Observation of optical Shockley-like surface states in photonic superlattices. _Opt. Lett._ 34, 1633–1635 (2009).

ADS  Google Scholar  * Keil, R. et al. The random mass Dirac model and long-range correlations on an integrated optical platform. _Nat. Commun._ 4, 1368 (2013). ADS  Google Scholar  * Xiao,

M., Zhang, Z. Q. & Chan, C. T. Surface impedance and bulk band geometric phases in one-dimensional systems. _Phys. Rev. X_ 4, 021017 (2014). Google Scholar  * Blanco-Redondo, A. et al.

Topological optical waveguiding in silicon and the transition between topological and trivial defect states. _Phys. Rev. Lett._ 116, 163901 (2016). ADS  Google Scholar  * Kruk, S. et al.

Edge states and topological phase transitions in Chains of dielectric nanoparticles. _Small_ 13, 1603190 (2017). Google Scholar  * Weimann, S. et al. Topologically protected bound states in

photonic parity–time-symmetric crystals. _Nat. Mater._ 16, 433–438 (2017). ADS  Google Scholar  * Saei Ghareh Naz, E. et al. Topological phase transition in a stretchable photonic crystal.

_Phys. Rev. A_ 98, 033830 (2018). ADS  Google Scholar  * Poddubny, A. et al. Topological Majorana states in zigzag chains of plasmonic nanoparticles. _ACS Photonics_ 1, 101–105 (2014).

Google Scholar  * Bleckmann, F. et al. Spectral imaging of topological edge states in plasmonic waveguide arrays. _Phys. Rev. B_ 96, 045417 (2017). ADS  Google Scholar  * Kitagawa, T. et al.

Observation of topologically protected bound states in photonic quantum walks. _Nat. Commun._ 3, 882 (2012). ADS  Google Scholar  * Cardano, F. et al. Detection of Zak phases and

topological invariants in a chiral quantum walk of twisted photons. _Nat. Commun._ 8, 15516 (2017). ADS  Google Scholar  * Blanco-Redondo, A. et al. Topological protection of biphoton

states. _Science_ 362, 568–571 (2018). ADS  MathSciNet  MATH  Google Scholar  * Bello, M. et al. Unconventional quantum optics in topological waveguide QED. _Sci. Adv._ 5, eaaw0297 (2019).

ADS  Google Scholar  * Zhao, H. et al. Topological hybrid silicon microlasers. _Nat. Commun._ 9, 981 (2018). ADS  Google Scholar  * Parto, M. et al. Edge-mode lasing in 1D topological active

arrays. _Phys. Rev. Lett._ 120, 113901 (2018). ADS  Google Scholar  * Han, C. et al. Lasing at topological edge states in a photonic crystal L3 nanocavity dimer array. _Light. Sci. Appl._

8, 40 (2019). ADS  Google Scholar  * Bisianov, A. et al. Stability of topologically protected edge states in nonlinear fiber loops. _Phys. Rev. A_ 100, 063830 (2019). ADS  Google Scholar  *

Xia, S. Q. et al. Unconventional flatband line states in photonic Lieb lattices. _Phys. Rev. Lett._ 121, 263902 (2018). ADS  Google Scholar  * Szameit, A. et al. Discrete nonlinear

localization in femtosecond laser written waveguides in fused silica. _Opt. Express_ 13, 10552–10557 (2005). ADS  Google Scholar  * Fleischer, J. W. et al. Observation of two-dimensional

discrete solitons in optically induced nonlinear photonic lattices. _Nature_ 422, 147–150 (2003). ADS  Google Scholar  * Bandres, M. A., Rechtsman, M. C. & Segev, M. Topological photonic

quasicrystals: fractal topological spectrum and protected transport. _Phys. Rev. X_ 6, 011016 (2016). Google Scholar  * Loring, T. A. & Hastings, M. B. Disordered topological insulators

via C*-algebras. _EPL (Europhys. Lett.)_ 92, 67004 (2010). ADS  Google Scholar  * Mukherjee, S. & Rechtsman, M. C. Observation of Floquet solitons in a topological bandgap. _Science_

368, 856–859 (2020). ADS  Google Scholar  Download references ACKNOWLEDGEMENTS We thank U. Peschel, K. Makris, and D. Li for discussion and assistance. This research is supported by the

National Key R&D Program of China under Grant No. 2017YFA0303800, the National Natural Science Foundation (11922408, 91750204, 11674180), PCSIRT, and the 111 Project (No. B07013) in

China. D.J. and H.B. acknowledge support in part by the Croatian Science Foundation Grant No. IP-2016-06-5885 SynthMagIA, and the QuantiXLie Center of Excellence, a project co-financed by

the Croatian Government and European Union through the European Regional Development Fund - the Competitiveness and Cohesion Operational Programme (Grant KK.01.1.1.01.0004). D.S. has been

supported by the Australian Research Council (DE19010043). D.L. is supported by the Institute for Basic Science in Korea (IBS-R024-Y1). L.S. acknowledges support from the Russian Foundation

for Basic Research (grant No. 19-52-12053). AUTHOR INFORMATION Author notes * These authors contributed equally: Shiqi Xia, Dario Jukić, Nan Wang AUTHORS AND AFFILIATIONS * The MOE Key

Laboratory of Weak-Light Nonlinear Photonics, TEDA Applied Physics Institute and School of Physics, Nankai University, Tianjin, 300457, China Shiqi Xia, Nan Wang, Liqin Tang, Daohong Song,

Jingjun Xu, Zhigang Chen & Hrvoje Buljan * Faculty of Civil Engineering, University of Zagreb, A. Kačića Miošića 26, 10000, Zagreb, Croatia Dario Jukić * Nonlinear Physics Centre,

Research School of Physics, Australian National University, Canberra, ACT, 2601, Australia Daria Smirnova * Institute of Applied Physics, Russian Academy of Science, Nizhny Novgorod, 603950,

Russia Lev Smirnov * Collaborative Innovation Center of Extreme Optics, Shanxi University, Taiyuan, 030006, Shanxi, PR China Liqin Tang, Daohong Song, Jingjun Xu & Zhigang Chen *

Institut für Physik, Universität Rostock, Albert-Einstein-Strasse 23, 18059, Rostock, Germany Alexander Szameit * Center for Theoretical Physics of Complex Systems, Institute for Basic

Science (IBS), Daejeon, 34126, Republic of Korea Daniel Leykam * Basic Science Program, Korea University of Science and Technology, Daejeon, 34113, Republic of Korea Daniel Leykam *

Department of Physics and Astronomy, San Francisco State University, San Francisco, CA, 94132, USA Zhigang Chen * Department of Physics, Faculty of Science, University of Zagreb, Bijenička

c. 32, 10000, Zagreb, Croatia Hrvoje Buljan Authors * Shiqi Xia View author publications You can also search for this author inPubMed Google Scholar * Dario Jukić View author publications

You can also search for this author inPubMed Google Scholar * Nan Wang View author publications You can also search for this author inPubMed Google Scholar * Daria Smirnova View author

publications You can also search for this author inPubMed Google Scholar * Lev Smirnov View author publications You can also search for this author inPubMed Google Scholar * Liqin Tang View

author publications You can also search for this author inPubMed Google Scholar * Daohong Song View author publications You can also search for this author inPubMed Google Scholar *

Alexander Szameit View author publications You can also search for this author inPubMed Google Scholar * Daniel Leykam View author publications You can also search for this author inPubMed

Google Scholar * Jingjun Xu View author publications You can also search for this author inPubMed Google Scholar * Zhigang Chen View author publications You can also search for this author

inPubMed Google Scholar * Hrvoje Buljan View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS All authors contributed to this work. CORRESPONDING

AUTHORS Correspondence to Daohong Song, Zhigang Chen or Hrvoje Buljan. ETHICS DECLARATIONS CONFLICT OF INTEREST The authors declare that they have no conflict of interest. SUPPLEMENTARY

INFORMATION SUPPLEMENTARY MATERIAL RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing,

adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons

license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a

credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted

use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT

THIS ARTICLE CITE THIS ARTICLE Xia, S., Jukić, D., Wang, N. _et al._ Nontrivial coupling of light into a defect: the interplay of nonlinearity and topology. _Light Sci Appl_ 9, 147 (2020).

https://doi.org/10.1038/s41377-020-00371-y Download citation * Received: 01 April 2020 * Revised: 25 June 2020 * Accepted: 04 July 2020 * Published: 19 August 2020 * DOI:

https://doi.org/10.1038/s41377-020-00371-y SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
