Magnetization and magneto-transport staircaselike behavior in layered perovskite sr2coo4 at low temperature

ABSTRACT Polycrystalline layered perovskite Sr2CoO4 sample was synthesized by high temperature and high pressure method. The staircaselike behavior has been observed in the magnetization and

resistivity versus field curves of Sr2CoO4 at low temperature. The main features of the steps can be obtained from the measured results: (i) the positions of the external magnetic field at

which steps occur are varying in different measurement runs, (ii) the steps only appear at low temperature and disappear with a slight increase of the temperature, (iii) the steps are

dependent on the temperature and field sweep rate. Based on the features of the magnetization and magneto-transport staircaselike behavior in Sr2CoO4, the unusual phenomenon can be ascribed

to an avalanche of flipping domains in terms of the random field theory. SIMILAR CONTENT BEING VIEWED BY OTHERS GIANT LINEAR MAGNETORESISTANCE IN HALF-METALLIC SR2CRMOO6 THIN FILMS Article

Open access 27 May 2021 UNVEILING UNCONVENTIONAL MAGNETISM AT THE SURFACE OF SR2RUO4 Article Open access 04 October 2021 EVIDENCE OF HIGH-TEMPERATURE MAGNETIC SPIRAL IN YBACUFEO5

SINGLE-CRYSTAL BY SPHERICAL NEUTRON POLARIMETRY Article Open access 19 December 2024 INTRODUCTION In recent years, two dimensional compounds with K2NiF4-type structure (a type of tetragonal

structures) have generated great interest after the discovery of superconductivity, magnetoresistance (MR), spin/charge stripes in nickelates and manganites1,2,3,4,5,6,7,8,9,10,11,12,13.

Two-dimensional layer structured perovskite compound Sr2CoO4 is one of K2NiF4-type structured materials with space group I4/mmm1. The structure of Sr2CoO4 consists of corner sharing CoO6

octahedra with two-dimension CoO2 planes separated by insulating rock-salt layers of SrO. In the past reports, both Sr2CoO4 single-crystalline thin films and polycrystalline bulks were

reported as a metallic ferromagnets with a fairly high Curie temperature (_T__C_) of 255 K1,2,3. The susceptibility data above _T__C_ of Sr2CoO4 can be well fitted to the Curie-Weiss law χ =

 C/(T + Θ). The observed value of the effective magnetic moment per Co ion μeff (μB/Co) is 4.11, which can approximately coincide with that expected for spin only moment of the

intermediate-spin (IS) state (t2g4eg1, S = 3/2) Co4+ (3.87 μB/Co) and be quite different from the values of the low-spin (LS) state (t2g5eg0, S = 1/2) Co4+ (1.73 μB/Co) and high-spin (HS)

state (t2g3eg2, S = 5/2) Co4+ (5.92 μB/Co)1,4. Below _T__C_, a cluster-glass state exists in Sr2CoO4 system5. It has been observed that Sr2CoO4 reveals large magnetic anisotropy where the

c-axis is the magnetic easy axis6. The coercivity (_H__C_) of Sr2CoO4 is approximately 2.2~2.5 T at 5 K from polycrystalline sample1 and single-crystalline film2. It suggests great potential

of Sr2CoO4 for high quality memory applications7. The half-metallicity of Sr2CoO4 has been predicted6. Different relationships of the electrical resistivity (ρ) versus temperature were

observed in polycrystalline Sr2CoO4 and single-crystalline Sr2CoO4 film2,4. The temperature dependence of ρ in polycrystalline Sr2CoO4 exhibits semiconducting characteristics4. The ρ above

_T__C_ for the polycrystalline Sr2CoO4 can be well fitted by the variable range hopping (VRH) model ρ = ρ_0_exp(_T__0_/_T_)1/4. By comparison, in single-crystalline Sr2CoO4 film, the

inter-CoO2-plane ρ of _c_-axis shows a sharp peak at _T__C_, with a metallic behavior below _T__C_ and a semiconducting behavior above _T__C_2. In contrast, the intra-CoO2-plane ρ of

_b_-axis shows metallic characteristics2. At low temperature, large negative MR was observed in Sr2CoO41. The MR reaches a maximum at _H__C_. Therefore, the magnetic and electrical

properties of Sr2CoO4 at low temperature, especially below 5 K, will be rather significant to study. Moreover, certain exceptional and unusual physical phenomenons were observed frequently

at low temperature, such as superconductivity, magnetic jump and quantum tunneling14,15,16,17,18,19,20. An interesting phenomenon, a staircaselike behavior which is analogous to resonant

quantum tunneling of magnetization, was indeed observed in our Sr2CoO4 polycrystalline sample below 2.8 K. So far, to our knowledge, this is the first time that the staircaselike behavior

was observed in Sr2CoO4. It may suggest the new application potentials of Sr2CoO4 in magnetic materials and devices. Thus, systematical experiments are urgently needed to study the

exceptional phenomenon of Sr2CoO4 at low temperature and explore the possibility of the staircaselike behavior for various practical applications. In this work, the magnetic and electrical

properties of polycrystalline Sr2CoO4 were studied below 5 K. The staircaselike behavior was observed in a series of magnetic and electrical curves, such as magnetization versus field

(_M-H_) and resistivity versus field (_ρ-H_) curves. Based on the reported researches and explanations on the staircaselike behaviors observed in other materials, the mechanism of the

staircaselike behavior in Sr2CoO4 was discussed in detail. RESULTS Figure 1 shows the powder X-ray diffraction (XRD) pattern of polycrystalline Sr2CoO4 measured at room temperature. The main

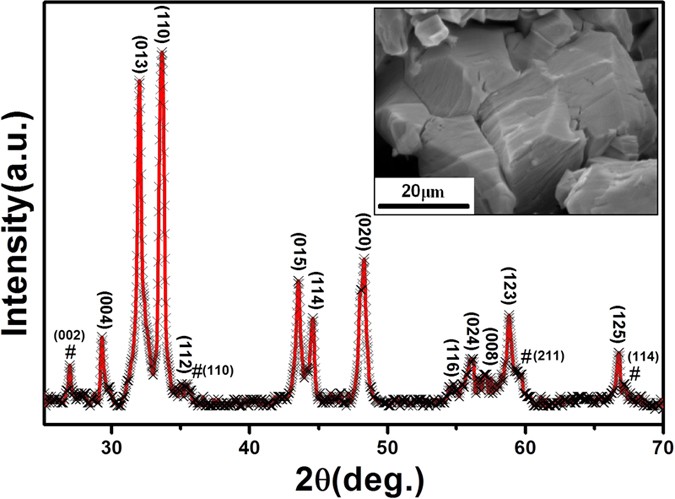

diffraction peaks of the sample can be fitted well with the XRD profile of Sr2CoO4 and indexed using the lattice parameters for a tetragonal structure with _a_ = 3.8372 Å and _c_ = 12.1935 

Å. A few additional peaks (marked by #) corresponding to nonmagnetic impurity SrO2 can be observed in the pattern. However, this SrO2 impurity phase is present in a small amount from the

weak intensity of the peaks and has no effect on the magnetic properties of our sample. The inset of Fig. 1 shows the scanning electron microscope (SEM) photograph of Sr2CoO4. The grains of

the sample, with the average size approximately 20 μm, are dense and distribute uniformly. The _M-H_ curve of Sr2CoO4 measured at 1.8 K with a field sweep rate of 25 Oe/s is displayed in

Fig. 2(a). The saturation magnetization is 1.02μ_B_/Co and the _H__C_ is approximately 1.9 T. The large _H__C_ is caused by high anisotropy in Sr2CoO48. Most interestingly, unlike the

general hysteresis loops, a staircaselike behavior can be observed from the _M-H_ loop in Fig. 2(a). The steps on both sides of the hysteresis loop are central symmetry. The span (ΔM) of the

four stairs on one side of the loop decreases with the increasing of the applied field (see Fig. 2(a)). The d_M/_d_H_ versus field curve (Fig. 2(b)) clearly shows that the four jumps on one

side occur at −1.84 T (1), −2.56 T (2), −3.20 T (3), −3.70 T (4), respectively. Moreover, two almost invisible jumps are reflected (see the # in Fig. 2(b)). The inset of Fig. 2(a) shows the

three measurement runs from the same piece of sample measured at 1.8 K with a field sweep rate of 25 Oe/s. It can be seen that the steps on these curves of the same piece of sample are

obviously misaligned for different measurement runs under the same measurement condition. This result suggests the randomness of the staircaselike behavior in different measurement runs.

Figure 3 shows the _M-H_ curves of Sr2CoO4 measured at different temperatures. It can be observed that with increasing of the temperature, the quantity of the steps decreases and the

positions of the corresponding steps move towards the direction of high field. At 2.8 K, the staircaselike behavior disappears completely. These results suggest that the staircaselike

behavior is sensitive excessively to the slight temperature variation. The inset of Fig. 3 shows the _M-H_ curves of Sr2CoO4 measured at 2 K with different magnetic field sweep rates. With

the increasing of the sweep rate, the quantity of the steps increases gradually and the positions of the corresponding steps move towards the low field (see the arrow in the inset of Fig.

3). It can be deemed that the staircaselike behavior in Sr2CoO4 is dependent on the magnetic field sweep rate. Figure 4 shows the _ρ-H_ curve of Sr2CoO4 measured at 2 K. The resistivity

reaches a maximum at _H__C_, which is consistent with the previous reports1,2. This phenomenon can be considered as tunneling MR at domain boundaries. It is attributed to the field

suppression of the spin-dependent scattering at domain boundaries8. The staircaselike behavior can be also observed from the _ρ-H_ curve. The insets (a) and (b) of Fig. 4 show the _ρ-H_

curves of Sr2CoO4 measured at different temperatures and magnetic field sweep rates, respectively. The steps in the inset (a) disappear gradually with the increasing of the temperature. The

three _ρ-H_ curves in the inset (b) of Fig. 4 are misaligned for different field sweep rates. The positions of the corresponding steps on the _ρ-H_ curves also move towards the low field

with the increasing of the field sweep rate (see the arrow in the inset (b) of Fig. 4). The steps on the _ρ-H_ curves of the same piece of sample are also misaligned for different

measurement runs under the same measurement condition (figure not shown). These phenomena are consistent with the above magnetic results of Sr2CoO4 (see the _M-H_ curves of Fig. 3).

DISCUSSION Three main characteristics of the staircaselike behavior in Sr2CoO4 are concluded from the measured results: (i) the positions of the steps are varying in different measurement

runs, (ii) the steps only appear at low temperature (T < 2.8 K) and disappear with a slight increase of the temperature, (iii) the steps are dependent on the temperature and field sweep

rate. The possible mechanism of the staircaselike behavior will be systematically discussed below. The similar staircaselike behaviors in hysteresis loops have been also reported in many

types of materials, such as Ca3Co2O614,15, [Mn4]2 dimer16, FexMg1-xCl221, PrVO322, UGe223,24 and amorphous Dy-Cu25. Simultaneously, different theories have been presented to explain the

staircaselike behaviors. The main three theories are resonant quantum tunneling14,15,16,17,18,19,20, random field21,22,23,24,25,26,27,28,29,30,31,32,33,34,35 and intrinsic pinning of

magnetic domain walls36,37,38. Resonant quantum tunneling has been applied to systems involving a large number of identical high-spin materials14,15,16,17,18,19,20, as in the case of

Ca3Co2O614,15 and Mn12 acetate20. Ca3Co2O6 is a type of perovskite material with K4CdCl6-type structure (an infinite chain-type structure). The analogous steps can be observed from the _M-H_

curves of Ca3Co2O6 at low temperature14,15. The steps are resulted from the transformation and change of the percentage of different magnetism in the materials caused by the applied field

at different temperatures14. The chain-type structure is the key factor to the staircaselike behavior. The intrachain coupling is ferromagnetic and the interchain coupling is

antiferromagnetic. However, Sr2CoO4 is one type of two-dimensional layer structured compound. Obviously, no chain-type structure exists in Sr2CoO4. On the other hand, the most important

characteristic of the staircaselike behavior in quantum-effect system is that the positions of the steps are temperature-independent below a critical temperature17,18. The results from the

Fig. 3 of Sr2CoO4 show that the steps in the six _M-H_ curves exhibit no similar characteristic of temperature independence. This result indicates that the staircaselike behavior in Sr2CoO4

is incompatible with resonant quantum tunneling. The presence of random fields is another explanation that can lead to staircaselike behavior. Under this mechanism, a given domain is flipped

by an external field, thus reversing the magnetization of the neighboring domains and finally resulting in an avalanche of flipping domains21,22,23,24,25,26,27,28,29 considering the random

field Ising model (RFIM)31,32,33,34. Each jump in one curve corresponds to an avalanche process where the spins (of one or more clusters in the polycrystalline Sr2CoO4) align with the

applied magnetic field26. The noteworthy characteristic of the steps in this theory is the randomness. The positions of the steps are varying in different measurement runs. Meanwhile, the

steps can be only observed at low temperature. The ferromagnetic clusters in Sr2CoO4 sample play a crucial role for this phenomenon13,26,27,28. Below the critical temperature at which the

steps are vanished, the ferromagnetic cluster-sizes in the sample increase and the cluster percolation process yields an increase in the ferromagnetic correlation length with lowering the

temperature26. The larger cluster-size can result in the bigger avalanche, which gives rise to the distinct jumps. Above the critical temperature, the thermal activation is dominating26 and

the cluster-size is so small, which can only cause small avalanche. As a consequence, the jumps become sightless and the hysteresis loop becomes smooth. This type of staircaselike behaviors

is dependent on temperature, but independent on field sweep rate. Such an explanation has been proposed in site-diluted metamagnet FexMg1−xCl221, single crystal antiferromagnet PrVO322,

single crystalline UGe223,24, disordered systems such as the amorphous Dy-Cu25, polycrystalline CeNi1−xCux26,27,28,29 and liquid quenched R3Co alloys30. All the features of the steps in

Sr2CoO4 are similar to the characteristics of staircaselike behaviors in PrVO322, UGe223,24 and CeNi1−xCux26,27,28,29. The other features of the steps, except the dependence of magnetic

field sweep rate, can be well explained by the random field theory. The dependence of magnetic field sweep rate may result from the magnetocaloric effect22,35. The positions of the

corresponding steps move to higher field with the decreasing of the sweep rate. It suggests the existence of adiabaticity in Sr2CoO4. In the adiabatic state, the energy released in the spin

reversal process dissipates tardily35. With the increasing of the sweep rate, the energy accumulates rapidly and facilitates the reversal of neighboring spins. It results in the sweep rate

dependence of the steps. From this point of view, the fundamental reason of the staircaselike behavior in Sr2CoO4 may be ascribed to an avalanche of flipping domains in terms of the random

field theory. The intrinsic pinning of magnetic domain walls is compatible with the magnetization jumps observed in alloy samples36,37,38. The domain walls motioning inside the ferromagnetic

domains depend on the pinning effect introduced by foreign elements and the local crystal fields. The pinning effect can result in the creation of energetic barriers, which influence the

magnetization process at low temperature36. In the case of EuBaCo1.92M0.08O5.5−δ (M = Zn, Cu)37, Zn2+ and Cu2+ are the origin of the pinning of the narrow domain walls. When the magnetic

field becomes high enough to overcome the pinning effect, the domain walls tend to disappear and the spins of the ferromagnetic domains are all aligned. This type of the staircaselike

behaviors strongly depends on the external magnetic field sweep rate. When the magnetic field changes slowly enough, the _M-H_ curve becomes normal with no jump38. This phenomenon was

similar to the result from the inset of Fig. 3 in Sr2CoO4. In the perfect Sr2CoO4 crystals, no substituted defect results in the effective pinning. However, here, the saturated moment of the

Sr2CoO4 sample (1.02μ_B_/Co) is lower than the calculated value (1.97 μB/Co)2. Meanwhile, the μeff of Co ion (4.11 μB/Co) in Sr2CoO4 is also different from the spin only moments of LS Co4+

(1.73 μB/Co), IS Co4+ (3.87 μB/Co) and HS Co4+ (5.92 μB/Co)1,4. These results suggest that multiple spin states may exist in our Sr2CoO4 sample. The interactions between the neighboring IS

or HS Co ions (Co(IS or HS)-O-Co(IS or HS)) are antiferromagnetic39,40, though the ground state of Sr2CoO4 is ferromagnetic6. It means that antiferromagnetism and ferromagnetism are

coexistent in Sr2CoO4, which can lead to multiple magnetic phases. The multiple magnetic phases may result in the intrinsic pinning of magnetic domain walls36,41,42 and further contribute to

the magnetization and magneto-transport staircaselike behavior in the Sr2CoO4. In summary, layered perovskite compound Sr2CoO4 polycrystalline sample was synthesized by high temperature and

high pressure method. The magnetic and magneto-transport properties of Sr2CoO4 were studied at low temperature. A staircaselike behavior on _M-H_ and _ρ-H_ curves was observed in

polycrystalline Sr2CoO4 below 2.8 K. The steps appear with a certain degree of randomness in different measurement runs. The staircaselike behavior is dependent on the temperature and the

magnetic field sweep rate. The fundamental reason of the staircaselike behavior can be considered as the presence of random fields, leading to an avalanche of flipping domains. The multiple

magnetic phases which can result in the intrinsic pinning of magnetic domain walls, may contribute to the magnetization and magneto-transport staircaselike behavior in the Sr2CoO4. METHODS

Polycrystalline sample of composition Sr2CoO4 was synthesized under high pressure at high temperature. Starting materials of SrO2 and Co were well mixed in a molar ratio of SrO2 : Co = 2 :

1. The mixture was sealed into a gold capsule. The capsule was first compressed at 6 GPa in a high pressure apparatus (flat-belt-type-high-pressure apparatus, 1500 ton), then heated to 1200 

°C for 30 minutes and finally quenched to room temperature followed by releasing of pressure. The crystal structure of the polycrystalline sample was identified by the powder X-ray

diffraction (XRD, Rigaku Smartlab3), using Cu-Kα radiation (λ = 1.54184 Å). The morphology of the sample was observed using a scanning electron microscope (SEM). The dc magnetic measurements

were investigated using a vibrating sample magnetometer (VSM) integrated in a physical property measurement system (PPMS-9, Quantum Design). The electrical resistivity of the sample was

measured with a Quantum Design PPMS-9 system using the standard four-probe ac method. ADDITIONAL INFORMATION HOW TO CITE THIS ARTICLE: Li, Q. _et al_. Magnetization and magneto-transport

staircaselike behavior in layered perovskite Sr2CoO4 at low temperature. _Sci. Rep._ 6, 27712; doi: 10.1038/srep27712 (2016). REFERENCES * Wang, X. L. & Takayama-Muromachi, E. Magnetic

and transport properties of the layered perovskite system Sr2−yYyCoO4 (0 ≤ y ≤ 1). Phys. Rev. B 72, 064401 (2005). ADS  Google Scholar  * Matsuno, J. et al. Metallic ferromagnet with

square-lattice CoO2 sheets. Phys. Rev. Lett. 93, 167202 (2004). CAS  PubMed  ADS  Google Scholar  * Wang, X. L., Takayama-Muromachi, E., Dou, S. X. & Cheng, Z. X. Band structures,

magnetic properties and enhanced magnetoresistance in the high pressure phase of Gd and Y doped two-dimensional perovskite Sr2CoO4 compounds. Appl. Phys. Lett. 91, 062501 (2007). ADS  Google

Scholar  * Xu, M., Balamurugan, S. & Takayama-Muromachi, E. Magnetic and transport properties and spin states of layered cobalt oxides Sr2−xHoxCoO4 (0 ≤ x ≤ 1.0). Prog. Theor. Phys.

Supp. 159, 349 (2005). CAS  ADS  Google Scholar  * Pandey, P. K., Choudhary, R. J. & Phase, D. M. Magnetic behavior of layered perovskite Sr2CoO4 thin film. Appl. Phys. Lett. 103, 132413

(2013). ADS  Google Scholar  * Pandey, S. K. Correlation induced half-metallicity in a ferromagnetic single-layered compound: Sr2CoO4 . Phys. Rev. B 81, 035114 (2010). ADS  Google Scholar

* Pandey, P. K., Choudhary, R. J., Mishra, D. K., Sathe, V. G. & Phase, D. M. Signature of spin-phonon coupling in Sr2CoO4 thin film: a Raman spectroscopic study. Appl. Phys. Lett. 102,

142401 (2013). ADS  Google Scholar  * Wang, X. L., Sakurai, H. & Takayama-Muromachi, E. Synthesis, structures and magnetic properties of novel Roddlesden-Popper homologous series

Srn+1ConO3n+1 (n = 1, 2, 3, 4 and ∞). J. Appl. Phys. 97, 10M519 (2005). Google Scholar  * Lee, K.-W. & Pickett, W. E. Correlation effects in the high formal oxidation-state compound

Sr2CoO4 . Phys. Rev. B 73, 174428 (2006). ADS  Google Scholar  * Wu, H. Metal-insulator transition in Sr2−xLaxCoO4 driven by spin-state transition. Phys. Rev. B 86, 075120 (2012). ADS

Google Scholar  * Yao, Q. W. et al. Band structures and magnetic and transport properties of La doped two dimensional Sr2CoO4 . J. Appl. Phys. 101, 09N515 (2007). Google Scholar  * Yao, Q.

et al. Density of states, magnetic and transport properties of Nd doped two dimensional perovskite compound Sr2CoO4 . J. Appl. Phys. 111, 07D708 (2012). Google Scholar  * Pandey, P. K.,

Choudhary, R. J. & Phase, D. M. Anomalous temperature dependence in valence band spectra: a resonant photoemission study of layered perovskite Sr2CoO4 . Appl. Phys. Lett. 104, 182409

(2014). ADS  Google Scholar  * Maignan, A., Michel, C., Masset, A. C., Martin, C. & Raveau, B. Single crystal study of the one dimensional Ca3Co2O6 compound: five stable configurations

for the Ising triangular lattice. Eur. Phys. J. B 15, 657 (2000). CAS  ADS  Google Scholar  * Maignan, A. et al. Quantum tunneling of the magnetization in the Ising chain compound Ca3Co2O6 .

J. Mater. Chem. 14, 1231 (2004). CAS  Google Scholar  * Tiron, R., Wernsdorfer, W., Foguet-Albiol, D., Aliaga-Alcalde, N. & Christou, G. Spin quantum tunneling via entangled states in a

dimer of exchange-coupled single-molecule magnets. Phys. Rev. Lett. 91, 227203 (2003). CAS  PubMed  ADS  Google Scholar  * Wernsdorfer, W., Bhaduri, S., Boskovic, C., Christou, G. &

Hendrickson, D. N. Spin-parity dependent tunneling of magnetization in single-molecule magnets. Phys. Rev. B 65, 180403(R) (2002). ADS  Google Scholar  * Wernsdorfer, W., Aliaga-Alcalde, N.,

Hendrickson, D. N. & Christou, G. Exchange-biased quantum tunnelling in a supramolecular dimer of single-molecule magnets. Nature 416, 406 (2002). PubMed  ADS  Google Scholar  *

Wernsdorfer, W., Bhaduri, S., Tiron, R., Hendrickson, D. N. & Christou, G. Spin-spin cross relaxation in single-molecule magnets. Phys. Rev. Lett. 89, 197201 (2002). CAS  PubMed  ADS

Google Scholar  * Wernsdorfer, W., Sessoli, R. & Gatteschi, D. Nuclear-spin-driven resonant tunnelling of magnetisation in Mn12 acetate. Europhys. Lett. 47, 254 (1999). CAS  ADS  Google

Scholar  * Kushauer, J., van Bentum, R., Kleemann, W. & Bertrand, D. Athermal magnetization avalanches and domain states in the site-diluted metamagnet FexMg1−xCl2 . Phys. Rev. B 53,

11647 (1996). CAS  ADS  Google Scholar  * Tung, L. D. PrVO3: an inhomogeneous antiferromagnetic material with random fields. Phys. Rev. B 72, 054414 (2005). ADS  Google Scholar  * Nishioka,

T., Motoyama, G., Nakamura, S., Kadoya, H. & Sato, N. K. Unusual nature of ferromagnetism coexisting with superconductivity in UGe2 . Phys. Rev. Lett. 88, 237203 (2002). CAS  PubMed  ADS

  Google Scholar  * Lhotel, E., Paulsen, C. & Huxley, A. D. Commenton “Unusual nature of ferromagnetism coexisting with superconductivity in UGe2”. Phys. Rev. Lett. 91, 209701 (2003).

CAS  PubMed  ADS  Google Scholar  * Coey, J. M. D., McGuire, T. R. & Tissier, B. Amorphous Dy-Cu: random spin freezing in the presence of strong local anisotropy. Phys. Rev. B 24, 1261

(1981). CAS  ADS  Google Scholar  * Iglesias, J. R., Espeso, J. I., Marcano, N. & Gómez Sal, J. C. Cluster model with random anisotropy for hysteresis jumps in CeNi1−xCux alloys. Phys.

Rev. B 79, 195128 (2009). ADS  Google Scholar  * Marcano, N., Gómez Sal, J. C., Espeso, J. I., Fernández Barquín, L. & Paulsen, C. Cluster-glass percolative scenarioin CeNi1−xCux studied

by very low-temperature ac susceptibility and dc magnetization. Phys. Rev. B 76, 224419 (2007). ADS  Google Scholar  * Kawasaki, I. et al. Magnetic properties around quantum critical point

of CePt1−xRhx . Physica B 404, 2908 (2009). CAS  ADS  Google Scholar  * Marcano, N. et al. Mesoscopic magnetic statesin metallic alloys with strong electronic correlations: a percolative

scenario for CeNi1−xCux . Phys. Rev. Lett. 98, 166406 (2007). CAS  PubMed  ADS  Google Scholar  * Baranov, N. V., Pushkarski, V. I., Sviderski, A. E. & Sassik, H. Magnetic properties of

liquid quenched R3Co alloys. J. Magn. Magn. Mater. 157, 635 (1996). ADS  Google Scholar  * Sethna, J. P. et al. Hysteresis and hierarchies: dynamics of disorder-driven first-order phase

transformations. Phys. Rev. Lett. 70, 3347 (1993). CAS  PubMed  ADS  Google Scholar  * Dahmen, K. & Sethna, J. P. Hysteresis loop critical exponents in 6-є dimensions. Phys. Rev. Lett.

71, 3222 (1993). CAS  PubMed  ADS  Google Scholar  * Perkovic, O., Dahmen, K. & Sethna, J. P. Avalanches, barkhausen noise and plain old criticality. Phys. Rev. Lett. 75, 4528 (1995).

CAS  PubMed  ADS  Google Scholar  * Dahmen, K. & Sethna, J. P. Hysteresis, avalanches and disorder-induced critical scaling: a renormalization-group approach. Phys. Rev. B 53, 14872

(1996). CAS  ADS  Google Scholar  * Ferre, R. & Barbara, B. Magnetisation studies of disordered systems: importance of adiabaticity in non-equilibrium processes. J. Magn. Magn. Mater.

140, 1861 (1995). ADS  Google Scholar  * Zhong, W., Lan, J., Liu, Z. & Li, G. Intrinsic pinning of domain walls in Dy(Fe1−xMx)2 (M = Ga, Al; x ≤ 0.2). J. Magn. Magn. Mater. 74, 39

(1988). CAS  ADS  Google Scholar  * Raveau, B., Simon, C., Pralong, V., Caignaert, V. & Lefevre, F.-X. Ferromagnetism, phase separation and ultrasharp magnetization multisteps below 40 K

in the ordered “112” cobaltites EuBaCo1.92M0.08O5.5−δ (M = Zn, Cu). Solid State Commun. 139, 301 (2006). CAS  ADS  Google Scholar  * Mushnikov, N. V., Zajkov, N. K. & Korolyov, A. V. On

the nature of magnetization jumps in Dy(Fe,M)2 (M = A1, Si). J. Magn. Magn. Mater. 163, 322 (1996). CAS  ADS  Google Scholar  * Yamaguchi, S., Okimoto, Y. & Tokura, Y. Local lattice

distortion during the spin-state transition in LaCoO3 . Phys. Rev. B 55, R8666 (1997). CAS  ADS  Google Scholar  * Imada, M., Fujimori, A. & Tokura, Y. Metal-insulator transitions. Rev.

Mod. Phys. 70, 1039 (1998). CAS  ADS  Google Scholar  * Alejandro, G. et al. Barkhausen-like steps and magnetic frustration in doped La0.67−xAxCa0.33MnO3 (A = Ce, Y). Phys. Rev. B 73, 054427

(2006). ADS  Google Scholar  * Jammalamadaka, S. N., Mohapatra, N., Das, S. D., Iyer, K. K. & Sampathkumaran, E. V. Magnetic anomalies in Gd6Co1.67Si3 and Tb6Co1.67Si3 . _J. Phys._:

_Condens. Matter_ 20, 425204 (2008). Google Scholar  Download references ACKNOWLEDGEMENTS The authors gratefully thank Professor Eiji Takayama-Muromachi of National Institute for Materials

Science (NIMS), Japan to provide the flat-belt-type-high-pressure apparatus for the sample synthesis. This work is partially supported by Natural Science Foundation of Jiangsu Province of

China (Grant No. BK20141337), National Basic Research Program of China (973 Program) (Grant No. 2014CB932103), the Fundamental Research Funds for the Central Universities (Grant No.

KYLX_0085), the Scientific Research Foundation of Graduate School of Southeast University (Grant No. YBJJ1562) and Large Equipment Grants of Southeast University, China. AUTHOR INFORMATION

AUTHORS AND AFFILIATIONS * Department of Physics and Key Laboratory of MEMS of the Ministry of Education, Southeast University, Nanjing, 210096, China Qiuhang Li, Lei Xing & Mingxiang Xu

* Department of Fundamental Courses, Nantong Polytechnic College, Nantong, 226002, China Xueping Yuan Authors * Qiuhang Li View author publications You can also search for this author

inPubMed Google Scholar * Xueping Yuan View author publications You can also search for this author inPubMed Google Scholar * Lei Xing View author publications You can also search for this

author inPubMed Google Scholar * Mingxiang Xu View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS Q.L. performed most of the experiments and

analyzed the data. L.X. contributed to the basic characterization of the sample. X.Y. contributed to the analysis of magnetization and magnetoresistance. M.X. designed and directed the

research. Q.L. and X.Y. wrote the manuscript. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. RIGHTS AND PERMISSIONS This work is licensed under

a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated

otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To

view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Li, Q., Yuan, X., Xing, L. _et al._ Magnetization

and magneto-transport staircaselike behavior in layered perovskite Sr2CoO4 at low temperature. _Sci Rep_ 6, 27712 (2016). https://doi.org/10.1038/srep27712 Download citation * Received: 09

March 2016 * Accepted: 24 May 2016 * Published: 13 June 2016 * DOI: https://doi.org/10.1038/srep27712 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this

content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
