Real-time two- and three-dimensional imaging of monocyte motility and navigation on planar surfaces and in collagen matrices: roles of rho

ABSTRACT We recently found that macrophages from RhoA/RhoB double knockout mice had increased motility of the cell body, but severely impaired retraction of the tail and membrane extensions,

whereas RhoA- or RhoB-deficient cells exhibited mild phenotypes. Here we extended this work and investigated the roles of Rho signaling in primary human blood monocytes migrating in

chemotactic gradients and in various settings. Monocyte velocity, but not chemotactic navigation, was modestly dependent on Rho-ROCK-myosin II signaling on a 2D substrate or in a loose

collagen type I matrix. Viewed by time-lapse epi-fluorescence microscopy, monocytes appeared to flutter rather than crawl, such that the 3D surface topology of individual cells was difficult

to predict. Spinning disk confocal microscopy and 3D reconstruction revealed that cells move on planar surfaces and in a loose collagen matrix using prominent, curved planar protrusions,

which are rapidly remodeled and reoriented, as well as resorbed. In a dense collagen type I matrix, there is insufficient space for this mode and cells adopt a highly Rho-dependent, lobular

mode of motility. Thus, in addition to its role in tail retraction on 2D surfaces, Rho is critical for movement in confined spaces, but is largely redundant for motility and chemotaxis in

loose matrices. SIMILAR CONTENT BEING VIEWED BY OTHERS ENHANCED SUBSTRATE STRESS RELAXATION PROMOTES FILOPODIA-MEDIATED CELL MIGRATION Article 19 April 2021 THE PRINCIPLES OF DIRECTED CELL

MIGRATION Article 14 May 2021 CELL MIGRATION GUIDED BY LONG-LIVED SPATIAL MEMORY Article Open access 05 July 2021 INTRODUCTION The two principal forces driving cell motility are actin

polymerization and actomyosin contraction, mediated by (nonmuscle) class II myosins1. These forces are coordinated temporally and spatially by the on-off activity of membrane-anchored Rho

GTPases: activated Rac and Cdc42 subfamilies induce actin polymerization and membrane protrusions, whereas activated members of the Rho subfamily of GTPases (RhoA, RhoB and RhoC) increase

actomyosin activity via Rho kinases (ROCK1 and ROCK2)2. In addition to coordinating cell shape changes, migrating cells may use integrins (transmembrane adhesion molecules) to attach to the

extracellular matrix or metallopeptidases (proteolytic enzymes) to degrade matrix components. Thus, various modes of migration can be generated by combinations of membrane protrusions,

contractions, adhesions and proteolytic activity. One of the defining features of any mode of cell migration is the nature of the protrusive structure at the front end. Most cell types use

actin polymerization-driven lamellipodial (flat, sheet-like) protrusions to move on a 2D (two-dimensional) surface, whereas, in a 3D environment, cells may use either actin

polymerization-driven structures (filopodia and pseudopodia) or Rho-dependent, actomyosin-driven structures (blebs and lobopodia). Leukocytes are generally thought to move in a

nonproteolytic (but see Van Goethem _et al_.3), amoeboid-like fashion, which is a loosely defined term, but implies that the cells generate actin polymerization-driven protrusions in the

direction of movement, as exemplified by _Dictyostelium_ amoebae4. Rho subfamily member A (RhoA) is a key regulator of cytoskeletal dynamics in cells and is implicated in at least two

aspects of amoeboid-like migration, retraction of the trailing edge on 2D surfaces and squeezing of the nucleus (principal geometrically limiting factor5) through narrow spaces6. The roles

of the Rho subfamily in cell migration have been widely studied3,6,7,8,9,10,11,12 and it has become clear that the relative importance of Rho depends on cell type, mode of migration and the

2D or 3D microenvironment. In an elegant model, Petrie _et al_.10 proposed that fibroblasts read the extracellular matrix elasticity and can switch between low RhoA-ROCK-dependent,

lamellipodial (nonlinear elastic matrix) and high RhoA-ROCK-dependent, lobopodial (linear elastic matrix) modes of migration (see also Friedl _et al_.13). Although RhoA is considered to be

the predominant Rho subfamily member involved in cell motility, we found in a knockout mouse study14 that RhoB compensates for loss of RhoA, such that macrophages lacking either RhoA or RhoB

had mild phenotypes, whereas cells lacking both RhoA and RhoB exhibited profound phenotypes, characterized by highly branched morphologies during random migration (largely due to impaired

lamellipodial retractions) and exceedingly long trailing ends during directed migration. Chemotaxis efficiency was not impaired in macrophages lacking RhoA and RhoB (as well as, by default,

RhoC), and, surprisingly, the velocity of the cell body, as well as _in vivo_ monocyte/macrophage recruitment, were increased14. In the current study, we extended this work and used

well-documented inhibitors to elucidate the roles of Rho-ROCK-myosin II signaling in the motility and chemotaxis of human monocytes on 2D surfaces and in both loose and dense (fibrillar)

collagen type I matrices. We used two approaches, contrast and/or epi-fluorescence microscopy, which allowed time-lapse imaging for long durations (>10 h) and sequential spinning disk

confocal microscopy, which allowed high-resolution 3D reconstruction of cells in motion, albeit in a shorter time span (<30 min). RESULTS EXPRESSION OF RHO SUBFAMILY GTPASES AND ROLES OF

ROCK-MYOSIN II SIGNALING IN MONOCYTE MOTILITY AND CHEMOTAXIS ON A 2D SURFACE Using CD14+ cells (monocytes) purified by cell sorting, we could detect mRNA for RhoA, RhoB and RhoC (Fig. 1A).

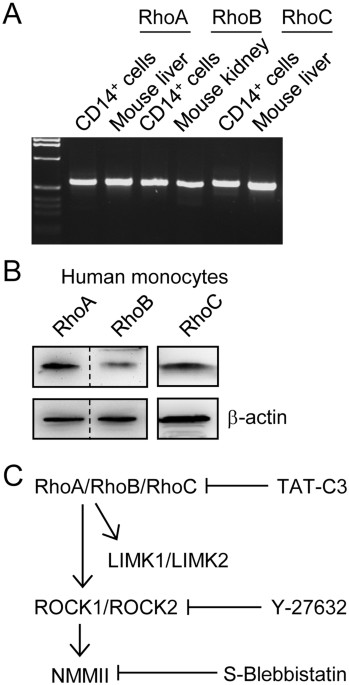

Furthermore, we could detect RhoA, RhoB and RhoC protein using Western blot (Fig. 1B). Thus, unlike mouse macrophages, which only express RhoA and RhoB14, human monocytes express all three

members of the Rho subfamily. We next set out to explore the effects of pharmacological inhibition of Rho, ROCK and nonmuscle myosin II (NMMII) on monocyte motility and chemotaxis, as

indicated in Fig. 1C. Initially, we performed 2D chemotaxis experiments (Fig. 2A), as previously described for mouse macrophages15,16. However, human monocytes migrated much more rapidly

than macrophages (~4 μm/min versus ~1 μm/min), and, thus, we analyzed a shorter time window, 4 h rather than 6 h. Under control conditions, monocytes migrated robustly towards fMLP and mean

cell velocity was unaffected in the presence of a ROCK inhibitor (Y-27632) (Fig. 2B,C), but modestly reduced by the nonmuscle myosin II inhibitor S-blebbistatin. Moreover, Y-27632 and

S-blebbistatin had no significant effect on chemotaxis efficiency (Fig. 2C). As indicated in Fig. 2A, Y-27632 induced elongated trailing ends in monocytes migrating in a chemotactic

gradient. To quantify the effect of Y-27632 on cell morphology, we measured the circularity index and aspect ratio, after fitting an ellipse, of spontaneously migrating cells, imaged by

spinning disk confocal microscopy (Fig. 2D,E). Consistent with a more elongated morphology, Y-27632 treatment induced a significantly decreased circularity index and significantly increased

aspect ratio, measured using two-dimensional projections. 3D MORPHOLOGY OF MONOCYTES MIGRATING ON A 2D SURFACE To establish a cell-type specific chemotaxis assay which also allows

fluorescence imaging, we labeled human monocytes with Alexa Fluor 488-conjugated anti-CD14 antibodies (Fig. 3A). Time-lapse epi-fluorescence imaging provided better visualization of

monocytes than phase-contrast imaging and fluorescent cells appeared to move towards fMLP like fluttering leaves (see supplementary video 1), rather than like crawling macrophages. In

sequential snapshots, individual cells appeared to extend one or more broad lamellipodia (generally towards the source of chemoattractant) in one moment and in the next moment exhibited

either a compact or comma-shaped morphology (Fig. 3A,B). We used time-lapse spinning disk confocal microscopy to allow rapid confocal sectioning and 3D reconstruction of migrating monocytes

(Fig. 3B–D). 3D reconstructed images revealed that, instead of lamellipodia (sheet-like protrusions on a 2D substrate), monocytes generate curved (scalloped) planar protrusions in varying

orientations in space (Fig. 3B–D). These 3D membrane dynamics can best be appreciated in videos rather than still images. For example, supplementary video 2 (3D time-lapse image sequence)

shows the cells shown in Fig. 3B viewed from above. Supplementary video 3 serves as a (time-lapse 2D imaging) reference sequence for the cells shown in Fig. 3C, whereas supplementary video 4

shows a time-lapse 3D reconstruction of the cells. Classical fibroblast-like lamellipodial protrusions could be detected (not shown), but curved planar protrusions (and membrane

undulations) in various orientations predominated. Lack of classical lamellipodia could be appreciated by viewing cells from below (Fig. 3D), which revealed that, typically, only the cell

body and the lower edge of planar sheets made contact with the 2D substrate. Supplementary video 5 shows 3D views the same cells (in Fig. 3D) rotated 360° on the x-axis. The low contact

area, combined with the reorientations of curved planar protrusions and membrane undulations, may explain the fluttering movement observed in epi-fluorescence time-lapse recordings.

PHOTOTOXICITY AND PHOTODEGRADATION OF BLEBBISTATIN One of the major end targets of Rho-ROCK signaling is nonmuscle myosin II (Fig. 1C), which can be inhibited by blebbistatin17, a racemic

mixture of R-(+)- and S-(−)-blebbistatin (RS-blebbistatin). In initial chemotaxis assays, we found that illumination of monocytes (labeled with Alexa Fluor 488-conjugated anti-CD14

antibodies) with blue light (excitation: 450–490 nm) in the presence of RS-blebbistatin induced cell death, consistent with earlier reports that blue light photoinactivates blebbistatin and

generates cytotoxic intermediates18,19. Consistent with the data of Kolega18, we found that blue light (450–490 nm) illumination induced changes in the absorption spectrum of S-blebbistatin

(Fig. 4A), solubilized in a 1:1 mixture (by volume) of DMSO and PBS (phosphate-buffered saline). We extended this work and found that ionized S-blebbistatin, the active enantiomer, could not

be detected by mass spectrometry after blue light illumination, indicating that blebbistatin phototoxicity is associated with photodegradation of the molecule (Fig. 4B). More recently, the

combination of blue light and blebbistatin has been reported to be toxic to human cancer cell lines and the authors suggested that blebbistatin may be a potential anti-cancer agent20. To

assess the phototoxicity of blebbistatin in primary human monocytes, we used the cell-impermeant nucleic acid stain Yo-Pro-1 as a probe to detect loss of cell membrane integrity during

live-cell recordings (Fig. 4C,D). Using spinning disk confocal microscopy, cells were excessively illuminated with blue (488 nm) light by taking serial z-stacks (20 optical sections of 0.5 

μm thickness) at a rate of 4 stacks/min. In the presence of 50 μM RS-blebbistatin, 488 nm illumination induced Yo-Pro-1 staining in more than 95% of cells during the 45 min recording period

(Fig. 4C,D). Note that the images shown in Fig. 4C were obtained after moving the microscope stage partially to the right in order to reveal cells (seen on the left half of the field) which

were not scanned with 488 nm light; these non-illuminated cells were not used in the data analysis. In the absence of RS-blebbistatin, 488 nm illumination alone was not sufficient to induce

Yo-Pro-1 permeability during the 45 min recording period (Fig. 4D). MONOCYTE MOTILITY AND NAVIGATION IN LOOSE COLLAGEN TYPE I MATRICES Following the canonical leukocyte adhesion cascade,

which involves selectin-mediated tethering and rolling, as well as the activation of integrins, monocytes migrate across the endothelium into the interstitium, a highly heterogeneous 3D

environment21. Fibrillar collagen, especially type I, is the most abundant extracellular matrix component and a wide range of lattice densities, from loose to dense, are found in the same

tissue21, whereas collagen matrices reconstituted _in vitro_ exhibit a narrow range. In this study, we tested two collagen type I concentrations, which were intended to represent loose (see

Fig. 5A) and dense fibrillar collagen lattices. Monocytes were prestained with fluorescent (Alexa Fluor 488-conjugated) anti-CD14 antibodies (or Alexa Fluor 594-conjugated antibodies, in the

case of experiments using blebbistatin) and imaged by time-lapse epi-fluorescence microscopy (Fig. 5A). In a loose collagen matrix (0.8 mg/ml collagen type I), control cells moved robustly

towards fMLP (Fig. 5B; supplementary video 6). Monocytes fortuitously in contact with the bottom of the chemotaxis slide were used to set the level of focus, and, thus, most of the time

cells moving through the loose matrix appeared as fuzzy (out of focus) objects (supplementary video 6). In the presence of inhibitors of Rho (TAT-C3), ROCKs (Y-27632) or nonmuscle myosin II

(blebbistatin), monocyte motility was modestly decreased, but there was no significant impairment in chemotactic navigation (Fig. 5B–D). Interestingly, in parallel experiments, using

spinning disk confocal microscopy, we observed that monocytes treated with TAT-C3 developed exceedingly elongated trailing ends when crawling along a 2D surface, but not within a loose 3D

matrix (supplementary video 7). 3D MORPHOLOGY OF MONOCYTES MIGRATING IN A LOOSE COLLAGEN TYPE I MATRIX As in the case of 2D migration, we performed spinning confocal microscopy to visualize

the mode of migration. Monocytes moved through a loose collagen matrix using curved, planar protrusions in varying orientations (Fig. 6A), as observed for cells moving on a 2D surface. The

3D morphology of the cells shown in Fig. 6A, at t = 0 s, can be nicely seen in supplementary video 8, which shows the cells in different spatial orientations. The mode of migration was not

altered in the face of ROCK inhibition (Fig. 6B,C). A time-lapse sequence corresponding to the cell shown in Fig. 6B can be seen in supplementary video 9 and supplementary videos 10, 11 and

12 provide multiple 3D views of the cell at t = 0 s, t = 240 s and t = 360 s, respectively. The time-lapse sequence (supplementary video 9) also shows examples of compact, comma-like and

fan-like cell morphologies, when cells are viewed in two dimensions (see also examples in supplementary video 3 and Fig. 3B,C). MONOCYTE MOTILITY AND NAVIGATION IN DENSE COLLAGEN TYPE I

MATRICES Superresolution structured illumination microscopy showed that polymerized 2.4 mg/ml collagen type I produces a lattice of fibers with small pore sizes (Fig. 7A). In a chemotactic

fMLP gradient, fluorescently labeled monocytes robustly migrated through such dense matrices (Fig. 7A,B), whereas motility was profoundly decreased by inhibition of Rho-ROCK signaling (Fig.

7B) or nonmuscle myosin II (Fig. 7C). Surprisingly, the mean velocity of directed monocyte motility in a dense matrix was ~4 μm/min (Fig. 7D), similar to mean values found on a 2D surface

(Fig. 2C) or in a loose matrix (Fig. 5D). However, unlike the case for 2D surfaces and loose 3D matrices, inhibition of Rho-ROCK-myosin II signaling impaired chemotactic navigation (Fig.

7D). In relation to this finding, it should be stressed that inhibitors of Rho, ROCK and nonmuscle myosin II frequently caused cells to become trapped in the matrix. 3D MORPHOLOGY OF

MONOCYTES MIGRATING IN A DENSE COLLAGEN TYPE I MATRIX As in the case for monocyte motility in a loose matrix, we used spinning disk confocal microscopy to determine the morphology of cells

moving in a dense matrix (Fig. 8). Under these conditions, monocytes moved in a lobular fashion, such that the front end consisted of blunt protrusions (Fig. 8A), presumably driven by

hydrostatic pressure. A time-lapse recording of the cells shown in Fig. 8A can be seen in supplementary video 13 and 3D views of the cells at t = 360 s are provided in supplementary video

14. In the presence of Y-27632, monocytes became stuck in dense matrices, as indicated in Fig. 7B (chemotaxis assays) and Fig. 8B. Three-dimensional views of the cells shown in Fig. 8B,

followed by a time-lapse sequence, are shown in supplementary video 15. Thus, Rho-ROCK signaling is critical for motility in a dense matrix, but Rho-ROCK signaling per se does not determine

the basic mode of motility, planar protrusions versus lobular protrusions. Indeed, independent of ROCK signaling, the circularity index (measure of roundness) is decreased and the aspect

ratio (measure of elongation) increased, when cells are migrating in a dense matrix, compared to a loose matrix (Fig. 8C). DISCUSSION As dramatically formulated by Couzin-Frankel22,

“inflammation is a driving force behind chronic diseases that will kill nearly all of us”. Monocytes accumulate at sites of inflammation, as nicely documented by intravital imaging in mouse

models23,24, but in addition to promoting tissue healing and pathogen clearance, these cells may aggravate disease. This “dark side” is particularly apparent in the pathogenesis of

atherosclerosis25. Here, we established _in vitro_ 2D and 3D chemotaxis assays and used spinning disk confocal microscopy, to investigate the mechanisms of human monocyte motility and we

explored the roles of Rho-ROCK-myosin II signaling on cell shape control, velocity and chemotactic navigation. Aside from a recent elegant study using a chemoattractant point source

(micropipette) and fluorescently labeled chemoattractant proteins26, data obtained from real-time monocyte chemotaxis assays are very scarce, as far as we are aware. We used Ibidi 2D

chemotaxis μ-slides for both 2D assays, as previously used for mouse macrophages14,16 and 3D assays, which necessitated addition of the chemoattractant before introduction of the cells. In

contrast to resident mouse peritoneal macrophages, freshly isolated human monocytes did not readily flatten onto the ibiTreat (tissue culture treated) surface of μ-slides and moved like

fluttering leaves, with a mean velocity of ~4 μm/min, towards chemoattractant. Under these low adhesion 2D migration conditions, inhibitors of ROCK and nonmuscle myosin II decreased monocyte

velocity by ~40%, whereas chemotactic efficiency was unaffected. In macrophages completely lacking the Rho subfamily of GTPases, chemotactic navigation is similarly unaffected, whereas cell

velocity is increased by ~50%14. Monocytes occasionally developed elongated trailing ends, but much less dramatically than pan-Rho knockout mouse macrophages14 or macrophages treated with

ROCK inhibitors15, presumably reflecting weak (monocytes) versus strong (macrophages) cell-substrate adhesions. Notably, in the presence of inhibitors of Rho-ROCK-myosin II, elongated

trailing ends were not observed in cells migrating in loose or dense collagen type I matrices, except when cells transiently came in contact with the floor of the chemotaxis slide. This

reinforces the notion that strong integrin-mediated adhesions are required for Rho-ROCK inhibitors to induce the development of elongated trailing ends in migrating cells. In single frames

of time-lapse epi-fluorescence recordings, human monocytes typically exhibited one of three basic morphologies (compact, fan-like or comma-like) and in time-lapse videos the cells appeared

to flutter like leaves towards chemoattractant. Indeed, 3D reconstructions of z-stacks obtained by sequential spinning disk confocal microscopy indicated that the cells generated leaf

blade-like protrusions tilted away from the x-y plane (corresponding to fan-like morphologies in x-y projection views) or rotated towards an orthogonal plane (corresponding to comma-shaped

cells in x-y projection views). In other words, on uncoated 2D plastic surfaces, monocytes move using highly dynamic, three-dimensional protrusive structures, rather than crawling along the

2D substrate using lamellipodia. This raises the question whether monocytes can swim, as demonstrated for _Dictyostelium_ amoebae and neutrophils in experiments using a point source of

chemoattractant and isodense media27. In favor of this possibility, monocytes undergo rapid cell shape changes and the pushing of curved planar protrusions against fluid, as well as membrane

undulations, may support swimming. We used superresolution structured illumination microscopy, as well as confocal reflection microscopy (not shown), to confirm that the collagen type I

used in our studies formed fibrillar lattices. The loose collagen matrix exhibited more heterogeneous pore sizes, such that cells would be expected to encounter both low- to high-density

fibrillar regions, as found _in vivo_21,28. In both loose and dense fibrillar collagen matrices, monocytes moved rapidly along fMLP gradients, as in the case of 2D assays, whereas inhibition

of Rho-ROCK-myosin II signaling modestly decreased velocity in a loose matrix, but severely impaired motility in a dense matrix. As in the case of 2D motility, spinning disk confocal

imaging revealed that monocytes moved in a loose matrix using curved planar protrusions. In contrast, in a dense matrix, virtually all cells moved in a sausage-like (or worm-like) fashion,

involving blunt lobular protrusions. The high sensitivity to inhibition of Rho-ROCK-myosin II signaling suggests that monocytes switch from planar protrusion (pseudopodia) mediated motility

to pressure (hydraulic) driven motility when the matrix pores becomes tight. Thus, human monocytes, like mouse dendritic cells6, use Rho-ROCK-myosin II signaling to “squeeze” through tight

spaces. How a monocyte senses that it is in a tight matrix is unclear. One possibility is that membrane tension, the “sensor” for being in a tight matrix, is generated when the cell body

becomes stuck. Such a sensor has recently been suggested to suppress lamellipodial membrane extensions on the trailing edge of migrating cells29. G12/G13-coupled receptors provide a

potential link between membrane tension and Rho activity, although, at least on 2D surfaces, G12/G13 double knockout macrophages do not develop elongated trailing ends (unpublished data) in

contrast to pan-Rho-deficient cells15. In conclusion, monocytes have been neglected in real-time imaging studies of motility and chemotaxis, although these cells play a pivotal role in human

disease. We used 2D and 3D chemotaxis assays, as well sequential high-resolution 3D imaging, to better understand how human monocytes move and navigate and to elucidate the roles of

Rho-ROCK-myosin II signaling. In all conditions tested (2D substrate, 3D loose matrix and 3D dense matrix), monocytes moved with modestly high velocity and efficient chemotactic navigation,

although the transition from loose to dense matrix caused the cells to switch from a fluttering leaf-like mode to a highly Rho-ROCK-myosin II-dependent lobular mode. Notably, the 3D membrane

dynamics underlying the so-called fluttering leaf-like mode of motility could not be predicted from x-y projection views, which stresses the importance of sequential 3D (4D) imaging for

understanding how cells move. It would be conceptually useful to investigate whether monocytes can swim in an isodense medium. MATERIALS AND METHODS MATERIALS Recombinant TAT-C3 was prepared

as previously described30 and used at a concentration of 50 μg/ml. TAT-C3 is a cell permeable form of exoenzyme C3 transferase (from _Clostridium botulinum_), a Rho-specific inhibitor. It

consists of C3 transferase fused to the protein transduction domain TAT (trans-activator of transcription), encoded by the human immunodeficiency virus gene _Tat_31. Y-27632 (Sigma-Aldrich,

Germany), dissolved in DMSO to give a 30 mM stock solution, was used at 30 μM. Racemic RS-blebbistatin, R-(+)-blebbistatin and S-(−)-blebbistatin were obtained from Tocris Bioscience

(Bristol, United Kingdom) and dissolved in anhydrous dimethyl sulfoxide (DMSO) to yield 50 mM stock solutions. ISOLATION OF HUMAN PERIPHERAL BLOOD MONONUCLEAR CELLS Peripheral blood (~15 ml)

was collected into 2 × 7.5 ml S-Monovette tubes (Sarstedt, Nümbrecht, Germany) via a 21G Venoflex venipuncture kit (B. Braun Melsungen, Melsungen, Germany) and mixed 1:1 with Dulbecco’s

phosphate buffer saline (PBS; Sigma-Aldrich, Germany). The diluted blood was gently layered on top of 15 ml Histopaque-1077 (1.077 g/ml; 10771, Sigma-Aldrich, Germany) in a 50 ml plastic

tube (Sarstedt, Nümbrecht, Germany) and subsequently centrifuged using the following settings of an Eppendorf centrifuge 5804 R (Hamburg, Germany): rotational speed, 1800 rpm (revolutions

per minute); time, 20 min; acceleration ramp, 4 (range, 0–9) and deceleration ramp, 0 (range, 0–9). Peripheral blood mononuclear cells, the ring of cells immediately above the density

gradient medium, were isolated using a pipette and washed. The cells were, when required, incubated with Alexa Fluor 488-conjugated anti-human CD14 antibodies (dilution, 1:40; clone M5E2,

catalog number 301811, BioLegend (Fell, Germany) for 15 min. After washing and centrifugation (300 × g for 7.5 min), the pellet was resuspended in RPMI 1640 medium containing 20 mM Hepes

(Biochrom, Berlin, Germany). Alternatively, monocytes were labeled with phycoerythrin-conjugated anti-human CD14 antibodies (dilution 1:40; clone M5E2, catalog number 555398; Becton

Dickinson, Heidelberg, Germany) or Alexa Fluor 594-conjugated anti-human CD14 antibodies (dilution, 1:40; clone HCD14, catalog number 325630, BioLegend (Fell, Germany). In selected

experiments, human monocytes were purified by negative selection using the Monocyte Isolation Kit II from Miltenyi Biotec (Bergisch Gladbach, Germany). ETHICS STATEMENT Methods were carried

out in accordance with the approved guidelines of the University of Münster. All experimental protocols were approved by the local ethics committee of the University of Münster. Informed

consent was obtained for the isolation of peripheral venous blood (15 ml) from donors. 2D CHEMOTAXIS ASSAYS Chemotaxis assays were performed as previously described14,32, except that cells

were allowed 2 h, rather than 3 h, to adhere to the narrow channel (observation area) connecting the two 40 μl reservoirs of the uncoated (ibiTreat) μ-slide chemotaxis chamber (Ibidi,

Martinsried, Germany). Chemotaxis slides were gently filled with medium by rotating the volume adjustment sleeve of Eppendorf Research Plus pipettes (2–20 μl and 10–100 μl). After filling,

15 μl medium containing fMLP (formyl-Met-Leu-Phe) and Patent Blue V was drawn into one of the two 40 μl reservoirs. After diffusion in the reservoir, the final concentration of fMLP was 20 

nM. Patent Blue V (final concentration, 0.003%) served as a visual indictor of gradient formation. The observation area was imaged by phase-contrast and/or fluorescence microscopy

(excitation: 450–490 nm; emission: 500–550 nm) via a 10x/0.3 objective lens. In the case of experiments using blebbistatin, blue light illumination (450–490 nm) induced cell death. To avoid

blebbistatin-mediated phototoxicity, we switched to Alexa Fluor 594-conjugated anti-CD14 antibody labeling and excited cells with green light (excitation: 532–558 nm; emission: 570–640 nm),

which is not absorbed by the drug. Images were captured every 2 min for 12 h and cell migration tracks between 3 and 7 h were analyzed with ImageJ (National Institutes of Health) using a

manual tracking plugin and the chemotaxis and migration tool from Ibidi. Twenty-five randomly selected cells (monocytes) were manually tracked in each chemotaxis experiment. The y-forward

migration (chemotaxis) index was used as a measure of chemotactic efficiency. The index is obtained by dividing the net displacement along the y-axis by the total distance (in the x-y plane)

migrated by the cell (values range from −1 to +1). Experiments were performed on the stage of an inverted microscope (Axio Observer, Zeiss) equipped with a temperature-controlled incubator

(incubator XL S, Zeiss). The temperature was maintained at 37 °C. 3D CHEMOTAXIS ASSAYS Rat tail collagen, type I (BD (Becton Dickinson) Biosciences, Heidelberg, Germany), which had not been

treated with the protease pepsin, was initially diluted to 4.8 or 1.6 mg/ml using pH neutralizing solution, then further diluted 1:1 (v/v) with monocyte-labeled mononuclear cell suspension

to yield collagen concentrations of 2.4 or 0.8 mg/ml, respectively. To prepare 1.6 mg/ml collagen, 100 μl collagen type I (10.21 mg/ml in 0.02 N HCl) was diluted with 538.1 μl medium,

consisting of 100 μl RPMI 1640 Hepes medium (2x concentrated), 436.1 μl RPMI 1640 Hepes medium (1x) and 2 μl 1 N NaOH. Alternatively, to prepare 4.8 mg/ml collagen, 100 μl collagen type I

(10.21 mg/ml in 0.02 N HCl) was diluted with 112.7 μl medium, prepared by combining 100 μl RPMI 1640 Hepes medium (2× concentrated), 10.7 μl RPMI 1640 Hepes medium (1×) and 2 μl 1 N NaOH.

The pH of the 2× concentrated collagen solutions was 7.2–7.4, assessed using pH-indicator strips (pH 6.5–10.0; MColorpHast, Merck KGaA, Darmstadt, Germany), which we designated as

(physiologically) pH neutralized. Typically, 100 μl cell suspension was mixed with 100 μl of the 2x concentrated (and pH neutralized) collagen solution. Next, 8 μl of the cell suspension was

drawn into the narrow (1000 μm × 2000 μm × 70 μm) channel of a prefilled and uncoated (ibiTreat) μ-slide chemotaxis chamber (Ibidi) using an Eppendorf Research Plus (2–20 μl) pipette.

Immediately before adding the cell suspension, chemoattractant (fMLP) was drawn into one of the two reservoirs. CELL SORTING AND RT-PCR ANALYSES Peripheral blood mononuclear cells were

incubated with Alexa Fluor 488-conjugated anti-human CD14 antibodies, washed and resuspended in AutoMACS running buffer (Miltenyi Biotec), which contained 2 mM EDTA and 0.5% bovine serum

albumin in PBS (pH 7.2). CD14+ cells were isolated using a BD FACSAria II flow cytometer (BD Biosciences, San Jose, CA) and diluted in RPMI 1640 medium containing 20 mM Hepes, 10%

heat-inactivated FCS, 100 U/ml penicillin and 100 μg/ml streptomycin. Total RNA was isolated using a RNeasy Mini Kit from Qiagen (Hilden, Germany). cDNA was synthesized using SuperScript III

reverse transcriptase (Invitrogen, Germany). The thermocycling protocol for the PCR was as follows: 94 °C for 4 min, then 29 cycles of 94 °C for 30 s, 60 °C for 30 s and 72 °C for 45 s. The

following primers, as described by Fritz _et al_.33 (except for changes indicated by underline), were used (product sizes shown in parentheses): RhoA (582 bp): forward,

ATGGCTGCCATCCGGAAGAAA; reverse: TCACAAGACAAGGCACCCAGA; RhoB (548 bp): forward, GCGTGTGGCAAGACGTGCC; reverse: TCATAGCACCTTGCAGCAGTT; RhoC (582 bp): forward, ATGGCTGCAATCCGAAAGAAG; reverse,

TCAGAGAATGGGACAGCCCCT. WESTERN BLOT ANALYSES Monocytes were lysed in buffer containing 100 mM NaCl, 2 mM MgCl2, 1 mM dithiothreitol, 1% Nonidet P-40, 10% glycerol, 5 mM NaF, 1 mM Na3VO4

(sodium orthovanadate), the protease inhibitors leupeptin, aprotinin and pefabloc (each at 10 μg/ml) and 50 mM Tris-HCl (pH 7.4). Proteins were separated by 15% SDS-PAGE (sodium dodecyl

sulfate polyacrylamide gel electrophoresis) and transferred onto polyvinylidene difluoride membranes (Roche, Mannheim, Germany). Membranes were blocked for 1 h at room temperature in TBS

containing 5% bovine serum albumin and 0.1% Tween 20, followed by overnight incubation (4 °C) with the following primary antibodies: mouse monoclonal anti-RhoA (26C4 (sc-418), Santa Cruz

Biotechnology, Heidelberg, Gerrmany), rabbit polyclonal anti-RhoB (119 (sc-180), Santa Cruz Biotechnology) and rabbit monoclonal anti-RhoC (D40E4) (#3430, New England Biolabs (Cell Signaling

Technology), Frankfurt am Main, Germany). For detection, horseradish peroxidase-conjugated secondary antibodies (Dianova, Hamburg, Germany) were used in combination with SuperSignal West

Pico chemiluminescence substrate (Perbio, Bonn, Germany). SPINNING DISK CONFOCAL MICROSCOPY 3D images of living monocytes migrating on a 2D surface or in a collagen matrix were obtained

using an UltraVIEW Vox 3D live cell imaging system (Perkin Elmer, Rodgau, Germany) coupled to a Nikon Eclipse Ti inverse microscope. The system incorporated a Yokogawa (Japan) CSU-X1

spinning disk scanner, a Hamamatsu (Japan) C9100–50 EM-CCD camera (1000 × 1000 pixels) and Volocity software. Cells were imaged via a Nikon CFI (chromatic aberration-free infinity) Apo TIRF

60x (NA 1.49) oil immersion objective lens, which has a (coverslip corrected) working distance of 0.12 mm. The temperature was maintained at 37 °C using an Okolab all-in-one stage incubator

(Okolab, Ottaviano, Italy). Z-stacks of monocytes labeled with Alexa Fluor 488-conjugated anti-human CD14 antibodies were taken every 5 s or 15 s. To reduce phototoxicity during time-lapse

spinning disk confocal microscopy experiments, the medium was supplemented with the reactive oxygen species scavenger N-(2-mercaptoproprionyl)-glycine (1 mM). SUPERRESOLUTION STRUCTURED

ILLUMINATION MICROSCOPY OF 3D COLLAGEN MATRICES Collagen was stained with picrosirius red using a kit from Polysciences Europe (Eppelheim, Germany). Picrosirius red stains type I and Type

III collagen and stained collagen can be imaged by polarization34 or fluorescence microscopy35. 3D images were obtained using an ELYRA S.1 superresolution structured illumination microscopy

(SR-SIM) system (Zeiss, Germany), which provides resolution beyond the diffraction limit36. ABSORPTION AND FLUORESCENCE SPECTROSCOPY Absorption and fluorescence spectra of 50 μM or 500 μM

S-blebbistatin dissolved in DMSO were obtained using a multimode microplate reader (Infinite 200 PRO, Tecan, Salzburg, Austria). In addition, 100 μl of 50 μM S-blebbistatin, dissolved in a

1:1 mixture of DMSO and PBS, was pipetted into a UVette (Eppendorf disposable cuvette (50–2000 μl); Eppendorf, Hamburg, Germany) and illuminated on the stage of an inverted microscope with

blue light (450–490 nm) via a 10x/0.3 objective lens. Absorption spectra before and after blue light illumination were recorded using a UviLine 9400 spectrometer (Schott Instruments,

Germany). MASS SPECTROMETRY Fourier transform mass spectrometry (also known as Fourier transform ion cyclotron mass spectrometry) was performed using an LTQ Orbitrap XL mass spectrometer

(Thermo Scientific, Dreieich, Germany) and heated electrospray ionization in positive ion mode. Before analysis, samples (50 μM S-blebbistatin before and after blue light illumination) were

diluted to a final concentration of 5 μM using methanol. Data were analyzed using Xcalibur 2.07 software (Thermo Scientific). STATISTICAL ANALYSIS Two or more independent experiments were

performed for each group in a data set. Normality and homoscedasticity were tested using the Shapiro-Wilk and Levene tests, respectively. A one-way ANOVA (analysis of variance) was used to

test for statistical differences at the 0.05 level of significance. When the assumed conditions of normality and homogeneity of variance were not fulfilled, as in most cases, we used the

non-parametric Kruskal-Wallis one way analysis of variance on ranks (at the 0.05 level of significance). Post-hoc multiple comparisons were made using Dunn’s method. Statistical analyses

were performed using Origin 2015 SR2 or SigmaPlot (version 12) software (Systat Software, Erkrath, Germany) and data are presented as mean ± standard error (s.e.m.) or blox plots. ADDITIONAL

INFORMATION HOW TO CITE THIS ARTICLE: Bzymek, R. _et al_. Real-time two- and three-dimensional imaging of monocyte motility and navigation on planar surfaces and in collagen matrices: roles

of Rho. _Sci. Rep_. 6, 25016; doi: 10.1038/srep25016 (2016). REFERENCES * Friedl, P., Borgmann, S. & Brocker, E. B. Amoeboid leukocyte crawling through extracellular matrix: lessons

from the Dictyostelium paradigm of cell movement. J Leukoc Biol 70, 491–509 (2001). CAS  PubMed  Google Scholar  * Ridley, A. J. et al. Cell migration: integrating signals from front to

back. Science 302, 1704–1709 (2003). Article  ADS  CAS  Google Scholar  * Van Goethem, E., Poincloux, R., Gauffre, F., Maridonneau-Parini, I. & Le Cabec, V. Matrix architecture dictates

three-dimensional migration modes of human macrophages: differential involvement of proteases and podosome-like structures. J Immunol 184, 1049–1061 (2010). Article  CAS  Google Scholar  *

Condeelis, J. et al. Actin polymerization and pseudopod extension during amoeboid chemotaxis. Cell Motil Cytoskeleton 10, 77–90 (1988). Article  CAS  Google Scholar  * Wolf, K. et al.

Physical limits of cell migration: control by ECM space and nuclear deformation and tuning by proteolysis and traction force. J Cell Biol 201, 1069–1084 (2013). Article  CAS  Google Scholar

  * Lammermann, T. et al. Rapid leukocyte migration by integrin-independent flowing and squeezing. Nature 453, 51–55 (2008). Article  ADS  Google Scholar  * Friedl, P., Wolf, K. &

Zegers, M. M. Rho-directed forces in collective migration. Nat Cell Biol 16, 208–210 (2014). Article  CAS  Google Scholar  * Jennings, R. T. et al. RhoA determines disease progression by

controlling neutrophil motility and restricting hyperresponsiveness. Blood 123, 3635–3645 (2014). Article  CAS  Google Scholar  * Petrie, R. J. & Yamada, K. M. At the leading edge of

three-dimensional cell migration. J Cell Sci 125, 5917–5926 (2012). Article  CAS  Google Scholar  * Petrie, R. J., Gavara, N., Chadwick, R. S. & Yamada, K. M. Nonpolarized signaling

reveals two distinct modes of 3D cell migration. J Cell Biol 197, 439–455 (2012). Article  CAS  Google Scholar  * Wheeler, A. P. & Ridley, A. J. RhoB affects macrophage adhesion,

integrin expression and migration. Exp Cell Res 313, 3505–3516 (2007). Article  CAS  Google Scholar  * Raftopoulou, M. & Hall, A. Cell migration: Rho GTPases lead the way. Dev Biol 265,

23–32 (2004). Article  CAS  Google Scholar  * Friedl, P., Sahai, E., Weiss, S. & Yamada, K. M. New dimensions in cell migration. Nat Rev Mol Cell Biol 13, 743–747 (2012). Article  CAS

Google Scholar  * Konigs, V. et al. Mouse macrophages completely lacking Rho subfamily GTPases (RhoA, RhoB and RhoC) have severe lamellipodial retraction defects, but robust chemotactic

navigation and altered motility. J Biol Chem 289, 30772–30784 (2014). Article  Google Scholar  * Hanley, P. J. et al. Motorized RhoGAP myosin IXb (Myo9b) controls cell shape and motility.

Proc Natl Acad Sci USA 107, 12145–12150 (2010). Article  ADS  CAS  Google Scholar  * Kronlage, M. et al. Autocrine purinergic receptor signaling is essential for macrophage chemotaxis. Sci

Signal 3, ra55 (2010). Article  Google Scholar  * Straight, A. F. et al. Dissecting temporal and spatial control of cytokinesis with a myosin II Inhibitor. Science 299, 1743–1747 (2003).

Article  ADS  CAS  Google Scholar  * Kolega, J. Phototoxicity and photoinactivation of blebbistatin in UV and visible light. Biochem Biophys Res Commun 320, 1020–1025 (2004). Article  CAS

Google Scholar  * Sakamoto, T., Limouze, J., Combs, C. A., Straight, A. F. & Sellers, J. R. Blebbistatin, a myosin II inhibitor, is photoinactivated by blue light. Biochemistry 44,

584–588 (2005). Article  CAS  Google Scholar  * Mikulich, A., Kavaliauskiene, S. & Juzenas, P. Blebbistatin, a myosin inhibitor, is phototoxic to human cancer cells under exposure to

blue light. Biochim Biophys Acta 1820, 870–877 (2012). Article  CAS  Google Scholar  * Wolf, K. et al. Collagen-based cell migration models _in vitro_ and _in vivo_. Semin Cell Dev Biol 20,

931–941 (2009). Article  CAS  Google Scholar  * Couzin-Frankel, J. Inflammation bares a dark side. Science 330, 1621 (2010). Article  ADS  CAS  Google Scholar  * Dal-Secco, D. et al. A

dynamic spectrum of monocytes arising from the _in situ_ reprogramming of CCR2+ monocytes at a site of sterile injury. J Exp Med 212, 447–456 (2015). Article  CAS  Google Scholar  *

Lammermann, T. et al. Neutrophil swarms require LTB4 and integrins at sites of cell death _in vivo_. Nature 498, 371–375 (2013). Article  ADS  Google Scholar  * Combadiere, C. et al.

Combined inhibition of CCL2, CX3CR1 and CCR5 abrogates Ly6C(hi) and Ly6C(lo) monocytosis and almost abolishes atherosclerosis in hypercholesterolemic mice. Circulation 117, 1649–1657 (2008).

Article  CAS  Google Scholar  * Volpe, S. et al. CCR2 acts as scavenger for CCL2 during monocyte chemotaxis. Plos One 7, e37208 (2012). Article  ADS  CAS  Google Scholar  * Barry, N. P.

& Bretscher, M. S. Dictyostelium amoebae and neutrophils can swim. Proc Natl Acad Sci USA 107, 11376–11380 (2010). Article  ADS  CAS  Google Scholar  * Lammermann, T. & Germain, R.

N. The multiple faces of leukocyte interstitial migration. Semin Immunopathol 36, 227–251 (2014). Article  Google Scholar  * Houk, A. R. et al. Membrane Tension Maintains Cell Polarity by

Confining Signals to the Leading Edge during Neutrophil Migration. Cell 148, 175–188 (2012). Article  CAS  Google Scholar  * Sahai, E. & Olson, M. F. Purification of TAT-C3 exoenzyme.

Methods Enzymol 406, 128–140 (2006). Article  CAS  Google Scholar  * Tan, E. Y., Law, J. W., Wang, C. H. & Lee, A. Y. Development of a cell transducible RhoA inhibitor TAT-C3 transferase

and its encapsulation in biocompatible microspheres to promote survival and enhance regeneration of severed neurons. Pharm Res 24, 2297–2308 (2007). Article  CAS  Google Scholar  * Isfort,

K. et al. Real-time imaging reveals that P2Y2 and P2Y12 receptor agonists are not chemoattractants and macrophage chemotaxis to complement C5a is phosphatidylinositol 3-kinase (PI3K)- and

p38 mitogen-activated protein kinase (MAPK)-independent. J Biol Chem 286, 44776–44787 (2011). Article  CAS  Google Scholar  * Fritz, G., Brachetti, C., Bahlmann, F., Schmidt, M. & Kaina,

B. Rho GTPases in human breast tumours: expression and mutation analyses and correlation with clinical parameters. Br J Cancer 87, 635–644 (2002). Article  CAS  Google Scholar  * Whittaker,

P., Kloner, R. A., Boughner, D. R. & Pickering, J. G. Quantitative assessment of myocardial collagen with picrosirius red staining and circularly polarized light. Basic Res Cardiol 89,

397–410 (1994). Article  CAS  Google Scholar  * Hanley, P. J., Young, A. A., LeGrice, I. J., Edgar, S. G. & Loiselle, D. S. 3-Dimensional configuration of perimysial collagen fibres in

rat cardiac muscle at resting and extended sarcomere lengths. J Physiol 517 (Pt 3), 831–837 (1999). Article  CAS  Google Scholar  * Gustafsson, M. G. Surpassing the lateral resolution limit

by a factor of two using structured illumination microscopy. J Microsc 198, 82–87 (2000). Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS This study was supported by the

Deutsche Forschungsgemeinschaft (DFG) funded projects HA 3271/3-1 and EXC 1003 (Cluster of Excellence 1003), Cells in Motion (CiM). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Institut für

Physiologie II, Westfälische Wilhelms-Universität, Münster, 48149, Germany Robert Bzymek, Katrin Isfort, Simon Mohr & Albrecht Schwab * Institut für Molekulare Zellbiologie,

Westfälische Wilhelms-Universität, Münster, 48149, Germany Markus Horsthemke, Martin Bähler & Peter J. Hanley * Molekulare und Vaskuläre Kardiologie, Universitätsklinikum Münster,

Münster, 48129, Germany Kerstin Tjaden * Hämatologie und Onkologie, Universitätsklinikum Halle, Halle, 06120, Germany Carsten Müller-Tidow * Analytical and Environmental Sciences Division,

King’s College London, United Kingdom Marlies Thomann * Institut für Ernährungswissenschaft, Universität Potsdam, Nuthetal, 14558, Germany Tanja Schwerdtle Authors * Robert Bzymek View

author publications You can also search for this author inPubMed Google Scholar * Markus Horsthemke View author publications You can also search for this author inPubMed Google Scholar *

Katrin Isfort View author publications You can also search for this author inPubMed Google Scholar * Simon Mohr View author publications You can also search for this author inPubMed Google

Scholar * Kerstin Tjaden View author publications You can also search for this author inPubMed Google Scholar * Carsten Müller-Tidow View author publications You can also search for this

author inPubMed Google Scholar * Marlies Thomann View author publications You can also search for this author inPubMed Google Scholar * Tanja Schwerdtle View author publications You can also

search for this author inPubMed Google Scholar * Martin Bähler View author publications You can also search for this author inPubMed Google Scholar * Albrecht Schwab View author

publications You can also search for this author inPubMed Google Scholar * Peter J. Hanley View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS

R.B., S.M., C.M.-T., M.T., T.S., M.B., A.S. and P.J.H. designed experiments. R.B., M.H., K.I., K.T., M.T. and P.J.H. performed experiments. R.B., M.H., M.T. and P.J.H. analyzed data. P.J.H.

wrote the paper. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY INFORMATION SUPPLEMENTARY VIDEO

S1 SUPPLEMENTARY VIDEO S2 SUPPLEMENTARY VIDEO S3 SUPPLEMENTARY VIDEO S4 SUPPLEMENTARY VIDEO S5 SUPPLEMENTARY VIDEO S6 SUPPLEMENTARY VIDEO S7 SUPPLEMENTARY VIDEO S8 SUPPLEMENTARY VIDEO S9

SUPPLEMENTARY VIDEO S10 SUPPLEMENTARY VIDEO S11 SUPPLEMENTARY VIDEO S12 SUPPLEMENTARY VIDEO S13 SUPPLEMENTARY VIDEO S14 SUPPLEMENTARY VIDEO S15 RIGHTS AND PERMISSIONS This work is licensed

under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the article’s Creative Commons license, unless

indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the

material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Bzymek, R., Horsthemke, M., Isfort,

K. _et al._ Real-time two- and three-dimensional imaging of monocyte motility and navigation on planar surfaces and in collagen matrices: roles of Rho. _Sci Rep_ 6, 25016 (2016).

https://doi.org/10.1038/srep25016 Download citation * Received: 05 February 2016 * Accepted: 06 April 2016 * Published: 28 April 2016 * DOI: https://doi.org/10.1038/srep25016 SHARE THIS

ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard

Provided by the Springer Nature SharedIt content-sharing initiative
