Stratospheric influences on surface ozone increase during the covid-19 lockdown over northern china

ABSTRACT Surface ozone increased unexpectedly over northern China during the COVID-19 lockdown (CLD) period (23 January–29 February 2020), which was characterized by vigorous emission

reduction. The reasons for this ozone enhancement have been speculated from perspectives of chemical responses to the emissions and meteorology. As known, the processes of natural

stratospheric ozone injecting to the troposphere are most active in winter and spring. Yet, little attention was paid to stratospheric influences on this ozone enhancement. Here we report a

stratospheric intrusion (SI) that reached the surface over northern China on 15–17 February during the CLD. The coevolution of enhanced ozone and sharply declined carbon monoxide and

relative humidity (RH) was indicative of the SI occurrence. We show that the SI was facilitated by a cutoff low system that led to abnormally high surface ozone in most part of northern

China. We estimate that over the SI period, the injected stratospheric ozone constituted up to 40–45% of the surface ozone over northern China. If the stratospheric ozone inputs were scaled

over the entire CLD period, these inputs would account for 4–8% of the surface ozone. In view of the unexpected ozone increase during the CLD, this SI event could explain up to 18% of the

ozone increase in some cities, and average 5–10% over larger areas that were affected. Hence, the nonnegligible stratospheric influences urge extra consideration of natural ozone sources in

disentangling the role of emission reduction and meteorological conditions during the CLD in China and elsewhere in the world. SIMILAR CONTENT BEING VIEWED BY OTHERS POTENTIAL DRIVERS OF THE

RECENT LARGE ANTARCTIC OZONE HOLES Article Open access 21 November 2023 EMERGENCE OF SOUTHERN HEMISPHERE STRATOSPHERIC CIRCULATION CHANGES IN RESPONSE TO OZONE RECOVERY Article 23 August

2021 SPRINGTIME ARCTIC OZONE DEPLETION FORCES NORTHERN HEMISPHERE CLIMATE ANOMALIES Article 07 July 2022 INTRODUCTION The Coronavirus Disease 2019 (COVID-19) outbreak in January 2020

provided a natural experiment to examine the roles of emission reduction and meteorology in surface ozone (O3) variations. To prevent the spread of the COVID-19 epidemic, China adopted

strict control measures including suspending industrial activity, restricting traffic transport, and releasing stay-at-home requirements (referred to as "lockdown"). As a result,

it is found that primary air pollutants, such as nitrogen oxides (NOx =NO + NO2), sulfur dioxide (SO2), carbon monoxide (CO), and volatile organic compound (VOC) declined sharply1,2,3,4,

however, surface ozone unexpectedly increased in China1,2,3,4,5,6,7. It is known that ozone concentrations vary with environmental factors such as precursor levels (including NOx and VOCs)

and meteorology. These factors, which integrally determine the photochemical production of ozone, have been investigated extensively to explain the unexpected ozone increase observed during

the COVID-19 lockdown (CLD, 23 January–29 February 2020) period1,2,3,4,5,6,7,8,9,10. Combining comprehensive observations and models, researchers have attributed the ozone increase to the

nonlinearity of ozone chemical reactions, in which ozone increases when NOx is significantly reduced, since China is generally characterized by a VOC-limited chemical regime in

winter10,11,12,13. The sharp NOx reduction also strongly alleviated the nighttime titration of ozone and hence led to higher ozone concentrations. Impacts of meteorological conditions on the

enhanced ozone during the CLD were also examined1,7,8. Previous studies suggested that relative humidity (RH) increased considerably over northern China during the CLD, accompanied by lower

wind speed and shallower planetary boundary layer height. Together with the seasonal cycle of meteorology, these meteorological conditions favored the formation and accumulation of ozone.

In addition, researchers disentangled the contributions of vigorous emission reduction and meteorological conditions to the unexpected ozone increase during the CLD by means of chemical

transport models and machine learning technique1,14,15,16. Apart from the photochemically produced ozone, the downward transport of stratospheric ozone into the troposphere is a natural

source of tropospheric ozone17,18,19,20. Such stratospheric intrusion (SI) processes exhibit a pronounced seasonal variation with most activities in late winter and spring17,21,22, and

sometimes can transport substantial ozone to the surface23,24. The vertically injected stratospheric ozone additively enhances the surface ozone concentrations and hence alters the normal

diurnal cycle of ozone23,24,25,26,27. While the stratosphere-to-troposphere (STT) exchange processes are irregular and uncontrollable, little attention has been paid to the potential

stratospheric contributions to the ozone increase during the lockdown in coincidence with late winter season exhibiting high frequencies of SIs. Given the characteristics of stratospheric

airmass (i.e., high ozone, low CO)17, the impacts of SIs can be mistakenly classified as the consequences of emission reduction, since the SI processes were not well resolved or considered

in previous studies. As a result, the estimation of the impacts of emission reduction and meteorology would be biasedly blurred by possible SI events. Here, combining analysis of multisource

observations, meteorological reanalysis data, and trajectory modeling, we report a deep SI event occurred over northern China and then assess its contributions to the surface ozone increase

during the CLD. Using this deep SI case, we elucidate the nonnegligible influences of stratosphere on the surface ozone when disentangling the role of emission reduction and meteorological

conditions. We believe these quantitative analyses of stratospheric ozone contributions would provide new insights into the causes of the unexpected ozone increase that occurred during the

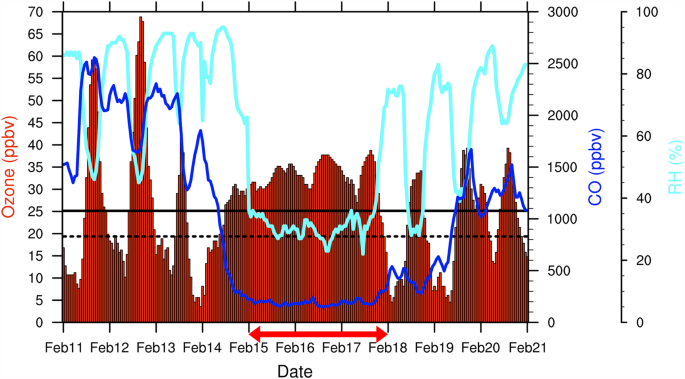

CLD. RESULTS AND DISCUSSION EVIDENCES OF STRATOSPHERIC OZONE INPUTS TO SURFACE OZONE DURING THE CLD Normally, the diurnal cycle of surface ozone exhibits a maximum resulting from daytime

photochemical reactions and a minimum due to nighttime NO titration. As shown in Fig. 1, before February 14, 2020, the surface zone concentrations in Beijing increased at a rate of 5–10 ppbv

per hour after sunrise, reached a maximum in the afternoon, and then declined thereafter with a minimum in the early morning. However, such a distinct diurnal cycle was absent during

February 15–17, 2020 suffering from a deep SI event characterized by high ozone, low CO, and low RH. Taking the average surface ozone during the CLD (23 January–29 February 2020) as a

baseline, it is found that ozone concentrations during 15–17 February substantially exceeded the baseline value and persisted over a long period. More impressively, the normal deep valley of

nighttime ozone disappeared during 15–17 February, since the nighttime ozone concentrations were significantly enhanced in comparison with those before February 15, 2020. In addition to the

abnormally high ozone, surface CO and RH declined synchronously and reached their low valley during 15–17 February. After 18 February, surface ozone returned to its normal diurnal cycle,

and CO and RH rebounded significantly. The coevolution of surface ozone, CO, and atmospheric moisture provided pieces of observational evidence for a deep SI event penetrated into the ground

level in Beijing during the CLD. To further confirm the occurrence of this deep SI event, the temporal variations in RH profiles, tropopause height and tropospheric ozone column values are

compared in Fig. 2. The average RH profile during 15–17 February was reduced within a deep layer extending from the surface to 300 hPa with reference to that during 10–14 February, and then

rebounded vigorously after 18 February (Fig. 2a). Compared with the neighboring periods, low RH values (<30%) dominated in the profiles collected in Beijing during 15–17 February, with a

distinct decrease in the atmospheric boundary layer when the stratospheric airmass had penetrated into the ground level. Following the WMO thermal tropopause definition, we find that the

tropopause fell down since 13 February and reached a minimum on 15 February. The tropospheric ozone column in Beijing (Fig. 2b), which was retrieved from MERRA-2 reanalysis data, increased

substantially with the falling tropopause height and reached a peak on 15 February, suggesting additional ozone inputs to the troposphere associated with the deep SI event. We further

conducted three-dimensional backward trajectory simulations with the HYSPLIT model28 to determine the origin of airmass above Beijing during 15–17 February (Supplementary Fig. 1). The

trajectory shows that the airmass initially originated in the stratosphere, descended during the following 8 days to the atmospheric boundary layer height, and then penetrated into the

ground level in Beijing within 2 days from the northwest. The unexpected increase of surface ozone in China during the CLD has drawn a large amount of attention1,2,3,4,5,6,7,8,9,10. The

causes for this ozone increase have been speculated from the perspectives of chemical responses to the emission reduction and meteorological conditions during the CLD. However, the

stratospheric influences on the increase over northern China have not been discussed. Table 1 provides statistics of surface ozone, NO2, and CO concentrations in Beijing during different

periods including the CLD and SI from 1 January to 31 March 2022. Before the lockdown period (pre-CLD, January 1–22, 2020), the average surface ozone in Beijing was 14.84 ppbv, which was

enhanced by 9.88 ppbv (66.6%) during the CLD, and increased continuously after the lockdown period (after-CLD, March 1–31, 2020). Similar variations among the three periods were observable

for the daytime ozone concentrations, under the influences of photochemical reactions and seasonal evolution of radiation and temperature15. Due to a 35.7% reduction in NO2 during the CLD,

the titration effect weakened. Therefore, the nighttime ozone increased significantly in Beijing, as reflected in the mean nighttime ozone concentrations. During the deep SI period (February

15–17, 2020), the average daily ozone concentrations reached 32.79 ppbv and exceeded the mean ozone concentrations during the CLD and after-CLD period by 8.07 ppbv and 2.92 ppbv,

respectively. We further compared the ozone concentrations in daytime and nighttime separately. For the daytime ozone, the average value during the SI period (33.65 ppbv) exceeded the

corresponding value during the CLD (27.96 ppbv). During the night, the ozone difference between the SI and CLD periods was even larger than that during the day. The average nighttime ozone

concentrations in Beijing during the SI were ~13 ppbv higher than that during the CLD. As a result, the diurnal variation in surface ozone was dramatically reduced during the SI due to the

intrusion of stratospheric airmass. The stratospheric influences on other pollutants, i.e., NO2, CO, SO2, and PM2.5, were also examined. Although vigorous emission reduction was imposed

during the CLD, the observed surface NO2, CO, SO2, and PM2.5 concentrations during the SI were even 2–10 times lower than those during the CLD, indicating a rapid and strong dilution of

these pollutants. Compared with the mean concentrations during the CLD, surface NO2, CO, SO2, and PM2.5 in Beijing during the deep SI event declined by 75.3%, 76.6%, 59.9%, and 91.8%,

respectively, reaching the minimum of the entire CLD period. Such overwhelming drops of these pollutants provide additional indications for the deep SI occurrence. SYNOPTIC CONDITIONS OF THE

STRATOSPHERIC INTRUSION AND RESPONSES OF OZONE OVER NORTHERN CHINA A cutoff low system characterized by an isolated close circulation formed over northern China and facilitated the SI

transport processes (Supplementary Fig. 2). Along with the propagation of the cutoff-low system, airmass with low humidity, high ozone and high potential vorticity (PV) intruded into the

middle-to-low troposphere over northern China. Figure 3a shows the horizontal distribution of PV from MERRA-2 data under the influence of the cutoff low system. In addition to the thermal

tropopause definition, the 2 PV unit (PVU, 1PVU = 10−6 m2 s−1 K kg−1) surface is often applied to represent the dynamical tropopause in synoptic-scale studies29,30. On 15 February 2020, a

northeast–southwest-oriented belt with PV exceeding 2 PVU at 500 hPa appeared in most part of northern China, suggesting high-PV airmass had intruded into the middle troposphere. Downward

air motions and low moisture were dominated as a result of the SI occurrence. With reference to the cross-section of PV and ozone, a significant deformation of the tropopause (tropopause

fold) formed above northern China, where a tongue of air with high PV subsided from the upper troposphere and reached down to 800 hPa. The tropopause fold promoted significant

cross-tropopause mass exchange31,32. Along the high-PV tongue, stratospheric ozone-rich airmass was injected into the middle-to-low troposphere. In the north of the PV tongue, high-ozone

filament penetrated into the atmospheric boundary layer. Impacted by the synoptic-scale deep SI following a northwest-to-southeast transport pathway (Supplementary Fig. 1), the diurnal

circle of surface ozone over most parts of northern China was interfered alternately (Supplementary Fig. 3). The coexistence of enhanced ozone, declined CO and RH, similar to the

corresponding variation patterns in Beijing, was also identifiable in other cities of northern China. Despite the widely distributed stratospheric airmass, however, the magnitudes of surface

ozone enhancement during the SI differed from city to city, depending on the distance to the high-PV tongue and the local conditions. Compared with the entire CLD period, the deep SI event

inhabited ozone photochemical reactions which was usually seen in the daytime ozone peak before the SI (Fig. 1 and Supplementary Fig. 3), due to the extremely low supply of ozone

precursors33 (such as NO2 and CO). Still, the injected stratospheric ozone prevailed over the portion of ozone loss in the daytime that was associated with the weakened photochemical

reaction, leading to the exceedances of daytime ozone concentrations over their CLD baseline. In view of the fact that the stratospheric air was mixed with the tropospheric air, we examined

the nighttime ozone concentrations to avoid the blurring of daytime photochemical reactions, and hence investigated how surface ozone responded to the deep SI over northern China. The

stratospheric impacts could be assessed from the difference in ozone concentrations between the SI (15–17 February) and pre-SI (23 January–14 February, within the CLD) periods so that the

impacts of other factors could be minimized. Taking the nighttime ozone concentrations over the pre-SI as the baseline references, we show in Fig. 4 the co-located nighttime ozone

concentrations at the same local times. Clearly, the variations in nighttime ozone during the SI event were significantly narrowed, producing an accumulation centering around 25–35 ppbv in

comparison with the neighboring periods. On the regional average over all the surface stations distributed over northern China (34–44 °N, 108–124 °E, the boxed area in Supplementary Fig. 2),

the deep SI event led to abnormally high nighttime ozone and enhanced the ozone concentrations from their baseline references by 4.8 ppbv, which even doubled the one before the SI (1.9 

ppbv). CONTRIBUTIONS OF THE STRATOSPHERIC INTRUSION TO SURFACE OZONE INCREASE DURING THE CLD OVER NORTHERN CHINA The above analyses confirm the occurrence of a deep stratospheric intrusion

during the CLD and investigate the responses of surface ozone to the SI event over northern China. Yet, an important question is how much is the injected stratospheric ozone at the surface

which had been mixed with local tropospheric ozone. The ratio of stratospheric ozone to the observed surface ozone concentrations provides vital information to understand the impacts of the

SI event on surface air quality and ozone variations. In other words, under the CLD scenario with vigorous emission reduction, it is warranted to know to which extent the ozone increase can

be explained by the SI event when dealing with the contributions from emission variation and meteorology. Here we estimated the amount of stratospheric ozone (\({\varDelta

{O}_{3}}^{{strat}}\)) injected during the SI by integrating the excess of ozone concentrations above their baseline references (see “Methods”)21,34,35,36. Also, the accumulated ozone

concentrations during the SI period (\({{O}_{3}}_{{SI}}^{{sum}}\)) and during the CLD (\({{O}_{3}}_{{CLD}}^{{sum}}\)) were also calculated by integrating the corresponding surface ozone

observations. Figure 5a presents the ratios of injected stratospheric ozone to the accumulated ozone concentrations at the surface during the SI period (\(100 \% * \frac{\varDelta

{{O}_{3}}^{{strat}}}{{{O}_{3}}_{{SI}}^{{sum}}}\)). The injected stratospheric ozone largely constituted the surface ozone concentrations during the SI period, even up to 40–45% in some

cities, suggesting the dominant role of SI on ozone variations within a short time period. Suffering from this SI event, the mean ozone concentrations during the intrusion days were directly

promoted compared with those during the CLD. As noted in ref. 21, the contributions of injected stratospheric ozone at the surface are highly sensitive to the period of interest. Even if

the injected stratospheric ozone was scaled by the accumulated ozone concentrations during the entire CLD (Fig. 5b; \(100 \% * \frac{\varDelta

{{O}_{3}}^{{strat}}}{{{O}_{3}}_{{CLD}}^{{sum}}}\)), it still accounted for 4–8% of the surface ozone over regions located in the high-PV belt region shown in Fig. 3a. The unexpected CLD

ozone increase relative to that before lockdown1 reflects the impacts of emission reduction, evolving seasonality of meteorological conditions, and also SI events. Figure 6 shows the amount

of injected ozone averaged over the over the entire lockdown period, i.e., the scaled ozone values. In regions associated with high-PV values shown in Fig. 3a, the scaled stratospheric ozone

concentrations reached 1–2 ppbv. We calculated the contributions of these additive stratospheric ozone inputs to the overall ozone increase observed during the CLD (Table 2 and Fig. 6).

Though only one SI event occurred, the scaled stratospheric influence contributed 1–18% of the surface ozone increase in different locations during the CLD. Taking Beijing for an example,

the ozone increase during the CLD was 9.9 ppbv compared with that before the CLD; this SI event can explain 7.1% of the ozone increase in Beijing during the CLD. Despite different

vulnerabilities to the SI processes and different local background ozone concentrations and emission magnitudes, this deep SI event occurred during the CLD and contributed average 5–10% of

the overall ozone enhancement over high-PV belt regions (Figs. 3a and 6), suggesting the nonnegligible influences of the SI on ozone variations when disentangling the role of anthropogenic

emission controls and meteorological conditions. LESSONS FROM THE SI EVENT OCCURRED DURING THE CLD ON OZONE VARIATIONS In previous studies, attempts were made to separate the contributions

of vigorous emission reduction and meteorological conditions to the ozone increase during the CLD by comparing between the CLD and the pre-CLD periods. For example, Wang et al.15 perform

numerical simulations with the WRF-Chem model and found that the meteorological factors accounted for 80% of the ozone increase over the Yangtze River Delta (YRD) region of China, while the

emission reduction contributed the rest 20%. Li et al.37 attributed 80% of ozone increase during the lockdown period to meteorology over northern China. The CMAQ model results of ref. 14

suggested that the contributions of meteorology and emission reduction to the ozone increase over northern China were 58% and 42%, respectively. However, by means of air quality modeling,

Zhao et al.38 believed that meteorology played a relatively minor role, and the precursor emission reduction was the main reason for the observed increase over China during the CLD. Using a

machine learning model, Shen et al.16 argued that meteorology reduced surface ozone by 0.9% in 31 provincial capital cities of China. Viewing the case of central Europe, Cuesta et al.39

estimated that the meteorological conditions accounted for 8% of the overall ozone enhancement during the lockdown, based on a chemistry-transport model simulation. Generally, the ozone

inputs from the SI were not explicitly considered in the numerical simulation works mentioned above. As a result, the meteorological contributions to the ozone enhancement relative to

emission reduction may be biasedly estimated. This study based on the observational analysis reliably shows that a deep SI event occurred during the lockdown period can contribute an average

of 5–10% of the overall ozone enhancement over large parts of northern China. This study suggests that injected stratospheric ozone could impose a nonnegligible impact on ozone pollution

during the CLD not only in China but also elsewhere, since the occurrences of deep SIs are not preventable. Therefore, a key lesson is a necessity to take extra account of injected

stratospheric ozone in addition to stringent anthropogenic emission reduction when implementing ozone control strategies in the future. This study only investigated a SI event with moderate

magnitude but long duration during the CLD in China. A higher impact from natural stratospheric ozone inputs on the troposphere would be expected if more deep SI events are identified.

Actually, the stratospheric impacts over a specified region depend on the frequency, magnitude and duration of deep SI events as well as the local background ozone. Beyond this SI case

occurred during the CLD, it is warranted to examine the characteristics of deep SIs occurring over multiple years, since these understandings aid to offer a more complete insight of natural

and anthropogenic influences on surface ozone variations. METHODS AIR POLLUTANT OBSERVATIONS Hourly ground-based measurements of O3, CO, NO2, SO2, and PM2.5 concentrations were obtained from

the public website of the Chinese Ministry of Ecology and Environment (MEE) (https://english.mee.gov.cn/). The tropospheric ozone column data were retrieved from the Modern-Era

Retrospective analysis for Research and Applications version 2 (MERRA-2) reanalysis data. The MERRA-2 is a NASA atmospheric reanalysis using the Goddard Earth Observing System Model, Version

5 (GEOS-5) with its Atmospheric Data Assimilation System (ADAS). The MERRA-2 data have a spatial resolution of 0.5° latitude × 0.625° longitude with 72 model levels

(https://gmao.gsfc.nasa.gov/reanalysis/MERRA-2). We integrated ozone concentrations provided by MERRA-2 from the lowest model level to tropopause height, which is also available in MERRA-2,

to obtain the tropospheric ozone column values. METEOROLOGICAL DATA The surface relative humidity (RH) and operational radiosonde data in Beijing can be downloaded from the National

Meteorological Science Data Center (https://data.cma.cn). The MERRA-2 meteorological fields, including PV, geopotential height, temperature, horizontal winds, RH, and vertical velocity, were

used in this study. BACKWARD TRAJECTORY SIMULATIONS The National Oceanic Atmospheric Administration’s (NOAA) hybrid single-particle Lagrangian integrated trajectories (HYSPLIT) model is

widely used in studies of air pollutant transport (https://www.arl.noaa.gov/hysplit). We applied the HYSPLIT model to identify the origins and pathways of airmass reaching Beijing during the

SI period. The back trajectories were simulated using the Global Forecast System (GFS) 0.25° meteorological dataset. ESTIMATION OF THE IMPACTS OF THE STRATOSPHERIC INTRUSION ON SURFACE

OZONE The mean surface ozone concentrations at each hour were calculated by averaging ozone observations at each of the 24 h covering two different periods. The first set of hourly means is

for the period of the CLD before SI (23 January–14 February 2020, namely \({\bar{{O}_{3}}}_{h}^{P1}\), where _h_ = 1–24), and the second set is for the pre-CLD within the CLD period (January

1–22, 2020, namely \({\bar{{O}_{3}}}_{h}^{P2}\), where _h_ = 1–24). These two sets of hourly mean values provide baseline references to quantitatively separate the influences of the

stratospheric intrusion, emission reduction and meteorology during the CLD. In other words, the difference in ozone concentrations during the SI and \({\bar{{O}_{3}}}_{h}^{P1}\) could be

attributed to the stratospheric intrusion, while the difference in ozone concentrations during the CLD and \({\bar{{O}_{3}}}_{h}^{P2}\) could be attributed to the stratospheric intrusion,

emission reduction and meteorology. This methodology was inspired by previous studies21,34,35,36 with some modifications. Specifically, the excess of ozone above the baseline references

during the SI period was integrated (Eq. (1)), which was taken as the amount of injected stratospheric ozone (\({\varDelta {O}_{3}}^{{strat}}\)). $${\varDelta

{O}_{3}}^{{strat}}={\int}_{{SI}{{\_}}{start}}^{{SI}{{\_}}{end}}{\int}_{{h}{{\_}}{start}}^{{h}{{\_}}{end}} ({{O}_{3}}_{h,t}-{\bar{{O}_{3}}}_{h}^{P1}){dhdt}$$ (1) where \({{O}_{3}}_{h,t}\)

denotes the ozone observations at hour _h_ and day _t_, and the \({\bar{{O}_{3}}}_{h}^{P1}\) represents the ozone reference concentrations at the same hour. The differences between

\({{O}_{3}}_{h,t}\) and \({\bar{{O}_{3}}}_{h}^{P1}\) were summed over the period of SI occurrence with a temporal resolution of 1 h. Generally, h_start = 1 and h_end = 24, except for the

start and end days of SI when the actual hours were used. The sum of ozone concentrations during the SI and CLD periods were calculated following Eqs. (2) and (3), respectively.

$${{O}_{3}}_{{SI}}^{{sum}}={\int}_{{SI}{{\_}}{start}}^{{SI}{{\_}}{end}}{\int}_{{h}{{\_}}{start}}^{{h}{{\_}}{end}}{{O}_{3}}_{h,t}{dhdt}$$ (2)

$${{O}_{3}}_{{CLD}}^{{sum}}={\int}_{{CLD}{{\_}}{start}}^{{CLD}{{\_}}{end}}{\int}_{{h}{{\_}}{start}}^{{h}{{\_}}{end}}{{O}_{3}}_{h,t}{dhdt}$$ (3) The ratios of stratospheric ozone to the sum

of ozone concentrations during the SI and CLD period were given by $${{Ratio}}_{{SI}}=100 \% * \frac{\varDelta {{O}_{3}}^{{strat}}}{{{O}_{3}}_{{SI}}^{{sum}}}$$ (4) $${{Ratio}}_{{CLD}}=100 \%

* \frac{\varDelta {{O}_{3}}^{{strat}}}{{{O}_{3}}_{{CLD}}^{{sum}}}$$ (5) The ozone enhancement during the CLD (\(\varDelta {O}_{3}\)) relative to that before the lockdown (pre-CLD) period

contains the impacts of emission reduction, meteorology and stratospheric intrusions. Provided with the additive stratospheric ozone, the stratospheric contributions to the overall ozone

enhancement during the CLD were calculated following $$\varDelta

{O}_{3}={\int}_{{CLD}{{\_}}{start}}^{{CLD}{{\_}}{end}}{\int}_{{h}{{\_}}{start}}^{{h}{{\_}}{end}}({{O}_{3}}_{h,t}-{\bar{{O}_{3}}}_{h}^{P2}){dhdt}$$ (6) $${{Contribution}}^{{strat}}=100 \% *

\frac{\varDelta {{O}_{3}}^{{strat}}}{\varDelta {O}_{3}}$$ (7) DATA AVAILABILITY Datasets are freely available and can be downloadable from the internet and are available upon request. CODE

AVAILABILITY The codes used in this study are available upon request. REFERENCES * Le, T. et al. Unexpected air pollution with marked emission reductions during the COVID-19 outbreak in

China. _Science_ 369, 702–706 (2020). Article  Google Scholar  * Shi, X. & Brasseur, G. P. The response in air quality to the reduction of Chinese economic activities during the COVID-19

outbreak. _Geophys. Res. Lett._ 47, e2020GL088070 (2020). Article  Google Scholar  * Silver, B., He, X. Y., Arnold, S. R. & Spracklen, D. V. The impact of COVID-19 control measures on

air quality in China. _Environ. Res. Lett._ 15, 084021 (2020). Article  Google Scholar  * Li, M. et al. Drivers for the poor air quality conditions in North China Plain during the COVID-19

outbreak. _Atmos. Environ._ 246, 118103 (2021). Article  Google Scholar  * Huang, X. et al. Enhanced secondary pollution offset reduction of primary emissions during COVID-19 lockdown in

China. _Natl Sci. Rev._ 8, nwaa137 (2021). Article  Google Scholar  * Zhu, S. et al. Comprehensive insights into O3 changes during the COVID-19 from O3 formation regime and atmospheric

oxidation capacity. _Geophys. Res. Lett._ 48, e2021GL093668 (2021). Article  Google Scholar  * Su, T., Li, Z., Zheng, Y., Luan, Q. & Guo, J. Abnormally shallow boundary layer associated

with severe air pollution during the COVID-19 lockdown in China. _Geophys. Res. Lett._ 47, e2020GL090041 (2020). Article  Google Scholar  * Zhu, J. et al. Enhanced PM2.5 decreases and O3

increases in China during COVID-19 lockdown by aerosol-radiation feedback. _Geophys. Res. Lett._ 48, e2020GL090260 (2021). Google Scholar  * Shi, Z. et al. Abrupt but smaller than expected

changes in surface air quality attributable to COVID-19 lockdowns. _Sci. Adv._ 7, eabd6696 (2021). Article  Google Scholar  * Kroll, J. H. et al. The complex chemical effects of COVID-19

shutdowns on air quality. _Nat. Chem._ 12, 777–779 (2020). Article  Google Scholar  * Fu, X. et al. Persistent heavy winter nitrate pollution driven by increased photochemical oxidants in

northern China. _Environ. Sci. Technol._ 54, 3881–3889 (2020). Article  Google Scholar  * Leung, D. et al. Wintertime particulate matter decrease buffered by unfavorable chemical processes

despite emissions reductions in China. _Geophys. Res. Lett._ 47, e2020GL087721 (2020). Article  Google Scholar  * He, J. et al. Multi-year application of WRF-CAM5 over East Asia-Part I:

comprehensive evaluation and formation regimes of O3 and PM2.5. _Atmos. Environ._ 165, 122–142 (2017). Article  Google Scholar  * Liu, Y. et al. Diverse response of surface ozone to COVID-19

lockdown in China. _Sci. Total Environ._ 789, 147739 (2021). Article  Google Scholar  * Wang, H. et al. Seasonality and reduced nitric oxide titration dominated ozone increase during

COVID-19 lockdown in eastern China. _npj Clim. Atmos. Sci._ 5, https://doi.org/10.1038/s41612-022-00249-3 (2022). * Shen, F. et al. Disentangling drivers of air pollutant and health risk

changes during the COVID-19 lockdown in China. _NPJ Clim. Atmos. Sci._ 5, https://doi.org/10.1038/s41612-022-00276-0 (2022). * Stohl, A. et al. Stratosphere-troposphere exchange-a review,

and what we have learned from STACCATO. _J. Geophys. Res._ 108, 8516 (2003). Article  Google Scholar  * Langford, A. O., Aikin, K. C., Eubank, C. S. & Williams, E. J. Stratospheric

contribution to high surface ozone in Colorado during springtime. _Geophys. Res. Lett._ 36, L12801 (2009). Article  Google Scholar  * Trickl, T. et al. Forecasted deep stratospheric

intrusions over Central Europe: case studies and climatologies. _Atmos. Chem. Phys._ 10, 499–524 (2010). Article  Google Scholar  * Kuang, S. et al. Stratosphere-to-troposphere transport

revealed by ground-based lidar and ozonesonde at a midlatitude site. _J. Geophys. Res_ 117, D18305 (2012). Google Scholar  * Elbern, H., Kowol, J., Sladkovic, R. & Ebel, A. Deep

stratospheric intrusions: a statistical assessment with model guided analyses. _Atmos. Environ._ 31, 3207–3226 (1997). Article  Google Scholar  * Lawrence, M. G., Kuhlmann, R., Salzmann, M.

& Rasch, P. J. The balance of effects of deep convective mixing on tropospheric ozone. _Geophys. Res. Lett._ 30, 18 (2003). Article  Google Scholar  * Chen, Z. et al. Transport of

substantial stratospheric ozone to the surface by a dying typhoon and shallow convection. _Atmos. Chem. Phys._ 22, 8221–8240 (2022). Article  Google Scholar  * Dreessen, J. A sea level

stratospheric ozone intrusion event induced within a thunderstorm gust front. _B. Am. Meteorol. Soc._ 100, 1259–1275 (2019). Article  Google Scholar  * Davies, T. & Schuepbach, E.

Episodes of high ozone concentrations at the earth’s surface resulting from transport down from the upper troposphere/lower stratosphere: a review and case studies. _Atmos. Environ._ 28,

53–68 (1994). Article  Google Scholar  * Lal, S. & Lawrence, M. G. Elevated mixing ratios of surface ozone over the Arabian Sea. _Geophys. Res. Lett._ 28, 1487–1490 (2001). Article

Google Scholar  * Wang, H., Wang, W., Huang, X. & Ding, A. Impacts of stratosphere-to-troposphere-transport on summertime surface ozone over eastern China. _Sci. Bull._ 65, 276–279

(2020). Article  Google Scholar  * Stein, A. F. et al. NOAA’s HYSPLIT atmospheric transport and dispersion modeling system. _B. Am. Meteorol. Soc._ 96, 2059–2077 (2015). Article  Google

Scholar  * Kunz, A., Konopka, P., Müller, R. & Pan, L. L. Dynamical tropopause based on isentropic potential vorticity gradients. _J. Geophys. Res_ 116, D01110 (2011). Google Scholar  *

Li, D., Bian, J. C. & Fan, Q. J. A deep stratospheric intrusion associated with an intense cut-off low event over East Asia. _Sci. China Earth Sci._ 58, 116–128 (2015). Article  Google

Scholar  * Li, D. & Bian, J. C. Observation of a summer tropopause fold by ozonesonde at Changchun, China: comparison with reanalysis and model simulation. _Adv. Atmos. Sci._ 32,

1354–1364 (2015). Article  Google Scholar  * Song, Y. et al. The impact of cut-off lows on ozone in the upper troposphere and lower stratosphere over Changchun from ozonesonde observations.

_Adv. Atmos. Sci._ 33, 135–150 (2016). Article  Google Scholar  * Bradshaw, J. et al. Observed distributions of nitrogen oxides in the remote free troposphere from the NASA global

tropospheric experiment programs. _Rev. Geophys._ 38, 61–116 (2000). Article  Google Scholar  * Cristofanelli, P. et al. A 6-year analysis of stratospheric intrusions and their influence on

ozone at Mt. Cimone (2165 m above sea level). _J. Geophys. Res. Atmos._ 111, D03306 (2006). Article  Google Scholar  * Cristofanelli, P. et al. Tropospheric ozone variations at the Nepal

Climate Observatory-Pyramid (Himalayas, 5079 m a.s.l.) and influence of deep stratospheric intrusion events. _Atmos. Chem. Phys._ 10, 6537–6549 (2010). Article  Google Scholar  * Lin, Y.-C.

et al. Stratospheric influence on the concentration and seasonal cycle of lower tropospheric ozone: observation at Mount Hehuan, Taiwan. _J. Geophys. Res. Atmos._ 119, 3527–3536 (2014).

Article  Google Scholar  * Li, R. et al. Substantial changes in gaseous pollutants and chemical compositions in fine particles in the North China Plain during the COVID-19 lockdown period:

anthropogenic vs. meteorological influences. _Atmos. Chem. Phys._ 21, 8677–8692 (2021). Article  Google Scholar  * Zhao, Y. B. et al. Substantial changes in nitrogen dioxide and ozone after

excluding meteorological impacts during the COVID-19 outbreak in mainland China. _Environ. Sci. Technol. Lett._ 7, 402–408 (2020). Article  Google Scholar  * Cuesta, J. et al. Ozone

pollution during the COVID-19 lockdown in the spring of 2020 over Europe, analysed from satellite observations, in situ measurements, and models. _Atmos. Chem. Phys._ 22, 4471–4489 (2022).

Article  Google Scholar  Download references ACKNOWLEDGEMENTS This work was supported by the National Natural Science Foundation of China (Grant No. 42105079). The computing resources used

in this study were provided by Fujian Normal University High-Performance Computation Center (FNU-HPCC). We thank Lingyun Meng from Nanjing University for her help with data processing. We

appreciate the efforts from the Chinese Ministry of Ecology and Environment for supporting the nationwide observation network and publishing hourly air pollutant concentrations. We also

thank NASA GMAO for the MERRA-2 reanalysis data and NOAA for the HYSPLIT model. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Key Laboratory for Humid Subtropical Eco-Geographical Processes

of the Ministry of Education, School of Geographical Sciences, Fujian Normal University, Fuzhou, China Zhixiong Chen, Jane Liu, Xugeng Cheng, Mengmiao Yang & Lei Shu * Department of

Geography and Planning, University of Toronto, Toronto, ON, Canada Jane Liu Authors * Zhixiong Chen View author publications You can also search for this author inPubMed Google Scholar *

Jane Liu View author publications You can also search for this author inPubMed Google Scholar * Xugeng Cheng View author publications You can also search for this author inPubMed Google

Scholar * Mengmiao Yang View author publications You can also search for this author inPubMed Google Scholar * Lei Shu View author publications You can also search for this author inPubMed

Google Scholar CONTRIBUTIONS Conceptualization: Z.C. and J.L. Methodology: Z.C. and J.L. Investigation: Z.C., J.L., X.C., M.Y., and L.S. Visualization: Z.C. and J.L. Supervision: J.L.

Writing—original draft: Z.C. Writing—review and editing: Z.C., J.L., X.C., M.Y., and L.S. CORRESPONDING AUTHOR Correspondence to Jane Liu. ETHICS DECLARATIONS COMPETING INTERESTS The authors

declare no competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional

affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License,

which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link

to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless

indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or

exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints

and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Chen, Z., Liu, J., Cheng, X. _et al._ Stratospheric influences on surface ozone increase during the COVID-19 lockdown over northern

China. _npj Clim Atmos Sci_ 6, 76 (2023). https://doi.org/10.1038/s41612-023-00406-2 Download citation * Received: 19 March 2023 * Accepted: 19 June 2023 * Published: 29 June 2023 * DOI:

https://doi.org/10.1038/s41612-023-00406-2 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
