ABSTRACT Using boehmite as an available and low-cost natural compound, a bi-functional catalytic composite is prepared through vinyl-functionalization of boehmite, followed by polymerization


with the as-prepared bis-vinylimidazolium bromide ionic liquid and supporting of phosphotungstic acid. The catalyst was characterized via ICP, XRD, TGA, FTIR, SEM/EDS and elemental mapping


analysis and applied for promoting alcohol oxidation reaction and one-pot tandem alcohol oxidation/Knoevenagel condensation reaction in aqueous media under mild reaction condition. The


results indicated high catalytic activity of the catalyst for both reactions. This protocol showed high generality and aliphatic, aromatic and heterocyclic alcohols could be applied as


substrates to furnish the corresponding products in high to excellent yields. Furthermore, hot filtration test confirmed true heterogeneous nature of the catalysis. The catalyst could also


be recovered readily and reused for at least five runs of the reaction with low loss of the activity and phosphotungstic acid leaching upon each run. SIMILAR CONTENT BEING VIEWED BY OTHERS


DESIGN AND SYNTHESIS OF PDSPTCF AS AN INFLUENTIAL BRØNSTED-LEWIS ACIDIC CATALYST FOR THE PRODUCING BENZO[_A_]BENZO[6,7]CHROMENO[2,3-_C_]PHENAZINES Article Open access 02 December 2024


COMPOSITE OF BENTONITE AND CYCLODEXTRIN AS AN EFFICIENT CATALYST FOR PROMOTING CHEMICAL TRANSFORMATIONS IN AQUEOUS MEDIA Article Open access 03 March 2021 TUNING THE ACIDITY OF HALLOYSITE BY


POLYIONIC LIQUID TO DEVELOP AN EFFICIENT CATALYST FOR THE CONVERSION OF FRUCTOSE TO 5-HYDROXYMETHYLFURFURAL Article Open access 11 May 2023 INTRODUCTION Nowadays, scientific research has


been developed in response to the important challenges of green chemistry, such as designing of the chemical process with less synthetic steps in order to minimize the use of toxic solvents


and reagents and waste production1,2. In this venue, planning the high-performance bi/multi-functional heterogeneous catalysts that can promote two or more reaction steps and can be easily


separated from the reaction media is valuable3. Moreover, design of one-pot tandem reactions, which combine two or more synthetic steps in one-pot4,5,6 is an attractive approach for green


synthesis of various chemicals7,8. As isolation of intermediates is not required in tandem reactions, they are also very appealing from economic point of view. In these reactions, mostly


bi/multi-functional catalysts can be applied for promoting different steps of the reactions. One of the key tandem reactions is alcohol oxidation /Knoevenagel condensation reaction that is


utilized for the synthesis of α,β-unsaturated nitriles as useful intermediates in organic synthesis. In this tandem reaction, alcohol is first oxidize to form the corresponding aldehyde,


which then tolerates Knoevenoagel condensation with an active methylene compound to form the corresponding condensation product3. The appropriate catalyst for promoting this tandem reaction


needs to possess both redox potential for catalyzing alcohol oxidation and acidic/basic characteristic for promoting Knoevenoagel condensation9. One of the most promising bi-functional


catalyst with both redox and acidic features is heteropolycids, HPAs that are inorganic oxyacids of phosphorus and tungsten, molybdenum, vanadium, etc.10. Various types of HPAs, such as


phosphotungstic acid have been extensively used for catalyzing both acid-catalyzed and oxidation reactions, such as epoxidation, alcohol oxidation etc.11,12,13,14,15. Some advantages of HPAs


are their non-corrosive and non-toxic nature, while, their main inadequacy is their high solubility in common solvents, which caused problems in their recovery and recyclability


procedures12. To circumvent this drawback, HPAs are mostly stabilized on supporting materials. Obviously, use of low-cost, available, bio-compatible and thermally stable supports is favoured


for designing economic and environmentally benign heterogeneous catalysts. In this regard, boehmite is considered as an interesting candidate for heterogenizing various catalytic species16.


Boehmite (γ-AlOOH) nanoparticles benefit from various advantageous, including stable structure, non-toxicity, high specific surface area, and availability17. In addition, the presence of


hydroxyl groups on boehmite surface provides an opportunity to surface functionalization and tuning the properties of boehmite18. One of the attractive functional group for modifying


supporting compounds, is ionic liquids (ILs) and their polymers (poly ionic liquids, PIL). ILs are organic salts, in which the cations are mostly heterocyclic compounds, such as imidazolium


ion, and the anion can be conventional inorganic anions or even organic ones19,20,21. IL exhibits catalytic activity22 and can promote various organic transformations23. On the other hand,


the charged nature of ILs can be exploited to provide electrostatic interactions with some catalytic species, such as HPAs. PILs are normally made by radical polymerization of IL monomers24


and as they contain multiple IL sites, they are considered not only as potential catalysts, but also as potent functional groups for modifying the supporting materials and improving

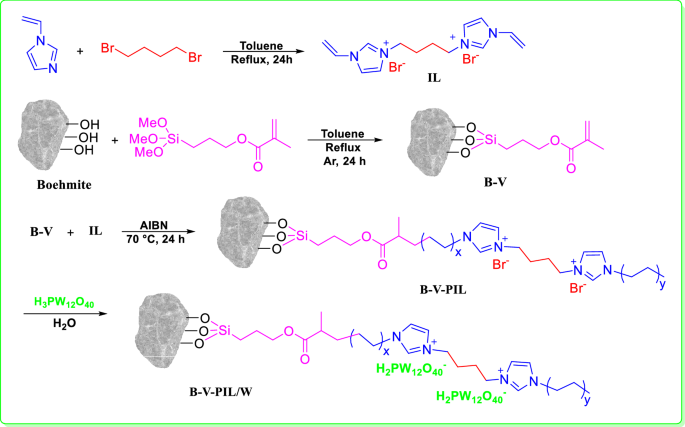

stabilization of catalytic species. Following our research on the utility of natural compounds for the preparation of heterogeneous catalysts25,26,27,28, we wish to introduce a novel


catalytic composite, composed of PIL, phosphotungstic acid and boehmite. The catalyst was prepared through vinyl-functionalization of boehmite, followed by polymerization of IL and


immobilization of phosphotungstic acid, Fig. 1. The catalytic performance of the catalyst was investigated for both alcohol oxidation and one-pot tandem alcohol oxidation /Knoevenagel


condensation reaction in aqueous media. RESULT AND DISCUSSION STRUCTURE OF THE CATALYST The morphology of boehmite and B-V-PIL/W was examined by SEM analysis (Fig. 2). As shown in Fig. 2a,


boehmite exhibited cubic orthorhombic morphology, while the morphology of B -V-PIL/W is distinguished. More precisely, in the SEM images of B-V-PIL/W, small aggregates covered boehmite


orthorhombic cubes and rendered their surface rough (Fig. 2b,c). EDS and elemental mapping techniques were used to prove the existence of the polymeric network and phosphotungstic acid on


the catalyst. As shown in Fig. 3, EDS spectrum of B-V-PIL/W displays the presence of Al, O, C, Si, N, P, W. Among the detected elements, Al and O atoms are the elements in the framework of


boehmite, while detection of C, O and Si atoms is indicative of conjugation of TMSPMA. The presence of PIL in the backbone of B-V-PIL/W can be proved by observation of C and N atoms and the


existence of P, W and O atoms can imply the stabilization of phosphotungstic acid on the B-V-PIL and the preparation of the final catalyst (B-V-PIL/W) (Fig. 3). Figure 4 depicted the results


of elemental mapping analysis of B-V-PIL/W. As shown, both C and N atoms that are representative of PIL exhibited high dispersion, indicating that PIL covered boehmite uniformly. Similarly,


P and W atoms as the main atoms in phosphotungstic acid structure showed uniform dispersion, approving that phosphotungstic acid has been supported on B-V-PIL homogeneously. Figure 5 shows


the FTIR spectra of boehmite, B-V, B-V-PIL and B-V-PIL/W. In the FTIR spectrum of boehmite, symmetric and asymmetric vibrations of the O–H bonds on the surface of boehmite are observed as


strong and wide bands at 3080 and 3380 cm−129,30. The absorbance bands at 480, 605 and 735 cm−1 are assigned to Al-O bands absorption18. Two strong bands at 1070 and 1161 cm−1 are related to


the vibrations of hydrogen bonds of hydroxyl groups31. In the B-V spectrum, the presence of absorption bands at 1458 and 1718 cm−1 are related to the –C–O and –C=O vibrations, respectively,


indicating the connection of TMSPMA to boehmite32. As well, the absorbance band appeared at 1630 cm−1 is related to axial deformation of C=C terminations32, while appearance of the bands at


2950, 1400, 1325, 1300 and 780 cm−1 are related to the symmetric, asymmetric and scissor-like stretching of the CH2 and CH3 groups32 in B-V respectively. In addition, the bands at 1045 and


930 cm−1 highlight the presence of Si–O–Si and Si–OH32. In the FTIR spectrum of B-V-PIL, all of the characteristic absorbance bands of B-V can be detected. Moreover, the band at 1665 cm−1


can be assigned to –C=N vibration33, which indicates the presence of PIL in the structure of the catalyst. In the FTIR spectrum of B-V-PIL/W, the bands at 1089 and 790 cm−1, which are


assigned to the vibration of P–O and W–O–W bonds, respectively approve immobilization of H3PW12O4034. The thermal stability of boehmite, B-V, PIL, and B-V-PIL/W was studied by TGA. As


illustrated in Fig. 6, the initial weight loss observed at a temperature below 110 °C in all of the samples was caused by the removal of the absorbed water. Moreover, the weight loss at 450


°C is indicative of boehmite decomposition29,35. In the B-V thermogram an additional weight loss (10 wt%) was observed at 350 °C, which is related to the presence of V. PIL thermogram showed


a weight loss about 325 °C that is due to the decomposition of PIL. In the thermogram of B-V-PIL/W, the weight loss, observed at 340 °C (23 wt%) is attributed to the decomposition of V-PIL


moiety36,37. To appraise the effects of polymerization of PIL as well as H3PW12O40 immobilization on the structure of boehmite, XRD patterns of boehmite, B-V, PIL and B-V-PIL/W were


compared, Fig. 7. As depicted, in the XRD pattern of boehmite, the characteristic peaks appeared at 2θ = 14.62°, 28.92°, 39.10°, 49.16°, 55.32°, 65.26° and 72.38°35. As shown, the XRD


pattern of B-V was similar to that boehmit. This issue was quite expectable as the loaded content of V was low and as an organic functionality, it showed no peak in the XRD. PIL has an


amorphous structure and shows a broad peak at 2θ = 15°–30°. XRD pattern of B-V-PIL/W is identical to that of boehmite and all of the characteristic peaks of boehmite can be detected in the


XRD pattern of B-V-PIL/W with no shift and replacement. ICP analysis of B-V-PIL/W affirmed that the content of H3PW12O40 on the catalyst was only 0.8 wt%. CATALYST ACTIVITY H3PW12O40 in the


structure of B-V-PIL/W has both acidic features and redox potential. On the other hand, PIL is a potential catalyst for a wide range of reactions, such as Knoevenagel condensation. Hence,


the catalytic activity of B-V-PIL/W was examined for two types of reactions. First, the performance of the catalyst was studied for oxidation of alcohols and then, tandem alcohol


oxidation/Knoevenagel condensation reaction was carried out in the presence of B-V-PIL/W. To investigate the performance of B-V-PIL/W for alcohol oxidation, oxidation of benzyl alcohol was


selected as a model reaction and the reaction condition was optimized by altering the main variants (solvent, temperature and B-V-PIL/W loading). As summarized in Table 1, the model


oxidation reaction was first conducted in water as solvent, H2O2 30% (0.6 mmol) as oxidant and 10 mg B-V-PIL/W at 60 °C. As shown, under the aforementioned condition, the corresponding


aldehyde was achieved in 30% yield. Next, H2O:EtOH (2:1) was applied as a solvent under the same reaction condition and it was found that altering the solvent could lead to improvement of


the yield of the product. Subsequently, the effect of the catalyst amount was examined by using 10–50 mg B-V-PIL/W in H2O:EtOH (2:1) as solvent, H2O2 30% (0.6 mmol) as oxidant at 60 °C. As


tabulated, upon increase of the catalyst amount from 10 to 40 mg, the yield of the reaction increased and reached to 75%. It is worth mentioning that increment of the catalyst dosage to 50


mg was not effective. Finally, the effect of the reaction temperature was appraised and it was confirmed that upon increase of this value to 70 °C, the reaction yield enhanced to 95%.


Noteworthy, further increase of the reaction temperature led to the decrease of yield of the desired product (benzaldehyde) due to the formation of benzoic acid as a by-product. Considering


these experiments, the optimum reaction condition for alcohol oxidation was using 40 mg B-V-PIL/W in H2O:EtOH (2:1) as solvent, H2O2 30% (0.6 mmol) as oxidant at 70 °C. The generality of


alcohol oxidation reaction under the optimum condition was confirmed by using several alcohols with different steric and electronic features, Table 2. As listed, oxidation of aromatic and


heterocyclic substrates was more efficient than aliphatic ones. Furthermore, the presence of electron-withdrawing functional groups on the aromatic ring led to the higher yield of the


product. The results of alcohol oxidation reaction confirmed that B-V-PIL/W could effectively oxidize various alcohols. Motivated by those results, it was also examined whether B-V-PIL/W


could act as a bi-functional catalyst and promote both alcohol oxidation reaction and Knoevenagel condensation in one-pot step. In fact, it was assumed that redox potential of H3PW12O40


could catalyze alcohol oxidation step, while PIL in the backbone of B-V-PIL/W as well as H3PW12O40 as an acidic catalyst could promote Knoevenagel condensation. To this purpose, tandem


alcohol oxidation /Knoevenagel condensation of benzyl alcohol and malononitrile was selected as a model reaction and conducted under the aforesaid reaction condition. Gratifyingly, it was


found that under the optimum reaction condition, the desired product was furnished in 94% yield, Table 3. Notably, not only benzyl alcohol could tolerate the one-pot tandem alcohol oxidation


/Knoevenagel condensation reaction, but also various alcohols with different characteristic could be applied to furnish good to excellent yields of the corresponding products, Table 3,


affirming the generality of this protocol. RECYCLABILITY The results of the catalytic activity approved high activity of B-V-PIL/W for both alcohol oxidation and one-pot tandem alcohol


oxidation/Knoevenagel condensation reaction. As recyclability of a catalyst is also an important factor for large-scale uses, the recyclability of B-V-PIL/W for both aforementioned reactions


was also investigated. To this purpose, oxidation of benzyl alcohol was selected as a model reaction and separated B-V-PIL/W after the end of the first run of the reaction, was recovered


(see the “Experimental section” for more detail) and reused for the next run under the exactly identical reaction condition. As displayed in Fig. 8, recycling of B-V-PIL/W led to slight loss


of the catalytic activity after each reaction run for both targeted reactions. Considering high solubility of H3PW12O40 in aqueous media, it was postulated that the observed loss of the


activity can be related to the low leaching of H3PW12O40. To verify this assumption, ICP analysis was conducted for the catalyst recovered from the last run of the reaction and the result of


this analysis revealed slight leaching of H3PW12O40 (1 wt% of initial dosage). The stability of B-V-PIL/W upon recycling was also appraised by comparing the FTIR spectrum of fresh and


recycled B-V-PIL/W after 5 runs of the model alcohol oxidation reaction, Fig. 9. The similarity of the two FTIR spectra is a proof for the structural stability of B-V-PIL/W upon recycling.


CONTROL CATALYSTS In the next step, the catalytic activity of B-V-PIL/W for the oxidation of benzyl alcohol as the model reaction was compared with that of some control catalysts, including


HPA, B/W, PIL/W and PIL/W, Table 4, to show the merit of hybridization of B and PIL. As shown, HPA showed high catalytic activity for the model oxidation reaction. However, its main drawback


is its high solubility and consequently its tedious recovery and reuse. Regarding PIL/W, high catalytic activity was observed that can be due to the role of PIL in the catalysis. As shown,


the activity of B/W was lower than that of PIL/W, which further implied the role of PIL in promoting the reaction. Comparison of the catalytic activity of B/W and PIL/W, it can be observed


that their catalytic activity was lower than that of B-V-PIL/W, indicating the synergism between B and PIL. HOT FILTRATION The nature of catalysis in alcohol oxidation reaction under


B-V-PIL/W catalysis was studied via hot filtration test38. According to the standard protocol, B-V-PIL/W was removed from the reaction media after short reaction time and the reaction was


monitored after catalyst removal to check whether it can progress in the absence of the catalyst. As the result showed, Fig. 10, upon removal of B-V-PIL/W, no progress was observed and the


yield of the reaction did not change, confirming that the catalysis was true heterogeneous. COMPARATIVE STUDY The catalytic activity of B-V-PIL/W for tandem alcohol oxidation/Knoevenagel


condensation reaction of benzyl alcohol was compared with some other catalysts. The summary of the reaction conditions and yields of the product indicate that various catalysts have been


developed for this key reaction. Notably, different reaction conditions make precise comparison impossible, however, in some of the reported procedures, the reaction time was very long.


Furthermore, from the data listed in Table 5 it can be concluded that some catalyst, such as NH2-UiO-66(Zr), NH2-MIL-101(Fe) and NH2-MIL-125(Ti) led to relatively low yields. Regarding other


catalysts, comparable yields were obtained, indicating that B-V-PIL/W can be considered as an efficient catalyst that can catalyze tandem alcohol oxidation /Knoevenagel condensation


reaction under environmentally friendly condition in relatively short reaction time. REACTION MECHANISM According to the literature, in the first step of the reaction, H2O2 binds to the


transitional metal atom of HPA (W) and then one proton of H2O2 is transferred to one of the oxygen atoms in HPA to form HO2−, which is responsible for the oxidation of alcohol and formation


of aldehyde and water44,45. Then, the ionic liquids in the structure of the catalyst as well as HPA can promote Knoevenagel reaction through activation of aldehyde, Fig. 11. EXPERIMENTAL


SECTION MATERIALS AND INSTRUMENTS The chemicals used for the synthesis of the catalyst and conducting the tandem alcohol oxidation/Knoevenagel condensation reaction are as follow: boehmite,


3-(trimethoxysilyl) propyl methacrylate (98%, TMSPMA), 1,4-dibromobutane (99%), 1-vinylimidazole (≥ 99%), toluene (99.8%), diethyl ether (≥ 99.7%), sodium chloride (≥ 99%), magnesium sulfate


(≥ 99.5%, MgSO4), ethyl acetate (99.8%), n-hexane (95%), ethanol (95%, EtOH), azobisisobutyronitrile (98%, AIBN), phosphotungstic acid (reagent grade, H3PW12O40), malononitrile (≥ 99%),


hydrogen peroxide (30% (w/w) in H2O) and alcohol derivatives including benzyl alcohol (99.8%), 2-nitrobenzyl alcohol (97%), 4-nitrobenzyl alcohol (99%), 4-methyl benzyl alcohol (98%),


4-chloro benzyl alcohol (99%), 4-hydroxy benzyl alcohol (99%), 4-aminobenzyl alcohol (98%), furfuryl alcohol (synthesis grade), 4-methoxy benzyl alcohol (98%), 2-phenyl ethanol (synthesis


grade), 3-methylbutanol (98.5%), 1-heptanol (98%), 1-pentanol (99%), 1-butanole (99.8%), 1-propanol (≥ 99.9%), isoamyl alcohol (98%), 2-methy-l-propanol (99.5%), all were purchased from


Sigma-Aldrich (Germany, Taufkirchen). The characterization techniques applied to verify formation of the catalyst, B-V-PIL/W, were as follow: Fourier transform Infrared spectroscopy (FT-IR),


Inductively Coupled Plasma (ICP), X-ray diffraction (XRD), thermogravimetric analysis (TGA), Scanning electron microscopy (SEM) and Energy-Dispersive X-ray analysis (EDS), Nuclear magnetic


resonance (NMR) spectroscopy. All FTIR spectra were recorded using BRUKER TENSOR 35 spectrophotometer 65 (Germany) using KBr pellet. The scanning time of and spectral resolution were 1 s and


2 cm−1 respectively. The XRD pattern of boehmite and the prepared B-V-PIL/W were obtained using a Rigaku Ultima IV instrument (Japan) with Cu Kα radiation from a sealed tube. In order to


study the thermal stability of B-V-PIL/W, METTLER TOLEDO apparatus (UK) was used. The thermogram was recorded under O2 atmosphere and heating rate of 10 °C min−1. SEM/EDS and elemental


mapping analyses were performed on MIRA 3 TESCAN-XMU (Czech Republic). Vista-pro device (Australia) was used for conducting ICP analysis. The 1HNMR and 13CNMR spectra were obtained using


BRUKER 400 MHz UltraShield (Germany). PREPARATION OF THE CATALYST: B-V-PIL/W SYNTHESIS OF BIS-VINYLIMIDAZOLIUM BROMIDE IONIC LIQUID: IL Bis-vinylimidazolium bromide ionic liquid was


synthesized according to the previously reported method46. In a typical procedure, a solution of 1-vinylimidazole (20 mmol, 1.8 mL) in toluene was prepared, mixed with 1,4-dibromobutane (10


mmol, 1.2 mL) and refluxed for 24 h. Then, the obtained product was filtered, washed with diethyl ether 3 times and dried at ambient temperature. FUNCTIONALIZATION OF BOEHMITE WITH TMSPMA:


SYNTHESIS OF B-V In order to conjugate the as-prepared IL to boehmite, boehmite was first functionalized with TMSPMA. To this purpose, boehmite (2.5 g) was dispersed in dry toluene and then


mixed with TMSPMA (8 mmol, 2.09 g). The mixture was refluxed under Ar atmosphere for 24 h to furnish vinyl-functionalized boehmite, B-V. Finally, the product was filtered, washed with


toluene and dried in oven at 60 °C. CONJUGATION OF PIL TO THE FUNCTIONALIZED BOEHMITE: SYNTHESIS OF B-V-PIL First, a mixture of B-V (2 g) in EtOH/H2O (1/1, 30 mL) was prepared in a round


bottle flask. Then, the as-prepared IL (4 mmol, 1.6 g) was dissolved in EtOH/H2O (1/1, 50 mL) and added to the B-V mixture and stirred for 0.5 h at 70 °C under Ar atmosphere. Subsequently, a


solution of AIBN [0.3 g in EtOH (5 mL)] was added in a dropwise manner to the previous mixture for initiating the polymerization reaction. Polymerization was continued for 24 h at 70 °C and


then the reaction vessel was cooled and the product was collected, washed with EtOH and H2O and dried at 70 °C overnight. IMMOBILIZATION OF HPA ON B-V-PIL: SYNTHESIS OF B-V-PIL/W To


immobilize phosphotungstic acid on B-V-PIL, the incipient wetness impregnation method was used47. Typically, a 20% w/w solution of H3PW12O40 (0.32 g of HPA in 10 mL deionized water) was


prepared and added to a suspension of the B-V-PIL (1.6 g) in deionized water (25 mL) in a dropwise manner. The mixture was then stirred for 24 h at room temperature and at the end, the


precipitate was filtered, rinsed with deionized water (15 mL) and dried at 70 °C for 24 h, Fig. 1. OXIDATION OF ALCOHOL Oxidation of alcohols was conducted as follow: In a round bottle


flask, a mixture of alcohol (1 mmol), H2O2 30% (0.6 mmol), B-V-PIL/W (40 mg) in H2O:EtOH (2:1) (3 mL) was added and the resultant mixture was stirred at 80 °C. Using TLC, the progress of the


reaction was followed and at the end of the reaction, the catalyst was separated, washed with EtOH and dried in an oven at 80 °C. The recovered catalyst was used for the next run of the


oxidation reaction and the study of the recyclability of the catalyst. To achieve the oxidation product, diethyl ether (14 mL) was added to the filtrate and the mixture was washed with brine


(3˟8 mL) and dried by MgSO4. Then, it was filtered and the solvent was evaporated under reduced pressure to obtain the crude product. To provide the pure aldehydes, column chromatography


using ethyl acetate: n-hexane (1:9) as the eluent was used. GENERAL PROCEDURE FOR ONE-POT TANDEM OXIDATION/KNOEVENAGEL CONDENSATION For the one-pot tandem reactions, a mixture of alcohol (1


mmol), malononitrile (1.2 mmol), H2O2 30% (0.6 mmol), B-V-PIL/W (40 mg) in H2O/EtOH (2/1) (3 mL) was transferred to a round bottle flask equipped with a reflux condenser and the mixture was


stirred at 80 °C. The progress of the reaction was monitored by TLC and after completion of the process, B-V-PIL/W was filtered and recovered by washing with EtOH and drying at 70 °C. The


recovered catalyst was used for the next run of the tandem reaction and the recyclability of the catalyst was studied. The resultant product was attained by evaporating of the solvent and


purification via column chromatography, Figs. S1–S10. Using GC analysis, the yields of the reactions were calculated. CONCLUSION A triple composite, composite of PIL, boehmite and


phosphotungstic acid is designed and prepared through vinyl-functionalization of boehmite, followed by polymerization with the as-prepared bis-vinylimidazolium bromide IL and immobilization


of phosphotungstic acid. The catalyst, B-V-PIL/W, was characterized and then applied for catalyzing both alcohol oxidation reaction and one-pot tandem alcohol oxidation /Knoevenagel


condensation reaction in aqueous media under mild reaction condition. Gratifyingly, the results confirmed high catalytic activity of the catalyst that was comparable or superior to some of


the previously reported catalysts. Notably, this protocol could be generalized to various alcohols with different steric and electronic features. Moreover, the recovered B-V-PIL/W could be


successfully recycled and only slight loss of the catalytic activity and phosphotungstic acid leaching were observed upon each run of recycling. Hot filtration test also affirmed


heterogeneous nature of the catalysis. DATA AVAILABILITY The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.


REFERENCES * Phan, H. B., Thi Nguyen, Q. B., Luong, C. M., Tran, K. N. & Tran, P. H. A green and highly efficient synthesis of 5-hydroxymethylfurfural from monosaccharides using a novel


binary ionic liquid mixture. _Mol. Catal._ 503, 111428. https://doi.org/10.1016/j.mcat.2021.111428 (2021). Article  CAS  Google Scholar  * Adyani, S. H. & Soleimani, E. Green synthesis


of Ag/Fe3O4/RGO nanocomposites by Punica Granatum peel extract: Catalytic activity for reduction of organic pollutants. _Int. J. Hydrog. Energy_ 44, 2711–2730.


https://doi.org/10.1016/j.ijhydene.2018.12.012 (2019). Article  CAS  Google Scholar  * Appaturi, J. N. _et al._ A review of the recent progress on heterogeneous catalysts for Knoevenagel


condensation. _Dalton Trans._ 50, 4445–4469 (2021). Article  CAS  Google Scholar  * Ghafuri, H., GhaforiGorab, M. & Dogari, H. Tandem oxidative amidation of benzylic alcohols by


copper(II) supported on metformin-graphitic carbon nitride nanosheets as an efficient catalyst. _Sci. Rep._ 12, 4221. https://doi.org/10.1038/s41598-022-07543-3 (2022). Article  ADS  CAS


PubMed  PubMed Central  Google Scholar  * Singha, R., Islam, A. & Ghosh, P. One-pot three-component tandem annulation of 4-hydroxycoumarine with aldehyde and aromatic amines using


graphene oxide as an efficient catalyst. _Sci. Rep._ 11, 19891. https://doi.org/10.1038/s41598-021-99360-3 (2021). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Ma, C.-L. _et


al._ A copper-catalyzed tandem cyclization reaction of aminoalkynes with alkynes for the construction of tetrahydropyrrolo[1,2-a]quinolines scaffold. _Sci. Rep._ 7, 16640.


https://doi.org/10.1038/s41598-017-16887-0 (2017). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Wasilke, J.-C., Obrey, S. J., Baker, R. T. & Bazan, G. C. Concurrent


tandem catalysis. _Chem. Rev._ 105, 1001–1020 (2005). Article  CAS  Google Scholar  * Lee, J. M., Na, Y., Han, H. & Chang, S. Cooperative multi-catalyst systems for one-pot organic


transformations. _Chem. Soc. Rev._ 33, 302–312 (2004). Article  CAS  Google Scholar  * Anbu, N., Maheswari, R., Elamathi, V., Varalakshmi, P. & Dhakshinamoorthy, A. Chitosan as a


biodegradable heterogeneous catalyst for Knoevenagel condensation between benzaldehydes and cyanoacetamide. _Catal. Commun._ 138, 105954. https://doi.org/10.1016/j.catcom.2020.105954 (2020).


Article  CAS  Google Scholar  * Li, J., Yang, Z., Li, S., Jin, Q. & Zhao, J. Review on oxidative desulfurization of fuel by supported heteropolyacid catalysts. _J. Ind. Eng. Chem._ 82,


1–16. https://doi.org/10.1016/j.jiec.2019.10.020 (2020). Article  CAS  Google Scholar  * Yang, B., Pignatello, J. J., Qu, D. & Xing, B. Reoxidation of photoreduced polyoxotungstate


([PW12O40] 4–) by different oxidants in the presence of a model pollutant: Kinetics and reaction mechanism. _J. Phys. Chem. A_ 119, 1055–1065 (2015). Article  CAS  Google Scholar  * Sadjadi,


S. & Heravi, M. Recent advances in applications of POMs and their hybrids in catalysis. _Curr. Org. Chem._ 20, 1404–1444 (2016). Article  CAS  Google Scholar  * Heravi, M. M. _et al._ A


novel multi-component synthesis of 4-arylaminoquinazolines. _Tetrahedron Lett._ 50, 943–945 (2009). Article  CAS  Google Scholar  * Narkhede, N., Singh, S. & Patel, A. Recent progress


on supported polyoxometalates for biodiesel synthesis via esterification and transesterification. _Green Chem._ 17, 89–107 (2015). Article  CAS  Google Scholar  * da Silva, M. J., Julio, A.


A. & Dorigetto, F. C. S. Solvent-free heteropolyacid-catalyzed glycerol ketalization at room temperature. _RSC Adv._ 5, 44499–44506. https://doi.org/10.1039/C4RA17090C (2015). Article


ADS  CAS  Google Scholar  * Mohammadi, M., Khodamorady, M., Tahmasbi, B., Bahrami, K. & Ghorbani-Choghamarani, A. Boehmite nanoparticles as versatile support for organic–inorganic hybrid


materials: Synthesis, functionalization, and applications in eco-friendly catalysis. _J. Ind. Eng. Chem._ 97, 1–78. https://doi.org/10.1016/j.jiec.2021.02.001 (2021). Article  CAS  Google


Scholar  * Ghorbani-Choghamarani, A., Heidarnezhad, Z. & Tahmasbi, B. New complex of copper on boehmite nanoparticles as highly efficient and reusable nanocatalyst for synthesis of


sulfides and ethers. _Chem. Select_ 4, 8860–8869. https://doi.org/10.1002/slct.201901444 (2019). Article  CAS  Google Scholar  * Ghorbani-Choghamarani, A., Tahmasbi, B., Arghand, F. &


Faryadi, S. Nickel Schiff-base complexes immobilized on boehmite nanoparticles and their application in the oxidation of sulfides and oxidative coupling of thiols as novel and reusable nano


organometal catalysts. _RSC Adv._ 5, 92174–92183 (2015). Article  ADS  CAS  Google Scholar  * Marcilla, R., AlbertoBlazquez, J., Rodriguez, J., Pomposo, J. A. & Mecerreyes, D. Tuning the


solubility of polymerized ionic liquids by simple anion-exchange reactions. _J. Polym. Sci. A_ 42, 208–212 (2004). Article  CAS  Google Scholar  * Marcilla, R. _et al._ Synthesis of novel


polycations using the chemistry of ionic liquids. _Macromol. Chem. Phys._ 206, 299–304 (2005). Article  CAS  Google Scholar  * Pinaud, J., Vignolle, J., Gnanou, Y. & Taton, D. Poly


(N-heterocyclic-carbene) s and their CO2 adducts as recyclable polymer-supported organocatalysts for benzoin condensation and transesterification reactions. _Macromolecules_ 44, 1900–1908


(2011). Article  ADS  CAS  Google Scholar  * Sadjadi, S. Magnetic (poly) ionic liquids: A promising platform for green chemistry. _J. Mol. Liq._ 323, 114994.


https://doi.org/10.1016/j.molliq.2020.114994 (2020). Article  CAS  Google Scholar  * Sadjadi, S., Koohestani, F. & Heravi, M. M. Fabrication of a metal free catalyst for chemical


reactions through decoration of chitosan with ionic liquid terminated dendritic moiety. _Sci. Rep._ 10, 1–10 (2020). Article  Google Scholar  * Yuan, J., Mecerreyes, D. & Antonietti, M.


Poly (ionic liquid) s: An update. _Prog. Polym. Sci._ 38, 1009–1036 (2013). Article  CAS  Google Scholar  * Sadjadi, S. Halloysite-based hybrids/composites in catalysis. _Appl. Clay Sci._


189, 105537. https://doi.org/10.1016/j.clay.2020.105537 (2020). Article  CAS  Google Scholar  * Mehdizadeh, M., Sadjadi, S., Poater, A., Mansouri, A. & Bahri-Laleh, N. Molecular


modelling aided catalyst design for PAO oils hydrofinishing. _J. Mol. Liq._ 352, 118675. https://doi.org/10.1016/j.molliq.2022.118675 (2022). Article  CAS  Google Scholar  * Karimi, S. _et


al._ Pd on nitrogen rich polymer–halloysite nanocomposite as an environmentally benign and sustainable catalyst for hydrogenation of polyalfaolefin based lubricants. _J. Ind. Eng. Chem._ 97,


441–451. https://doi.org/10.1016/j.jiec.2021.02.031 (2021). Article  CAS  Google Scholar  * Sadjadi, S., Lazzara, G., Heravi, M. M. & Cavallaro, G. Pd supported on magnetic carbon


coated halloysite as hydrogenation catalyst: Study of the contribution of carbon layer and magnetization to the catalytic activity. _Appl. Clay Sci._ 182, 105299.


https://doi.org/10.1016/j.clay.2019.105299 (2019). Article  CAS  Google Scholar  * Ghorbani-Choghamarani, A. & Tahmasbi, B. The first report on the preparation of boehmite silica


sulfuric acid and its applications in some multicomponent organic reactions. _New J. Chem._ 40, 1205–1212. https://doi.org/10.1039/C5NJ02607E (2016). Article  CAS  Google Scholar  * Bahrami,


K., Khodaei, M. M. & Roostaei, M. The preparation and characterization of boehmite nanoparticles-TAPC: A tailored and reusable nanocatalyst for the synthesis of 12-aryl-8, 9, 10,


12-tetrahydrobenzo [a] xanthen-11-ones. _New J. Chem._ 38, 5515–5520 (2014). Article  CAS  Google Scholar  * Rajabi, L. & Derakhshan, A. Room temperature synthesis of boehmite and


crystallization of nanoparticles: effect of concentration and ultrasound. _Sci. Adv. Mater._ 2, 163–172 (2010). Article  CAS  Google Scholar  * Lopes, I. M., Abersfelder, K., Oliveira, P.


W., Mousavi, S. & Junqueira, R. M. Flower-like silicon dioxide/polymer composite particles synthesized by dispersion polymerization route. _J. Mater. Sci._ 53, 11367–11377 (2018).


Article  ADS  CAS  Google Scholar  * Sadjadi, S., Malmir, M., Lazzara, G., Cavallaro, G. & Heravi, M. M. Preparation of palladated porous nitrogen-doped carbon using halloysite as


porogen: disclosing its utility as a hydrogenation catalyst. _Sci. Rep._ 10, 2039. https://doi.org/10.1038/s41598-020-59003-5 (2020). Article  ADS  CAS  PubMed  PubMed Central  Google


Scholar  * Xiao, Z. _et al._ Biochemical coupling strategy promotes saccharification of bamboo leaves biomass via xylanase and heteropolyacids. _Biomass Convers. Biorefin._ 10, 1007–1020


(2020). Article  Google Scholar  * Ghorbani-Choghamarani, A., Aghavandi, H. & Mohammadi, M. Boehmite@SiO2@ Tris (hydroxymethyl)aminomethane-Cu(I): A novel, highly efficient and reusable


nanocatalyst for the C-C bond formation and the synthesis of 5-substituted 1H-tetrazoles in green media. _Appl. Organomet. Chem._ 34, e5804. https://doi.org/10.1002/aoc.5804 (2020). Article


  CAS  Google Scholar  * Vaid, R., Gupta, M., Kant, R. & Gupta, V. K. Domino Knoevenagel/Michael synthesis of 2,2’-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexen-1-one) derivatives


catalyzed by silica-diphenic acid and their single crystal X-ray analysis. _J. Chem. Sci._ 128, 967–976. https://doi.org/10.1007/s12039-016-1088-y (2016). Article  CAS  Google Scholar  *


Cao, E. _et al._ Selective suppression of disproportionation reaction in solvent-less benzyl alcohol oxidation catalysed by supported Au–Pd nanoparticles. _Catalysis_ 203, 146–152.


https://doi.org/10.1016/j.cattod.2012.05.023 (2013). Article  CAS  Google Scholar  * Aryanejad, S., Bagherzade, G. & Farrokhi, A. Efficient and recyclable novel Ni-based metal–organic


framework nanostructure as catalyst for the cascade reaction of alcohol oxidation–Knoevenagel condensation. _Appl. Organomet. Chem._ 32, e3995. https://doi.org/10.1002/aoc.3995 (2018).


Article  CAS  Google Scholar  * Wang, D. & Li, Z. Bi-functional NH 2-MIL-101 (Fe) for one-pot tandem photo-oxidation/Knoevenagel condensation between aromatic alcohols and active


methylene compounds. _Catal. Sci. Technol._ 5, 1623–1628 (2015). Article  CAS  Google Scholar  * Toyao, T., Saito, M., Horiuchi, Y. & Matsuoka, M. Development of a novel one-pot reaction


system utilizing a bifunctional Zr-based metal–organic framework. _Catal. Sci. Technol._ 4, 625–628 (2014). Article  CAS  Google Scholar  * Miao, Z., Luan, Y., Qi, C. & Ramella, D. The


synthesis of a bifunctional copper metal organic framework and its application in the aerobic oxidation/Knoevenagel condensation sequential reaction. _Dalton Trans._ 45, 13917–13924 (2016).


Article  CAS  Google Scholar  * Yan, H., Zhang, H.-Y., Wang, L., Zhang, Y. & Zhao, J. Ru (OH) x supported on polyethylenimine modified magnetic nanoparticles coated with silica as


catalyst for one-pot tandem aerobic oxidation/Knoevenagel condensation of alcohols and active methylene compounds. _React. Kinet. Mech. Catal._ 125, 789–806 (2018). Article  CAS  Google


Scholar  * Zohreh, N., Tavakolizadeh, M., Hosseini, S. H., Pourjavadi, A. & Bennett, C. Tungstate-loaded triazine-based magnetic poly(Bis-imidazolium ionic liquid): An effective


bi-functional catalyst for tandem selective oxidation/Knoevenagel condensation in water. _Polymer_ 112, 342–350. https://doi.org/10.1016/j.polymer.2017.02.028 (2017). Article  CAS  Google


Scholar  * Mizuno, N., Yamaguchi, K., Kamata, K. & Nakagawa, Y. Mechanisms in homogeneous and heterogeneous epoxidation catalysts. _S. Ted Oyama_ (2008). * Singh, S. & Patel, A.


Environmentally Benign oxidations of alkenes and alcohols to corresponding aldehydes over anchored phosphotungstates: Effect of supports as well as oxidants. _Catal. Lett._ 146, 1059–1072.


https://doi.org/10.1007/s10562-016-1732-7 (2016). Article  CAS  Google Scholar  * Sadjadi, S. & Tavakolian, M. Halloysite-poly (ionic liquid) nanocomposite as an efficient catalyst


support: Study of the effects of ionic liquid nature and content on the catalytic activity. _Chem. Sel._ 4, 3369–3375 (2019). CAS  Google Scholar  * Sadjadi, S., Heravi, M. M. & Malmir,


M. Heteropolyacid@ creatin-halloysite clay: an environmentally friendly, reusable and heterogeneous catalyst for the synthesis of benzopyranopyrimidines. _Res. Chem. Intermed._ 43, 6701–6717


(2017). Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS The authors appreciate the partial support of Iran Polymer and Petrochemical Institute and Al-zahra University.


AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Chemistry, School of Physics and Chemistry, Alzahra University, Vanak, PO Box 1993891176, Tehran, Iran Neda Abedian-Dehaghani


& Majid M. Heravi * Gas Conversion Department, Faculty of Petrochemicals, Iran Polymer and Petrochemical Institute, PO Box 14975-112, Tehran, Iran Samahe Sadjadi Authors * Neda


Abedian-Dehaghani View author publications You can also search for this author inPubMed Google Scholar * Samahe Sadjadi View author publications You can also search for this author inPubMed


Google Scholar * Majid M. Heravi View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.S.: Conceptualization; Funding acquisition; Project


administration; Resources; Supervision; Writing—review & editing. N.A.-D.: Formal analysis; Data curation; Methodology; Visualization; Investigation; Writing—original draft. M.H.:


Funding acquisition; Resources; Investigation. CORRESPONDING AUTHORS Correspondence to Samahe Sadjadi or Majid M. Heravi. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no


competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.


SUPPLEMENTARY INFORMATION SUPPLEMENTARY FIGURES. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits


use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the


Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless


indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory


regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit


http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Abedian-Dehaghani, N., Sadjadi, S. & Heravi, M.M. Heteroployacid on the


composite of boehmite and polyionic liquid as a catalyst for alcohol oxidation and tandem alcohol oxidation Knoevenagel condensation reactions. _Sci Rep_ 12, 16395 (2022).


https://doi.org/10.1038/s41598-022-20699-2 Download citation * Received: 19 May 2022 * Accepted: 16 September 2022 * Published: 30 September 2022 * DOI:


https://doi.org/10.1038/s41598-022-20699-2 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not


currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
