A systematic study of arsenic adsorption and removal from aqueous environments using novel graphene oxide functionalized uio-66-ndc nanocomposites

ABSTRACT This study investigates the removal of As(V) from aqueous media using water stable UiO-66-NDC/GO prepared via the solvothermal procedure. The synthesized material was analyzed by

Raman spectroscopy, UV–visible, X-ray powder diffraction (XRD), Transmission electron microscopy (TEM), Fourier Transform Infrared spectroscopy (ATR-FTIR), scanning electron microscopy

(SEM), and Brunauer–Emmett–Teller (BET) support its applicability as a super-adsorbent for the adsorption of As(V) ions from aqueous solutions. The effect of various parameters, including

initial ion concentration, temperature, adsorbent dose, and pH on the adsorption of As(V) was studied to recognize the optimum adsorption conditions. The qmax obtained for this study using

Langmuir isotherms was found at 147.06 mg/g at room temperature. Thermodynamic parameters ΔH°, ΔG°, and ΔS° were also calculated and negative values of ΔG° represent that the As(V)

adsorption process occurred exothermically and spontaneously. Meanwhile, theoretical density functional simulation findings are accommodated to support these experimental results. It is

observed that the dynamic nature of graphene oxide and the UiO-66 NDC nanocomposite system becomes superior for adsorption studies due to delocalized surface states. UiO-66-NDC/GO also

showed high reusability for up four regeneration performances using 0.01 M HCl as a regenerant. SIMILAR CONTENT BEING VIEWED BY OTHERS ADSORPTION AND DFT INVESTIGATIONS OF CR(VI) REMOVAL

USING NANOCRYSTALS DECORATED WITH GRAPHENE OXIDE Article Open access 13 March 2024 HIGHLY EFFICIENT REMOVAL OF SB(V) FROM WATER BY FRANKLINITE-CONTAINING NANO-FEZN COMPOSITES Article Open

access 24 August 2021 SELECTIVE REMOVAL OF SOME HEAVY METALS FROM LANTHANIDE SOLUTION BY GRAPHENE OXIDE FUNCTIONALIZED WITH SODIUM CITRATE Article Open access 12 August 2022 INTRODUCTION

Groundwater pollution is currently a major environmental issue all over the world, and it is frequently caused by the presence of different wastewater contaminants1,2. Arsenic (As) is one of

the world's top 20 hazardous chemicals and it can be found in a variety of inorganic and organic forms. Combustion of fossil fuels, Mining, and insecticides are all examples of

anthropogenic and natural sources of As pollution3. The World Health Organization (WHO) and Environmental Protection Agency United States (EPA) both recommended a 10-ppb threshold for

drinking water4. Arsenic in inorganic forms (arsenate and arsenite), is more toxic than arsenic in organic forms and is found naturally in groundwater and soil5. Arsenic in inorganic forms

affects more than 200 million population worldwide, and its long-term exposure causes serious illness, dysfunction of the nervous system, skin cancer, lung cancer, kidney failure, liver

diseases, urinary bladder cancer, cardiovascular and peripheral disease6. Large-scale groundwater poisoning by As in Bangladesh in the 1990s was the world's largest poisoning

occurrence7. The health of nearly 100 million Indians is threatened by groundwater contamination of As8. As a result, arsenic contamination is a severe issue that requires the development of

effective clean-up technologies. Various treatment techniques have been documented for arsenic removal from water, including adsorption, bioremediation, coagulation-flocculation, ion

exchange, electrochemistry, sedimentation, precipitation, membrane filtration, reverse osmosis, normal filtration, and lime softening9. From the above-stated methods, the adsorption process

has been reported most regarding the eradication of arsenic because of its flexibility in process design, cost-effectiveness, and operational simplicity. To date, different adsorbents have

been developed by researchers, including activated carbon, titanium oxide, activated alumina, zirconium oxide, iron oxide, Fe (III) loaded resins, iron oxide, metal oxides, agricultural

biomasses, goethite, zerovalent iron, mesoporous alumina, different metal-based nanocomposites for removal of As from contaminated aquatic bodies10,11,12. All these materials are efficient,

and their application on a large scale is restricted due to high operational cost, low adsorption potential, and extended time of consumption. Therefore, there is a continuous demand to

synthesize novel and efficient adsorbents with improved adsorption capacity for arsenic decontamination from water. A new hybrid material, commonly known as Metal–organic frameworks (MOFs),

built from inorganic metal and the organic linker, has gained large attraction over the last few years. Owing to their customizable chemical functionalities, good thermal stability, tunable

pore size, and versatile architectures, having broader applications in sensing, gas storage, catalysis, wastewater treatment, separation, etc. In recent years, Zr-MOF-based composites have

potentially been applied for the As (III) and As(V) removal from water due to their excellent adsorption capacity. Guo et al. synthesized a composite membrane Zr-based MOF (UiO-66) and

polyacrylonitrile (PAN) for efficient removal of both arsenite (AsIII) and arsenate (AsV) from water13. As a result, in most arsenic removal procedures, oxidation of arsenate to arsenite

occurs as a pre-treatment phase14. Arsenic removal studies were carried out on different MOFs such as Fe-BTC MOF, MIL-53, and ZIF-8. However, no noteworthy results were found compared to

other synthetic commercial and adsorbents. Therefore, developing and exploring new MOF nano adsorbents having high adsorption capacities are particularly interesting. In recent years,

Zr-MOF-based composites have potentially been applied for the removal of As(V) from water due to their excellent adsorption capacity. For the adsorption of Arsenic (V) heavy metal from an

aqueous solution, a new nano adsorbent material was synthesized in this research work by employing graphene oxide (GO) and a zirconium-based metal–organic framework. The UiO-66-NDC is a

three-dimensional structure of one octahedral centre hole cage and eight tetrahedral corner cages of secondary building units Zr6O4(OH)4 and twelve bridge ligands 1,4-NDC. It has a

significant number of coordinatively unsaturated Zr4+ sites and a strong ZrO bond, which aids in adsorption and mass transfer. These materials are resistant to hydroxide ions and protons and

are stable in a variety of wastewater types and pH levels. In the present study, a novel nanocomposite adsorbent material was synthesized using graphene oxide (GO) and a zirconium-based

metal–organic framework, i.e., UiO-66-NDC [Zr6O4(OH)4(1,4-NDC)6]n and used as an adsorbent to uptake aquatic arsenate As(V). The UiO-66 framework consists of Zr6O4(OH)4 clusters and 1,4-NDC,

i.e., 1,4-naphthalene dicarboxylate linker. The As(V) adsorption capacity was examined by detailed characterizations and adsorption mechanism studies. This research reveals the superior

performance of the MOF-based nano-adsorbent in the removal of arsenic from water, which could lead to new insights into the use of MOFs in water treatment and the development of an enhanced

adsorbent material for the arsenic decontamination sector. RESULTS AND DISCUSSION SIMULATION OUTPUT Geometry optimized state of the GO and nanocomposite systems have been obtained via

Broyden-Fletcher-Goldfarb-Shanno (BFGS) algorithm15,16,17. It is obvious from the total energy values that nanocomposite system (− 839.231 Ry) achieves dynamic superiority over the GO system

(− 179.291 Ry) because of the Zr and Cl atoms present in the system. As a result, this dynamic stability of the UiO-66-NDC/GO nanocomposite makes a relevant platform to adsorb arsenic (As)

like metalloids metals and can be used as the perfect candidate for adsorption studies. Eventually, a pristine GO system has only localized states of a carbon atom, which gives less total

energy without any dynamic nature for adsorption. Similarly, Zr based delocalized surface states are coming into the picture in the UiO-66-NDC/GO nanocomposite system, compared to the

localized surface states of carbon in the GO system. Generally, surface states are states on the surface, and their electronic wavefunction can be localized (i.e., trapped) or delocalized

(i.e., conductive or in-motion). If the surface states are caused by composite formation, then it is most likely that the resulting surface states are delocalized. However, all functional

parameters strongly depend on surface states and their relaxation. In another case, surface states caused by surface defects or some passivating molecules are, most likely, localized surface

states. This phase transformation from the localized state in GO to delocalized states in nanocomposite makes the nanocomposite system a relevant surface to adsorb As metalloids. It makes

the nanocomposite surface adsorption active for As adsorption and removal process supporting the aforementioned experimental results strongly. UV–VIS RESULTS In UV–Vis spectra of

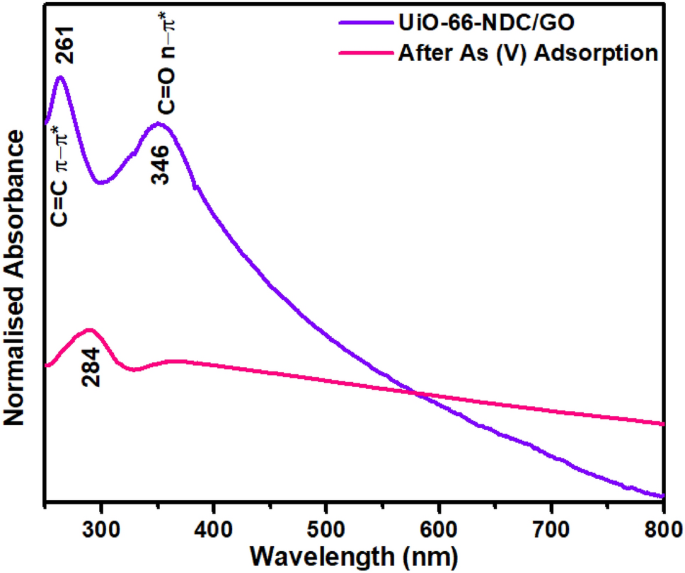

UiO-66-NDC/GO nanocomposite, there are two characteristic absorption peaks with maxima at 261 and 346 nm (Fig. 1). The absorption centred at 346 nm is because of the π–π* transition of

naphthalene rings18, whereas absorption at 261 nm is shifted π–π* transition of graphene oxide in UiO-66-NDC/GO nanocomposite19. There is a prominent change in the absorption spectrum of

nanocomposite after As(V) uptake. The absorption peak at 346 nm completely disappeared while there was a redshift (with hypochromic effect) to the π–π* transition of naphthalene rings to 284

 nm. These notable alterations suggest the binding of As(V) on UiO-66-NDC/GO nanocomposite. FTIR STUDIES BEFORE AND AFTER AS(V) ADSORPTION The functional characterization of UiO-66-NDC/GO

was carried out using FTIR spectroscopy in ATR mode. The FTIR spectrum of UiO-66-NDC/GO was recorded before and after As(V) adsorption. The peak at 3355 cm−1, which is attributed to the O–H

stretching vibration of the carboxylic acid group, completely disappeared after As(V) adsorption. The asymmetric stretch at 1546 cm−1 and symmetric stretch at 1364 cm−1 are attributed to

COO− groups of UiO-66-NDC/GO nanocomposite20. After As(V) adsorption, both of these antisymmetric and symmetric stretching vibrations are shifted with a prominent decrease in intensity. C-H

bending vibration at 784 cm−1 and C=C bending vibration at 648 cm−1 got shifted by adsorption of As21. In other groups, such as C=O and C–O group related to carboxyl, no significant change

was observed after arsenate adsorption; only the intensity of the peak was found to be decreased. These results imply the efficiency of O–H and aromatic C=C groups in arsenate adsorption.

The prominent shifts in the FTIR spectrum after adsorption of As(V) establish the robust interaction between the nanocomposite and As(V) (Fig. 2). RAMAN STUDIES After that, Raman

measurements were carried out to understand the structural variation of UiO-66-NDC/GO. Raman data was collected as synthesized GO/ UiO-66-NDC and As(V) adsorbed UiO-66-NDC/GO. Raman

vibrational peaks at 1580 cm−1 and 663 cm−1 are related to C=C stretching and in-plane bending vibrational frequency of aromatic ring of NDC linker. Raman vibrational peaks at 1354 cm−1 and

1516 cm−1 were related to in-plane ring deformation band of NDC linker. The Raman doublet peaks in the range of 1400 – 1500 cm−1 are related to the in-plane symmetric stretching vibrational

band of O=C–O group in NDC linker. The Raman peak at 773 cm−1 was related to C–H in-phase wagging band of NDC linker. However, we could not resolve Raman bands related to GO owing to a

strong and competitive peak position of NDC linker22. The Raman vibrational bands in synthesized material are well matched with previously reported data of UiO-66-NDC. After As(V)

adsorption, there are no significant changes in Raman peak position and FWHM of UiO-66-NDC/GO. It means that Raman vibrational bands of GO/UiO-66-NDC are not influenced by the As(V)

adsorption (Fig. 3). XRD STUDIES To understand the structural changes during the adsorption process, XRD analyses are carried out for UiO-66-NDC/GO nanocomposite. The diffraction lines at 2θ

of 7.39° and 8.4° are represented characteristic peaks of UiO-66. Hence, the synthesized UiO-66-NDC has the same crystalline structure. These diffraction line intensities are drastically

decreased after the adsorption of As(V), which says that reduction in the crystalline nature of UiO-66-NDC/GO, is shown in Fig. 4. The amorphous nature complements the adsorption properties

providing defect sites for heavy metal adsorption. The sharp resonances near 7 deg. is characteristic of graphene oxide23. SEM CHARACTERIZATION In order to reveal the surface structure of

the UiO-66-NDC/GO before and after As(V) adsorption, the SEM–EDS was performed. As represented in Fig. 5, changes were observed in the structure and morphology of the GO-UiO66-NDC

nanocomposite after As(V) adsorption. After the adsorption studies, it is clearly notable that the As(V) was adsorbed on the surface of the GO-UiO66-NDC nanocomposite. From EDS data, we

observed that there is no existence of As element in synthesized UiO-66-NDC/GO; however, in the other sample, 2.44 atomic% of As element is observed. This clearly indicates that the As(V) is

adsorbed on the UiO-66-NDC/GO surface. Based on the EDS observations of the UiO-66-NDC/GO nanocomposite, there are different elements, including carbon, zirconium, and oxygen (Fig. 4c). EDX

analysis after As(V)adsorption clearly represents the presence of As species in the UiO-66-NDC/GO nanocomposite structure, which is likely to the adsorption As(V) (Fig. 4d). Furthermore, a

decrease in the intensity of carbon peaks is evident in the EDX analysis of UiO-66-NDC/GO following the As(V) sorption process supporting the successful adsorption of As(V) by UiO-66-NDC/GO.

TEM MEASUREMENTS To study the chemical composition and surface morphology of the UiO-66-NDC/GO before and after the As(V) adsorption, TEM with EDS mapping was performed. The particles of

UiO-66-NDC/GO are separated in some areas and agglomerated in others, as seen in Fig. 6a. The elemental analysis of the UiO-66-NDC/GO was also determined by TEM-EDS mapping. Before the

experiment, bare UiO-66-NDC/GO showed an abundance of zirconium, carbon and oxygen (Fig. 6c–e) at the surface and after adsorption, traces of As (Fig. 6g) were also seen along with the

pristine UiO-66-NDC/GO. As(V) adsorption on the surface of the UiO-66-NDC/GO may be the reason why the TEM structure of the UiO-66-NDC/GO showed a smoother surface after the As(V) was

removed. BET MEASUREMENTS BET measurements were carried out before and after As(V) studies and the data is represented in Fig. 7. The volume of pore and surface area for the UiO-66-NDC/GO

was determined as 0.394917 cm3/g and 279.7756 m2/g, respectively. After the adsorption experiment, the surface area and pore volume decreased to 58.1915 m2/g and 0.134 cm3/g. This decrease

suggests that the As(V) species permeate into the pores of UiO-66-NDC/GO. The UiO-66-NDC/GO surface pores and comparably adequate active surface allow for fast transfer and adsorption of

As(V) from an aqueous solution to the UiO-66-NDC/GO. EFFECT OF THE PH ON AS(V) ADSORPTION The pH of the solution is an important parameter in arsenate adsorption studies since it influences

arsenate speciation, distribution of contaminant species, and the adsorbent's surface charge. The pH effect on arsenate removal by UiO-66-NDC/GO adsorbent was examined at pH levels

ranging from 2 to 7 and the results are shown in Fig. 8. The adsorption process for As(V) increased with an increment in pH from 2 to 3 and decreased dramatically with the increase in pH

values from 4 to 7. The maximum removal capacity of 98.31% was observed at pH3 with 5 mg L−1 of initial As(V) concentration at an adsorbent dose of 0.1 g L−1. Further increasing the pH to 7;

however, the arsenate removal efficiency decreased considerably to 42.5%. Based on the above observation, the possible removal mechanism can be explained as follows: The arsenate exists in

various forms in water, such as: at pH below 2.0, it exists in H3AsO4, H2AsO4− at pH from 2.0 to 3.0, and at pH 4.0–10.0 as HAsO42− respectively. The point of zero charges (pHpzc) was found

to be 5.61, representing a positively charged outer surface of UiO-66-NDC/GO adsorbent at pH below 5.61 and at pH above 5.61 signifies a negatively charged outer surface. Therefore, when the

pH is 3, negatively charged As(V) species (H2AsO4−) are attracted to the positively charged surface of the UiO-66-NDC/GO nanocomposite adsorbent. As(V) uptake increases due to electrostatic

interaction between the sorbent and the H2AsO4− ions, and the adsorption mechanism was through electrostatic attraction. However, below pH 3.0, a decreased adsorption capacity is observed

due to the arsenate being present as H3AsO4 and a strong competition existed between H3AsO4 and protons for adsorption sites. At higher pH, i.e., between pH 4.0–7.0, excessive OH− ions

compete with predominant species of arsenate, i.e., HAsO42− ions, for adsorption on the adsorbent surface, of which OH− ions dominate. Therefore, the adsorption capacity of As(VI) decreases

with an increase in the pH. The adsorption mechanism of As(V) was mainly coordination and ion exchange with metal nodes of the composite material. The influence of electrostatic forces at pH

3 drew anionic arsenate species to the vicinity of positively charged adsorbents, resulting in improved adsorption performance. The highest removal performance was obtained at pH 3 due to

electrostatic force and acid–base interaction between adsorbent and arsenic species. At high acidic conditions (pH 2), H3AsO4 releases H ions and is attached to the hydroxyl sites in

UiO-66-NDC/GO facilitating the arsenic uptake process. EFFECT OF THE UIO-66-NDC/GO DOSE ON AS(V) ADSORPTION The effect of adsorbent concentration on As(V) removal is illustrated in Fig. 9.

The adsorbent was highly effective and quickly removed As(V) from water. The removal percentage was more than 98.67% at a low concentration of adsorbent dosages. The adsorption capacity

decreased slightly as the dosage of the adsorbent increased from 0.1 to 0.5 g. As the adsorption period increases, the remaining concentration of As(V) in the solution decreases, lowering

the static driving force of mass transfer. As a result, adsorption is rapid at first, while the concentration gradient is high and slows after 30 min as the system approaches equilibrium.

This could be due to the accumulation of MOFs and the sorbent's reduced effective active site for pollutant removal24. As a result, the best adsorbent dose for As(V) sorption was

determined to be 0.1 g/L. At this dose, the adsorption efficiency for As(V) was 98.67%, respectively. EFFECT OF THE INITIAL CONCENTRATION ON AS(V) ADSORPTION Changes in As(V) initial

concentrations clearly impacted As(V) removal efficiencies. The removal percentage of As(V) declined significantly as the initial As(V) concentration increased in 30 min, but these rates

were near all the same after 30 min. As the initial concentration of As(V) increased from 5 to 25 mg/L, the adsorption capacity increased from 48.64 to 181.05 mg/g of the nanocomposite (Fig.

 10), explaining that adsorbent had a high adsorption capacity to As(V) at different initial concentrations. This increased adsorption capacity could be owing to a higher mass transfer

driving force between the As(V) solution and the adsorbent, as well as a higher possibility of As(V) colliding with MOF nanocomposite. In addition to the previously described factors, the

increase in adsorption capacity with increasing initial As(V) concentrations can be attributed to the driving force created in response to the concentration gradient, as well as strong

interactions between the As(V) species and the MOF adsorbent. ADSORPTION KINETICS Six kinetic models (pseudo-first-order and five different types of Pseudo second order) were used to

investigate the adsorption behaviour of adsorption processes whose limiting step may entail chemical reactions, surface adsorption, or diffusion transport. Pseudo-order kinetic models (1 and

2) are the most frequent models used to study adsorption kinetics. In addition to this, on linear Elovich model was also used to study the chemical nature of adsorption behaviour of

UiO-66-NDC/GO on to As(V) ions in Eq. (3). According to a pseudo-kinetic (first-order) model, the change in the rate concentration solute with time, as well as changes in concentration of

adsorbate and adsorbent dose over time (1), are logarithmically proportional. According to a pseudo-second-order kinetic model, the number of active sites occupied on the material is

directly proportional to the adsorption capacity (2). $$\mathrm{log}\left({q}_{e}-q\right)= \mathrm{log}\left({q}_{e}\right)-\frac{{K}_{1}t}{2.303}$$ (1)

$$\frac{t}{q}=\frac{1}{{K}_{2}{q}_{e}^{2}}+\frac{1}{{q}_{e}}t$$ (2) $$qt= \frac{1}{\beta }\mathrm{ln}(\alpha \beta t +1)$$ (3) where qe = equilibrium adsorption capacity (mg/g),α = initial

adsorption rate, β = desorption constant, qt adsorbed amount at a time (mg/g) and k1 and k2are rate constants of pseudo order first and second respectively. The data obtained from the

kinetic model are represented in Fig. 11. Table 1 illustrates the data obtained from kinetic parameters according to the value of the correlation coefficient. The kinetics of As(V)

adsorption on UiO-66/GO followed the pseudo-second-order model type 2, as shown by the correlation coefficient (R2). The theoretical values calculated for type 2 pseudo order kinetics are

almost similar to the experimental one representing the chemisorption mechanism. Although type 2 PSO can determine whether overall adsorption rate but can’t predict the diffusion process

during adsorption. Furthermore, the results obtained from the pHpzc studies and adsorption kinetics studies of the composites demonstrated the effectiveness of the surface complexation

and/or ion exchange processes as well as the electrostatic interaction in the arsenate adsorption on the composites. ADSORPTION ISOTHERMS The isotherms of As(V) adsorption on UiO-66-NDC/GO

nano adsorbent are examined at pH 7.8 and 30 °C, which are shown to be the best conditions. At a temperature of 298 K, 10 mg of adsorbent is added to 100 mL of aqueous samples (pH = 3) of

adsorbate, with varied arsenate concentrations ranging from 5 to 25 mg/L. As demonstrated in Fig. 10, the adsorption capabilities of UiO-66-NDC/GO increase as the amount of As(V) in the

solution sample increases. Due to a greater concentration gradient, more arsenate molecules are available in the vicinity of the active sites on the surface of the UiO-66-NDC/GO particles,

resulting in this expected trend (the driving force of mass transfer). The following linearized Langmuir, Freundlich and Temkin isotherms are used to analyze the data:

$$\frac{1}{{\mathrm{q}}_{\mathrm{e}}}=\frac{1}{{\mathrm{k}}_{\mathrm{L}}{\mathrm{q}}_{\mathrm{max}}}\cdot \frac{1}{{\mathrm{C}}_{\mathrm{e}}}+\frac{1}{\mathrm{qmax}}$$ (4)

$$\mathrm{qe}={K}_{f}+\mathrm{Ce}\frac{1}{n}$$ (5) $${\text{q}}_{{\text{e}}} = {\text{BlnA}}_{{\text{t}}} + {\text{BlnC}}_{{\text{e}}}$$ (6) where, qe—adsorption capacity (mg/g) at

equilibrium, Ce -As(V) equilibrium concentration (mg/L), qmax is the maximum adsorption capacity, B = heat constant (J/mol), AT = Temkin constant, and T = temperature at 298 K,

KL—equilibrium constant (L mg−1) representing the binding strength, and n, KF (mg/L) are the Freundlich constants specifying the adsorption and intensity capacity, respectively. Experimental

data for UiO66-NDC-GO nano adsorbent is well fitted with all the isotherms as plotted in the Fig. 12 and the different parameters are represented in Table 2 Based on the criteria of the

correlation coefficient, the maximum adsorption capacity using Langmuir isotherms was found to be 147.06 mg/g. A prior investigation utilizing Zn-MOF-74 for As(V) adsorption found a close

match to the maximal capacity (99 mg/g). Our nano adsorbent removes almost one and a half time As(V) from simulated water under lab conditions. UiO-66-NDC/GO has a higher adsorption capacity

than previously reported adsorbents for removing As(V), including 48.7 mg/g in HTZn-MOF-74, 99.0 mg/g in RT-Zn-MOF-7425 and 45 mg/g in zirconium oxide26. These findings highlight the

significance of controlling particle size in adsorption processes. The results obtained from all characterization studies of composites performed after arsenate adsorption suggest that

surface complexation and/or ion exchange processes are effective mechanisms in arsenate adsorption on the surface of the composites. THERMODYNAMIC ANALYSIS Adsorption data at three different

 temperatures are used to find the thermodynamic parameters of As(V) adsorption, such as variations in the standard enthalpy (H°), standard free Gibbs energy (G°), and standard entropy (S°),

to provide a better description for the mechanism and nature of As(V) adsorption onto the UiO-66-NDC/GO surface. The thermodynamic nature of As(V) removal by UiO-66-NDC/GO is determined by

calculating the values using Van’t Hoff equation at 298, 303, 308, and 313 K. $$\mathrm{ln}\left(K\right)= \left(\frac{\Delta {H}^{o}}{R}\right)\frac{1}{T}+ \frac{\Delta {S}^{o}}{R}$$ where

K = qe/Ce, ∆H° = Change in enthalpy, T = temperature, (∆G° = ∆H° − T∆S). The positive value of H° corroborated the endothermic nature of arsenate adsorption on UiO-66-NDC/GO. ∆H° value of

0.80 kJ/mol−1 is likely due to chemisorption, which involves the dehydration of the metal atom and its surroundings (Table 3). As a result, the stated endothermic process is attributable to

the arsenate anion, which gets more favoured as the temperature rises, replacing numerous water molecules. Furthermore, a positive value of S° suggests that the degree of freedom of the

adsorbed arsenate increases with increased randomization at the solid/solution interface, implying that the stated dehydration happens mostly at the pore region and apart from the Zirconium

cluster of the nanocomposite. The ΔH° and ΔS° values are calculated from the intercept and slope of 1/T versus lnkL. It is observed that the degree of the spontaneity of the adsorption

process for As(V) decreased and increased in temperature. The adsorption process for As(V) using UiO-66-NDC/GO is physical as the value of enthalpy is less than 40 kJ mol−1. A positive value

of entropy represents the random collision of As(V) species across the surface of the UiO-66-NDC/GO nanocomposite. COMPARISON STUDIES OF AS(V) ADSORPTION WITH PREVIOUSLY REPORTED ADSORBENTS

As indicated in Table 4 below, different researchers have explored As(V) adsorption by various adsorbents. In comparison, novel synthesized UiO-66-NDC/GO is found to be a highly effective

adsorbent for the adsorption of As(V) ions from water. The GO functionalized UiO-66-NDC have been proven to be a cost-effective alternative adsorbent for the removal of hazardous metals,

particularly As(V) effluents, before they are discharged into the environment in this study. DESORPTION EXPERIMENT OF AS(V) LOADED ON THE UIO-66-NDC/GO UiO-66-NDC/GO desorption-regeneration

tests were carried out to check the reuse feasibility and recovery. The removal efficiencies of UiO-66-NDC/GO following six cycles of desorption-regeneration with 0.1 M HCl solution are

shown in Fig. 13. After three regenerations, the removal effectiveness of MOF had dropped somewhat from 91.06 to 88.6%, respectively. After five cycles, their removal efficiency was only

about 52.24% of what it was at the start, indicating that UiO-66-NDC/GO may have a potential recycling property for As(V) removal as shown in Fig. 14. CONCLUSION In this study, UiO-66-NDC/GO

was reported for the first time as the adsorbent for the removal of As(V) from water. This is the first time UiO-66-NDC/GO has been used to remove arsenic from water, to our knowledge. The

UiO-66-NDC/GO performed well across a wide pH range, from extremely acidic 1 to basic 10, with the best adsorption efficacy at pH 3. At the ideal pH, the UiO-66-NDC/GO adsorbent had a

remarkable As(V) uptake capacity of 147.06 mg/g. This is the highest recorded arsenate adsorption capacity, far above other synthetic and commercial adsorbents. All UiO-66-NDC/GO

characterization investigations conducted after arsenate adsorption indicate that surface complexation and/or ion exchange processes are effective mechanisms in arsenate adsorption on the

UiO-66-NDC/GO surface. Interestingly, the theoretical simulation calculations confirm the dynamic superiority of UiO-66-NDC/GO nanocomposite with finite values of delocalized Zr atoms over

the surface compared to the GO system making the nanocomposite system a relevant source of As adsorption. This simulation output is fully supporting the discussed experimental results for

in-depth understanding. To summarise, this research adds to our understanding of the use of UiO-66-NDC/GO in water treatment. The extremely porous structure incorporating zirconium oxide

clusters provided a greater contact area and more active sites in unit space, allowing UiO-66-NDC/GO adsorbent to have a higher adsorption capacity than most typical nanoparticle adsorbents.

UiO-66-NDC/GO could be a promising advanced adsorbent in the arsenic clean-up business due to its high adsorption efficiency toward aquatic arsenic species. METHODOLOGY THEORETICAL FIRST

PRINCIPLE-BASED SIMULATION DETAILS Theoretically, the pristine graphene oxide (GO) and UiO-66-NDC/GO nanocomposite systems are considered for the first principle-based density functional

simulation studies. Primary geometry optimization with total energy values has been performed with the Quantum Espresso softwares39 within generalized gradient approximation (GGA) following

Perdew-Burke-Ernzerhof (PBE) format40. Van der Waals dispersion correction (vdW-DF) has been implemented for both systems to get accurate results throughout the calculations. Specific

k-point grids of 9 × 9 × 1 have been considered here at plane wave cutoff energy of 540 Ry with a force of less than 0.001 eV/Å to get optimized structure. It is necessary to fix a vacuum

region of 20 Å along the z-direction to minimize the periodic image interaction during the simulation. REAGENTS All chemicals, reagents, and salts were of the highest purity and were used

without any purification. Graphite powder (< 20 μm Sigma-Aldrich), Zirconium (IV) chloride (99.95% STREM), Potassium permanganate (≥ 99.0% Sigma-Aldrich), and 1,4-Napthalenedicarboxylic

acid (> 95% TCI). 1,4-Napthalenedicarboxylic acid was used as an organic linker and Zirconium (IV) chloride as a precursor. N,N-Dimethylformamide (99.8% Sigma Aldrich) was used as a

solvent to dissolve the reactants. Sodium arsenate (Na2HAsO4.7H2O 99%, SDFCL) was used for the preparation of the stock solution, in which a specific amount of Na2HAsO4.7H2O was dissolved in

pure water. The stock solution was then diluted in deionized water for the preparation of various batches for adsorption studies. SYNTHESIS PROCEDURE FOR GRAPHENE OXIDE (GO) GO was

synthesized using the improved hummers method in which graphite powder and KMnO4 (1:6 ratio) were dispersed in a mixture of phosphoric acid and sulfuric acid (1:9 ratio) for 12 h at 65 °C.

After that, the reaction mixture was allowed to cool, and 400 mL of ice-cold water was added along with 5 mL of hydrogen peroxide. Then allow the mixture to stir for half an hour. centrifuge

the reaction mixture for 6 min at 8000 rpm. The product material was washed with a succession of deionized water, ethanol, HCl, and finally diethyl ether. The resultant was dried at room

temperature in an air-controlled vacuum chamber for 6 h41. SYNTHESIS OF UIO-66-NDC/GO UiO-66-NDC/GO was prepared using a solvothermal procedure. 0.5 wt.% of graphene oxide was sonicated for

8 h in DMF and then mixed with zirconium chloride (0.005 mol and left on a magnetic stirrer for 12 h. after that, add 0.005 mol of 1,4-naphthalene dicarboxylic acid to the mixture solution

and mix it completely. Pour the mixture into a Teflon liner within a stainless-steel autoclave (200 mL), and the solution was heated to 120 °C for 24 h. after 24 h, allow the material to

cool, centrifuge the reaction mixture at 5000 rpm for 10 min, and wash 3 to 4 times with DMF and ethanol. The precipitate was collected and washed several times with DMF and ethanol to

ensure the purity of the synthesized nano adsorbent. CHARACTERIZATION Morphological and structural characteristics of the nano-adsorbent were studied using Raman, UV, FTIR, SEM–EDS, XRD, and

BET techniques. Raman characterization of the synthesized material was recorded on STR-300 confocal Raman spectrometer (Seki Technotron Corp., Japan), with diode laser excitation at 785 nm.

The data deconvolution of Raman was done by GRAMS/AI data processing software. UV spectrum was performed on a Perkin Elmer (Lambda 35) ranging from 200 to 800 nm at a sweep rate of 480

nm/min. TEM of the UiO-66-NDC/GO before and after the experiment was recorded on Titan Themis (Thermofisher) operated at 300 kV. The UiO-66-NDC/GO were grounded into a fine powder using

pestle mortar and then mixed with ethanol for dispersion. An ultrasonic bath was used for further dispersion processes. For observational purposes, a drop of the suspension was dropped onto

a typical copper grid with carbon coating. Functional groups of the synthesized material were recorded on a Bruker spectrometer (TENSOR II) in ATR mode from 400 to 4000 cm−1 of the spectral

region at a resolution of 4 cm−1. Composition and Surface morphology was carried out using SEM–EDS on Zeiss ULTRA 55. XRD analysis of the nano-adsorbent was examined on a Bruker D8 Advance

X-ray diffractometer at a scan speed of 6°/min from with 2θ ranging from 5° to 80°. Surface area and pore size distribution were measured using Micromeritics ASAP 2020. The sample was

degassed for 150 min overnight, and calculations were made. All the structural and morphological characterization of the UiO-66-NDC/GO were recorded in the premises of the IISc Bangalore.

SURFACE CHARGE OF NANO-ADSORBENT The point of zero charges for nano-adsorbent was determined by following the salt addition method 0.1 M of NaNO3 in 250 mL flasks was attuned to various pH

of 2–11 (pHinitial) using 0.1 M NaOH and 0.1 M HCl. 100 mg of the adsorbent were added to all the flasks and kept at 180 rpm in a shaker at room temperature. The pH of all the flasks was

measured after 24 h (pHfinal) using a pH meter, and the obtained readings were plotted against the initial pH (pHinitial). The initial pH at which change in pH is zero exhibits a point of

zero charges42. ADSORPTION EXPERIMENTS FOR AS(V) As(V) removal by adsorption using nano-adsorbent was carried out using batch adsorption studies. All As(V) adsorption experiments were

performed at 25 °C, excluding the thermodynamics studies. The equilibrium capacity for As(V) was calculated using $$q= \frac{{(C}_{t }-C) V }{m}$$ (7) where Ct—initial As(V) concentration,

C—equilibrium As(V) concentration, m = mass of nano-adsorbent, V—the volume of As(V). For adsorption studies, a stock solution of 10 mM of As(V) by mixing a known quantity of Na2HAsO4.7H2O

in a 500 ml conical flask for further experimentation. For studying pH effect on adsorption, solutions with different pH (2–11) were mixed with 0.1 g/L of nano-adsorbent in an incubator for

3 h. Different parameters for optimization, such as adsorbent dose and initial ion concentration, were carried out by changing dose and concentration at fixed pH. Each flask was filtered

using a 0.22 um syringe filter and analysis was done on Thermo X Series II, and the data was taken in replicates to ensure a standard error of less than 1% (Supplementary information S1).

DATA AVAILABILITY The data that support the findings of this study are available from [Praveen C Ramamurthy]. Still, restrictions apply to the availability of these data, which were used

under license for the current study, and so are not publicly available. However, data are available from the authors upon reasonable request and with permission of [Praveen C Ramamurthy].

REFERENCES * Singh, S. _et al._ Micro (nano) plastics in wastewater: A critical review on toxicity risk assessment, behaviour, environmental impact and challenges. _Chemosphere_ 290, 133169

(2022). Article  ADS  CAS  Google Scholar  * Singh, S. _et al._ Adsorption and detoxification of pharmaceutical compounds from wastewater using nanomaterials: A review on mechanism,

kinetics, valorization and circular economy. _J. Environ. Manage._300, 1 (2021). * Alka, S. _et al._ Arsenic removal technologies and future trends: A mini review. _J. Clean. Prod._ 278,

123805 (2021). Article  CAS  Google Scholar  * Jha, P. K. & Tripathi, P. Arsenic and fluoride contamination in groundwater: A review of global scenarios with special reference to India.

_Groundw. Sustain. Dev._ 13, 100576 (2021). Article  Google Scholar  * Abbas, G. _et al._ Arsenic uptake, toxicity, detoxification, and speciation in plants: Physiological, biochemical, and

molecular aspects. _Int. J. Environ. Res. Public Health_ 15, 59 (2018). Article  Google Scholar  * Chen, Q. Y. & Costa, M. Arsenic: A global environmental challenge. _Annu. Rev.

Pharmacol. Toxicol._ 61, 47–63 (2021). Article  CAS  Google Scholar  * Chakraborty, M., Mukherjee, A. & Ahmed, K. M. Regional-scale hydrogeochemical evolution across the arsenic-enriched

transboundary aquifers of the Ganges River Delta system India and Bangladesh. _Sci. Total Environ._ 823, 153490 (2022). Article  ADS  CAS  Google Scholar  * Bhowmick, S. _et al._ Arsenic in

groundwater of West Bengal, India: A review of human health risks and assessment of possible intervention options. _Sci. Total Environ._ 612, 148–169 (2018). Article  ADS  CAS  Google

Scholar  * Singh, S. _et al._ Sustainable removal of Cr(VI) using graphene oxide-zinc oxide nanohybrid: Adsorption kinetics, isotherms and thermodynamics. _Environ. Res._ 203, 111891 (2022).

Article  CAS  Google Scholar  * Uddin, M. M., Kurisu, F., Kasuga, I., Furumai, H. & Islam, S. M. A. Potential of biological arsenite oxidation in sand filtration units at arsenic–iron

removal plants (AIRPs) in Bangladesh. _Appl. Water Sci._ 9, 48 (2019). Article  ADS  Google Scholar  * Chen, M., Shafer-Peltier, K., Randtke, S. J. & Peltier, E. Modeling arsenic (V)

removal from water by micellar enhanced ultrafiltration in the presence of competing anions. _Chemosphere_ 213, 285–294 (2018). Article  ADS  CAS  Google Scholar  * Wang, C., Luan, J. &

Wu, C. Metal-organic frameworks for aquatic arsenic removal. _Water Res._ 158, 370–382 (2019). Article  CAS  Google Scholar  * Guo, Q. _et al._ Electrospun metal-organic frameworks hybrid

nanofiber membrane for efficient removal of As(III) and As(V) from water. _Ecotoxicol. Environ. Saf._ 228, 112990 (2021). Article  CAS  Google Scholar  * Iconaru, S. L. _et al._ Magnetite

(Fe3O4) nanoparticles as adsorbents for As and Cu removal. _Appl. Clay Sci._ 134, 128–135 (2016). Article  CAS  Google Scholar  * Kota, A. K., Kwon, G., Choi, W., Mabry, J. M. & Tuteja,

A. Hygro-responsive membranes for effective oil–water separation. _Nat. Commun._ 2012(313), 1–8 (2012). Google Scholar  * Lei, W., Portehault, D., Liu, D., Qin, S. & Chen, Y. Porous

boron nitride nanosheets for effective water cleaning. _Nat. Commun._ 2013(414), 1–7 (2013). Google Scholar  * Barg, S. _et al._ Mesoscale assembly of chemically modified graphene into

complex cellular networks. _Nat. Commun._ 2014(515), 1–10 (2014). Google Scholar  * He, Y. _et al._ UiO-66-NDC (1,4-naphthalenedicarboxilic acid) as a novel fluorescent probe for the

selective detection of Fe3+. _J. Solid State Chem._ 285, 121206 (2020). Article  CAS  Google Scholar  * Johra, F. T., Lee, J. W. & Jung, W. G. Facile and safe graphene preparation on

solution based platform. _J. Ind. Eng. Chem._ 20, 2883–2887 (2014). Article  CAS  Google Scholar  * Rasero-Almansa, A. M., Iglesias, M. & Sánchez, F. Synthesis of bimetallic

Zr(Ti)-naphthalendicarboxylate MOFs and their properties as Lewis acid catalysis. _RSC Adv._ 6, 106790–106797 (2016). Article  ADS  CAS  Google Scholar  * Butova, V. V. _et al._ The joint

effect of naphthalene-system and defects on dye removal by UiO-66 derivatives. _Microporous Mesoporous Mater._ 325, 111314 (2021). Article  CAS  Google Scholar  * Scardaci, V. &

Compagnini, G. _Raman spectroscopy investigation of graphene oxide reduction by laser scribing._ C7, 48 (2021). Google Scholar  * Dinh, T. T. _et al._ _Facile techniques to synthesize

reduced graphene oxide for removing tetracycline from water: Kinetics and thermodynamics studies._ https://doi.org/10.21203/RS.3.RS-950512/V1 (2021). Article  Google Scholar  * Singh, _et

al._ Multifunctional nanohybrid for simultaneous detection and removal of Arsenic(III) from aqueous solutions. _Chemosphere_ 289, 133101 (2022). Article  ADS  CAS  Google Scholar  *

Tarboush, B. J. A. _et al._ Metal-organic framework-74 for ultratrace arsenic removal from water: experimental and density functional theory studies (2018).

https://doi.org/10.1021/acsanm.8b00501. * Suzuki, T. M., Bomani, J. O., Matsunaga, H. & Yokoyama, T. Preparation of porous resin loaded with crystalline hydrous zirconium oxide and its

application to the removal of arsenic. _React. Funct. Polym._ 43, 165–172 (2000). Article  CAS  Google Scholar  * Ayub, A., Raza, Z. A., Majeed, M. I., Tariq, M. R. & Irfan, A.

Development of sustainable magnetic chitosan biosorbent beads for kinetic remediation of arsenic contaminated water. _Int. J. Biol. Macromol._ 163, 603–617 (2020). Article  CAS  Google

Scholar  * Boddu, S., Dulla, J. B., Alugunulla, V. N. & Khan, A. A. An assessment on removal performance of arsenic with treated Turbinaria vulgaris as an adsorbent: Characterization,

optimization, isotherm, and kinetics study. _Environ. Prog. Sustain. Energy_ 39, e13313 (2020). Article  CAS  Google Scholar  * Shakoor, M. B. _et al._ Exploring the arsenic removal

potential of various biosorbents from water. _Environ. Int._ 123, 567–579 (2019). Article  CAS  Google Scholar  * Kim, N., Park, M., Yun, Y. S. & Park, D. Removal of anionic arsenate by

a PEI-coated bacterial biosorbent prepared from fermentation biowaste. _Chemosphere_ 226, 67–74 (2019). Article  ADS  CAS  Google Scholar  * Shim, J., Kumar, M., Mukherjee, S. & Goswami,

R. Sustainable removal of pernicious arsenic and cadmium by a novel composite of MnO2 impregnated alginate beads: A cost-effective approach for wastewater treatment. _J. Environ. Manage._

234, 8–20 (2019). Article  CAS  Google Scholar  * Ryu, S. R., Jeon, E. K., Yang, J. S. & Baek, K. Adsorption of As(III) and As(V) in groundwater by Fe–Mn binary oxide-impregnated

granular activated carbon (IMIGAC). _J. Taiwan Inst. Chem. Eng._ 72, 62–69 (2017). Article  CAS  Google Scholar  * Babu, C. M. _et al._ Characterization of reduced graphene oxide supported

mesoporous Fe2O3/TiO2 nanoparticles and adsorption of As(III) and As(V) from potable water. _J. Taiwan Inst. Chem. Eng._ 62, 199–208 (2016). Article  CAS  Google Scholar  * Wang, Y., Liu,

W., Wang, T. & Ni, J. Arsenate adsorption onto Fe-TNTs prepared by a novel water–ethanol hydrothermal method: Mechanism and synergistic effect. _J. Colloid Interface Sci._ 440, 253–262

(2015). Article  ADS  CAS  Google Scholar  * D’Arcy, M., Weiss, D., Bluck, M. & Vilar, R. Adsorption kinetics, capacity and mechanism of arsenate and phosphate on a bifunctional

TiO2–Fe2O3 bi-composite. _J. Colloid Interface Sci._ 364, 205–212 (2011). Article  ADS  Google Scholar  * Deng, S., Li, Z., Huang, J. & Yu, G. Preparation, characterization and

application of a Ce–Ti oxide adsorbent for enhanced removal of arsenate from water. _J. Hazard. Mater._ 179, 1014–1021 (2010). Article  CAS  Google Scholar  * Gupta, K. & Ghosh, U. C.

Arsenic removal using hydrous nanostructure iron(III)–titanium(IV) binary mixed oxide from aqueous solution. _J. Hazard. Mater._ 161, 884–892 (2009). Article  CAS  Google Scholar  * Zhou, W.

_et al._ Mesoporous TiO2/α-Fe2O3: Bifunctional composites for effective elimination of arsenite contamination through simultaneous photocatalytic oxidation and adsorption. _J. Phys. Chem.

C_ 112, 19584–19589 (2008). Article  CAS  Google Scholar  * Giannozzi, P. _et al._ QUANTUM ESPRESSO: A modular and open-source software project for quantumsimulations of materials. _J. Phys.

Condens. Matter_ 21, 395502 (2009). Article  Google Scholar  * Perdew, J. P., Ernzerhof, M. & Burke, K. Rationale for mixing exact exchange with density functional approximations. _J.

Chem. Phys._ 105, 9982 (1998). Article  ADS  Google Scholar  * Marcano, D. C. _et al._ Improved synthesis of graphene oxide. _ACS Nano_ 4, 4806–4814 (2010). Article  CAS  Google Scholar  *

Pashai Gatabi, M., Milani Moghaddam, H., & Ghorbani, M. Point of zero charge of maghemite decorated multiwalled carbon nanotubes fabricated by chemical precipitation method. _J. Mol.

Liq._216, 117–125 (2016). Download references AUTHOR INFORMATION Author notes * These authors contributed equally: Simranjeet Singh and Nadeem A. Khan. AUTHORS AND AFFILIATIONS *

Interdisciplinary Centre for Water Research (ICWaR), Indian Institute of Science, Bangalore, India Simranjeet Singh & Praveen C. Ramamurthy * Department of Materials Engineering, Indian

Institute of Science, Bangalore, India T. S. Sunil Kumar Naik, Basavaraju U & Sushant Kumar Behera * Civil Engineering Department, Mewat Engineering College, Nuh, Haryana, India Nadeem

A. Khan * Department of Chemistry, University of Kashmir, Srinagar, India Abdul Basit Wani * Interdisciplinary Centre for Energy Research, Indian Institute of Science, Bangalore, India

Bidisha Nath * Department of Chemistry, The Oxford College of Engineering, Bangalore, India Shipra Bhati * Department of Microbiology, Lovely Professional University, Phagwara, Punjab, India

Joginder Singh Authors * Simranjeet Singh View author publications You can also search for this author inPubMed Google Scholar * T. S. Sunil Kumar Naik View author publications You can also

search for this author inPubMed Google Scholar * Basavaraju U View author publications You can also search for this author inPubMed Google Scholar * Nadeem A. Khan View author publications

You can also search for this author inPubMed Google Scholar * Abdul Basit Wani View author publications You can also search for this author inPubMed Google Scholar * Sushant Kumar Behera

View author publications You can also search for this author inPubMed Google Scholar * Bidisha Nath View author publications You can also search for this author inPubMed Google Scholar *

Shipra Bhati View author publications You can also search for this author inPubMed Google Scholar * Joginder Singh View author publications You can also search for this author inPubMed

Google Scholar * Praveen C. Ramamurthy View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.S., and P.C.R. planned the experiments. S.S. and

T.S.S.K.N. performed the experiments. S.S., N.A.K., A.B.W., B.N., S.K.B., S.B., J.S. and P.C.R. analysed the data. S.S. and B.N. contributed reagents. S.S., N.A.K., J.S. and P.C.R. wrote the

main manuscript. T.S.S.K.N., B.N., S.B. prepared figures. All the authors reviewed the manuscript. CORRESPONDING AUTHOR Correspondence to Praveen C. Ramamurthy. ETHICS DECLARATIONS

COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published

maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY FIGURES. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0

International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the

source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's

Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not

permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Singh, S., Naik, T.S.S.K., U, B. _et al._ A systematic study of arsenic adsorption

and removal from aqueous environments using novel graphene oxide functionalized UiO-66-NDC nanocomposites. _Sci Rep_ 12, 15802 (2022). https://doi.org/10.1038/s41598-022-18959-2 Download

citation * Received: 28 May 2022 * Accepted: 23 August 2022 * Published: 22 September 2022 * DOI: https://doi.org/10.1038/s41598-022-18959-2 SHARE THIS ARTICLE Anyone you share the following

link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature

SharedIt content-sharing initiative
