Extremely low effective impedance in stratified graphene-dielectric metamaterials

ABSTRACT The periodic reflections in frequency were observed in a stack of graphene layers and generally reported as a series of mini photonic bandgaps owing to the multiple interference by

the graphene layers. In this research, the Floquet-Bloch theory was employed to obtain the effective refractive index and Bloch impedance for understanding the wave propagation

characteristic therein. Interestingly, the periodic reflections were found to occur in the frequency band having drastic variation in complex Bloch impedance and effective refractive index

as well, wherein a Floquet-Bloch mode having pure real effective refractive index and extremely low Bloch impedance exists. SIMILAR CONTENT BEING VIEWED BY OTHERS TUNABLE AND

ULTRA-NARROWBAND MULTIFUNCTIONAL TERAHERTZ DEVICES USING ANISOTROPIC GRAPHENE BASED HYPERBOLIC METAMATERIALS Article Open access 28 December 2024 OBSERVATION OF PLASMONICS TALBOT EFFECT IN

GRAPHENE NANOSTRUCTURES Article Open access 23 January 2024 DUAL-GUIDING-LAYER RESONANCE STRUCTURE WITH AN EMBEDDED METASURFACE FOR QUASI-CRITICAL COUPLING WITHOUT A PERFECT MIRROR Article

Open access 29 September 2020 INTRODUCTION Graphene is believed to be one of the most striking materials with its optical property defined only by the fundamental constants rather than on

material parameters. The scattering characteristics of a suspended graphene is determined merely by the fine structure constant associated with quantum electrodynamics1. Experimental studies

indicated that the optical sheet conductance of graphite per graphene layer is very close to the theoretically expected value of dynamical conductance of isolated monolayer graphene2,3.

Moreover, for few graphene layers (\(<6\)), the structure behaves as a superposition of single sheet acting as independent two-dimensional electron gases; the absorptance is proportional

to the number of layers4. The full expression for the optical conductivity based on the general noninteracting tight-binding model was developed for the scattering analysis of a graphene

layer5. Having the closed-form expression for graphene optical conductivity, numerical electromagnetic field simulation for the structure consisting of single or multilayered graphene

becomes more realistic and sophisticated6,7. Due to the reconfiguration of graphene optical conductivity by electrically or magnetically tuning the Fermi level (chemical potential) of a

graphene sheet, some potential applications were proposed and implemented; to mention a few, a waveguide-integrated electroabsorption modulator based on monolayer graphene was developed by

electrically tuning the Fermi level of the graphene sheet8. The Faraday rotation turning the polarization by several degrees through a single- and multilayered graphene was demonstrated in

modest magnetic fields9. By stacking graphene bearing quartz substrate on a ground plane, an optically transparent broadband absorbers operating in millimeter wave region was achieved10. A

ultra-broadband absorber made of multilayered graphene metamaterial able to absorb \(90\%\) of the incident wave under normal incidence in the frequency range of 1.12–3.78 THz was

reported11. A metamaterial consisting of weakly absorbing alternating graphene layers separated by lossless dielectric was fabricated to serve as a polarization-independent extremely

broadband absorber covering almost the entire solar spectrum over a large angular range12. A graphene-based tunable hyperbolic metamaterials was designed for enhanced absorption in

far-infrared frequencies13. The tunable propagation properties of 3D Dirac semimetal patterned metamaterial structures was symmetrically investigated in the terahertz regime14. The

propagation properties of all-dielectric metamaterials based on a \(SiO_2\)-_Si_ asymmetric hybrid block, including the effects of structural parameters, asymmetrical degrees, carrier doping

concentrations, and graphene Fermi levels were reported15. Tunable terahertz Dirac-semimetal hybrid plasmonic waveguides was systematically investigated16. Moreover, 3D Dirac semimetal

supported tunable TE modes was researched17. Concerning the fabrication technology development, multilayered metamaterial consisting of alternating monolayer graphene oxide/graphene and

dielectric layers without a transfer step was successfully developed18. Regarding the scattering characteristics of a 1D metamaterial made of a stratified graphene-dielectric structure, the

transfer matrix method was popularly employed to obtain the rigorous solution19,20,21, while the physical insight has to invoke some other approaches for understanding the wave propagation

characteristics. For example, The extraction method for determining the effective index and impedance from the scattering parameters of a finite slab of metamaterial normally incident by a

plane wave was developed22. The S-parameter retrieval was employed to obtain the effective optical properties including permittivity and permeability of the fabricated zero index medium

based on purely dielectric constituents23. The extraction of the effective medium properties (refractive index and impedance) of symmetric and asymmetric nanoparticle arrays with arbitrary

geometry was developed and verified with analytical approach in the limitation of electrical small24. The dielectric permittivity tensor of the effective non-local medium with a periodic

stack of graphene layers was developed for demonstrating its tunability from elliptic to hyperbolic dispersion with an external gate voltage25. In this research, we focus on studying the

physical mechanism of wave process involved in the so-called a series of mini photonic bandgaps reported in literature19,26. As far as a photonic bandgap is concerned, propagation constant

against operating frequency (or wavelength) particularly in the stopband has to be carefully examined. Because an extremely large number of periods (unit cells) are considered here, the

dispersion relation of wave propagation in the structure of infinite in extent can help the understanding of physical insight in wave mechanism. Furthermore, the Bloch impedance is essential

to the impedance matching problem at the input/output interface considering a finite structure. Specifically, the effective refraction index and Bloch impedance were obtained based on

Floquet-Bloch theory (periodic boundary condition). By solving the eigenvalue problem of the transfer matrix of a unit cell, the Bloch impedance and effective refractive index can be

determined by the eigenvectors and eigenvalues, respectively. Consequently, the finite periodic structure can be modeled as an equivalent transmission line with effective (average)

propagation constant and line (Bloch) impedance. The excellent agreement of the numerical results in the scattering analysis between transfer matrix method and Floquet-Bloch approach allows

us to confidently interpret the periodic reflections using the effective refractive index and Bloch impedance. Additionally, the effect of chemical potential on the scattering properties and

the equivalent transmission line parameters were also investigated intensively. STRUCTURE UNDER CONSIDERATION Figure 1 shows a stratified graphene-dielectric metamaterial. The structure is

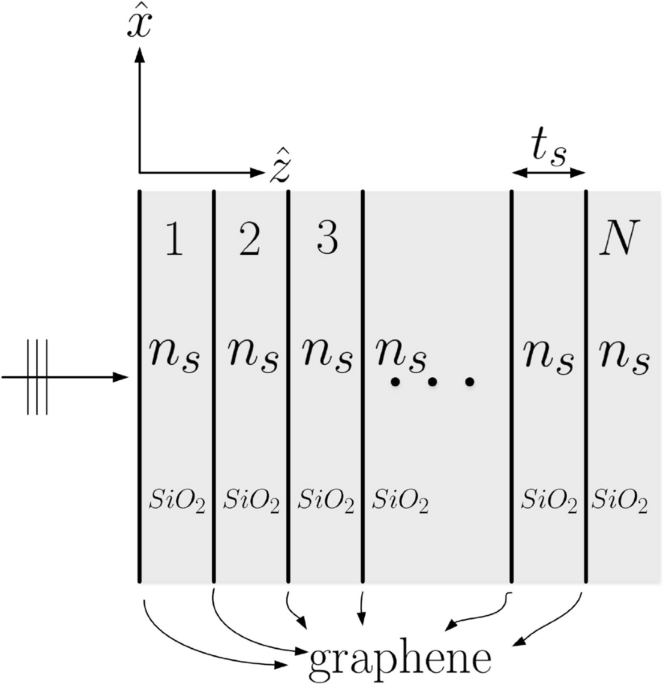

made of alternating graphene and silica (\(SiO_2\)) having thickness of \(t_s\) and refractive index designated as \(n_s\). The graphene sheet is assumed to be zero thickness with the

graphene optical conductivity \(\sigma _g\). The structure is composed of _N_ periods (unit cells) each consisting of a graphene sheet and a \(SiO_2\) slab. A plane electromagnetic wave is

normally incident into the metamaterial. The graphene and \(SiO_2\) slab are assumed to be infinite in extent along the _x_-_y_ plane. Here, the input and output mediums both are set to be

\(SiO_2\) for reducing the reflection at input and output interfaces. METHOD OF MATHEMATICAL ANALYSIS TRANSFER MATRIX METHOD (TMM) Transfer matrix (or ABCD-matrix) method has been

extensively employed in microwave and optical engineering19,20. Such a building block approach can efficiently calculate the scattering properties through cascade connection (matrix

multiplication) of each input-output relation expressed in terms of a 2-by-2 matrix. Consider the multiple parallel dielectric and graphene layers in Fig. 1, the transmission-line analogy

can be readily applied for describing the electric and magnetic fields within the dielectric layer27,28. At normal incidence, the tangential electric- and magnetic-fields in the uniform

dielectric slab propagate along the _z_-axis with propagation constant \(k_z^{(s)}=k_o n_s\); the wave impedance is simply the characteristic impedance of the medium \(Z_s(=1/Y_s)=120\pi

/n_s\), where \(Y_s\) is the characteristic admittance. Moreover, the tangential electric and magnetic fields can be respectively written as \(E_t(z)=V(z)\) and \(H_t(z)=I(z)\), where the

vector electric- and magnetic-fields are both on the _x_-_y_ plane and perpendicular to each other; for example, \(E_x\) and \(H_y\) or \(E_y\) and \(H_x\). Additionally, _V_(_z_) and

_I_(_z_) satisfy the transmission-line equations written as: $$\begin{aligned} V(z)=A\exp (-jk_z^{(s)} z)+B\exp (+jk_z^{(s)} z), \end{aligned}$$ (1) $$\begin{aligned} I(z)=Y_s \left[ A\exp

(-jk_z^{(s)} z)-B\exp (+jk_z^{(s)} z) \right] \end{aligned}$$ (2) Parameters _A_ and _B_ are two unknowns to be determined. At the input interface of \(z=t_s\), _A_ and _B_ can be expressed

in terms of \(V(t_s)\) and \(I(t_s)\), that is, \(A=\exp (+jk_z^{(s)} z)[V(t_s)+Z_s I(t_s)]/2\) and \(B=\exp (-jk_z^{(s)} z)[V(t_s)-Z_s I(t_s)]/2\). By substituting _A_ and _B_ into Eqs. (1)

and (2), _V_(_z_) and _I_(_z_) at \(z=0\) can be denoted via use of \(V(t_s)\) and \(I(t_s)\), presented in the form of matrix equation given below: $$\begin{aligned} \begin{bmatrix} V(0)

\\ I(0) \end{bmatrix}={\mathbf {T}}_{SiO_2} \begin{bmatrix} V(t_s) \\ I(t_s) \end{bmatrix}, \end{aligned}$$ (3) with the transfer matrix of the dielectric slab (\(SiO_2\)) written as:

$$\begin{aligned} {\mathbf {T}}_{SiO_2}=\begin{bmatrix} \cos k_z^{(s)}t_s &{} jZ_s \sin k_z^{(s)}t_s \\ jY_s \sin k_z^{(s)}t_s &{} \cos k_z^{(s)}t_s \end{bmatrix} . \end{aligned}$$

(4) Additionally, consider a graphene sheet placed at the interface, \(z=0\), between two regions denoted as (1) and (2) in \(z<0\) and \(z>0\), respectively. The boundary conditions6

of this zero thickness graphene sheet are \({\hat{z}}\times [{\mathbf {H}}^{(2)}_t(z=0^+)-{\mathbf {H}}^{(1)}_t(z=0^-)]=\sigma _g{\mathbf {E}}_t(z=0)\) and \({\mathbf

{E}}^{(2)}_t(z=0^+)={\mathbf {E}}^{(1)}_t(z=0^-)\). Alternatively, we have \(I^{(2)}(0^+)-I^{(1)}(0^-)=-\sigma _g V^{(1)}(0^-)\) and \(V^{(1)}(0^-)= V^{(2)}(0^+)\). They can be expressed in

term of the matrix equation written below: $$\begin{aligned} \begin{bmatrix} V^{(1)}(0^-) \\ I^{(1)}(0^-) \end{bmatrix}={\mathbf {T}}_{gra} \begin{bmatrix} V^{(2)}(0^+) \\ I^{(2)}(0^+)

\end{bmatrix} , \end{aligned}$$ (5) with the transfer matrix of a graphene sheet written as: $$\begin{aligned} {\mathbf {T}}_{gra}=\begin{bmatrix} 1 &{} 0 \\ \sigma _g &{} 1

\end{bmatrix} . \end{aligned}$$ (6) Due to the continuous of tangential electric and magnetic fields at the interface between aforementioned two building blocks, the transfer matrix of the

unit cell (period) is written as \({\mathbf {T}}_{cell}={\mathbf {T}}_{gra}{\mathbf {T}}_{SiO_2}\). Furthermore, the transfer matrix of a periodic structure consisting of _N_ unit cells can

be written as \({\mathbf {T}}=({\mathbf {T}}_{cell})^{N}\). Here, \({\mathbf {T}}\) is a 2-by-2 matrix. The transmittance (or insertion loss in microwave engineering) denoted as \(S_{21}\)

can be written as29: $$\begin{aligned} S_{21}=\frac{2}{A+B/Z_o+C Z_i+D Z_i/Z_o} \end{aligned}$$ (7) Additionally, the reflectance (or termed as return loss) is given as: $$\begin{aligned}

S_{11}=\frac{A+B/Z_o-C Z_i-D Z_i/Z_o}{A+B/Z_o+C Z_i+D Z_i/Z_o} \end{aligned}$$ (8) where \(Z_i\) and \(Z_o\) are the input- and output-characteristic impedance in the input and output

regions, respectively. Additionally, we have \(A={\mathbf {T}}(1,1)\), \(B={\mathbf {T}}(1,2)\), \(C={\mathbf {T}}(2,1)\), and \(D={\mathbf {T}}(2,2)\). Notably, parameter \(S_{11}\) and

\(S_{21}\) are defined as the reflection- and transmission-coefficients; they, in general, are complex numbers. The reflected- and transmitted-power can then be obtained through \(S_{11}\)

and \(S_{21}\)20. Moreover, the reflectance and transmittance are determined by normalizing them with the incident power. FLOQUET-BLOCH APPROACH (FBA) For an infinite periodic structure, the

wave propagating characteristics can be understood from the property of its unit cell. By the Floquet-Bloch theory, the input-output relation of a unit cell satisfies $$\begin{aligned}

{\mathbf {T}}_{cell}{\mathbf {x}}=\chi {\mathbf {x}}, \end{aligned}$$ (9) where \({\mathbf {x}}\) is a column vector composed of voltage and current amplitudes at the input end, and two

eigenvalues \(\chi =\exp (\pm j\kappa t_s)\). Parameter \(\kappa =\beta -j\alpha\) is the effective propagation constant of the wave propagating through the unit cell. Namely, in such an

infinite periodic medium, the wave can propagate in an “average” propagation constant \(\kappa\). Therefore, the effective refractive index is defined as \(n_{eff}=\kappa /k_o\). Notably,

parameter \(\kappa\) generally is a complex number due to that of the graphene conductivity \(\sigma _g\). Equation (9) is an eigenvalue problem. Having the given parameters in matrix

\({\mathbf {T}}_{cell}\), the eigenvalue \(\chi\) and eigenvector \({\mathbf {x}}\) can be readily determined. Furthermore, the Bloch impedance can be written as \(Z_B={\mathbf

{x}}(1)/{\mathbf {x}}(2)\). Notably, two eigenvectors will be obtained, the criterion for choosing the correct \(Z_B\) is that its real part must be positive. Contrarily, \(\chi =\exp (\pm j

k_0 n_{eff} t_s)\) is a multiple-valued function of \(n_{eff}\). Namely, \(k_0 n_{eff} t_s+q2\pi\), where \(q\in\) integer (branches) are also their solutions. More specifically, the real-

and imaginary-parts of \(n_{eff}=n_{eff}^{'}-j n_{eff}^{''}\) can be determined as follows. $$\begin{aligned} n_{eff}^{''}=\pm \frac{\ln |\chi |}{2\pi }\frac{\lambda

}{t_s} \end{aligned}$$ (10) $$\begin{aligned} n_{eff}^{'}=\pm \frac{\phi _{\chi }}{2\pi }\frac{\lambda }{t_s}-q \frac{\lambda }{t_s}, \end{aligned}$$ (11) where eigenvalue \(\chi

=|\chi |e^{j\phi _{\chi }}\) and \(\lambda\) is the operating wavelength. From Eqs. (10) and (11), we know that the imaginary part of \(n_{eff}\) can be uniquely determined

(\(n_{eff}^{''} \ge 0\) for passive medium), while the real part of \(n_{eff}\) accommodates multiple values. We have to point out that there is no approximation in the formulation

of FBA. The obtained effective refractive index and Bloch impedance (even for the non-physical solutions of \(\Re {n_{eff}}\)) can be employed as transmission line parameters for evaluating

the scattering properties of metamaterials having a large number of periods. GRAPHENE OPTICAL CONDUCTIVITY Graphene conductivity (\(\sigma _g=\sigma _{intra}+\sigma _{inter}\)), having a

close-form expression for the condition \(\mid \mu _c \mid\) \(\gg\) \(k_B T\), consists of both the intraband (\(\sigma _{intra}\)) and inter-band (\(\sigma _{inter}\)) terms:6,30

$$\begin{aligned} \sigma _{intra}(\omega )=\frac{-j e^2 |\mu _c|}{\pi \hslash ^2(\omega -j\gamma )} , \text{ and } \end{aligned}$$ (12) $$\begin{aligned} \sigma _{inter}=\frac{e^2}{4\hslash

} \left \{\frac{1}{2}+\frac{1}{\pi } \arctan \frac{\hslash (\omega -j\gamma )-2\mu _c}{2k_B T} +\frac{j}{2\pi }\ln \frac{[\hslash (\omega -j\gamma )+2\mu _c]^2}{[\hslash (\omega -j\gamma

)-2\mu _c]^2+(2k_BT)^2} \right \} , \end{aligned}$$ (13) where -_e_ is the electron charge, \(\hslash\) is the reduced Planck constant, \(\gamma\) is a phenomenological carrier scattering

rate (\(\gamma =1/2\tau _c\), where \(\tau _c\) is the carrier relaxation time), \(\mu _c\) is the chemical potential, \(k_B\) is Boltzmann’s constant, and _T_ is the ambient temperature

(assumed to be 300° K throughout this paper). NUMERICAL RESULTS AND DISCUSSIONS Before the elaborate calculations, we have to first understand the graphene optical conductivity against

frequency. Here, the normalized angular frequency \(\Omega\) is defined as: \(\Omega =\omega \hslash /2\mu _c^{(o)}\), where we have \(\mu _c^{(o)}=0.35 eV\) throughout this paper. The

silica thickness (\(t_s\)) equals to \(\lambda _o/4\) (442.8007 nm), where \(\lambda _o\) corresponds to the angular frequency of \(\omega _o\hslash =2\mu _c^{(o)}\). Figure 2a,b

respectively show the real- and imaginary-part of graphene optical conductivity due to the summation of Eqs. (12) and (13) against \(\Omega\) for various chemical potential while having a

fixed relaxation time \(\tau _c=0.03 ps\) and temperature of \(T=\) 300° K. Notably, the real- and imaginary-parts of \(\sigma _g\) have significant changes with respect to the variation of

\(\mu _c\) in the low normalized frequency region, while they coincide to one another for high frequency region (for example, \(\Omega > 5\)). Figure 3a shows the scattering

characteristics including transmittance, reflectance and absorptance against normalized angular frequency through the rigorous calculation by TMM. It is interesting to observe the

frequency-selective reflection and transmission corresponding to the spikes. In addition to the strong reflection, the periodic absorption dips are also found at \(\Omega

=1.3333\;\text{m}\), where _m_ is an integer starting from unity. Moreover, the scattering parameters including \(S_{21}\) and \(S_{11}\) defined in Eqs. (7) and  (8) also were calculated

via both approaches including TMM and FBA, particularly around the first peak at \(\Omega =1.3333\), in Fig. 3b. Those symbol curves were obtained by FBA having different branches (\(q=0\),

\(q=+1\), and \(q=-1\)). It is obvious to see the excellent agreement between the results obtained by the two methods. Although not shown here, the other branches including the other

non-physical \(Re[n_{eff}]\) (\(Re[\cdot ]\) is referring the real part of a complex number) have also been examined and found consistent results of the scattering parameters compared with

those obtained by TMM. Additionally, the periodic reflection has a bandwidth centered at around \(\Omega =1.3333\). However, the reflection peak does not always coincides with \(\Omega

=1.3333\) for the other cases of \(\mu _c\), as will become clear later on. Figure 3c shows the reflectance response around the first reflection peak depicted in Fig. 3a. Apparently, the

reflectance is increasing in accordance with the increase of _N_ (number of periods). Specifically, their peak positions remain for all the cases with fewer or more periods. Although not

shown here, the other reflection peaks in Fig. 3a also keep their positions and are independent of _N_. It reveals that those reflectance peaks are due to periodic nature of the structure

under consideration. Although multiple branches including non-physical solutions were obtained in the real part of effective refractive index due to multiple-valued problem, there is no

ambiguity in determining the imaginary part of effective refractive index and the Bloch impedance. In fact, the reflection coefficient of a finite length metamaterial consisting of _N_ unit

cells is determined by \(\Gamma =(Z_{in}-Z_s)/(Z_{in}+Z_s)\), where the input impedance can be written as follows. $$\begin{aligned} Z_{in}=Z_B \frac{1+\Gamma _l e^{-j2k_o n_{eff}

Nt_s}}{1-\Gamma _l e^{-j2k_o n_{eff} Nt_s}} \end{aligned}$$ (14) where \(\Gamma _l=(Z_s-Z_B)/(Z_s+Z_B)\). Notably, \(e^{-j2k_o n_{eff} Nt_s}=\chi ^{2N}\) and \(\chi\) is the eigenvalue in

Eq. (9); there is no ambiguity in determining \(\chi\). As a consequence, the equivalent transmission line using \(\chi\) and \(Z_B\) can uniquely determine the scattering parameters and no

need to consider the multiple-valued problem. Figure 4a,b individually depict the effective refractive index and Bloch impedance versus normalized angular frequency in the same range shown

in Fig.  3a. It is obvious to see that the frequencies with transmission/reflection spikes coincide with those having negligible \(Im[n_{eff}]\) (\(Im[\cdot ]\) means the imaginary part of a

complex number). Additionally, those peaks with vanishing \(Im[n_{eff}]\) occur at \(\Omega =1.3333\;\text{m}\), where _m_ is ranging from 1 to 4. Because of multiple-valued function of

\(Re[n_{eff}]\), all the integer _q_ should be taken into account. However, in this figure only the three branches: the blue solid, dashed and dotted curves individually corresponding to

branches of \(q=0\), \(q=+1\) and \(q=-1\), are plotted. On the other hand, their imaginary part share the same distribution. In the low frequency region with \(\Omega<< 1\)

(\(t_s<< \lambda\)), the branches of \(q\ne 0\) are away from the principal branch of \(q=0\); there is no ambiguity in selection of the correct branch (_q_). However, it creates

difficulty in unambiguously determining the correct branch when \(\Omega > 1\) since the \(Re[n_{eff}]\) of the three branches gradually lie quit close. Additionally, the Bloch impedance

versus normalized angular frequency is also plotted and shown in Fig.  4b. There is no ambiguity in determining the Bloch impedance; thus all the cases of different _q_ coincide with one

another. Significantly, the Bloch impedance at \(\Omega =1.3333\), \(\Omega =2.6666\), \(\Omega =3.9999\), and \(\Omega =5.3332\) are \(Z_B=4.381\times 10^{-5}-j5.052\times 10^{-5}\),

\(Z_B=3.692\times 10^{-5}+j3.650\times 10^{-5}\), \(Z_B=6.669\times 10^{-5}-j6.691\times 10^{-5}\), and \(Z_B=9.155\times 10^{-5}-j9.169\times 10^{-5}\), respectively. DETERMINE THE

FREQUENCIES AROUND PERIODIC REFLECTIONS To explain the vanishing imaginary part of \(n_{eff}\), we return to the eigenvalue problem in Eq. (9). Its alternative expression (the characteristic

equation of matrix \(\mathbf {T_{cell}})\) can be written below. $$\begin{aligned} \cos (k_o n_{eff} t_s)=\cos (k_o t_s n_s)+j\frac{\sigma _g Z_s}{2}\sin (k_o t_s n_s) \end{aligned}$$ (15)

Equation (15) is also termed as the dispersion relation of wave propagating in the 1D periodic medium. The effective refractive index (\(n_{eff}\)) can be resolved once the parameters

including \(k_o\), \(n_s\) and graphene conductivity (\(\sigma _g\)) are given. We first consider the condition of \(k_o t_s n_s =m\pi\), where _m_ is an integer excluding zero, enabling

\(\sin (k_o t_s n_s)=0\). Consequently, we have \(\cos (k_o n_{eff} t_s)=\pm 1\); \(n_{eff}\) is a pure real number. It means that the wave propagating in the medium at this frequency has no

attenuation. Additionally, the zero \(Im[n_{eff}]\) at \(k_o t_s n_s =m\pi\) corresponds to the angular frequency \(\omega _m=C_o m \pi /n_s t_s\), where \(C_o\) is the speed of light. The

normalized angular frequency is \(\Omega _m=m \hslash C_o \pi /2 n_s t_s \mu _c^{(o)}\). Substitution of \(\mu _c^{(o)}=0.35 \; \text{eV}\), \(n_s=1.5\) and \(t_s=442.8007\;\text{nm}\) into

\(\Omega _m\), we obtain \(\Omega _m=1.3333\;\text{m}\). Parameter \(Re[n_{eff}]\) can accommodate multiple values; however, the eigenvector to Eq. (9) is uniquely determined. Notably, the

eigenvectors at the condition of vanishing \(Im[n_{eff}]\) are repeated eigenvalues problem and should be carefully evaluated. Specifically, the Bloch impedance has very small real and

imaginary parts. Notably, the effective refractive index \(n_{eff}\) has negligible imaginary part at the normalized frequencies equal to \(\Omega _m\). Nevertheless, the non-zero complex

Bloch impedance enables the power absorption by the structure due to the presence of graphene sheets. EFFECT OF CHEMICAL POTENTIAL ON REFLECTION CHARACTERISTICS In Fig. 5a, reflectance

versus normalized angular frequency were demonstrated. The first peak at \(\Omega =1.3333\) corresponds to \(\lambda =1328.402 \; \text{nm}\) while the size of unit cell is \(t_s=442.8007 \;

\text{nm}\). Therefore, it is in the long-wavelength limit. There is no ambiguity in determining the \(Re[n_{eff}]\). To see the effect of chemical potential (\(\mu _c\)) on the reflection

properties, we progressively change \(\mu _c\) from 0.3_eV_ to 0.8 eV with a step of 0.1 eV. Incidentally, we also have evaluated them at \(\mu _c=0.1\;\text{eV}\) and \(\mu

_c=0.2\;\text{eV}\); however, the results were not shown here because their difference with that of \(\mu _c=0.3\;\text{eV}\) is insignificant. Returning to Fig. 5a, the obvious reflection

occurs in the region roughly between \(\Omega =1.32\) and \(\Omega =1.35\). Hereafter, this region is referred to as “A (anomalous)-region”. Outside the A-region, reflectance is

inconsiderable. On the other hand, the increase in \(\mu _c\) gradually moves the peak position away from \(\Omega =1.3333\). It is obvious to see the strength of reflectance peak varies

irregularly with the increase in chemical potential. Because the reflectance is determined by \(\Gamma =(z_{in}-1)/(z_{in}+1)\), with \(z_{in}=Z_{in}/Z_s\) the input impedance normalized to

\(Z_s\), the impedance match between \(Z_{in}\) and \(Z_s\) dominates the reflectance. As will become clear later on, both \(n_{eff}\) and \(Z_B\) are frequency dependence and have drastic

variations in the A-region; specifically, their relation to \(\mu _c\) are irregular. Consequently, it is hard to explicitly define the relationship between \(\mu _c\) and reflectance.

However, the input impedance in Eq. (14) can reveal us this information. Figure 5b shows the distribution of normalized input impedance (\(z_{in}\)) against \(\Omega\). The locus of each

case is drawn in the Smith Chart that is commonly used in microwave engineering. The center is at the point of \(1+j0\) representing normalized impedance equal to unity (perfect match

without reflection). The reflectance peak of each case shown in Fig. 5a is marked in Fig. 5b respectively. Moreover, the distance between the point on a locus and the center can be employed

to evaluate the impedance matching (or level of reflectance). From Fig. 5b, it is obvious to see that the relationship of

\(d(0.6\;\text{eV})<d(0.5\;\text{eV})<d(0.7\;\text{eV})<d(0.4\;\text{eV})<d(0.3\;\text{eV})<d(0.8\;\text{eV})\), where \(d(\mu _c)\) is the distance between peak denoted by

star symbol and center for the chemical potential given within the round brackets. Apparently, the smaller the distance _d_, the better impedance match and lower reflectance achieved, shown

in Fig. 5a. EFFECT OF CHEMICAL POTENTIAL ON THE EFFECTIVE REFRACTIVE INDEX AND BLOCH IMPEDANCE To explain the obvious reflection in the vicinity of \(\Omega =1.3333\) shown in Fig. 5a, the

effective refractive index and Bloch impedance were calculated for various chemical potential given in the aforementioned examples. Figure 6a,b show the variation of \(n_{eff}\) against the

normalized frequency. As depicted in Fig. 6a, \(n_{eff}^{'}\) approaches the index of surrounding medium (\(n_s\)) for all \(\mu _c\) in the full band except for the abrupt change in

slope found around normalized frequency of 1.3333, may causing the change in their group velocity. The imaginary part of refractive index (\(n_{eff}^{''}\)) allows us to know

attenuation of Floquet-Bloch mode propagating in an infinite periodic medium. In Fig. 6b, all the cases experience zero attenuation at \(\Omega =1.3333\). For the case of \(\mu _c=0.3\) and

\(\mu _c=0.4\), it behaves like a band-pass filter having a narrow pass band around \(\Omega =1.3333\). Contrarily, the cases of \(\mu _c=0.7\) and \(\mu _c=0.8\) encounter apparent

attenuation (or reflection for the incident wave) inside the bump shape region starting from \(\Omega =1.3333\). Additionally, the cases of \(\mu _c=0.5\) and \(\mu _c=0.6\) have a small

fluctuation in their propagation. Notably, the aforementioned properties are subject to an infinite medium without considering the input/output interface. Their behavior are very different

from the result shown in Fig. 5a. As a consequence, we know that the only parameter \(n_{eff}\) cannot afford to explain reflectance response. As is well known in a 1D periodic medium, the

stop-band is due to the coherent reflection from each unit cell. When we evaluate the dispersion relation of the 1D wave propagating in an infinite periodic medium, the propagation constant

is a complex number (\(\kappa =\beta -j\alpha\)) in the stop-band regions, while it is a real number in the pass-band regions. Contrarily, when inspecting \(n_{eff}\) in Fig.6a,b especially

in the A-region, we found that such a behavior can not be classified simply as a stopband. Additionally, the abrupt change \(n_{eff}\) around \(\Omega =1.3333\) is due to structure

dispersion, while the variation of \(n_{eff}(\Omega )\) with respect to \(\mu _c\) is attributed to material dispersion. The reflection is mainly due to the mismatch between the input

impedance of a metamaterial and the wave impedance of the surrounding medium. First of all, outside the A-region, all the cases in Fig. 6c,d generally approach the wave impedance in

\(SiO_2\) (\(Z_s=251 \Omega\)). This explains the small reflection outside the A-region. Contrarily, it is apparent to see drastic changes in the real- and imaginary-parts of Bloch impedance

within the A-region. Specifically, the two cases of \(\mu _c=0.7\;\text{eV}\) and \(\mu _c=0.8\;\text{eV}\) exhibit complex Bloch impedance within a very narrow bandwidth starting from

\(\Omega =1.3333\) to around \(\Omega =1.342\) while the others are complex numbers in the A-region. Furthermore, all the cases have extremely low Bloch impedance at \(\Omega =1.3333\);

however, its does not mean at all the location of peak reflection. In fact, it is not easy to precisely predict the peak position unless to calculate the input impedance looking into the

metamaterial. Notably, both frequency-dependent \(n_{eff}(\Omega )\) and \(Z_B(\Omega )\) are essential for the calculation of input impedance via the formula given below: $$\begin{aligned}

Z_{in}=Z_B\frac{Z_s+jZ_B\tan (k_on_{eff}Nt_s)}{Z_B+jZ_s\tan (k_on_{eff}Nt_s)}. \end{aligned}$$ (16) Nevertheless, from Fig. 5a, we found that the reflection peaks for all the cases are

within the A-region and in the vicinity of \(\Omega =1.3333\). To facilitate the understanding for variation of Bloch impedance, shown in Fig. 6c,d, the complex impedance is normalized to

\(Z_s\) and redrawn in a 2D plot shown in Fig. 6e and a zoom in view around (1, 0) in Fig. 6f. The 2D curves can be distinguished by their colors corresponding to the chemical potential

given in the legend of Fig. 6c,d. Moreover, the alphabetical letters attached to each loop correspond to the normalized frequency points (\(\Omega\)) labeled in the A-region. The index after

the alphabetical letter stands for the value of chemical potential; for example, _c_7 means the case of \(\mu _c=0.7\;\text{eV}\) at point C. This allows us to trace the variation of a

normalized Bloch impedance in a complex plane. Each loop moves in a clockwise direction with its starting and stopping points locating around the point matching to the surrounding medium at

(1, 0). At the point d (\(\Omega =1.3333\)), all the cases having low Bloch impedance distributed near the point of (0, 0). Since the loop size represents the level of impedance variation in

the frequency band under consideration, we may conclude that Bloch impedance variation increases in accordance with the increase in chemical potential. Although not shown here, the other

frequencies with strong reflections in Fig. 3a also have drastic variations in the real- and imaginary-parts of Bloch impedance. Specifically, their distributions (both \(n_{eff}(\Omega )\)

and \(Z_B(\Omega )\)) are very similar for various \(\mu _c\), in particular for \(\Omega =3.9999\) and \(\Omega =5.3332\), because their \(\sigma _g(\Omega )\) almost coincide to one

another for various \(\mu _c\) shown in Fig. 2a,b. In Fig. 7, we change the chemical potential to see its influence on the Bloch impedance. The first three normalized frequencies: \(\Omega

_1=1.3333\), \(\Omega _2=2.6666\), and \(\Omega _3=3.9999\) are considered. Return to Fig. 2a, in the vicinity of \(\Omega _1=1.3333\) \(Re[\sigma _g]\) has insignificant change for \(\mu

_c\) ranging from 0.1 to 0.3 eV. Big changes occur at the three cases including 0.4 eV, 0.5 eV, and 0.6 eV. The difference between the cases of 0.7 eV and 0.8 eV is inconsiderable. The

aforementioned trend in the change of \(Re[\sigma _g]\) also reflects the change in real- and imaginary-parts of \(Z_B\). Contrarily, for the cases of \(\Omega _2=2.6666\) and \(\Omega

_2=3.9999\), their variations on \(\sigma _g\) due to various \(\mu _c\) are not obvious shown in Fig. 2a,b. This is the reason why their Bloch impedance have insignificant change depicted

in Fig. 7. Alternatively, the Bloch impedance (at the condition of \(k_o n_s t_s=m\pi\)) is determined by the eigenvector of the matrix \({\mathbf {T}}_{gra}\) in Eq. (6), which merely

depends on graphene optical conductivity \(\sigma _g\). To demonstrate that impedance matching affects the scattering characteristic, we further reduce the wave impedance in the input and

output regions from \(251\Omega\) to \(11.922\Omega\) (corresponding to \(n_s=\sqrt{1000}\), the unnaturally high refractive index can be realized using metamaterials31) and carry out the

scattering analysis. Notably, the structure parameters of the graphene metamaterial remains the same as in Fig. 3b. It is obvious to see in Fig. 8, the transmittance is greatly improved at

around \(\Omega _1=1.3333\) due to impedance match, while the impedance mismatch is enhanced outside the region. The structure turns to become periodic transmissions. This simulation reveals

that the Bloch impedance plays an important role in scattering process. CONCLUSION The Floquet-Bloch approach was employed to determine the effective refractive index and Bloch impedance of

a metamaterial made of a stratified graphene-dielectric structure. Although multiple branches including non-physical solutions were obtained in the real part of effective refractive index

due to multiple-valued problem, there is no ambiguity in determining the imaginary part of effective refractive index and the Bloch impedance. From the numerical results we confirm that FBA

can correctly predict the scattering characteristics far beyond the long-wavelength limit. Through this research, we found that the periodic reflections of a stratified graphene-dielectric

metamaterial take place around the frequencies of \(k_o n_s t_s=m\pi\) due to structure dispersion. Moreover, the strong fluctuations in the effective refractive index and Bloch impedance

attribute to the material dispersion that can be altered by tuning the chemical potential. Additionally, the remarkable variations in both effective refractive index and Bloch impedance

cause the drastic variation in input impedance, thereby enabling the occurrence of obvious reflection rather than due to photonic bandgap. Specifically, a Floquet-Bloch mode (state) having

pure real effective refractive index and extremely low Bloch impedance was found to exist within the frequency bands of periodic reflections. Moreover, the effect of chemical potential on

the reflection properties and equivalent transmission line parameters including refractive index and Bloch impedance have also been intensively studied. REFERENCES * Nair, R. R. _et al._

Fine structure constant defines visual transparency of graphene. _Science_ 320, 1308–1308. https://doi.org/10.1126/science.1156965 (2008). Article  ADS  CAS  PubMed  Google Scholar  *

Gusynin, V. P., Sharapov, S. G. & Carbotte, J. P. Unusual microwave response of Dirac quasiparticles in graphene. _Phys. Rev. Lett._ 96, 256802.

https://doi.org/10.1103/PhysRevLett.96.256802 (2006). Article  ADS  CAS  PubMed  Google Scholar  * Kuzmenko, A. B., van Heumen, E., Carbone, F. & van der Marel, D. Universal optical

conductance of graphite. _Phys. Rev. Lett._ 100, 117401. https://doi.org/10.1103/PhysRevLett.100.117401 (2008). Article  ADS  CAS  PubMed  Google Scholar  * Casiraghi, C. _et al._ Rayleigh

imaging of graphene and graphene layers. _Nano Lett._ 7, 2711–2717. https://doi.org/10.1021/nl071168m (2007) (PMID: 17713959). Article  ADS  CAS  PubMed  Google Scholar  * Stauber, T.,

Peres, N. M. R. & Geim, A. K. Optical conductivity of graphene in the visible region of the spectrum. _Phys. Rev. B_ 78, 085432. https://doi.org/10.1103/PhysRevB.78.085432 (2008).

Article  ADS  CAS  Google Scholar  * Depine, R. A. Electromagnetics of graphene. In _ Graphene Optics: Electromagnetic Solution of Canonical Problems_, 2053-2571, 1–1 to 1–16,

https://doi.org/10.1088/978-1-6817-4309-7ch1 ( Morgan and Claypool Publishers, 2016). * Depine, R. A. Graphene gratings. In _Graphene Optics: Electromagnetic Solution of Canonical Problems_,

2053-2571, 4–1 to 4–23, https://doi.org/10.1088/978-1-6817-4309-7ch1 ( Morgan and Claypool Publishers, 2016). * Liu, M. _et al._ A graphene-based broadband optical modulator. _Nature_ 474,

64–67. https://doi.org/10.1038/nature10067 (2011). Article  ADS  CAS  PubMed  Google Scholar  * Crassee, I. _et al._ Giant faraday rotation in single- and multilayer graphene. _Nat. Phys._

7, 48–51. https://doi.org/10.1038/nphys1816 (2011). Article  CAS  Google Scholar  * Wu, B. _et al._ Experimental demonstration of a transparent graphene millimetre wave absorber with 28

percent fractional bandwidth at 140 ghz. _Sci. Rep._ 4, 4130 (2014). Article  Google Scholar  * Liu, L., Liu, W. & Song, Z. Ultra-broadband terahertz absorber based on a multilayer

graphene metamaterial. _J. Appl. Phys._ 128, 093104. https://doi.org/10.1063/5.0019902 (2020). Article  ADS  CAS  Google Scholar  * Lin, H. _et al._ A 90-nm-thick graphene metamaterial for

strong and extremely broadband absorption of unpolarized light. _Nat. Photon._ 13, 270–276. https://doi.org/10.1038/s41566-019-0389-3 (2019). Article  ADS  CAS  Google Scholar  * Othman, M.

A. K., Guclu, C. & Capolino, F. Graphene-based tunable hyperbolic metamaterials and enhanced near-field absorption. _Opt. Express_ 21, 7614–7632. https://doi.org/10.1364/OE.21.007614

(2013). Article  ADS  CAS  PubMed  Google Scholar  * He, X., Liu, F., Lin, F. & Shi, W. Tunable terahertz Dirac semimetal metamaterials. _J. Phys. D Appl. Phys._ 54, 235103

https://doi.org/10.1088/1361-6463/abe898 (2021). Article  ADS  CAS  Google Scholar  * Leng, J. _et al._ Investigation of terahertz high q-factor of all-dielectric metamaterials. _Opt. Laser

Technol._ 146, 107570. https://doi.org/10.1016/j.optlastec.2021.107570 (2022). Article  Google Scholar  * He, X., Lin, F., Liu, F. & Shi, W. Tunable terahertz Dirac-semimetal hybrid

plasmonic waveguides. _Opt. Mater. Express_ 12, 73–84. https://doi.org/10.1364/OME.445362 (2022). Article  ADS  CAS  Google Scholar  * He, X., Liu, F., Lin, F. & Shi, W. 3D Dirac

semimetal supported tunable TE modes. _Annalen der Physik_ 534, 2100355. https://doi.org/10.1002/andp.202100355 (2022). Article  ADS  Google Scholar  * Yang, Y. _et al._ Graphene-based

multilayered metamaterials with phototunable architecture for on-chip photonic devices. _ACS Photon._ 6, 1033–1040. https://doi.org/10.1021/acsphotonics.9b00060 (2019). Article  CAS  Google

Scholar  * Zhan, T., Shi, X., Dai, Y., Liu, X. & Zi, J. Transfer matrix method for optics in graphene layers. _IOP Publishing_ 25, 215301. https://doi.org/10.1088/0953-8984/25/21/215301

(2013). Article  CAS  Google Scholar  * Hwang, R. B. R. _Periodic Structures: Mode-Matching Approach and Applications in Electromagnetic Engineering_ 1st edn. (Wiley-IEEE, 2012). Book

Google Scholar  * Zhang, Y., Wu, Z., Cao, Y. & Zhang, H. Optical properties of one-dimensional Fibonacci quasi-periodic graphene photonic crystal. _Optics Commun._ 338, 168–173.

https://doi.org/10.1016/j.optcom.2014.10.059 (2015). Article  ADS  CAS  Google Scholar  * Smith, D. R., Schultz, S., Markoš, P. & Soukoulis, C. M. Determination of effective permittivity

and permeability of metamaterials from reflection and transmission coefficients. _ Phys. Rev. B_ 65, 195104, https://doi.org/10.1103/PhysRevB.65.195104 (2002). Article  ADS  CAS  Google

Scholar  * Moitra, P. _et al._ Realization of an all-dielectric zero-index optical metamaterial. _Nat. Photon._ 7, 791–795. https://doi.org/10.1038/nphoton.2013.214 (2013). Article  ADS  CAS

  Google Scholar  * Dyck, N. C., Denomme, R. C. & Nieva, P. M. Effective medium properties of arbitrary nanoparticle shapes in a localized surface plasmon resonance sensing layer. _J.

Phys. Chem. C_ 115, 15225–15233. https://doi.org/10.1021/jp203150n (2011). Article  CAS  Google Scholar  * Iorsh, I. V., Mukhin, I. S., Shadrivov, I. V., Belov, P. A. & Kivshar, Y. S.

Hyperbolic metamaterials based on multilayer graphene structures. _Phys. Rev. B_ 87, 075416. https://doi.org/10.1103/PhysRevB.87.075416 (2013). Article  ADS  CAS  Google Scholar  * Bludov,

Y. V., Peres, N. M. R. & Vasilevskiy, M. I. Unusual reflection of electromagnetic radiation from a stack of graphene layers at oblique incidence. _IOP Publishing_ 15, 114004.

https://doi.org/10.1088/2040-8978/15/11/114004 (2013). Article  CAS  Google Scholar  * Kong, J. A. _Electromagnetic Wave Theory_ 2nd edn. (Wiley, 1990). Google Scholar  * Harrington, R. F.

_Time-Harmonic Electromagnetic Fields_ (Wiley-IEEE Press, 2001). Book  Google Scholar  * Pozar, D. M. _Microwave Engineering_ 4th edn. (Wiley-IEEE, 2011). Google Scholar  * P.A.D Goncalves,

N. P. _An Introduction To Graphene Plasmonics_ ( World Scientific Publishing Co. Pte. Ltd., 2016). Equations 2.70 and 2.71 in chapter 2. * Choi, M. _et al._ A terahertz metamaterial with

unnaturally high refractive index. _Nature_ 470, 369–373. https://doi.org/10.1038/nature09776 (2011). Article  ADS  CAS  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS This

work was supported by the Ministry of Science and Technology (MOST) of Taiwan under grant MOST 110-2221-E-A49-020. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Institute of Communications

Engineering, College of Electrical and Computer Engineering, National Yang Ming Chiao Tung University, Hsinchu, 30050, Taiwan Ruey-Bing Hwang Authors * Ruey-Bing Hwang View author

publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS R.-B.H. completed all the research works and wrote the manuscript. CORRESPONDING AUTHOR Correspondence

to Ruey-Bing Hwang. ETHICS DECLARATIONS COMPETING INTERESTS The author declares no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with

regard to jurisdictional claims in published maps and institutional affiliations. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0

International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the

source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's

Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not

permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Hwang, RB. Extremely low effective impedance in stratified graphene-dielectric

metamaterials. _Sci Rep_ 12, 11635 (2022). https://doi.org/10.1038/s41598-022-15841-z Download citation * Received: 26 October 2021 * Accepted: 30 June 2022 * Published: 08 July 2022 * DOI:

https://doi.org/10.1038/s41598-022-15841-z SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
