ABSTRACT To develop an electronic navigation system to increase reliability and comparability in the ultrasound screening of developmental dysplasia of the hip (DDH). The impact of the
navigation system on transducer positioning and on sonographic measurements according to Graf was analyzed. Twenty hips in newborns were examined sonographically using a new navigation
system capable of detecting the transducer and pelvis position in order to calculate the relative tilt in the frontal, axial, and sagittal-plane. In each newborn an ultrasound image was
obtained conventionally according to Graf and a second image using the sonographic navigation system. Relative roll and pitch angles and sonographic measurements were analyzed using paired
T-tests and Levene-tests. Relative tilt angles in the conventional group ranged from − 8.9° to 14.3° (frontal-plane) and − 23.8° to 14.2° (axial-plane). In the navigation-assisted group
ranges from − 3.0° to 3.5° and − 2.8° to 4.5° were observed. Variances were significantly lower in the navigation-assisted group (_p_ < 0.001 and _p_ = 0.004 respectively). The navigation
system allowed for a significant reduction of relative tilt angles between the transducer and the newborn pelvis, thus supporting an optimal transducer positioning. This is a promising
approach to improve reproducibility and reliability in the ultrasound screening for DDH. SIMILAR CONTENT BEING VIEWED BY OTHERS MEASUREMENT ACCURACY OF THE ACETABULAR CUP POSITION USING AN
INERTIAL PORTABLE HIP NAVIGATION SYSTEM WITH PATIENTS IN THE LATERAL DECUBITUS POSITION Article Open access 12 January 2024 AI AIDED WORKFLOW FOR HIP DYSPLASIA SCREENING USING ULTRASOUND IN
PRIMARY CARE CLINICS Article Open access 07 June 2023 REPEATABILITY AND REPRODUCIBILITY OF ARTIFICIAL INTELLIGENCE-ACQUIRED FETAL BRAIN MEASUREMENTS (SONOCNS) IN THE SECOND AND THIRD
TRIMESTERS OF PREGNANCY Article Open access 23 October 2024 INTRODUCTION The ultrasound screening according to Graf is broadly accepted as the gold standard for the early detection of
developmental dysplasia of the hip (DDH) in newborns1,2. This method is based on a high degree of standardization of the sonographic examination to ensure reproducibility of the results3,4.
Despite these efforts, examiner-related factors have been discussed to potentially influence incidence rates of DDH measured sonographically5. Thus, examiner-related factors were addressed
using assistive devices such as a mechanical transducer guiding device, a positioning aid for the baby (cradle) and most importantly well-structured training of the examiners6,7. In regard
to examiner-related errors the relative tilt between the examined hip and the ultrasound transducer is a key factor, which has been shown by Jaremko et al. using 3D ultrasound imaging8.
Moreover, the effect of relative tilt angles between hip joint and transducer has also been analyzed using Graf’s method, which is as a gold standard performed routinely by 2D ultrasound
imaging, based on an optoelectronic motion capture system9. Here the effect of the relative tilt angles on sonographic measurements and furthermore on the DDH classification according to
Graf proved to be highly significant9. However, the reported optoelectronic motion capture system setup was not capable of determining the position of the newborn’s hip or pelvis, which is a
major disadvantage limiting further analyses in routine use. The aim of this study was to develop a new electronic navigation system to minimize examiner-related errors in regard to
relative tilt angles between the ultrasound transducer and the examined hip joint and to analyze effects of such a system on relative tilt errors in comparison to the conventional ultrasound
screening according to Graf. MATERIALS AND METHODS The study was approved by the institutional review board of the Medical University of Vienna. All methods were carried out in accordance
with relevant guidelines and regulations. All legal guardians gave their informed consent prior to the inclusion in this study. A new electronic navigation system was developed at our
institution in order to detect potential examiner-related influences and errors (see Fig. 1). The microprocessor-based system consists of two position sensors, one of which is attached to

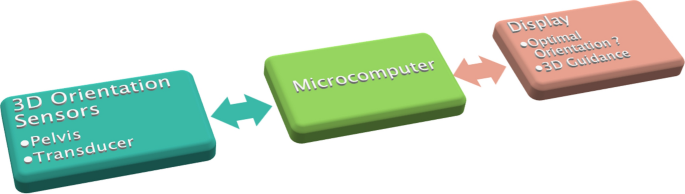

the ultrasound transducer using a 3D printed adapter whereas the other one is attached epicutaneously in a median position dorsal to the sacrum (see Fig. 2). Both position sensors are
composed of an accelerometer, a gyroscope and a magnetometer (MPU-9250, InvenSense Inc., San Jose, CA, USA). A specifically designed software program processes the measurements and
calculates the relative tilt between both sensors in the frontal, axial and sagittal plane respectively representing the roll, pitch and yaw angle (see Fig. 3). The afore-mentioned
measurements are hence communicated to a PC-based output software, which stores the data and depicts the angles to assist the navigation. The measurement accuracy of the roll and pitch angle
was determined to be ± 1° and for the yaw angle it was determined to be ± 2°. A patent application for this system has been filed10. Ten consecutive newborns (20 hips) were included into
the study and screened sonographically by a single experienced examiner according to Graf’s method within the first neonatal week. Ultrasound screening was performed using a GE Logiq F8
series system and a 7.5-MHz LH linear transducer (GE Healthcare, Milwaukee, WI, USA). The examination was performed in lateral position using a special positioning device (Sono-Fix, Gebrüder
Hirschbeck GmbH, Austria) as recommended by Graf7. A feed-and-sleep technique was used to reduce spontaneous movements of the newborns during the measurement. For every examined hip joint
two ultrasound images were obtained. First, an ultrasound image was obtained according to the sonographic criteria described by Graf6 (conventional group). Second, an additional ultrasound
image was obtained using the navigation system in addition to Graf’s sonographic criteria to optimize the transducer position according to the displayed tilt angles (navigation-assisted
group). If no representative image could be obtained due to agitation of the newborn the collection of data was aborted. STATISTICAL ANALYSIS Data were processed using the SPSS Statistics 26
software (SPSS Inc., Chicago, IL, USA). Normal distribution of parameters was evaluated using Kolmogorov–Smirnov tests. Relative roll, pitch and yaw angles between transducer and pelvic
were analysed using paired t-tests and Levene-tests. Because of the coarsening nature of classification systems sonographic α- and β-angels were analyzed directly using paired t-tests11. The
level of significance was defined as _p_ < 0.05. RESULTS The feed-and-sleep technique used to reduce spontaneous movements was sufficient in all examined newborns. In seven of the ten
newborns both hips were measured according to the study protocol, in three newborns only one hip was measured due to increasing spontaneous movements during the examination. Thus, in total
data from 17 hips (34 ultrasound images) were obtained according to the study protocol. In the conventional group, where sonographic images were obtained without navigation-assistance,
relative tilt angles between transducer and pelvis ranged from − 8.9° to 14.3° (roll angle measured in the frontal plane) and from − 23.8° to 14.2° (pitch angle measured in the axial plane).
In the navigation-assisted group relative tilt angles ranged from − 3.0° to 3.5° (roll angle in the frontal plane) and − 2.8° to 4.5° (pitch angle measured in the axial plane) respectively
(see Table 1). Levene’s test of variance showed significant differences in the relative tilt angles in the frontal and axial plane with lower variance in the navigation-assisted study group
(roll angle, _p_ < 0.001; pitch angle, _p_ = 0.004). The testing for mean values in the frontal and axial plane yielded no significant differences (roll angle, _p_ = 0.678; pitch angle,
_p_ = 0.666). A visualization of the measured relative roll and pitch angles in both groups is given in Fig. 4. The afore-mentioned yaw angle (measured in the sagittal plane) could not be
used for navigation due to the lack of validated basis data for the definition of a target value, thus no testing between conventional and navigation-assisted group was performed for this
parameter. The mean value for the yaw angle showed a rotation of the ultrasound transducer versus the sacral sensor plane of 25.1° to the front (ranged from 6.8° to 43.1°). Sonographic
results according to Graf’s grading system were type I in 14 (82%) and IIa in 3 (18%) hips. Mean alpha angles were 62.6° (range 57–68°) in the conventional group and 61.6° (range 55–67°) in
the navigation-assisted group; mean beta angles were 65.5 (range 55–73°) and 63.3° (range 48–75°). Differences of sonographically measured alpha and beta angles between the two groups were
not significant (_p_ = 0.255 and _p_ = 0.312). DISCUSSION Several recent reports have highlighted the importance of correct ultrasound transducer positioning in relation to the pelvis to
achieve reliable results in the ultrasound screening for DDH8,9,12. Furthermore, a susceptibility of Graf’s method to relative tilt errors was discussed intensively9,13. Despite the fact
that reproducibility and reliability of Graf’s method was proved to be sufficient for screening purposes when repeated measurements on given ultrasound images are analyzed14, the importance
of an optimal transducer positioning in the ultrasound examination prior to this step was reported. In an experimental study it has been shown that Graf’s sonographic criteria allow notable
inclinations of the transducer position, which leads to significant alterations of the sonographic measurements9. These findings were supported by reports based on 3D ultrasound confirming
the importance of an optimal positioning of the transducer plane8,12. However, these previous reports have focused on an optimal transducer position (i.e. measurement plane) without
capturing the pelvis position. This represents a major limitation considering the importance of relative tilt angels between transducer and pelvis (i.e. hip joint). Based on this
consideration, the presented electronic navigation system was developed, which is capable to detect both, the pelvis and the transducer position, in order to overcome this limitation. As a
main result this study demonstrates that the variance of relative tilt angles between the pelvis and the transducer can be reduced significantly using the electronic navigation system (see
Fig. 4): In detail, our results showed this effect for both navigated angles i.e. the roll angle measured in the frontal plane and pitch angle measured in the axial plane (see Fig. 3). In
contrast, considering the mean values of the relative tilt angles, there was no significant difference between the conventional and the navigation-assisted study group. Therefore it can be
concluded that the navigation system enables a more accurate alignment of the ultrasound transducer to the pelvis (reduced variance), while the principle of alignment remains unchanged
compared to the sonographic method according to Graf (mean tilt angles in the frontal and axial plane around 0°). As a consequence, the electronic navigation system seems promising for
minimizing the majority of relative tilt errors. However, it has to be considered that this finding is based on one experienced examiner; further studies are required to test the effect on
mean angles for examiners of different experience levels. In comparison to mechanical devices supporting the transducer in order to avoid transducer tilts as recommended by Graf (“Sono
Guide”) the first evident advantage of the electronic navigation system is the detection of the pelvis position. From our experience, the spontaneous pelvis position of newborns in lateral
position tends to be tilted frequently even using a cradle-like positioning aid for the baby as suggested by Graf. Such tilted pelvic positions are not detected in the conventional set-up,
leaving the correction of such misalignments to the experience of the examiner. A further advantage of the electronic navigation system is the possibility to use the 3D-position-data for
documentation of a correct examination process. Besides the potential practical applicability of the electronic navigation system in the ultrasound screening for DDH, the detection of
3D-position-data are of further interest in this research field. While the alignment in the frontal and axial plane (roll and pitch angle) is defined to be parallel (target value of 0°
between transducer and pelvic sensor in these planes), there is no defined target value for the sagittal plane (yaw angle) representing the angle between the optimal transducer position and
the sensor position epicutaneous to the dorsal sacrum plane. Thus the relative yaw angle could not be used for navigation in this study. However, the device is capable of determining the yaw
angle as shown, which might be used in further studies to optimize the transducer position also in the third plane. LIMITATIONS Due to the cohort size the effect of the presented navigation
system on ultrasound measurements could not be definitely assessed. CONCLUSION The presented electronic navigation system is a novel approach to further improve the methodological
reliability and quality of ultrasound screening for DDH. As the main result the system proves to be efficient to significantly reduce tilt errors. Further studies are required to prove the
clinic impact of this promising approach. REFERENCES * Graf, R. Fundamentals of sonographic diagnosis of infant hip dysplasia. _J. Pediatr. Orthop._ 4, 735–740 (1984). Article CAS Google
Scholar * Graf, R. New possibilities for the diagnosis of congenital hip joint dislocation by ultrasonography. _J. Pediatr. Orthop._ 3, 354–359 (1983). Article CAS Google Scholar *
Simon, E. A. _et al._ Inter-observer agreement of ultrasonographic measurement of alpha and beta angles and the final type classification based on the Graf method. _Swiss Med. Wkly._ 134,
671–677 (2004). CAS PubMed Google Scholar * Roposch, A., Graf, R. & Wright, J. G. Determining the reliability of the Graf classification for hip dysplasia. _Clin. Orthop. Relat. Res._
447, 119–124 (2006). Article Google Scholar * Kolb, A. _et al._ Low incidence of early developmental dysplasia of the hip in universal ultrasonographic screening of newborns: analysis and
evaluation of risk factors. _Int. Orthop._ https://doi.org/10.1007/s00264-015-2799-2 (2015). Article PubMed Google Scholar * Graf, R., Mohajer, M. & Plattner, F. Hip sonography
update. Quality-management, catastrophes—tips and tricks. _Med. Ultrason._ 15, 299–303 (2013). Article Google Scholar * Graf, R. Hip ultrasonography. Basic principles and current aspects.
_Orthopade_ 26, 14–24 (1997). CAS PubMed Google Scholar * Jaremko, J. L. _et al._ Potential for change in US diagnosis of hip dysplasia solely caused by changes in probe orientation:
patterns of alpha-angle variation revealed by using three-dimensional US. _Radiology_ 273, 870–878 (2014). Article Google Scholar * Kolb, A. _et al._ Measurement considerations on
examiner-dependent factors in the ultrasound assessment of developmental dysplasia of the hip. _Int. Orthop._ 41, 1245–1250 (2017). Article Google Scholar * Kolb, A. Electronic transducer
guiding device for the sonographic screening for developmental dysplasia of the hip. _MUW Technol. Offer._ 782, 18. https://doi.org/10.1007/s00264-017-3455-9 (2019). Article Google Scholar
* Graf, R. Ultrasonography-guided therapy. _Orthopade_ 26, 33–42 (1997). CAS PubMed Google Scholar * Mostofi, E. _et al._ Reliability of 2D and 3D ultrasound for infant hip dysplasia in
the hands of novice users. _Eur. Radiol._ 29, 1489–1495 (2019). Article Google Scholar * Edmonds, E. W., Hughes, J. L., Bomar, J. D., Brooks, J. T. & Upasani, V. V. Ultrasonography in
the diagnosis and management of developmental dysplasia of the hip. _JBJS Rev._ 7, e5 (2019). Article Google Scholar * Roovers, E. A., Boere-Boonekamp, M. M., Geertsma, T. S. A.,
Zielhuis, G. A. & Kerkhoff, A. H. M. Ultrasonographic screening for developmental dysplasia of the hip in infants. Reproducibility of assessments made by radiographers. _J. Bone Jt.
Surg. Br._ 85, 726–730 (2003). Article CAS Google Scholar Download references FUNDING This research was supported by a Grant funded of the “Bürgermeisterfond der Stadt Wien”. AUTHOR
