Tracking decitabine incorporation into malignant myeloid cell dna in vitro and in vivo by lc-ms/ms with enzymatic digestion

ABSTRACT The DNA hypomethylating agents decitabine and 5-azacytidine are the only two drugs approved for treatment of all subtypes of the myeloid malignancy myelodysplastic syndromes (MDS).

The key to drug activity is incorporation into target cell DNA, however, a practical method to measure this incorporation is un-available. Here, we report a sensitive and specific LC-MS/MS

method to simultaneously measure decitabine incorporation and DNA hypomethylation. A stable heavy isotope of 2′-deoxycytidine was used as an internal standard and one-step multi-enzyme

digestion was used to release the DNA bound drug. Enzyme-released decitabine along with other mononucleosides were separated by a reverse-phase C18 column and quantified by mass spectrometry

using multiple-reaction-monitoring (MRM) mode, with a lower limit of quantitation at 1.00 nM. _In vitro_ studies demonstrated dosage and time-dependent incorporation of decitabine into

myeloid leukemia cell DNA that correlated with extent of DNA hypomethylation. When applied to clinical samples serially collected from MDS patients treated with decitabine, the method again

demonstrated correlation between decitabine DNA-incorporation and DNA hypomethylation. This novel assay to measure the intended molecular pharmacodynamic effect of decitabine therapy can

therefore potentially provide insights into mechanisms underlying sensitivity versus resistance to therapy. SIMILAR CONTENT BEING VIEWED BY OTHERS DIRECT ENZYMATIC SEQUENCING OF

5-METHYLCYTOSINE AT SINGLE-BASE RESOLUTION Article 15 June 2023 THE URINARY EXCRETION OF EPIGENETICALLY MODIFIED DNA AS A MARKER OF PEDIATRIC ALL STATUS AND CHEMOTHERAPY RESPONSE Article

Open access 01 November 2021 ULTRA-SENSITIVE MONITORING OF LEUKEMIA PATIENTS USING SUPERRCA MUTATION DETECTION ASSAYS Article Open access 12 July 2022 INTRODUCTION Decitabine

(5-aza-2′-deoxycytidine) is a nucleoside analog of 2′-deoxycytidine. Decitabine was introduced clinically four decades ago and was approved for the treatment of patients with myelodysplastic

syndrome (MDS) in 2006 in the USA1,2,3,4. The only other drug approved to treat all subtypes of MDS is 5-azacytidine which is reduced in cells to the same active molecule, decitabine

triphosphate, as decitabine. After parenteral administration, decitabine undergoes a three-step phosphorylation within cells into its active metabolite, decitabine triphosphate [first, to

its monophosphate by deoxycytidine kinase (DCK); then to its diphosphate by deoxycytidine monophosphokinase; and finally to its triphosphate by nucleoside diphosphokinase] which is then

directly incorporated by DNA polymerases into DNA during the S-phase of replication5. Decitabine triphosphate is the primary intracellular metabolite that has the antileukemic effect both

_in vivo_ and _in vitro_. Decitabine and its mono-phosphate can be rapidly metabolized by cytidine deaminase (CDA) and deoxycytidine deaminase (DCTD) respectively into uridine derivatives

that do not have an epigenetic therapeutic effect6. After incorporation into DNA, decitabine inhibits DNA methylation by forming a covalent bond with DNA methyltransferase 1 (DNMT1). DNMT1

is a corepressor which generates an epigenetic repression (‘off’) mark by the addition of a methyl group to the fifth carbon of 2-deoxycytosine within the 5′-cytosine-guanosine (CpG)

dinucleotides of DNA. This epigenetic mark generated by DNMT1 is robustly linked with gene repression and aberrant repression of tumor suppressor genes in malignant transformation7,8,9. Thus

DNMT1-depletion by the DNA incorporated decitabine can reactivate tumor suppressor genes, leading to terminal differentiation or apoptosis of malignant cells5,10. Target engagement is

crucial for therapeutic efficacy of any drug. Since the incorporation of decitabine into DNA is essential for the epigenetic therapeutic effect, we postulate that quantitation of decitabine

incorporation into cellular DNA can potentially guide individualization of therapy towards achievement of intended molecular pharmacodynamic effects, and provide insights into sensitivity

versus resistance of malignant cells, which could be from failure to produce these intended molecular pharmacodynamic effects. Although decitabine incorporation into DNA has previously been

measured using radioisotopic and liquid scintillation counting assays11,12, these previous methods had either limited sensitivity and used radioactive isotope labeled decitabine, which is

not practical for use in clinical settings. LC-MS/MS method have been developed to quantify decitabine concentration in plasma13 however, this method is not applicable to measure decitabine

incorporation in DNA and is less sensitive to use in clinical application. Another LC-MS/MS method has been developed to quantify total intracellular decitabine nucleotide concentrations, as

well as DNA incorporation levels of decitabine14, but is less sensitive and correlation of DNA incorporation to hypomethylation was not demonstrated. To address this unmet need, here we

developed a sensitive LC-MS/MS method to simultaneously quantify incorporation of decitabine into DNA and DNA methylation, by measuring dG, dC, and 5mdC. The method was applied both _in

vitro_ and _in vivo_. The results demonstrated that this method can quantify the incorporation of decitabine into DNA, enabling quantification of the variation in the incorporation and

response to treatment in different models and _in vivo_. This assay could be a useful tool for the purpose of understanding treatment sensitivity versus resistance and provide important

guidance towards an overall goal of individualizing and optimizing therapy with this exclusive class of agent. RESULTS ENZYMATIC HYDROLYSIS OF DNA In this work, the DNA samples were

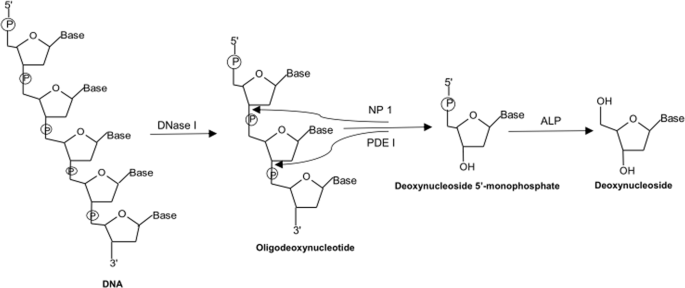

hydrolyzed by a one-step tetra-enzyme reaction (Fig. 1). This one-step enzyme reaction had been optimized and validated previously to retain 100% digestion efficiency in comparison to an

optimized stepwise enzyme reaction15. Among the four enzymes employed, DNase I is an endonuclease that splits phosphodiester bonds of DNA and yields oligonucleotides with a free 3′-end

hydroxyl group and a free 5′-end phosphate group; PDE I is a 3′ to 5′ exonuclease that successively hydrolyzes an oligonucleotide from 5′-end to 3′-end and produce deoxynucleoside

5′-phosphate; NP1 is a 5′ to 3′ exonuclease that acts in opposite direction to PDE I, and completely hydrolyzes an oligonucleotide from 3′-end to 5′-end to produce deoxynucleoside

5′-phosphate; and ALP is a hydrolase that hydrolyzes phosphate groups of deoxynucleotides to deoxynucleosides. Since the electrospray ionization tandem mass spectrometer (ESI-MS/MS) used for

this work had much lower limits of quantitation for deoxynucleosides than those of deoxynucleotides; therefore, deoxynucleosides were the sought-after products for the enzyme digestion.

Enzyme digestion efficiency was evaluated by comparing the DNA concentration calculated from the amount of dG produced from DNA hydrolysis with the DNA concentration measured using UV

spectroscopy. The rationale for the study is that DNA concentrations can be either measured by UV spectroscopy or calculated from the amount of a nucleoside released from hydrolysis and

measured by LC-MS/MS15. In this work, the concentration of dG released from hydrolysis of calf DNA (250 mg/L measured by UV spectroscopy) of was used to calculate the concentration of DNA

using eq. 1 (see Materials and Methods section) to evaluate the enzyme digestion efficiency. The DNA concentration (257 ± 4 mg/L, n = 5) calculated from the quantity of dG was similar to

that measured by UV (250 ± 6 mg/L, n = 5), indicating that the enzymatic hydrolysis procedure used can completely hydrolyze DNA into individual nucleosides. MEASUREMENT OF DECITABINE, DG, DC

AND 5MDC BY LC-MS/MS The mass spectrometer was tuned by infusion of a mixture of decitabine, dC, 5mdC, dG and IS at each concentration of 500 ng/mL in the mobile phase to optimize both

compound-dependent and source-dependent parameters. Since these deoxynucleoside were more easily to form protonated ions than deprotonated species in the acidic mobile phase, the positive

ESI was used for the analytes’ identification and quantification. As shown in Fig. 2A,C,E,G,I, the predominated precursor ions of decitabine, dC, 5mdC, dG and IS were at m/z 229.1, 228.1,

242.0, 268.0 and 231.0, respectively. These precursor ions were broken into product ions by collision with nitrogen gas and produced the predominant product ions at m/z 113.1, 112.1, 126.0,

152.0 and 115.0, respectively (Fig. 2B,D,F,H,J). Therefore, the mass transitions of m/z 229.1 > 113.1, 228.1 > 112.1, 242.0 > 126.0, 268.0 > 152.0 and 231.0 > 115.0 for were

chosen for the selective quantitation of decitabine, dC, 5mdC, dG and IS by MRM mode. As shown in Fig. 3A, decitabine, dC, 5mdC and dG released by the enzyme digestion along with IS were

separated and detected by our LC-MS/MS method in less than 6 min. The control studies showed that there were no contaminations observed from free nucleosides or unincorporated decitabine

when DNA was incubated with digestion buffer without enzymes (Fig. 3B). This method has a lower limit of quantification (LLOQ) of 1.00 nM for each analyte, which was defined by the lowest

calibrator of a calibration plot; and a linear calibration range from LLOQ to 2.00 × 103 nM (Fig. 4). Validation of the method was done according to the US-FDA guidance for industry on

bioanalytical method validation16. The inter-day and intra-day accuracy and precision of the three mixed QC concentrations were ≤±6% and ≤8%, respectively (Table 1). The accuracy and

precision of mixed calibrators over six calibration plots were ≤±6% and ≤11%, respectively (Table 2). These data were well within the acceptance ranges of US-FDA. The studies of matrix

effect and analyte recovery on all analytes were conducted using mixed QC at three concentrations (Table 3). For all analytes, the absolute matrix factors ranged 0.933–1.03 and the IS

normalized matrix factors ranged 0.955–1.03; and the absolute recoveries ranged 90.3–100% and the IS normalized recoveries ranged 96–102%. These data indicated there was neither significant

matrix effect from enzyme digestion buffer nor significant difference in recoveries of analytes between enzyme digestion buffer and the mobile phase of LC separation, and the preparation of

mixed calibrators of decitabine, dC, dG and 5mdC in either enzyme digestion buffer or the LC mobile phase makes no difference in the analytical results. Therefore, the mixed calibrators of

dC, dG and 5mdC prepared in the mobile phase were adopted for the method. DECITABINE INCORPORATION VS. HYPOMETHYLATION OF DNA IN LEUKEMIA CELL LINES The LC-MS/MS method developed was first

tested by human leukemia cell lines HL-60 and U937 for quantitation of decitabine incorporation in cellular DNA and cell responsiveness to decitabine treatment (_i_._e_., decrease of DNA

methylation or DNA hypomethylation). In this study, the effects of drug dose (0.000, 0.100, 0.500, 1.00 and 10.0 μM decitabine) and treatment times (24- and 48-h incubation) were

investigated. The cellular DNAs were isolated from samples of each dose and time point. The enzyme-released decitabine, dC, dG and 5mdC from the cellular DNA were determined by the method

developed and percent methylations were calculated. As shown in Fig. 5 and summarized in Table 4, the amounts of decitabine incorporated in HL-60 and U937 DNAs were directly proportional to

the drug dose and the treatment time. The higher dose and the longer treatment time produced larger amounts of decitabine incorporation in DNA and greater degree of DNA hypomethylation.

Also, HL-60 cells have greater viability than U937 cells. This was revealed by the DNA extracted from each of the cell lines after 24-h and 48-h treatment with decitabine. On average, the

amounts of DNA produced by HL-60 cells were 1.3 and 2.0 times higher than those of U937 cells after 24-h and 48-h treatment with decitabine. Therefore, HL-60 cells showed more sensitivity to

the drug treatment in comparison to U937 with larger decitabine incorporation and greater degree of DNA hypomehtylation, which suggested that for U937 cell line, it may need higher

decitabine exposure (either dose or time) than HL-60 cell line to reach the same drug effect. Decitabine incorporation and hypomethylation effect in a different human leukemia cell line

MOLM-13 were also investigated using both a single dose of decitabine (0.500 μM) for the treatment group and an equal volume of vehicle (PBS 1X, pH 7.4) for the control group at various time

points (0, 4, 8, and 24 h). As shown in Fig. 6, the profiles of drug effect in the cell line could be monitored by the time course, and the maximum amount of drug incorporation and

hypomethylation effect were observed at 8 h in MOLM-13 cells. DECITABINE INCORPORATION VS. HYPOMETHYLATION OF DNA IN ANIMAL STUDY The method developed was further tested by analysis of DNA

extracted from bone marrow of NSG mice inoculated with human primary AML cells for quantitative measurement of DNA-incorporated decitabine and DNA hypomethylation. The experimental details

were described in “_In vivo_ animal study” section under “Materials and Methods”. As shown in Fig. 7A, decitabine incorporation in bone marrow cells from four genetically identical mice

after the drug treatment ranged 18.4 to 25.9 fmol per µg DNA, and such treatment significantly reduced DNA methylation in all mice (_P_ = 0.006, _t_-test) (Fig. 7B). We had previously

reported the efficacy of this treatment in reducing leukemia burden17,18. DECITABINE INCORPORATION VS. HYPOMETHYLATION OF DNA IN CLINICAL STUDY Finally, the method developed was applied to

PBMCs isolated from peripheral blood obtained from five MDS patients before and after six weeks of decitabine treatment by a very low dose (0.2 mg/kg) subcutaneous regimen administered twice

per week2. The experimental details were described in “Clinical study” section under “Materials and Methods”. Among the five patients, four responded well to the decitabine therapy, and one

did not. The molecular mechanism of decitabine action and drug resistance in these patients would be depicted by Fig. 8. For patients #1 to #4 who were sensitive to decitabine treatment,

decitabine incorporation and DNA hypomethylation were large and significant (_P_ = 0.07, _t_-test) (Fig. 8A,B); whereas for patient #5 who was resistant to the drug, there were minimum

decitabine incorporation (Fig. 8C), and even higher DNA methylation in posttreatment (Fig. 8D). DISCUSSION Target engagement is necessary for any drug to work, and the measurement of target

engagement of decitabine (_i_._e_., decitabine incorporation and DNA hypomethylation) is the first step to understand patients’ sensitivity and resistance in decitabine therapy; however, a

practical method for this purpose was lacking. The method we developed is practical, very sensitive and specific for measurement of decitabine, 5mdC, and dG, as no interferences from

endogenous molecules were observed. Furthermore, this method has been fully validated in enzyme digestion matrix and essentially met the validation criteria established by US-FDA. Such

method may help us not only to understand drug action and resistance mechanisms of decitabine, but also to design more effective dosing regimens for patients. In the _in vitro_ dose and time

course studies, no cell death was observed with the treatment doses and durations used. Decitabine incorporation into DNA of HL-60 and U937 was both dose and time dependent, and notably,

uptake via passive nucleoside transporters 1 (ENT1)19 is drug concentration-dependent. Although decitabine triphosphate incorporation into DNA by DNA polymerase occurs only during S-phase20,

the drug incorporation in the _in vitro_ studies was around-the-clock because cycling by the cells was unsynchronized. In the time course study of decitabine incorporation in DNA of MOLM-13

cells (Fig. 6), the decitabine incorporation profile deviated from the steady-state profile, likely because of decomposition of decitabine in cell culture medium (decitabine has an _in

vitro_ half-life of 5–16 hours at 37 °C)21. Different responses to decitabine treatments in _in vitro_ and _in vivo_ may be a consequence of differences in expression of key pyrimidine

metabolism enzymes in different tissues and different models17,18. DCK performs the initial phosphorylation of decitabine and rate-limits the conversion of decitabine to decitabine

triphosphate. CDA and DCTD metabolize decitabine and, decitabine mono-phosphates into non-DNMT1-depleting uridine derivatives. In the case of the patient with the myeloid malignancy that did

not respond to decitabine, decitabine triphosphate incorporation into DNA was about 9% (3 fmol/μg DNA) in comparison to ~10-fold greater incorporation in the patients with disease that did

respond to treatment (33 ± 11 fmol/μg DNA); furthermore, in the patient with unresponsive disease, DNA hypomethylation was not observed. Instead DNA methylation increased from 4.22%

(pretreatment) to 5.60% (posttreatment)3,8. Previous attempts at correlating DNA hypomethylation in peripheral blood cells with response to decitabine treatment have had mixed

results22,23,24 One difference is that these previous studies administered decitabine by standard pulse-cycled regimens, and DNA methylation changes may therefore have been more

substantially influenced by the timing between peripheral blood collection and drug administration. By contrast, the patients analyzed in this study received decitabine twice weekly

continuously for 6 weeks prior to the peripheral blood sample collection. A limitation of our study and on our conclusions remains the small number of clinical samples analyzed. In sum,

quantitative measurement of decitabine incorporation rates and DNA hypomethylation effects can potentially determine early time points where patients with disease are non-responsive to their

decitabine dosing regimens, and guide dosage adjustment or selection of alternative therapies. In other words, since the molecular pharmacodynamic intention with decitabine therapy is its

incorporation into DNA, it may be useful to prospectively evaluate if the method for measurement of this pharmacodynamic effect that we describe here can guide individualization and

optimization of therapy in patients with myeloid malignancies. MATERIALS AND METHODS CHEMICALS Decitabine was obtained from Developmental Therapeutics Program of the National Cancer

Institute (Bethesda, MD, USA). Bis(2-hydroxyethyl)amino-tris(hydroxymethyl)methane (BIS-TRIS), deoxyribonuclease I type II (DNase I), nuclease P1 (NP1), bovine alkaline phosphatase (ALP),

2′-deoxycytidine (dC), 2′-deoxyguanosine (dG), 2′-deoxythymidime (dT), 2′-deoxyadenosine (dA) and formic acid were obtained from Sigma-Aldrich (St. Louis, MO, USA). Snake venom

phosphodiesterase I (PDE I) was obtained from Worthington Biochemical (Lakewood, NJ, USA). 2′-Deoxycytidine 15N3 (96–98%, a stable heavy isotope of 2′-deoxycytidine) was purchased from

Synthèse AptoChem (Montreal, Quebec, Canada). 5-methyl-2′-deoxycytidine (5mdC) was purchased from Santa Cruz Biotechnology (Dallas, TX, USA). Sodium chloride, zinc chloride, phosphate

buffered saline (PBS, 10X, pH 7.4), phenol saturated with Tris buffer (pH 6.6), HPLC-grade of methanol, acetonitrile and chloroform were purchased from Fisher Scientific (Fair Lawn, NJ,

USA). 10% sodium dodecyl sulfate (SDS) solution was obtained from Bio-Rad Laboratories (Hercules, CA, USA). RPMI-1640 medium with L-glutamine was purchased from Mediatech (Manassas, VA,

USA). Fetal bovine serum was purchased from GE Healthcare Life Sciences (Logan, UT, US). RiboShredder™ RNase Blend was purchased from Epicentre (Madison, WI, USA). Proteinase K was ordered

from Qiagen (Valencia, CA, USA). _IN VITRO_ STUDIES Cell lines HL-60 and U937 were obtained from American Type Culture Collection (Rockville, MD, USA). MOLM-13 cell line was obtained from

Leibniz Institute DSMZ - German Collection of Microorganisms and Cell Cultures (Braunschweig, Germany). HL-60, U937 and MOLM-13 cell lines were cultured in RPMI-1640 medium supplemented with

L-glutamine, 1% Penicillin-Streptomycin and 10% (v/v) fetal bovine serum in a humidified 5% CO2 incubator at 37 °C. Decitabine solution was freshly prepared for each experiment by

dissolving decitabine powder in PBS (1X, pH 7.4) at a concentration of 1.00 mM. For each 1 × 106 cells of HL-60 and U937 cell lines, the dosages of decitabine added to the culture media are

0.00, 0.100, 0.500, 1.00, or 10.0 μM; and were treated for 24 h and 48 h at 37 °C in a humidified 5% CO2 incubator. MOLM-13 cells (1 × 106 cells) was treated with 0.500 μM of decitabine or

an equal volume of PBS (1X, pH 7.4) as control for 0, 4, 8, and 24 h at 37 °C in a humidified 5% CO2 incubator. After treatment, the cells were removed from the medium by centrifugation at

1,500 × g, 4 °C for 5 min; and washed twice with 5.00 mL of PBS (1X, pH 7.4) each. The cell pellets were collected and stored in −20 °C until DNA extraction. _IN VIVO_ ANIMAL STUDY The

animal study for this work was approved by the Cleveland Clinic Institutional Animal Care and Use Committees (IACUC) and all methods were performed in accordance with the relevant guidelines

and regulations. NSG mice were obtained from Jackson Laboratory (Bar Harbor, ME, USA). Primary acute myelogenous leukemia (AML) cells from patients were transplanted by tail-vein injection

(0.4 × 106 cells/mouse) into non-irradiated 6–8 week old NSG mice (n = 4 per/group). Mice were anesthetized with isoflurane before transplantation. On day 15 of inoculation, animal groups

were treated subcutaneously with vehicle (PBS 1X, pH 7.4) or decitabine 0.100 mg/kg for three consecutive days per week during the course of study. The control-group animals (median survival

of 45 days) were euthanized by an IACUC approved method for signs of distress, and the treatment-group animals were continued with treatment for 90 days. At 90 day of the treatment, animals

were euthanized by the IACUC approved method. DNA was extracted from bone marrow using the procedure published in the ref.25. Bone marrow cells were washed twice with 10.0 mL PBS (1X, pH

7.4) each. In each wash step, the cells were gently vortexed in PBS (1X, pH 7.4) for 1 min and then centrifuged down at 1,500 × g, 4 °C, for 10 min. After washing, the cell pellet was frozen

at −20 °C until DNA extraction. CLINICAL STUDY The five MDS patients of this study were enrolled in the clinical trial (NCT01165996) with written informed consent on a protocol approved by

the Institutional Review Board of Taussig Cancer Institute at the Cleveland Clinic and all methods were performed in accordance with the relevant guidelines and regulations. The patients

analyzed had MDS sub-types chronic myelomonocytic leukemia (CMML, n = 3) and refractory cytopenia with multi-lineage dysplasia (RCMD, n = 2). The decitabine regimen was 0.2 mg/kg

administered subcutaneously two consecutive days per week with the post-treatment samples obtained after six weeks of this treatment. 10.0 mL of peripheral blood samples were collected from

each patient in heparinized BD Vacutainer® tubes (Becton, Dickinson and Company, Franklin Lakes, NJ, USA) before and at the end of 6th week of treatment. The blood samples were fractioned by

the Ficoll-Paque method26. Briefly, 10.0 mL heparinized blood was layered on the top of 12.0 mL Ficoll-Paque Plus reagent (GE Healthcare Bio-Sciences, Piscataway, NJ, USA) in a 50.0-mL

sterile polypropylene centrifuge tube (RNase/DNase free); then the tube was centrifuged at 300 × g, 4 °C, for 20 min. The peripheral blood mononuclear cells (PBMCs) at the interface between

plasma and polymorphonuclear cells were collected and transferred into a clean 15.0-mL centrifuge tube and washed twice with 10.0 mL PBS (1X, pH 7.4) each. In each wash step, the PBMCs were

gently vortexed in PBS (1X, pH 7.4) for 1 min and then centrifuged down at 4 °C and 1,500 × g for 10 min. After washing, the cell pellet was collected and stored in −20 °C until DNA

extraction. DNA ISOLATION AND HYDROLYSIS Each cell pellet collected from the _in vitro_, _in vivo_ and clinical studies was lysed by mixing gently with 2.00 mL of TE buffer (containing 10.0 

mM Tris and 1.00 mM EDTA at pH 8.0) and 240 μL of 10% SDS solution for 2 min. Then, the lysate was incubated with 25.0 μL of proteinase K (600 mAU/mL) for 1 h at 37 °C. After the incubation,

the sample solution was transferred to a phase lock gel tube (5 Prime, Gaithersburg, MD, USA), and DNA was extracted using standard phenol/chloroform extraction method27. The DNA extracted

was dissolved in 5.00 mM BIS-TRIS buffer (pH 7.0) to a concentration of 1.00 mg/mL measured by UV spectrophotometry. The co-extracted RNA was removed by adding 2.00 µL of RiboShredder™ RNase

Blend (1 U/µL) to each 100 µL of DNA sample (1.00 mg/mL). After a 30-min incubation at 37 °C, the sample was mixed with 1.00 mL of pre-chilled ethanol (−20 °C) and kept at −20 °C for

overnight to precipitate the DNA in the sample. After centrifugation at 15,000 × g for 15 min, the supernatant was discarded, and the DNA pellet was washed with 1.00 mL of pre-cooled 70%

ethanol (−20 °C) twice. Then, the DNA pellet was air-dried and reconstituted with 100 µL of 5.00 mM BIS-TRIS buffer (pH 7.0) for subsequent enzyme digestion. DNA hydrolysis was performed by

denaturing ds-DNA to ss-DNA in boiling water for 30 min followed by a one-step tetra-enzyme digestion15,28. The tetra-enzyme cocktail was prepared by mixing the enzyme solutions as follows:

10.0 μL of DNase I (20,000 U/mL), 15.0 μL of NP1 (200 U/mL), 40.0 μL of PDE I (100 U/mL) and 0.50 μL of ALP (40,000 U/mL). For each 50.0 μL of DNA (0.500 μg/μL for the measurement of DNA

incorporated decitabine; 1.25 ng/μL for the measurements of dC, dG, and 5mdC), 4.00 μL of the tetra-enzyme cocktail was added and mixed well; then, the mixture was placed in a 37 °C water

bath for overnight incubation to secure a complete digestion of DNA to mononucleosides. After incubation, 5.00 μL of 2′-deoxycytidine 15N3 (the internal standard, IS, 2.00 µM in the LC

mobile phase) was added to a digested sample and vortex-mixed for 30 s. Each DNA digest was deproteinized by 450 μL of acetonitrile, then centrifuged at 15,000 x g for 10 min. 450 μL of

supernatant was collected and evaporated to dryness at 30 °C for 60 min in a TurboVap® LV Evaporator (Zymark, Hopkinton, MA, USA) under a pressurized stream of nitrogen gas (20 psi). The

dried residue was reconstituted in 50.0 μL of the LC mobile phase and subjected to LC-MS/MS analysis. LC-MS/MS SYSTEM The LC-MS/MS instrumentation used for this work consisted of a

Prominence UFLC system (Shimadzu, Columbia, MD, USA) for analyte separation and a QTRAP 5500 tandem mass spectrometer (AB Sciex, Foster City, CA, USA) for quantitation. The system was

controlled by AB Sciex Analyst® software (version 1.6.1) for its operation, data acquisition, and processing. The UFLC system included a system controller (CBM-20A), two binary pumps

(LC-20AD), a temperature-controlled autosampler (SIL 20AHT) and an online degasser (DGU20A3). QUANTITATION OF DECITABINE, DG, DC, AND 5MDC The LC separation was carried out on a Hypersil

Gold aQ C18 column (50 × 2.1 mm, 3 µm) (Thermo Scientific, Waltham, MA, USA) with a Hypersil Gold aQ C18 guard column (10 × 2.1 mm, 3 μm) using the LC mobile phase consisting of 0.1% formic

acid aqueous solution and methanol (87.5:12.5, v/v) at a flow rate of 0.300 mL/min. For each analysis, 10.0 μL of sample was injected into the system by autosampler set at 4 °C. The LC elute

was introduced into the mass spectrometer operated under the positive turbo-ion spray ionization mode. The optimized instrument parameters were as follows: curtain (CUR), 40 psi; collision

activated dissociation (CAD) gas, medium; nebulizer gas (GS1), 40 psi; turbo heater gas (GS2), 45 psi; turbo ion spray voltage (IS), +5200 V; source temperature (TEM), 300 °C; declustering

potential (DP), 35 V; entrance potential (EP), 7 V; collision energy (CE), 15 V; collision cell exit potential (CXP), 18 V; mass resolutions (Q1 and Q3), 1 unit. The

multiple-reaction-monitoring (MRM) mode was used for analyte quantitation. Mixed calibrators of decitabine, dC, dG and 5mdC (1.00, 4.00, 20.0, 40.0, 200, 400 and 2.00 × 103 nM) together with

single- and double- blanks, and mixed QCs (3.00, 70.0 and 1.60 × 103 nM) were prepared in 5.00 mM BIS-TRIS buffer (pH 7.0) and subjected to the same sample preparation procedure as DNA

samples. The linear calibration plots for decitabine, dC, dG, and 5mdC were constructed using peak area ratios (y) of each analyte to the IS versus the concentrations of calibrators (x) with

1/x weighting, and the least squares linear regression equations were obtained as the calibration equations for individual analytes. The concentrations of decitabine, dC, dG, and 5mdC in

each unknown sample were back calculated by the calibration equations using the peak-area ratios of each analyte in the unknown sample to that of the IS. The accurate mass concentration of

DNA was determined using the measured molar concentration of dG by the following equation: $$[{\rm{DNA}}]\,({\rm{mg}}/{\rm{L}})=[{\rm{dG}}]\,\times \,{\rm{618}}\,({\rm{g}}/{\rm{mol}})/0.41$$

(1) where [dG] is the measured concentration of dG in mM; 618 (g/mol) is the molar mass of G/C pair, and 0.41 is the percentage of G/C pair in human DNA29. The amount of DNA incorporated

decitabine was expressed as pmol of decitabine per μg of DNA. The percent methylation was calculated using the following equation29,30,31: $$ \%

\,{\rm{methylation}}=[5{\rm{mdC}}/({\rm{dC}}+5{\rm{mdC}})]\times 100 \% $$ (2) STATISTICAL ANALYSIS Statistical analysis was performed using GraphPad Prism 5.0 (GraphPad Software Inc., San

Diego, CA). CONCLUSION We have developed a sensitive and specific LC-MS/MS method for quantitative determination of decitabine DNA incorporation and hypomethylation effect both _in vitro_

and _in vivo_. This method is practical and can be easily adopted in preclinical and clinical studies of decitabine. The preliminary data from decitabine-treated AML patients show that this

method not only allows us to quantitatively measure the pharmacokinetic endpoints of decitabine but also provides supporting evidence for drug action mechanisms on patients’ sensitivity and

resistance in decitabine therapy. It may be useful for determining suitable decitabine dosing regimens for individual patients to achieve desirable therapy outcomes. REFERENCES * Saba, H. I.

Decitabine in the treatment of myelodysplastic syndromes. _Ther. Clin, Risk Manag._ 3(5), 807–817 (2007). CAS  Google Scholar  * Saunthararajah, Y. _et al_. Evaluation of noncytotoxic

DNMT1-depleting therapy in patients with myelodysplastic syndromes. _J. Clin. Invest._ 125(3), 1043–55 (2015). Article  Google Scholar  * McKeage, K. & Croom, K. F. Decitabine: In

myelodysplastic syndromes. _Drugs._ 66, 951–958 (2006). Article  CAS  Google Scholar  * Kantarjian, H. _et al_. Decitabine improves patient outcomes in myelodysplastic syndromes - Results of

a Phase III randomized study. _Cancer._ 106(8), 1794–1803 (2006). Article  CAS  Google Scholar  * Momparler, R. L. Pharmacology of 5-Aza-2′-deoxycytidine (decitabine). _Semin. Hematol._ 42,

S9–S16 (2005). Article  CAS  Google Scholar  * Taichun, Q. _et al_. Mechanisms of Resistance to Decitabine in the Myelodysplastic Syndrome. _PLOS ONE._ 6(8), e23372 (2011). Article  Google

Scholar  * Jones, P. A. & Baylin, S. B. The fundamental role of epigenetic events in cancer. _Nature Reviews Genetics._ 3, 415–428 (2002). Article  CAS  Google Scholar  * Herman, J. G.

& Baylin, S. B. (Gene silencing in cancer in association with promoter hypermethylation. _N. Engl. J. Med._ 349(21), 2042–54 (2003). Article  CAS  Google Scholar  * Baylin, S. B.

Mechanisms underlying epigenetically mediated gene silencing in cancer. _Semin. Cancer Biol._ 12, 331–337 (2002). Article  CAS  Google Scholar  * Christman, J. K. 5-Azacytidine and

5-aza-2′-deoxycytidine as inhibitors of DNA methylation: mechanistic studies and their implications for cancer therapy. _Oncogene._ 21, 5483–5495 (2002). Article  CAS  Google Scholar  * Öz,

S. _et al_. Quantitative determination of decitabine incorporation into DNA and its effect on mutation rates in human cancer cells. _Nucleic Acids Res._ 42(19), 29 (2014). Article  Google

Scholar  * Anders, N. M. _et al_. Simultaneous quantitative determination of 5-aza-2′-deoxycytidine genomic incorporation and DNA demethylation by liquid chromatography tandem mass

spectrometry as exposure-response measures of nucleoside analog DNA methyltransferase inhibitors. _Journal of Chromatography B._ 1022, 38–45 (2016). Article  CAS  Google Scholar  * Zhang, Y

_et al_. An HPLC–MS/MS Method for Simultaneous Determination of Decitabine and Its Valyl Prodrug Valdecitabine in Rat Plasma. _Journal of Chromatography_ B 917–918.C (2013). * Roosendaal, J

_et_._al_. Development, Validation, and Clinical Application of a High-Performance Liquid Chromatography-Tandem Mass Spectrometry Assay for the Quantification of Total Intracellular

β-Decitabine Nucleotides and Genomic DNA Incorporated β-Decitabine and 5-Methyl-2′-Deoxycytidine. _Journal of Pharmaceutical and Biomedical Analysis_ 164 (2019). * Li, L. Development of

quantitative LC-MS/MS methods for the pharmacological studies of anti-cancer drugs. Ph.D. Thesis, Cleveland State University, Cleveland, OH., 53–67 (2011). * U.S. Food and Drug

Administration (FDA), Center for Drug Evaluation and Research (CDER), Guidance for Industry: Bioanalytical Method Validation, available,

http://www.fda.gov/downloads/Drugs/guidanceComplianceRegulatoryInformation/Guidances/UCM070107.pdf (2001) * Saunthararajah, Y. _et al_. P53 Independent Epigenetic-Differentiation Treatment

in Xenotransplant Models of Acute Myeloid Leukemia. _Leukemia._ 25(11), 1739–50 (2011). Article  Google Scholar  * Ebrahem, Q., Mahfouz, R., Ng, K. P. & Saunthararajah, Y. High cytidine

deaminase expression in the liver provides sanctuary for cancer cells from decitabine treatment effects. _Oncotarget._ 3(10), 1137–45 (2012). Article  Google Scholar  * Hummel-Eisenbeiss, J.

_et al_. The Role of Human Equilibrative Nucleoside Transporter 1 on the Cellular Transport of the DNA Methyltransferase Inhibitors 5-Azacytidine and CP-4200 in Human Leukemia Cells. _Mol.

Pharmacol._ 84, 438–450 (2013). Article  CAS  Google Scholar  * Saunthararajah, Y. Key clinical observations after 5-azacytidine and decitabine treatment of myelodysplastic syndromes suggest

practical solutions for better outcomes. Hematology-American Society of Hematology Education Program. 511–521(2013). * Liu, Z. _et al_. Characterization of decomposition products and

preclinical and low dose clinical pharmacokinetics of decitabine (5-aza-2′-deoxycytidine) by a new liquid chromatography/tandem mass spectrometry quantification method. _Rapid Communications

in Mass Spectrometry._ 20, 1117–1126 (2006). Article  ADS  CAS  Google Scholar  * Blum, W. _et al_. Phase I study of decitabine alone or in combination with valproic acid in acute myeloid

leukemia. _J. Clin. Oncol._ 25(25), 3884–3891 (2007). Article  CAS  Google Scholar  * Blum, K. A. _et al_. Phase I Trial of Low Dose Decitabine Targeting DNA Hypermethylation in Patients

with Chronic Lymphocytic Leukaemia and non‐Hodgkin Lymphoma: Dose‐limiting Myelosuppression Without Evidence of DNA Hypomethylation. _British Journal of Haematology_ 150, 2 (2010). Google

Scholar  * Oki, Y _et_._al_. Induction of Hypomethylation and Molecular Response after Decitabine Therapy in Patients with Chronic Myelomonocytic Leukemia. _Blood_ 111.4 (2008). * Swamydas,

M. & Lionakis, M. S. Isolation, Purification and Labeling of Mouse Bone Marrow Neutrophils for Functional Studies and Adoptive Transfer Experiments. _Journal of Visualized Experiments:

JoVE_. (77), 50586 (2013). * Kanof, M. E., Smith, P. D. & Zola H. Isolation of whole mononuclear cells from peripheral blood and cord blood. Curr. Protoc. Immunol. Chapter 7: Unit 7.1

(2001). * Sambrook, J. & Russell D. W. Purification of nucleic acids by extraction with phenol: chloroform. _Cold Spring Harb Protoc_. 4455 (2006). * Sujatha, C., Lan.L., Ye, F., Yan. X.

Microwave-assisted enzymatic hydrolysis of DNA for mass spectrometric analysis: A new strategy for accelerated hydrolysis. _Analytical Biochemistry_. 28–34 (2018). * Alexander, E.

Measurement by Flow Cytometry of Genomic AT/GC Ratio and Genome Size. _Cytometry._ 6, 34–40 (1994). Google Scholar  * Liu, Z. _et al_. Characterization of _in vitro_ and _in vivo_

hypomethylating effects of decitabine in acute myeloid leukemia by a rapid, specific and sensitive LC-MS/MS method. _Nucleic Acids Res._ 35(5), e31 (2007). Article  Google Scholar  * Liu, Z.

_et al_. Quantification of Regional DNA Methylation by Liquid Chromatography/Tandem Mass Spectrometry. _Anal Biochem._ 15;391(2), 106–13 (2009). Article  Google Scholar  Download references

ACKNOWLEDGEMENTS This work was supported by the National Science Foundation MRI Grant (CHE-2923308) to YX and NIH Grants (RO1 – CA138858, CA043703) to Y. Saunthararajah. AUTHOR INFORMATION

AUTHORS AND AFFILIATIONS * Department of Chemistry, Cleveland State University, 2121 Euclid Avenue, Cleveland, Ohio, 44115, USA Sujatha Chilakala, Ye Feng, Lan Li & Yan Xu * Department

of Hematology and Oncology, Taussig Cancer Institute, Cleveland Clinic, 2010 East 90th Street, Cleveland, OH, 44195, USA Reda Mahfouz, Ebrahem Quteba & Yogen Saunthararajah Authors *

Sujatha Chilakala View author publications You can also search for this author inPubMed Google Scholar * Ye Feng View author publications You can also search for this author inPubMed Google

Scholar * Lan Li View author publications You can also search for this author inPubMed Google Scholar * Reda Mahfouz View author publications You can also search for this author inPubMed

Google Scholar * Ebrahem Quteba View author publications You can also search for this author inPubMed Google Scholar * Yogen Saunthararajah View author publications You can also search for

this author inPubMed Google Scholar * Yan Xu View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS S.C. and Y.X. conceived of the methodology,

designed the experiments, preformed the analyses and wrote the manuscript. Y.F. and L.L. developed the enzyme digestion protocols. Y.S. and R.M. designed and performed the MOLM-13 cell

culture. Y.S. and E.Q. designed and performed the xenograft mouse model experiments. Y.S. provided the clinical samples and expertise on the disease. CORRESPONDING AUTHOR Correspondence to

Yan Xu. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE: Springer Nature remains neutral with regard to

jurisdictional claims in published maps and institutional affiliations. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International

License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source,

provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons

license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by

statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Chilakala, S., Feng, Y., Li, L. _et al._ Tracking Decitabine Incorporation into

Malignant Myeloid Cell DNA _in vitro_ and _in vivo_ by LC-MS/MS with Enzymatic Digestion. _Sci Rep_ 9, 4558 (2019). https://doi.org/10.1038/s41598-019-41070-y Download citation * Received:

09 August 2018 * Accepted: 27 February 2019 * Published: 14 March 2019 * DOI: https://doi.org/10.1038/s41598-019-41070-y SHARE THIS ARTICLE Anyone you share the following link with will be

able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing

initiative
