Image-based chemical structure determination

ABSTRACT Chemical imaging is a powerful tool for understanding the chemical composition and nature of heterogeneous samples. Recent developments in elemental, vibrational, and

mass-spectrometric chemical imaging with high spatial resolution (50–200 nm) and reasonable timescale (a few hours) are capable of providing complementary chemical information about various

samples. However, a single technique is insufficient to provide a comprehensive understanding of chemically complex materials. For bulk samples, the combination of different analytical

methods and the application of statistical methods for extracting correlated information across different techniques is a well-established and powerful concept. However, combined

multivariate analytics of chemical images obtained via different imaging techniques is still in its infancy, hampered by a lack of analytical methodologies for data fusion and analysis. This

study demonstrates the application of multivariate statistics to chemical images taken from the same sample via various methods to assist in chemical structure determination. SIMILAR

CONTENT BEING VIEWED BY OTHERS AUTOMATED ANALYSIS OF ULTRASTRUCTURE THROUGH LARGE-SCALE HYPERSPECTRAL ELECTRON MICROSCOPY Article Open access 11 December 2024 UNSUPERVISED MACHINE LEARNING

COMBINED WITH 4D SCANNING TRANSMISSION ELECTRON MICROSCOPY FOR BIMODAL NANOSTRUCTURAL ANALYSIS Article Open access 05 February 2024 ENHANCING SPATIAL RESOLUTION IN FOURIER TRANSFORM INFRARED

SPECTRAL IMAGE VIA MACHINE LEARNING ALGORITHMS Article Open access 20 December 2023 INTRODUCTION Chemical imaging has become a workhorse in analytical chemistry due to advanced method

development, improved imaging speed, lower detection limits, and increased computational power. All major analytical methods have been extended for chemical imaging purposes, resulting in

improved understanding of the heterogeneity and complexity of samples of interest. Successful chemical structure determination (CSD) combines different complementary analytical techniques

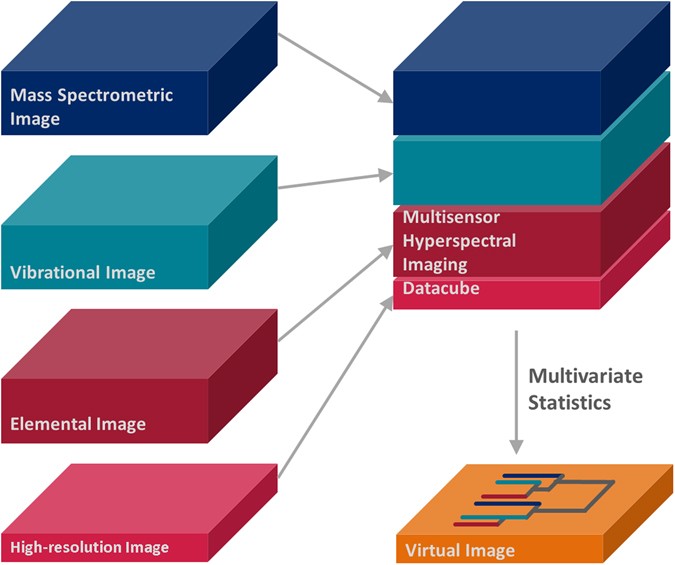

applied to the same sample to generate a comprehensive analytical understanding of the sample under investigation. While the combination of complementary analytical methods to solve

scientific questions regarding complex samples or chemical systems is a fundamental working principle in analytical chemistry, the application of this approach in chemical imaging has been

rarely reported. ‘Multimodal imaging,’ ‘correlative imaging,’ and ‘data fusion’ are common catchphrases that refer to the topic of combined image-based analysis. In these approaches, the

data from each technique is analysed separately and the resulting images are combined. Correlative microscopy using light and electron microscopy is discussed in detail by Hayat1. Modern

sample preparation techniques have been developed to assist this correlative approach2, 3. The advantages of image fusion of imaging mass spectrometry and microscopy are described by Van de

Plas _et al_.4. Approaches toward data correlation to address biological questions are reported by Cunha _et al_.5, focusing on available software systems for multimodal imaging and giving

the example of correlating secondary ion mass spectrometric (SIMS) images with those obtained by transmission electron microscopy. A similar approach is reported for energy dispersive X-ray

(EDX) spectroscopy and electron microscopy6. Outside of the biological and life-science communities, data fusion became a topic of interest in surface science when time-of-flight-SIMS

(ToF-SIMS) images were combined with scanning electron microscopic (SEM) images and analysed using multivariate statistics7 and when images from X-ray photoelectron spectroscopy and atomic

force microscopy (AFM) were fused8. AFM has also been successfully fused with data obtained from laser scanning microscopy9. All these studies provide additional scientific output by

combining a chemical imaging technique with high-resolution imaging (HRI) and/or topographic imaging techniques such as SEM or AFM. A different approach to correlative imaging, however, is

the fusion of different modalities of the same fundamental physico-chemical measurement principle of imaging techniques, that is, by fusing near-infrared, mid-infrared, and Raman

micro-spectroscopic (RMS) images with subsequent multivariate data analysis10. A similar multimodal approach was applied to imaging tissues using SIMS and matrix-assisted laser

desorption/ionization (MALDI)11. Another correlative technique is reported for imaging chromosomes by cryo-fluorescence and soft X-ray tomography (SXT)12. By the application of SXT, a

three-dimensional reconstruction of the correlated dataset could be achieved. Recently, correlative 3-dimensional micro-spectroscopy of a single catalyst particle has been reported13. The

detailed methodical approach is of this technique is summarized in a recent review14. Data fusion of single chemical images with HRI or topographic images or imaging of a sample by using

different modalities of a single technique providing similar information, for instance, vibrational spectroscopy (infrared and RMS) or mass spectrometry (SIMS and MALDI), do not fulfil the

requirements of CSD because hardly any complementary chemical information is generated. SIMS and RMS images have been correlated to visualize cell-scale molecular distributions15. Here, the

complementary information of mass spectrometric and vibrational imaging are combined and compared at the image level. This is also reported for the combined use of laser-induced breakdown

spectroscopy and laser ablation inductively coupled plasma mass spectrometry16. Contrary to these examples, fusion on the level of recorded datasets obtained from elemental (EDX) and

vibrational (Raman) micro-spectroscopy (RMS) was reported in 201417. The advantages of the combined multivariate analytical approach for this so-called multisensor hyperspectral imaging

(MSHSI) dataset were recently compared to side-by-side interpretation of images18. To generate an approach to image-based CSD that is both comprehensive and complementary, imaging data

obtained via different spectroscopic techniques must first be combined and then jointly analysed. Therefore, the imaging techniques must be non-destructive, must exhibit comparable spatial

resolutions, and must return complementary chemical information. Additionally, the sample area of interest must be accessible by all these techniques. Elemental, vibrational, and mass

spectrometric imaging can fulfil these requirements using EDX imaging applied by an electron microscope (where SEM also supplies the HRI), RMS imaging, and ToF-SIMS imaging (in the following

paragraphs referred to as SIMS). RMS and EDX imaging are both non-destructive techniques; thus, multisensor fusion of these datasets with a SIMS dataset is possible when SIMS imaging is

applied as the last technique. With spatial resolutions down to 50 nm for EDX, down to 100 nm for SIMS, and down to 200 nm for RMS, these techniques are comparable. The present study

demonstrates image-based CSD by merging EDX, RMS, and SIMS imaging datasets into a combined MSHSI datacube; subsequently, multivariate statistics are applied (Fig. 1) to generate a

comprehensive analytical representation of the image. Spectral descriptor (SPDC)17 based principal component analysis (PCA)19, k-means cluster analysis20 and hierarchical cluster analysis

(HCA)21, as well as vertex component analysis (VCA)22, are applied to analyse the combined MSHSI datasets18. The application of multivariate MSHSI to image-based CSD will be introduced via

the combined analysis of copper sulphide particles deposited on a purified aluminium substrate. Subsequently, with the aim of demonstrating the generic applicability of this new methodology

to samples from the fields of life science, materials science, and geoscience, additional examples using, respectively, tumour cells, technical ceramics, and an environmental aerosol sample

are given. RESULTS COPPER SULPHIDE PARTICLES To analyse the combined dataset obtained from RMS, EDX, and SIMS imaging in combination with the HRI of copper sulphide particles using MSHSI,

spectral descriptors (SPDCs) were defined to extract the spectral information from the datacube. Copper sulphide is characterized by three Raman bands at 270 (ν(Cu–S)), 473 (ν(S–S)), and 917

(2ν(S–S)) cm−1  23,24,25. Additionally, Kα X-ray emissions are expected in the EDX spectrum for aluminium (background), copper, and sulphur. In the SIMS datacube, mass-to-charge (_m_/_z_)

26.98 for the aluminium substrate as well as 62.93 and 64.93 for the two copper isotopes are significant for the chosen system. Because the ToF-SIMS was operated in positive-ion mode, no

SIMS signal of sulphur is expected. The multisensor hyperspectral dataset was analysed using PCA on the basis of the defined SPDCs (more details are given in the Methods section). The first

principal component describes 65.77% of the overall dataset variance. Based on the PCA of standardized SPDCs, an HCA of the loadings of the first principal component was carried out (Fig. 2,

upper part). A detailed description of all applied multivariate statistical methods can be found at Ofner _et al_.18. The colours in Fig. 2 and the following figures represent the different

unravelled species. The colour-coding links the detected species in the SEM or optical images with the related dendrograms of the clustering algorithms and the extracted mean spectra. Due

to the fact, that all demonstrated spectra origin from multivariate analysis (especially k-means clustering, HCA or VCA) and are standardized mean spectra, no meaningful units can be given

for the intensities of the ordinates of the spectra. Therefore, labels and units are not shown. The dendrogram of the HCA of the loadings of the PCA (Fig. 2, upper part) significantly

differentiates the background cluster (SIMS _m_/_z_ 26.98 of aluminium and the EDX X-ray Kα emission of aluminium) and the particle cluster. This cluster contains all three Raman bands of

copper sulphide (917 cm−1, 473 cm−1, and 270 cm−1), the copper isotopes from the ToF-SIMS dataset (_m_/_z_ 64.93 and _m_/_z_ 62.93), and the related X-ray emissions from the EDX of the SEM

(S Kα and Cu Kα). The superposition of the SEM image and the sub-cluster image of the PCA-HCA of the MSHSI datacube indicates that not all particles are related to this sub-cluster of copper

sulphide. Because the first principal component describes only 65.77% of the overall dataset, additional chemical information is assumed to be hidden in the MSHSI. A more detailed

examination reveals the presence of oxygen (EDX), as well as impurities of Na (SIMS _m_/_z_ 22.99), K (SIMS _m_/_z_ 38.97), Ca (SIMS _m_/_z_ 39.97), and other elements, originating from the

sample preparation process. However, the major component of interest, copper sulphide, could be clearly identified within the first principal component. To extract the combined component

spectra, k-means clustering standardized SPDCs of the MSHSI datacube, choosing two expected clusters, was performed (Fig. 2, lower part). The extracted cluster spectra exhibit the expected

features. The EDX spectrum reveals the presence of Kα emissions of copper and sulphur for the green cluster, in addition to a slight increase of oxygen, which indicates the presence of

copper oxide. The extracted Raman spectrum exactly replicates the Raman spectrum of covellite (CuS)26. The SIMS spectrum identifies the two copper isotopes 63Cu and 65Cu at their atomic

weights of 62.93 and 64.93 and their expected isotope ratios of 69.17% and 30.83%, respectively. Additionally, the SIMS spectrum of the CuS sub-cluster (Fig. 2, green cluster) exhibits

impurities of sodium (22.99 _m_/_z_) and potassium (38.96 _m_/_z_). The substrate (Fig. 2, black cluster) is characterized by an EDX Kα emission of aluminium, a nearly flat Raman baseline

with traces of the CuS Raman spectrum, which is caused by the multisensor fusion of the single datasets with varying spatial resolution of the methods, and higher abundance of the mass 26.96

 _m_/_z_ (aluminium) in the SIMS spectrum. The application of MSHSI to the simple example of CuS particles shows the advantages of this technique. While EDX allows rudimentary identification

of the component elements, RMS reveals the chemical bonding and allows attribution to CuS, while SIMS confirms the presence of copper by identifying the masses and ratios of the isotopes as

well as providing additional information on minor constituents, impurities, and contaminants. All this sample-specific information, which is necessary for definite chemical structure

determination, is represented within a single sub-cluster of the multivariate k-means clustering, which proves the linkage of the individual analytical methods. TUMOUR CELLS Tumour cells

treated with a bromine-containing prodrug were also imaged using MSHSI (Fig. 3). To analyse the combined MSHSI datacube of this sample, HCA of the PCA loadings based on standardized SPDCs

was performed, based on the concept of SPDCs (Fig. 3, upper part). The two sub-clusters of the HCA of the PCA show a distinction between the nucleus surrounded by the rough endoplasmic

reticulum for protein biosynthesis (Fig. 3, orange sub-cluster) and the cytoplasm of the cell (Fig. 3, blue sub-cluster). The superposition of the cluster image with the optical image shows

that both cells undergo cell division. The orange sub-cluster is defined by the SPDCs of the EDX nitrogen signal, the SIMS masses 26.00 and 42.00 _m_/_z_, which can be attributed to CN− and

CNO− fragments, and the Raman amide I band at 1688 cm−1 as well as a centroid spectral descriptor, which is assigned to the ν(C–H) stretch region and exhibits a positive value at the

location of the nucleus. The blue sub-cluster is characterized by a Raman band at 2890 cm−1, the ν(C–H) of –CH2– groups, which can be assigned to lipids, the EDX Lα emission of bromine, and

the ToF-SIMS masses 78.93 _m_/_z_ and 80.93 _m_/_z_, which represent the two bromine isotopes 79Br and 81Br, respectively. The component spectra (Fig. 3, lower part) of the cell core and the

cytoplasm were extracted using k-means clustering of standardized SPDCs. After q-normalization, the best results for the clustering process were obtained by choosing three expected

clusters. The second k-means cluster was excluded from further processing because this cluster represents the margin of the cells, where a strong contribution from the background and

background impurities is visible. The two remaining sub-clusters of the k-means clustering, which are comparable to the clusters of the HCA of the PCA loadings, improve the chemical

interpretation of the nucleus and cytoplasm clusters. The nucleus sub-cluster (Fig. 3, orange spectra) exhibits an enhanced band at 1620 cm−1, which can be assigned to the ν(C = O) of amino

acids27 or the ν(C = C) of aromatic amino acids28 as well as the common ν(C = O) of esters28 around 1730 cm−1. Further, a strong increase of the amide I band at 1680 cm−1 is visible29.

Additionally, both clusters exhibit the ring-stretch vibration of purine bases at about 1575 cm−1  29. The RMS spectra thus indicate an enhanced presence of proteins in the orange

sub-cluster. This is also supported by the SIMS mass spectra, which show increased intensities in this sub-cluster of 26.00 (CN−), 42.00 (CNO−), and 50 (C3N−) _m_/_z_. In contrast, the blue

sub-cluster of the HCA dendrogram of the PCA loadings depicting the cytoplasm supports the assignment of the Raman vibrations of lipids by the SIMS fragments 12 (C), 24 (C2), 48 (C4), 60

(C5), and 72 (C6) _m_/_z_, which represent lipid fragments. The increased presence of lipids in tumour cells, which is highlighted by the RMS centroid SPDC and the SIMS spectrum of the blue

sub-cluster, is also reported in the literature30. The EDX spectrum indicates increased presence of carbon, oxygen, and nitrogen at the location of the cell cores, while the

bromine-containing drug appears primarily in the cytoplasm. This distribution of bromine is also confirmed by the two SIMS masses 78.92 _m_/_z_ (79Br) and 80.92 _m_/_z_ (81Br). Thus, besides

the localization of the cell cores, the distribution of the bromine-containing drug inside the cells could also be visualized using MSHSI. CERAMIC COMPOSITE As an example of the application

of image-based chemical structure determination to the field of materials science, a ceramic composite prepared by the polymer-precursor method was analysed. The synthesis of this technical

ceramic, which consists of ZrO2-reinforced mullite (3Al2O3·2SiO2), was based on the thermal conversion of methyl-polysilsesquioxane to highly reactive SiO2, which subsequently reacted with

Al2O3 to form a continuous mullite matrix. Additionally, ZrO2 (yttrium-stabilized) was incorporated as particulate reinforcement. The full synthesis procedure and SEM image-based analytics

have been described in previous studies31, 32. Based on the knowledge of the initial chemical composition, SPDCs were chosen to analyse the MSHSI dataset. HCA of the PCA loadings based on

standardized SPDCs was performed, which indicated the main expected components (Fig. 4, upper part). The dendrogram is characterized by two main sub-clusters. The green sub-cluster in Fig. 4

represents the yttrium-stabilized zirconia. This sub-cluster contains the EDX Lα X-ray emissions of zirconium and yttrium. Furthermore, the corresponding SIMS masses 89.93 _m_/_z_ of Zr and

105.9 _m_/_z_ of ZrO are included. The three RMS bands at 185 (two bands at 180 and 192 cm−1), 340, and 480 cm−1 finally allow the assignment of this sub-cluster to monoclinic ZrO2 33.

Hence, the green sub-cluster represents the yttrium-stabilized ZrO2. The blue sub-cluster represents the matrix phase, in which the EDX X-ray Kα emissions of silicon, oxygen, and aluminium

and the corresponding SIMS masses of 26.97 _m_/_z_ (Al), 42.99 _m_/_z_ (AlO), 43.98 _m_/_z_ (SiO), and 69.97 _m_/_z_ (Al2O) can be found. These SPDCs indicate that this sub-cluster is

representative of mullite (3Al2O3·2SiO2). However, the Raman bands of these species are not accessible due to the presence of the strong ZrO2 bands. The overall sample is characterized by

pores, which are artefacts of the polishing process. Analysing these holes in detail revealed an enhanced amount of carbon (EDX Kα). Therefore, an additional species was expected. The EDX

dataset only exhibited the information on the carbon content. Further, no significant masses could be found in the SIMS dataset for these parts of the sample. VCA was applied on the RMS

portion of the MSHSI dataset and a spectral endmember, corresponding to the holes in the sample, was extracted (Fig. 4, lower part, red RMS spectrum). This endmember is characterized by a

single Raman band at about 1332 cm−1 and correlated to high carbon content. Based on the literature, the red spots in Fig. 4 (lower part) can be assigned to diamond34. This vibration is

evoked by the interpenetrating cubic sublattice and can be assigned to a lattice vibration of the sp3 carbon bonds (ω(sp3))35. Diamond paste was used to polish the sample, and the red spots

indicate areas of diamond residue. The VCA algorithm also revealed an additional spectral endmember in the Raman datacube (Fig. 4, lower part, orange spectrum). According to the literature36

and the RRUFF database26, as well as expectations based on the synthesis method31, this VCA endmember can be attributed to ZrSiO4, which forms at the interface between the ZrO2 particles

and the mullite matrix. By applying PCA-HCA and VCA to the MSHSI dataset of the ceramic sample, four main chemical species could be extracted from the SEM image. The yttrium-stabilized ZrO2

is well represented by the RMS, EDX, and SIMS sub-datasets. By superimposition with the SEM image, the white particles could be identified as 3Y-ZrO2. The mullite matrix is congruent with

the gray areas in the SEM image and is characterized by the EDX and SIMS sub-datasets of the MSHSI datacube. Additionally, the RMS sub-dataset revealed the presence of ZrSiO4 by PCA-HCA and

diamond residues by VCA endmember extraction from the RMS sub-dataset, which was also confirmed by the enhanced carbon signal in the EDX dataset. ENVIRONMENTAL AEROSOL Atmospheric aerosols

are complex mixtures of analytes from natural or anthropogenic sources that are formed and transformed in the environment. A combined analytical approach to this class of samples increases

the value of the chemical analysis and enhances the understanding of the entire environmental system. During atmospheric sampling in the city of Vienna, a nearby building that had been

affected by a fire was torn down. The sample was imaged and the datasets were fused into the MSHSI datacube. Because this sample exhibited a high number of different chemical species, SPDCs

had to be defined by an iterative process. Restrictive clustering algorithms such as k-means clustering would hamper the interpretation of the dataset because the expected number of clusters

must be known in advance. An estimation of the expected number of species based on analysis of the eigenvalue plot of the PCA revealed eight to ten different chemical species. To allow a

top-down analysis of these species, SPDC-based HCA (Ward’s method with Euclidean distances) of the overall dataset was performed. The analysis of the HCA of the MSHSI dataset revealed at

least eight sub-clusters, which can be assigned to different chemical species (Fig. 5). All sub-clusters exhibit strong internal mixing of the single aerosol particles. The yellow

sub-cluster shows typical urban aerosol composition and represents a minor part of the overall particle composition. The blue sub-cluster, which is closely connected in terms of

inter-cluster distance, can also be attributed to the urban background aerosol. The remaining sub-clusters can be attributed to the tearing down of the burned building. The assignment of the

individual sub-clusters (Fig. 5) to chemical species is achieved by analysing the sub-cluster spectra in parallel (Fig. 6). The green sub-cluster is dominated by the EDX elements Ca, Mg, O,

and Si with contributions from Fe and Na. The RMS dataset exhibits a band at about 1085 cm−1 that can be assigned to calcite or aragonite (CaCO3) through comparison with reference

spectra26, 37. Additionally, the Raman spectrum includes a contribution from black carbon (soot)38, which can be attributed to the fire at the demolished building. The SIMS spectrum supports

this interpretation by exhibiting contributions from the masses (_m_/_z_) 27.97 (Si), 39.96 (Ca), 43.9 (SiO or CO2, as a fragment of the carbonate), and 55.96 (Fe or CaO). The green

sub-cluster thus exhibits features typical of the building demolition process. The silicates and the CaCO3 can be attributed to concrete. The cyan blue sub-cluster exhibits features in the

EDX spectrum similar to those of the green sub-cluster, with an enhanced contribution from carbon. However, the Raman spectrum is supplemented by a dominant band in the spectral region of

ν(C–H) stretching vibrations, which indicates the presence of organic carbon, and a sharp band at 1065 cm−1. Additionally, the presence of black carbon is indicated. Analysing the SIMS

spectrum showed the presence of 22.98 (Na), 38.98 (NaO, K), 39.96 (Ca), 43.9 (CO2 from carbonates), 50.98 (NaCO), and 55.96 (CaO, Fe) _m_/_z_. Hence, the presence of some form of sodium

carbonate is likely. Comparison of the Raman band at 1065 cm−1 with the RRUFF database26 shows that it can likely be attributed to trona, a water-bearing sodium hydrogen carbonate with the

molecular formula Na3(HCO3)(CO3)·H2O that is used as a fire-extinguishing agent. This sub-cluster can thus be attributed to demolition waste and the fire-extinguishing agent. The EDX

spectrum of the red sub-cluster is dominated by Fe and O. The Raman spectrum exhibits a band at 290 cm−1 along with bands of CaCO3 and black carbon. In addition to the SIMS masses identified

in the green sub-cluster, 55.93 (Fe), 71.93 (FeO), and 87.93 (FeO2) _m_/_z_ are also visible. Comparison with the RRUFF database26 of the Raman spectrum and correlating the three MSHSI

spectra of the red sub-cluster indicate that this sub-cluster exhibits contributions from hematite, a fingerprint of the structural steel and the technical building equipment. The purple,

pink, and orange sub-clusters are also related to building demolition debris. Therefore, their analysis is not described or shown in detail in Fig. 6. Still, the decreasing inter-cluster

distance to the yellow and blue sub-clusters indicate that mineral dust also forms part of the urban background aerosol. The remaining sub-clusters (yellow and blue) are significantly

separated from the other clusters, indicating a different chemical background. The EDX part of the yellow sub-cluster reveals the presence of Cl, Na, and O, with contributions of S. The

Raman spectrum is dominated by the three distinct Raman bands of NaNO3 at 725, 1070, and 1390 cm−1, as well as the contributions from black carbon and organic carbon (ν(C–H)). The presence

of NaNO3 is also confirmed by the presence of 22.99 (Na), 45.99 (NO2), 63.99 (NO3), and 84.98 (NaNO3) _m_/_z_ in the SIMS spectrum. Additionally, the presence of NaCl, which is not visible

in the RMS and SIMS datasets, can be extracted from the EDX dataset. The presence of CaSO4 is indicated by the Raman band at 1017 cm−1 and the sulphur signal from the EDX dataset. This

sub-cluster represents the expected typical aerosol composition from the city of Vienna based on the season. The blue sub-cluster is characterized by high potassium content in the EDX

spectrum and the SIMS spectrum, indicated by the masses 38.96 (39K) and 40.96 (41K) _m_/_z_. The SIMS spectrum also displays the masses 77.93 _m_/_z_ (K2) and 93.92 _m_/_z_ (K2O). The Raman

spectrum exhibits a high noise level. However, the contribution from black carbon and the Raman band of CaCO3 are still visible. Additionally a band at about 280 cm−1 is present, which can

be assigned to K–O containing species26. Hence, the blue sub-cluster can be attributed to ash, pointing to the influence of wood combustion, which is known to be present in Vienna. The

application of HCA to the MSHSI dataset of the environmental aerosol sample assisted the identification of single precipitated particles and their attribution to different sources. The

different contributions from the demolition of a building were clarified by analysing the combined EDX, Raman, and SIMS spectra. Several of the species were not visible in all three spectra,

such as the silicates, K2O, or the organic carbon. Therefore, the analysis of this dataset in parallel improves the analytical interpretation and enables a detailed understanding of the

sample composition. However, some species, such as CaCO3 and Fe2O3, could only be identified by analysing at least two or even all three of the spectra. DISCUSSION The decisive advantages of

image-based CDS by multivariate MSHSI are demonstrated via the combined analysis of copper sulphide particles. EDX, RMS, and SIMS SPDCs unravelled the chemical composition of these

particles by merging the CuS signals from each of the three different methods within the same sub-cluster of the PCA-HCA dendrogram. The combinational analysis of the complementary imaging

techniques was also verified via the subsequent k-means clustering. Additional benefits of this method are shown by the three subsequent practical examples. For the cell sample, the spatial

allocation of the bromine-containing drug (EDX and SIMS) as well as the correlation of the SIMS fragments of lipids with the –CH2 band of the RMS could be extracted from the complex MSHSI

dataset. In the case of the technical ceramic sample, the 3Y-ZrO2 could be identified by all three analytical methods, while the chemical information about the mullite matrix (3Al2O3·2SiO2)

was accessible by only EDX and SIMS. The presence of diamond and ZrSiO4 could only be extracted from the RMS dataset by VCA. Chemical analysis of the environmental aerosol sample required

the combined interpretation of the cluster spectra from all three techniques: silicates (EDX), black and organic carbon (EDX and RMS), ash (EDX and SIMS), sodium nitrate (EDX, RMS, and

SIMS), and sodium hydrogen carbonate (RMS and SIMS). Multivariate analysis of a fused multisensor hyperspectral imaging dataset, obtained from complementary chemical imaging techniques,

provides a unique method of image-based chemical structure determination, where the linkage of analytical information across various individual techniques is proven by the combined

statistical approach. Hence, joint clustering of different elemental, vibrational, and mass spectrometric features allows direct interpretation of the investigated chemical compound or

structure. Applying and combining complementary techniques of comparable spatial resolutions minimizes the risk of overlooking analytical information. Furthermore, cross-correlating

different methods helps to prevent the over-interpretation of insufficient data. Hence, MSHSI provides a more focused method of image-based chemical structure determination. By applying

three-dimensional or temporal-correlated imaging techniques, multivariate analysis of fused higher-dimensional or dynamical multisensor hyperspectral imaging datasets will deepen the

understanding of complex materials and processes. METHODS MATERIALS, SAMPLING, AND SUBSTRATES For imaging of CuS and atmospheric particles, aluminium targets, obtained by sputtering highly

purified aluminium onto microscope cover slips39, were used as substrates. CuS particles were purchased from Alfa-Aesar (99.8%, Alfa-Aesar, Ward Hill, MA, USA, CAS No. 1317-40-4). The liquid

suspension consisting of the CuS particles and highly purified water (Milli-Q Millipore System) was nebulized using an aerosol generator (TOPAS aerosol generator ATM 220). A Sioutas cascade

impactor with a Leland Legacy pump (both SKC, PA, USA) was deployed at a flow rate of 9 L min−1 to precipitate the nebulized CuS particles onto the aluminium targets. The whole procedure

was carried out so as to ensure a suitable spatial distribution of the CuS particles on the aluminium surface. For the imaging of the cell samples, P31 tumour cells were grown in RPMI medium

with 10% FBS and 1% penicillin/streptomycin on gold-coated silicon wafers (~24 h). Then the cells were treated with evofosfamide (50 µM). The cells were rinsed with deionised water and

dried under vacuum conditions. The ceramics sample was synthesized as described by Konegger _et al_.31, 32. A polished cross-section of the sample was analysed using the spectroscopic

techniques without any further processing. The aerosol sample was taken on 20 November 2016 at the Getreidemarkt in Vienna at the TU Wien. The sampling onto the described aluminium-coated

glass cover slips was also done using a Sioutas cascade impactor in combination with a Leland Legacy pump at a flow rate of 9 L min−1. Sampling time was 1.5 h, resulting in a total sampled

air volume of 810 L. For the combined imaging, particles sampled on the second stage, with an aerodynamic particle diameter cut-off between 2.5 and 1 µm, were chosen. RAMAN

MICRO-SPECTROSCOPIC IMAGING Raman imaging was performed using a WITec alpha 300RSA + Raman microscope. This instrument is equipped with four Raman lasers (a 488 nm DPSS, a 532 nm

frequency-doubled NdYAG, a 632.8 nm HeNe, and a 785 nm diode laser) and two lens-based spectrographs. The spectrograph used for the UV/VIS spectral region is equipped with a 300, 600, and

1200 lines per mm grating and an Andor Newton electron multiplying charge-coupled device (EMCCD). The spectrograph used for the NIR spectral region is equipped with a 300 and 600 lines per

mm grating and an Andor iDus Deep Depletion CCD. Raman images were recorded using the software package WITec Control 4.1. The parameters for Raman imaging of the four samples are summarized

in Table 1. ELECTRON MICROSCOPY AND ENERGY-DISPERSIVE X-RAY IMAGING Electron microscopy and EDX imaging was applied using a FEI Quanta 200 electron microscope with an EDAX EDX detector.

Scanning electron microscope images were obtained in secondary and backscattered electron mode. EDX imaging was done at a resolution of 1024 × 768 pixels and an acceleration voltage of 20 

kV. EDX images were accumulated for about one hour to achieve reasonable signal-to-noise ratios of the elemental distributions. The parameters for EDX imaging of the four samples are

summarized in Table 2. TOF-SIMS IMAGING ToF-SIMS imaging was performed using a ToF-SIMS5 (ION-TOF GmbH, Münster, Germany) equipped with a 25 keV bismuth liquid metal ion gun (LMIG). Burst

alignment (BA) mode was applied on all samples with a pulse width of 57.4 ns for the analysis of areas from 100 µm × 100 μm to 300 µm × 300 µm utilizing Bi3 + primary ion clusters. The

primary ion beam was scanned over the region of interest with a repetition rate of 14,300 Hz. Target currents of approximately 0.04 pA and spot size of approximately 200 nm are achieved, but

the mass resolution is decreased to _m_/Δ_m_ ~ 300. For sputtering, a dual source column (DSC) was operated at 1 keV. In positive ion mode, sputtering was done with O2 + at a current of 190

 nA, and in negative ion mode, sputtering was done with Cs+ at a current of 75 nA. All samples were recorded in the non-interlaced sputter mode (the sputtering cycle and the analysis cycle

are decoupled and separated by a specified pause time). During the pause time, a low energy electron flood gun (20 eV) was used to compensate surface charging. DATA PREPROCESSING AND

HANDLING The software package WITec Project 4.1 was used for post-processing of the Raman images. Raman spectral images were exported as graphical ASCII files. EDX elemental images were

post-processed using the EDAX software package TEAM and exported as CSV files. For data interpretation of the ToF-SIMS images, only masses above a certain threshold intensity were taken into

consideration (e.g., 1% of the base peak). Data evaluation was carried out by using ION-TOF SurfaceLab (Version 6.5, ION-TOF GmbH, Münster, Germany). The mass spectra were internally

calibrated using well-known and easily assignable masses (e.g., Na+, Al+, K+, C−, C2 −, P−, PO−, etc.). The error in calibration was kept below 100 ppm. The individual mass deviation of

signals not used for calibration might be larger. An online mass shift correction and a spatial shift correction within the software package were used to achieve optimum mass assignment as

well as highly resolved secondary ion images. For further data treatment, the secondary ion images were exported as BIF6 files. Single imaging datasets were combined into multisensor

hyperspectral datasets using the software package Imagelab (Epina GmbH, Austria). All datasets were imported and aligned to a common background image for each of the four samples. Finally,

the individual hyperspectral datasets were combined to give a multisensor hyperspectral datacube as described by Lohninger and Ofner17. The final spatial resolution of the fused datasets is

depending on the spatial resolutions of every single method and on the lateral offset as well as the rotation of the single datasets to each other. In general, a maximum decrease by the

square-root of 2 of the worst spatial resolution can be expected (at maximum rotation). However, by ensuring a minimized rotational misalignment, spatial resolutions of the fused datasets

can be expected to be hardly worse compared to the worst resolution of a single technique (CuS particles: 250 nm; Tumour cells: 260 nm; Ceramic Composite: 225 nm; Environmental aerosol: 275 

nm). SPDCs for the individual elements from the EDX and masses from the SIMS data cubes were defined by applying single intensity descriptors of the signals. For the RMS data cube, triangle

template peaks, baseline-corrected and –uncorrected integral descriptors of selected bands as well as centroid descriptors (for the ν(C-H) spectral region) and ratio descriptors of two bands

(ZrO2-bands in the ceramics dataset) were defined. Further details on the definition of spectral descriptors, spectral preprocessing, and standardization and application of multivariate

statistics to the multisensor hyperspectral datasets, as well as introductions to the different statistical methods, can be found in preceding studies17, 18. The authors provide the

multisensor data sets and the spectral descriptors used in this study. Further information can be found in the ImageLab data repository (http://www.imagelab.at/en_data_repository.html

datasets DS009 - DS012). REFERENCES * Hayat, M. A. Correlative Microscopy in Biology. Instrumentation and Methods. (Academic Press, 1987). * McDonald, K. L. A review of high-pressure

freezing preparation techniques for correlative light and electron microscopy of the same cells and tissues. _J. Microsc._ 235, 273–281 (2009). Article  MathSciNet  CAS  PubMed  Google

Scholar  * Zhang, P. Correlative cryo-electron tomography and optical microscopy of cells. _Curr. Opin. Struct. Biol._ 23, 763–770 (2013). Article  CAS  PubMed  Google Scholar  * Van de

Plas, R., Yang, J., Spraggins, J. & Caprioli, R. M. Image fusion of mass spectrometry and microscopy: a multimodality paradigm for molecular tissue mapping. _Nat Meth_ 12, 366–372

(2015). Article  Google Scholar  * da Cunha, M. M. L. _et al_. Overview of chemical imaging methods to address biological questions. _Micron_ 84, 23–36 (2016). Article  PubMed  Google

Scholar  * Wu, J. S. _et al_. Imaging and elemental mapping of biological specimens with a dual-EDS dedicated scanning transmission electron microscope. _Ultramicroscopy_ 128, 24–31 (2013).

Article  CAS  PubMed  PubMed Central  Google Scholar  * Sobol, O. _et al_. First use of data fusion and multivariate analysis of ToF-SIMS and SEM image data for studying deuterium-assisted

degradation processes in duplex steels. _Surf. Interface Anal_. n/a-n/a, doi:10.1002/sia.6015 (2016). * Artyushkova, K., Farrar, J. O. & Fulghum, J. E. Data fusion of XPS and AFM images

for chemical phase identification in polymer blends. _Surf. Interface Anal._ 41, 119–126 (2009). Article  CAS  Google Scholar  * Chen, Y. Data fusion for accurate microscopic rough surface

metrology. _Ultramicroscopy_ 165, 15–25 (2016). Article  CAS  PubMed  Google Scholar  * Gowen, A. A. & Dorrepaal, R. M. Multivariate chemical image fusion of vibrational spectroscopic

imaging modalities. _Molecules_ 21 (2016). * Chughtai, S. _et al_. A multimodal mass spectrometry imaging approach for the study of musculoskeletal tissues. _Int. J. Mass Spectrom._ 325–327,

150–160 (2012). Article  Google Scholar  * Smith, E. A. _et al_. Quantitatively imaging chromosomes by correlated cryo-fluorescence and soft x-ray tomographies. _Biophys. J._ 107, 1988–1996

(2014). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Liu, Y., Meirer, F., Krest, C. M., Webb, S. & Weckhuysen, B. M. Relating structure and composition with

accessibility of a single catalyst particle using correlative 3-dimensional micro-spectroscopy. _Nat Commun_ 7, 1–8 (2016). CAS  Google Scholar  * Liu, Y., Kiss, A. M., Larsson, D. H., Yang,

F. & Pianetta, P. To get the most out of high resolution X-ray tomography: A review of the post-reconstruction analysis. _Spectrochim. Acta - Part B At. Spectrosc._ 117, 29–41 (2016).

Article  ADS  CAS  Google Scholar  * Lanni, E. J. _et al_. Correlated Imaging with C 60 -SIMS and Confocal Raman Microscopy: Visualization of Cell-Scale Molecular Distributions in Bacterial

Biofilms. _Anal. Chem._ 86, 10885–10891 (2014). Article  CAS  PubMed  PubMed Central  Google Scholar  * Bonta, M. _et al_. Elemental mapping of biological samples by the combined use of LIBS

and LA-ICP-MS. _J. Anal. At. Spectrom._ 31, 252–258 (2016). Article  CAS  Google Scholar  * Lohninger, H. & Ofner, J. Multisensor hyperspectral imaging as a versatile tool for

image-based chemical structure determination. _Spectrosc. Eur._ 26, 6–10 (2014). CAS  Google Scholar  * Ofner, J. _et al_. Chemometric Analysis of Multisensor Hyperspectral Images of

Precipitated Atmospheric Particulate Matter. _Anal. Chem._ 87, 9413–9420 (2015). Article  CAS  PubMed  Google Scholar  * Jolliffe, I. T. Principal Component Analysis, Second Edition (2002).

* MacQueen, J. B. Kmeans Some Methods for classification and Analysis of Multivariate Observations. _5th Berkeley Symp. Math. Stat. Probab. 1967_ 1, 281–297 (1967). MathSciNet  MATH  Google

Scholar  * Kaufman, L. & Rousseeuw, P. J. _Finding Groups in Data_. (John Wiley & Sons, Inc., 1990), doi:10.1002/9780470316801. * Nascimento, J. M. P. & Dias, J. M. B. Vertex

component analysis: a fast algorithm to unmix hyperspectral data. _IEEE Trans. Geosci. Remote Sens._ 43, 898–910 (2005). Article  ADS  Google Scholar  * Phuruangrat, A., Thongtem, T. &

Thongtem, S. Characterization of copper sulfide hexananoplates, and nanoparticles synthesized by a sonochemical method. _Chalcogenide Lett._ 8, 291–295 (2011). CAS  Google Scholar  *

Frezzotti, M. L., Tecce, F. & Casagli, A. Raman spectroscopy for fluid inclusion analysis. _J. Geochemical Explor._ 112, 1–20 (2012). Article  CAS  Google Scholar  * Milekhin, A. G. _et

al_. Combination of surface- and interference-enhanced Raman scattering by CuS nanocrystals on nanopatterned Au structures. _Beilstein J. Nanotechnol._ 6, 749–754 (2015). Article  CAS

PubMed  PubMed Central  Google Scholar  * Lafuente, B., Downs, R. T., Yang, H. & Stone, N. In _Highlights in Mineralogical Crystallography_ 1–30 (DE GRUYTER, 2016),

doi:10.1515/9783110417104-003. * Socrates, G. Infrared and Raman Characteristic Group Frequencies. (John Wiley & Sons, Ltd, 2011). * Huang, W. E., Li, M., Jarvis, R. M., Goodacre, R.

& Banwart, S. A. _Shining light on the microbial world the application of Raman microspectroscopy. Advances in applied microbiology_ 70 (Elsevier Inc., 2010). * Niaura, G. Raman

Spectroscopy in Analysis of Biomolecules. _Encyclopedia of Analytical Chemistry_. doi:10.1002/9780470027318.a0212.pub3 (2014). Google Scholar  * Baenke, F., Peck, B., Miess, H. &

Schulze, A. Hooked on fat: the role of lipid synthesis in cancer metabolism and tumour development. _Dis. Model. Mech._ 6, 1353–1363 (2013). Article  CAS  PubMed  PubMed Central  Google

Scholar  * Konegger, T. Image-analytical evaluation of the spatial distribution of particulate fillers in ceramic composites prepared via the polymer-derived ceramics route. _Mater.

Charact._ 86, 9–20 (2013). Article  CAS  Google Scholar  * Konegger, T., Schneider, P., Bauer, V., Amsüss, A. & Liersch, A. Structure and performance of polymer-derived bulk ceramics

determined by method of filler incorporation. _IOP Conf. Ser. Mater. Sci. Eng._ 47, 12054 (2013). Article  Google Scholar  * Barberis, P., Merle-Méjean, T. & Quintard, P. On Raman

spectroscopy of zirconium oxide films. _J. Nucl. Mater._ 246, 232–243 (1997). Article  ADS  CAS  Google Scholar  * Solin, S. A. & Ramdas, A. K. Raman spectrum of diamond. _Phys. Rev. B_

1, 1687–1698 (1970). Article  ADS  Google Scholar  * Prawer, S. & Nemanich, R. J. Raman spectroscopy of diamond and doped diamond. _Philos. Trans. A. Math. Phys. Eng. Sci._ 362,

2537–2565 (2004). Article  ADS  CAS  PubMed  Google Scholar  * Syme, R. W. G., Lockwood, D. J. & Kerr, H. J. Raman spectrum of synthetic zircon (ZrSiO 4) and thorite (ThSiO 4). _J. Phys.

C Solid State Phys._ 10, 1335–1348 (1977). Article  ADS  CAS  Google Scholar  * Buzgar, N. & Apopei, A. The Raman study of certain carbonates. _Geol. Tomul L_ 3 (2009). * Ivleva, N. P.,

McKeon, U., Niessner, R. & Pöschl, U. Raman Microspectroscopic Analysis of Size-Resolved Atmospheric Aerosol Particle Samples Collected with an ELPI: Soot, Humic-Like Substances, and

Inorganic Compounds. _Aerosol Sci. Technol._ 41, 655–671 (2007). Article  CAS  Google Scholar  * Ofner, J. _et al_. A novel substrate for multisensor hyperspectral imaging. _J. Microsc._

265, 341–348 (2017). Article  CAS  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS The authors would like to thank the Hochschuljubiläumsstiftung of the City of Vienna (project

H-297306/2014) for funding. The authors also thank the Analytical Instrumentation Center of the TU Wien for access to the infrastructure. F.B. thanks the MEIBio doctoral project of TU Wien

for providing a scholarship in the period 2013 to 2017. The authors acknowledge the TU Wien University Library for financial support through its Open Access Funding Programme. AUTHOR

INFORMATION AUTHORS AND AFFILIATIONS * Institute of Chemical Technologies and Analytics, TU Wien, Getreidemarkt 9, 1060, Vienna, Austria Johannes Ofner, Florian Brenner, Karin Wieland,

Elisabeth Eitenberger, Thomas Konegger, Anne Kasper-Giebl, Herbert Hutter, Gernot Friedbacher, Bernhard Lendl & Hans Lohninger * Institute of Solide State Physics, TU Wien, Wiedner

Hauptstrasse 8, 1040, Vienna, Austria Johannes Kirschner & Christoph Eisenmenger-Sittner * National Korányi Institute of Pulmonology, Budapest, Hungary Szilvia Török & Balazs Döme *

Division of Thoracic Surgery, Department of Surgery, Comprehensive Cancer Center, Medical University of Vienna, Vienna, Austria Balazs Döme * Department of Thoracic Surgery, Semmelweis

University and National Institute of Oncology, Budapest, Hungary Balazs Döme * Department of Biomedical Imaging and Image-guided Therapy, Division of Molecular and Gender Imaging, Medical

University of Vienna, Vienna, Austria Balazs Döme Authors * Johannes Ofner View author publications You can also search for this author inPubMed Google Scholar * Florian Brenner View author

publications You can also search for this author inPubMed Google Scholar * Karin Wieland View author publications You can also search for this author inPubMed Google Scholar * Elisabeth

Eitenberger View author publications You can also search for this author inPubMed Google Scholar * Johannes Kirschner View author publications You can also search for this author inPubMed

Google Scholar * Christoph Eisenmenger-Sittner View author publications You can also search for this author inPubMed Google Scholar * Szilvia Török View author publications You can also

search for this author inPubMed Google Scholar * Balazs Döme View author publications You can also search for this author inPubMed Google Scholar * Thomas Konegger View author publications

You can also search for this author inPubMed Google Scholar * Anne Kasper-Giebl View author publications You can also search for this author inPubMed Google Scholar * Herbert Hutter View

author publications You can also search for this author inPubMed Google Scholar * Gernot Friedbacher View author publications You can also search for this author inPubMed Google Scholar *

Bernhard Lendl View author publications You can also search for this author inPubMed Google Scholar * Hans Lohninger View author publications You can also search for this author inPubMed

Google Scholar CONTRIBUTIONS J.O., F.B. and H.L. conceived the study, processed the data, and wrote the manuscript. J.O. and B.L. did the Raman micro-spectroscopic imaging. J.O., E.E. and

G.F. performed the electron microscopy and the EDX measurements. F.B. and H.H. performed the ToF-SIMS imaging and delivered the data. J.K. and C.E.-S. provided the sampling substrates. T.K.

synthesized and provided the ceramics sample. S.T. and B.D. provided the tumour cells. A.K.-G. and K.W. assisted with the interpretation of the data and provided access to the sampling

equipment. All coauthors discussed the results and commented on the manuscript. CORRESPONDING AUTHOR Correspondence to Johannes Ofner. ETHICS DECLARATIONS COMPETING INTERESTS The authors

declare that they have no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE: Springer Nature remains neutral with regard to jurisdictional claims in published maps and

institutional affiliations. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing,

adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons

license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a

credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted

use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT

THIS ARTICLE CITE THIS ARTICLE Ofner, J., Brenner, F., Wieland, K. _et al._ Image-Based Chemical Structure Determination. _Sci Rep_ 7, 6832 (2017). https://doi.org/10.1038/s41598-017-07041-x

Download citation * Received: 16 February 2017 * Accepted: 21 June 2017 * Published: 28 July 2017 * DOI: https://doi.org/10.1038/s41598-017-07041-x SHARE THIS ARTICLE Anyone you share the

following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer

Nature SharedIt content-sharing initiative
