ABSTRACT Magic-angle twisted bilayer graphene (MATBG) hosts a number of correlated states of matter that can be tuned by electrostatic doping1,2,3,4. Transport5,6 and scanning-probe7,8,9
experiments have shown evidence for band, correlated and Chern insulators along with superconductivity. This variety of in situ tunable states has allowed for the realization of tunable
Josephson junctions10,11,12. However, although phase-coherent phenomena have been measured10,11,12, no control of the phase difference of the superconducting condensates has been
demonstrated so far. Here we build on previous gate-defined junction realizations and form a superconducting quantum interference device13 (SQUID) in MATBG, where the superconducting phase

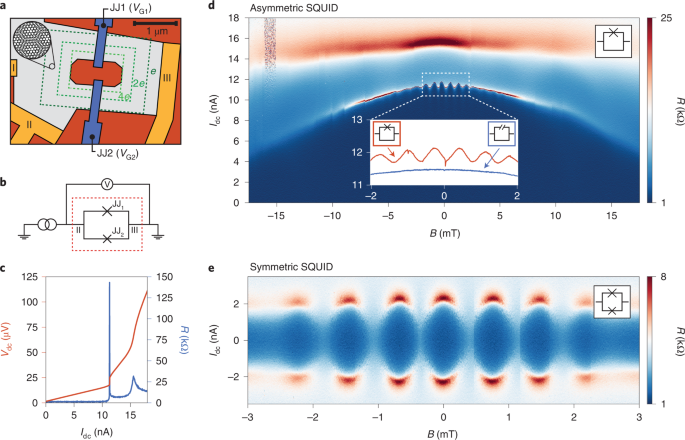

difference is controlled through the magnetic field. We observe magneto-oscillations of the critical current, demonstrating long-range coherence of superconducting charge carriers with an
effective charge of 2_e_. We tune to both asymmetric and symmetric SQUID configurations by electrostatically controlling the critical currents through the junctions. This tunability allows
us to study the inductances in the device, finding values of up to 2 μH. Furthermore, we directly probe the current–phase relation of one of the junctions of the device. Our results show
that complex devices in MATBG can be realized and used to reveal the properties of the material. We envision our findings, together with the established history of applications SQUIDs
have14,15,16, will foster the development of a wide range of devices such as phase-slip junctions17 or high kinetic inductance detectors18. Access through your institution Buy or subscribe
This is a preview of subscription content, access via your institution ACCESS OPTIONS Access through your institution Access Nature and 54 other Nature Portfolio journals Get Nature+, our
best-value online-access subscription $32.99 / 30 days cancel any time Learn more Subscribe to this journal Receive 12 print issues and online access $259.00 per year only $21.58 per issue
Learn more Buy this article * Purchase on SpringerLink * Instant access to full article PDF Buy now Prices may be subject to local taxes which are calculated during checkout ADDITIONAL
ACCESS OPTIONS: * Log in * Learn about institutional subscriptions * Read our FAQs * Contact customer support SIMILAR CONTENT BEING VIEWED BY OTHERS TUNABLE STRONGLY COUPLED
SUPERCONDUCTIVITY IN MAGIC-ANGLE TWISTED TRILAYER GRAPHENE Article 01 February 2021 GATE-DEFINED JOSEPHSON JUNCTIONS IN MAGIC-ANGLE TWISTED BILAYER GRAPHENE Article 03 May 2021 TUNABLE
QUANTUM INTERFEROMETER FOR CORRELATED MOIRÉ ELECTRONS Article Open access 09 January 2024 DATA AVAILABILITY The data that support the findings of this study are available online through the
ETH Research Collection at https://doi.org/10.3929/ethz-b-000563127. This includes analysis and plotting scripts for Figs. 1–3, Extended Data Figs. 2–9 and Supplementary Information Figs.
1–3. It also includes raw microscopy files for Extended Data Fig. 1. CODE AVAILABILITY The code used for plotting the figures is available online through the ETH Research Collection at
https://doi.org/10.3929/ethz-b-000563127. REFERENCES * Cao, Y. et al. Unconventional superconductivity in magic-angle graphene superlattices. _Nature_ 556, 43–50 (2018). Article CAS Google
Scholar * Cao, Y. et al. Correlated insulator behaviour at half-filling in magic-angle graphene superlattices. _Nature_ 556, 80–84 (2018). Article CAS Google Scholar * Lu, X. et al.
Superconductors, orbital magnets and correlated states in magic-angle bilayer graphene. _Nature_ 574, 653–657 (2019). Article CAS Google Scholar * Li, G. et al. Observation of Van Hove
singularities in twisted graphene layers. _Nat. Phys._ 6, 109–113 (2010). Article Google Scholar * Yankowitz, M. et al. Tuning superconductivity in twisted bilayer graphene. _Science_ 363,
1059–1064 (2019). Article CAS Google Scholar * Das, I. et al. Symmetry-broken Chern insulators and Rashba-like Landau-level crossings in magic-angle bilayer graphene. _Nat. Phys._ 17,
710–714 (2021). Article CAS Google Scholar * Jiang, Y. et al. Charge order and broken rotational symmetry in magic-angle twisted bilayer graphene. _Nature_ 573, 91–95 (2019). Article CAS
Google Scholar * Nuckolls, K. P. et al. Strongly correlated Chern insulators in magic-angle twisted bilayer graphene. _Nature_ 588, 610–615 (2020). Article CAS Google Scholar * Choi,
Y. et al. Correlation-driven topological phases in magic-angle twisted bilayer graphene. _Nature_ 589, 536–541 (2021). Article CAS Google Scholar * de Vries, F. K. et al. Gate-defined
Josephson junctions in magic-angle twisted bilayer graphene. _Nat. Nanotechnol._ 16, 760–763 (2021). Article Google Scholar * Rodan-Legrain, D. et al. Highly tunable junctions and
non-local Josephson effect in magic-angle graphene tunnelling devices. _Nat. Nanotechnol._ 16, 769–775 (2021). Article CAS Google Scholar * Diez-Merida, J. et al. Magnetic Josephson
junctions and superconducting diodes in magic angle twisted bilayer graphene. Preprint at https://arxiv.org/abs/2110.01067 (2021). * Tinkham, M. _Introduction to Superconductivity_ (Dover,
2004). * Palacios-Laloy, A. et al. Tunable resonators for quantum circuits. _J. Low Temp. Phys._ 151, 1034–1042 (2008). Article CAS Google Scholar * Koch, J. et al. Charge-insensitive
qubit design derived from the cooper pair box. _Phys. Rev. A_ 76, 042319 (2007). Article Google Scholar * Orlando, T. P. et al. Superconducting persistent-current qubit. _Phys. Rev. B_ 60,
15398–15413 (1999). Article CAS Google Scholar * Mooij, J. E. & Nazarov, Y. V. Superconducting nanowires as quantum phase-slip junctions. _Nat. Phys._ 2, 169–172 (2006). Article CAS
Google Scholar * Day, P. K., LeDuc, H. G., Mazin, B. A., Vayonakis, A. & Zmuidzinas, J. A broadband superconducting detector suitable for use in large arrays. _Nature_ 425, 817–821
(2003). Article CAS Google Scholar * Clarke, J. & Braginski, A. I. _The SQUID Handbook Vol. 2: Applications of SQUIDs and SQUID Systems_ (Wiley-VCH, 2006). Book Google Scholar *
Little, W. A. et al. Observation of quantum periodicity in the transition temperature of a superconducting cylinder. _Phys. Rev. Lett._ 9, 9–12 (1962). Article Google Scholar * Kemppinen,
A. et al. Suppression of the critical current of a balanced superconducting quantum interference device. _Appl. Phys. Lett._ 92, 052110 (2008). Article Google Scholar * Larsen, T. W. et
al. Semiconductor-nanowire-based superconducting qubit. _Phys. Rev. Lett._ 115, 127001 (2015). Article CAS Google Scholar * Wang, J. I.-J. et al. Coherent control of a hybrid
superconducting circuit made with graphene-based van der Waals heterostructures. _Nat. Nanotechnol._ 14, 120–125 (2019). Article CAS Google Scholar * Courtois, H., Meschke, M., Peltonen,
J. T. & Pekola, J. P. Origin of hysteresis in a proximity josephson junction. _Phys. Rev. Lett._ 101, 067002 (2008). Article CAS Google Scholar * Cardwell, D. & Ginley, D.
_Handbook of Superconducting Materials_ 1st edn (CRC Press, 2002). * Goswami, S. et al. Quantum interference in an interfacial superconductor. _Nat. Nanotechnol._ 11, 861–865 (2016). Article
CAS Google Scholar * Nichele, F. et al. Relating Andreev bound states and supercurrents in hybrid Josephson junctions. _Phys. Rev. Lett._ 124, 226801 (2020). Article CAS Google Scholar
* Tesche, C. D. & Clarke, J. dc SQUID: noise and optimization. _J. Low Temp. Phys._ 29, 301–331 (1977). Article Google Scholar * Beenakker, C. W. J. in _Transport Phenomena in
Mesoscopic Systems_ (Fukuyama, H. & Ando, T., eds) 235–253 (Springer, 1992). * Della Rocca, M. L. et al. Measurement of the current-phase relation of superconducting atomic contacts.
_Phys. Rev. Lett._ 99, 127005 (2007). Article Google Scholar * Oh, M. et al. Evidence for unconventional superconductivity in twisted bilayer graphene. _Nature_ 600, 240–245 (2021).
Article CAS Google Scholar * Kim, K. et al. Van der Waals heterostructures with high accuracy rotational alignment. _Nano Lett._ 16, 1989–1995 (2016). Article CAS Google Scholar * Uri,
A. et al. Mapping the twist-angle disorder and Landau levels in magic-angle graphene. _Nature_ 581, 47–52 (2020). Article CAS Google Scholar * Grover, F. W. _Inductance Calculations:
Working Formulas and Tables_ (Dover, 1962). Download references ACKNOWLEDGEMENTS We thank P. Märki, L. Ginzburg, P. Tomić and the staff of the ETH cleanroom facility FIRST for technical
support. We thank H. Pothier for helpful and detailed discussions on superconducting devices and O. Zilberberg, J. Cole and members of the quantum e-leaps consortium for comments on our
data. We acknowledge financial support by the European Graphene Flagship, the ERC Synergy Grant Quantropy, the European Union’s Horizon 2020 research and innovation programme under grant
agreement number 862660/QUANTUM E LEAPS and NCCR QSIT (Swiss National Science Foundation). K.W. and T.T. acknowledge support from the Elemental Strategy Initiative conducted by the MEXT,
Japan (grant number JPMXP0112101001) and JSPS KAKENHI (grant numbers 19H05790, 20H00354 and 21H05233). E.P. acknowledges support of a fellowship from ‘la Caixa’ Foundation (ID 100010434)
under fellowship code LCF/BQ/EU19/11710062. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Solid State Physics Laboratory, ETH Zurich, Zurich, Switzerland Elías Portolés, Shuichi Iwakiri,
Giulia Zheng, Peter Rickhaus, Thomas Ihn, Klaus Ensslin & Folkert K. de Vries * International Center for Materials Nanoarchitectonics, National Institute for Materials Science, Tsukuba,
Japan Takashi Taniguchi * Research Center for Functional Materials, National Institute for Materials Science, Tsukuba, Japan Kenji Watanabe * Quantum Center, ETH Zurich, Zurich, Switzerland
Thomas Ihn & Klaus Ensslin Authors * Elías Portolés View author publications You can also search for this author inPubMed Google Scholar * Shuichi Iwakiri View author publications You
can also search for this author inPubMed Google Scholar * Giulia Zheng View author publications You can also search for this author inPubMed Google Scholar * Peter Rickhaus View author
publications You can also search for this author inPubMed Google Scholar * Takashi Taniguchi View author publications You can also search for this author inPubMed Google Scholar * Kenji
Watanabe View author publications You can also search for this author inPubMed Google Scholar * Thomas Ihn View author publications You can also search for this author inPubMed Google
Scholar * Klaus Ensslin View author publications You can also search for this author inPubMed Google Scholar * Folkert K. de Vries View author publications You can also search for this
author inPubMed Google Scholar CONTRIBUTIONS E.P. fabricated the device. T.T. and K.W. supplied the hBN crystals. E.P. and F.K.d.V. performed the measurements and analysis of the data. E.P.,
F.K.d.V., S.I., G.Z. and P.R. discussed the data. F.K.d.V., T.I. and K.E. supervised the project. E.P. and F.K.d.V. wrote the manuscript with comments from all authors. CORRESPONDING
AUTHORS Correspondence to Elías Portolés or Klaus Ensslin. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW INFORMATION _Nature
Nanotechnology_ thanks the anonymous reviewers for their contribution to the peer review of this work. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to
jurisdictional claims in published maps and institutional affiliations. EXTENDED DATA EXTENDED DATA FIG. 1 DEVICE FABRICATION: CAPTURE OF THE DESIGN FILE AND OPTICAL IMAGES TAKEN DURING THE
FABRICATION PROCESS. A Optical image of the device after etching and evaporation of the gold contacts. The scale bar corresponds to a length of 1_μ_m. B Optical image of the device after
mesa etching. C Optical image of the device after the deposition of a layer of aluminium oxide and definition and evaporation of top gates. D Capture of the design file of the device.
Contacts are depicted in yellow, etched areas in pink and top gates in white. EXTENDED DATA FIG. 2 DENSITY MAPS AND ANGLE EXTRACTION. A Differential resistance maps across the device as a
function of electron density in regions biased by only the back gate (global) or both back and top gates. The data in the left panel corresponds to _V_G1 being swept and gate 2 being fixed
at _V_G2 = 10V. In the centre panel _V_G2 is swept while gate 1 is kept constant at _V_G1 = 10V. In the right panel both top gates are swept together. Densities are computed from the model
described in the Methods section. Black dashed lines indicate the values at which we consider the flat bands to be fully filled. These values are then used to extract the twist angle of the
device. B Extended range trace of the resistance as a function of the global density induced by the back gate, with each local top gate set to zero. EXTENDED DATA FIG. 3 RESISTANCE OF THE
DEVICE AS A FUNCTION OF DENSITY. VG1 and VG2 are kept at zero volts. We plot the derivative of the measured voltage drop as a function of the current bias, which corresponds to the
differential resistance _R_ = _d__V_/_d__I_dc across the device. The red dashed line indicates the ’optimal density’ _n_opt = − 1.27 × 1012_c__m_−2 at which we set the back gate when wanting
to maximize the critical current through the device. The upper axis indicates the filling factors corresponding to the electron densities. EXTENDED DATA FIG. 4 DIFFERENTIAL RESISTANCE
ACROSS EACH ARM OF THE LOOP AS A FUNCTION OF LOCAL DENSITIES. The back gate is tuned to its optimal point _n_opt = − 1.27 × 1012_c__m_−2. We step the local top gate of each arm and sweep the
current bias. For A, the voltage bias of gate G2 is fixed at _V_G2 = 10V, to prevent any supercurrent from going through it, while we step G1. For B the configuration is the opposite, we
have _V_G1 = 10V while we step _V_G2. The dashed lines correspond to the voltage of each top gate at the asymmetric (orange) and symmetric (red) regime measurements shown in Fig. 1d,e.
EXTENDED DATA FIG. 5 CRITICAL FIELD AT EACH ARM OF THE DEVICE. The voltage of the back gate is set to the optimal point for every figure. A Differential resistance as a function of current
bias and magnetic field when _V_G1 = 10V, preventing any supercurrent from flowing through arm 1 and _V_G2 = -0.5V maximizes the critical current of arm 2. We thus observe the resistance
across arm 2 of the device as a function of current and magnetic field. B Same measurement as in A, this time with _V_G2 = 10V and _V_G1 = -0.37V. EXTENDED DATA FIG. 6 HYSTERESIS AND
DISCONTINUITIES IN THE CRITICAL CURRENT AS A FUNCTION OF MAGNETIC FIELD. Each line represents a CPR trace taken at the most asymmetric regime of the device. The magnetic field is swept from
negative to positive in a small range, then the direction is reversed and the range increased. This procedure is repeated several times to obtain the data shown in the figure. Switches in
the CPR traces and hysteresis appear as the range of the magnetic field sweep increases. We can not rule out a ferromagnetic part of the cryostat or the superconducting magnet to be at the
origin of this phenomenon. Therefore, we do not highlight it in the main text. EXTENDED DATA FIG. 7 PRESENCE OR ABSENCE OF OSCILLATIONS DEPENDING ON THE CURRENT SWEEP DIRECTION. The device
is in the most asymmetric configuration. The left panel of the figure is a zoom in of Fig. 1. We measure the voltage drop across the device as a function of magnetic field and current. We
observe oscillations due to superconducting interference in the superconducting lobe or the switching current but no oscillations for the retrapping current. The current bias is swept from
negative to positive values in the left panel and from positive to negative in the right panel. EXTENDED DATA FIG. 8 VOLTAGE DROP OVER THE DEVICE WHEN BIASED ABOVE THE CRITICAL CURRENT IN
THE SYMMETRIC REGIME. The curves show the voltage drop across the device as a function of magnetic field with a different current bias for each curve. Black dotted lines are guides to the
eye plotted using equation (S1) fixing _I__c_ at 2.25 nA. EXTENDED DATA FIG. 9 RESISTANCE ACROSS THE DEVICE AS A FUNCTION OF DENSITY AND TEMPERATURE. The black dotted line highlights the
superconducting lobe. The line is taken where the resistance is 50% of the normal state resistance. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION Supplementary Discussion and Figs.
