The resistance to oxidizing environments exhibited by some Mn+1AXn (MAX) phases stems from the formation of stable and protective oxide layers at high operating temperatures. The MAX phases

are hexagonally arranged layered nitrides or carbides with general formula Mn+1AXn, n = 1, 2, 3, where M is early transition elements, A is A block elements, and X is C/N. Previous attempts

to model and assess oxide phase stability in these systems has been limited in scope due to higher computational costs. To address the issue, we developed a machine-learning driven

high-throughput framework for the fast assessment of phase stability and oxygen reactivity of 211 chemistry MAX phase M2AX. The proposed scheme combines a sure independence screening

sparsifying operator-based machine-learning model in combination with grand-canonical linear programming to assess temperature-dependent Gibbs free energies, reaction products, and elemental

chemical activity during the oxidation of MAX phases. The thermodynamic stability, and chemical activity of constituent elements of Ti2AlC with respect to oxygen were fully assessed to

understand the high-temperature oxidation behavior. The predictions are in good agreement with oxidation experiments performed on Ti2AlC. We were also able to explain the metastability of

Ti2SiC, which could not be synthesized experimentally due to higher stability of competing phases. For generality of the proposed approach, we discuss the oxidation mechanism of Cr2AlC. The

insights of oxidation behavior will enable more efficient design and accelerated discovery of MAX phases with maintained performance in oxidizing environments at high temperatures.

Similar content being viewed by others A theoretical investigation of the effect of Ga alloying on thermodynamic stability, electronic-structure, and oxidation resistance of Ti2AlC MAX phase

Article Open access 29 July 2022 Low-temperature non-equilibrium synthesis of anisotropic multimetallic nanosurface alloys for electrochemical CO2 reduction Article 07 September 2023

Machine learning aided design of single-atom alloy catalysts for methane cracking Article Open access 18 July 2024 Introduction

Mn+1AXn (MAX) phases belong to the group of ternary carbides and nitrides in which M is early transition metal, A is group 13–16 element and X is C or N1,2,3. Unlike conventional ceramics,

MAX phases are machinable4 and have unique combination of properties such as low density, high strength5, excellent thermal shock resistance, and damage tolerance6. MAX phases are

particularly useful due to their high-temperature stability, making them suitable for structural applications—under extreme (or at least elevated) ambient temperature conditions—in a number

of industries, including nuclear power and aerospace propulsion systems4. Tailoring the composition within the MAX crystal system can provide further control of the chemical, mechanical,

magnetic, and thermal properties of these compounds2. Unfortunately, at elevated temperatures and under oxidizing conditions, most MAX phases undergo detrimental self-sustaining oxidation

reactions that result in catastrophic loss of mechanical integrity4,7,8,9.

The oxidation behavior of ceramic materials such as MAX phases has often been used as a primary materials selection criterion for high-temperature applications. The potential oxidation

resistance of a candidate MAX phase depends on its ability to form a stable passivating oxide layer as weakly bonded elements that typically reside in the A-sites react with oxygen in the

environment. The Al, Cr, or Si-containing MAX phases have been shown to provide varying degrees of protection from further oxidation by forming primarily Al2O3, Cr2O3, or SiO2 protective

coatings at high temperatures7,10. Ti2AlC, Ti3AlC2, Cr2AlC, or Ti3SiC2 are few such examples of Al, Cr, or Si-containing MAX phases, where the weakly bonded A-element (Al, Si) is capable of

leaving the layered lattice to form protective predominately Al2O3 and SiO2 oxide scales during high-temperature oxidation7,8,11. The facile formation of a protective Al-/Si-based oxide

layer is likely the result of a higher Al/Si diffusivity and chemical activity when compared to M element, that makes them readily available for oxidation at the surface of the MAX phase

compound in contact with an oxidizing environment12,13,14,15.

Despite the fact that the assessment of oxidation behavior in MAX phases is of critical importance for their further development as a high-temperature structural or coating material, to date

there is no current computational approach capable of quickly assessing the oxide phase stability of arbitrary MAX phase compositions. Such an approach could in turn be used to guide the

experimental discovery and optimization of MAX phases with superior high-temperature performance under oxidizing conditions. Unfortunately, the oxidation process is very complex and

expensive to model computationally, and to characterize experimentally. It requires detailed and definitive studies of oxide thickness, stresses, diffusion coefficients, equilibrium

parameters, and volume change as functions of oxidation temperature and time16,17,18. On the computational front, assessment of the phase stability of a materials system under oxidation

requires full knowledge of the finite-temperature thermodynamics of all phases likely to take part in equilibrium at particular conditions (temperature and composition of the system). This

information may not be readily available in conventional thermodynamic databases and is exceedingly expensive to acquire from first-principles methods19.

To address the computational bottleneck, we present an automated machine-learning-based scheme to predict favorable thermodynamic reactions and oxidation behavior of MAX phases at elevated

temperatures at different oxygen partial pressures (pO2). Our workflow combines sure independence screening and sparsifying operator (SISSO)20,21,22 with grand-canonical linear programming

(GCLP)23,24 into a single framework to predict the phase stability of product phases of the general [Mn+1AXn + O2] reaction at elevated temperatures. Here, we mainly focused on n = 1 MAX

phase, i.e., M2AX, where early transition elements (M), group-13/14 (A = Al,Si), and group-14 (C, N) elements are mixed in 2:1:1 ratio. Experimental enthalpy and total energy database of

transition metal oxides and other (binary, ternary) phases, required to predict finite-temperature Gibbs’ free energies (∆Gform) by SISSO, are taken from the NIST-JANAF thermochemical

tables25,26, Open Quantum Materials Database (OQMD)27, and first-principles density functional calculations. GCLP uses temperature-dependent ∆Gform from SISSO to predict [M2AX + O2] reaction

products, fractions of the product states, and their chemical activities for given temperature and oxygen content. Among the alumina-forming MAX phases, we choose Ti2AlC for detailed

comparative theoretical and experimental study because of its practical applications28,29. Our high-throughput predictions compare well with experiments. We also present a detailed

discussion on our predictions on oxidation behavior of Cr2AlC in order to show the generality of our scheme.

Since model evaluation is a very important criteria in machine-learning approaches, we use composition-dependent TixO1–x (see Supplementary Fig. 1 for AlxO1–x) as a test set to validate the

SISSO20,21,22 predictions by calculating temperature-dependent convex hull as shown in in Fig. 1a (see Supplementary Table 1). Our predictions and error in predictions of ΔGform for TixO1–x

are validated against the experimental dataset from NIST-JANAF thermochemical tables25. Model predicts TiO2, Ti3O5, TiO3, TiO, Ti2O, Ti3O, and Ti6O as seven stable phases at 300 K, whereas

Ti2O and Ti6O phases disappear from the convex hull at 1800 K. The convex hull at any given temperature suggests thermodynamic stability of that phase or composition, whereas any phase above

the convex hull is thermodynamically metastable. The error (RMSE) in the predictions of ΔGform of TixO1–x increases with temperature with outliers emerging at higher temperatures in Fig.

1b–d, which possibly originates from the use of 0 K cell volumes of the involved phases as a feature used to compute the finite-temperature Gibbs free energy of formation. The increase in

prediction error (R2) at elevated temperatures, in part, may also stem from possible phase changes at higher temperatures. Regardless of these limitations, the close agreement between

predicted and experimental ΔGform at higher temperatures in Fig. 1 indicates that the prediction error in ΔGform can be minimized by proper assessment of formation enthalpies. The phases of

Ti-O compounds that underwent gas phase transitions were omitted at higher temperatures21.

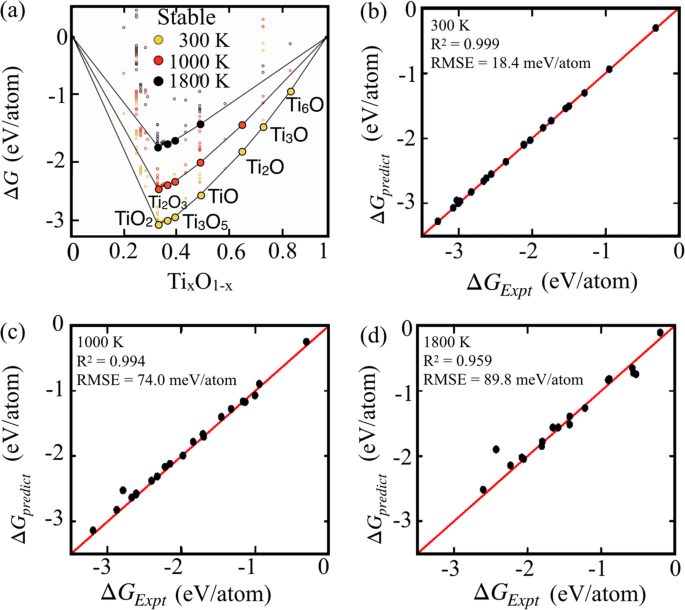

a Convex hull of Ti1–xOx generated using SISSO model, and (b–d) corresponding error in prediction compared to experimental (NIST-JANAF) dataset at 300, 1000, and 1800 K. The error in

prediction increases with temperature due to use of 0 K unit cell volumes.

The SISSO framework predicts the \(\Delta G_{{\mathrm{form}}}\) using the \(\Delta H_{{\mathrm{form}}}\) as input as accessed from OQMD27, which is defined conventionally as the difference

of total energies between a compound and its constituent elements as \(\Delta H_{{\mathrm{form}}} = E_{{\mathrm{total}}}^{{\mathrm{compound}}} - \mathop {\sum}\nolimits_{\mathrm{i}}

{n_{\mathrm{i}}E_{\mathrm{i}}}\), where \(E_{{\mathrm{total}}}^{{\mathrm{compound}}}\) is the total energy of the alloy, (ni, Ei) is the number of atoms and elemental energy of type “i”. The

SISSO predicted ∆Gform correspond to a single phase, not to the entire convex hull. A set of ∆Gform are used to compute the convex hull (as a function of temperature), see Fig. 1 (Ti-O) and

Supplementary Fig. 2 (Al-O).

The ΔGform is the relevant thermodynamic potential to assess thermodynamic equilibrium under isobaric/isothermal conditions for closed systems. Its minimization naturally leads to the

determination of the most stable equilibrium state and can thus be used to assess the resulting reaction products for a given set of reactants. Therefore, the knowledge of the

temperature-dependent ΔGform of reaction products during oxidation can greatly help the screening of MAX phases capable of withstanding high-temperature oxidizing conditions. We use the

proposed high-throughput scheme to calculate temperature-dependent ∆Gform of 30 MAX phases with 211 stacking. The model uses the 0 K formation enthalpies ΔHform [0 K; see Supplementary

Tables 2–8] of M2AC (M=Sc, Y, Ti, Zr, Hf, V, Nb, Ta, Cr, Mo, Mn, Fe, Co, Ni, and Cu; A=Al, and Si) MAX phases and elemental ΔGi from experiments to estimate \(\Delta G_{{\mathrm{form}}}\)

[\(= \Delta H_{{\mathrm{form}}} + \Delta G^{{\mathrm{SISSO}}}\left( T \right) - \mathop {\sum}\nolimits_{\mathrm{i}} {x_{\mathrm{i}}\Delta G_{\mathrm{i}}(T)}\)] at elevated temperatures;

here x is the stoichiometric weight of each element in the compound, ΔHform is the formation enthalpy; and ΔGSISSO is SISSO predicted entropic contribution to the ∆Gform21. We note that the

calculation of the finite-temperature phase stability of just one system may take millions of supercomputing CPU-hours, and months of actual calculation time, as demonstrated in work by a

subset of these authors in the investigation of the phase stability in the Ti2AlC-Cr2AlC quaternary system19.

The ∆Gform for aluminum- and silicon-based MAX phases is shown as a heat map in Fig. 2a, b, respectively for 300 K–2000 K temperature range. The ∆Gform for M2AlC and M2SiC is arranged as

increasing valence electron count (VEC) across the period in the periodic table for M from group III to XI with VEC of 3–11 [(III=Sc, Y), 4 (IV=Ti, Zr, Hf), 5 (V=V, Nb, Ta), 6 (VI=Cr, Mo), 7

(VII=Mn), 8 (VIII=Fe), 9 (IX=Co), 10 (X=Ni), and 11 (XI=Cu)]. The ∆Gform shows decreasing trend in stability with increase in valence electron counts. The Fe2AlC, Co2AlC, Ni2AlC, Cu2AlC MAX

phases with higher VEC do not exist as they decompose to competing phases2, which further confirms our results. In addition to highlighting a relationship between the thermodynamic

stability of MAX phases with VEC, we show the temperature-dependent ∆Gform of Ti2AC (A=Al, Si) and other possible binary phases in Supplementary Tables 3,5–7. The jump in ∆Gform at Ta-to-Cr

and Ni-to-Cu is clearly visible with increasing VEC in Fig. 2a, b. This arises from near half-filling of d-states in Cr, and complete filling of non-bonding d-states in Cu. The ∆Gform also

shows weakly separated stability regions with respect to temperature at 600 K, i.e., below 600 K and over 600 K (see Supplementary Fig. 2). The change in the ∆Gform at higher temperatures

implies an interplay of temperature-dependent enthalpy and entropic contributions. The accuracy of the SISSO model in predicting ∆Gform of binary oxides and MAX phases shows good agreement

between predicted and experimentally known Ti-O phases as shown in Fig. 1. Similarly, we show the heat map of M2SiC ∆Gform, where M=Sc, Y, Ti, Zr, Hf, V, Nb, Ta, Cr, Mo, Mn, Fe, Co, Ni and

Cu, for the temperature range 300 K–2000 K. The fast assessment of ∆Gform using SISSO will allow us to quickly scan the thermodynamic stability of MAX phases in particular, and a wider range

of materials in general.

Stability heat map for a M2AlC, and b M2SiC MAX phases. M elements organized by periodic group, arranged by increasing valence electron count. Also see SISSO predicted ∆Gform in Table S3 of

other binary and ternary phases. c–d Heat map of competing phase for Ti2AlC and Ti2SiC MAX phases during oxidation process in presence of static oxygen (O2) at temperatures 300–2000 

K.

The ∆Gform for the different MAX phases in Fig. 2a–b is a thermodynamically defined quantity that indicates the intrinsic stability of different MAX phases––relative to constituent

elements––as a function of temperature. This just verifies whether the MAX phases are stable with regards to their constituent elements. We have discussed in the later part of the manuscript

that analysis purely based on Gibb’s stability could be misleading. Therefore, results in Fig. 2 should be seen as the part of story. However, as guide to eyes, we provide ∆Gform for

competing phases in Fig. 2c–d for Ti2AlC and Ti2SiC, respectively. The ∆Gform analysis of 211 MAX phases allows us to set up two-fold hypothesis to test the proposed high-throughput

framework—(1) Can the predicted energies be used to assess oxidation behavior (reaction products and relative stability of competing phases) at higher temperatures, and (2) are we able to

reproduce correct trends as experiments for the selected MAX phases.

Keeping this in mind, we choose systems with opposite characteristics—(a) stable M2AlC, e.g., Ti2AlC/Cr2AlC, and metastable M2SiC, e.g., Ti2SiC—we note that the latter is thermodynamically

stable against decomposition into its constituent elements but should not belong to the convex hull at any temperature and under any oxidation condition. We show that for both the cases, we

could correctly characterize the thermodynamic stability of competing phases and chemical activity of elements at higher temperatures. All possible (thermodynamically stable) binary/ternary

phases are included in this work, which is based on convex-hull algorithm used both by OQMD27 and AFLOW30.

The oxidation reaction at the interface of any alloy and oxide layer is the result of a phase selection process, in which the most favorable products of this process tend to be those close

to the lowest (free) energy hyper-surface (or convex hull). The 0 K density-functional theory (DFT)-derived free energies and enthalpies of MAX phases as well as other competing phases are

corrected for entropic contributions using our machine-learning-based high-throughput framework.

The oxidation behavior of of Ti2SiC + O2 is analyzed and the thermodynamically competing reaction products are shown in the heat map in Fig. 3. The color bar from 0–1 shows the molar

fraction of each phase. We also found that the hypothetical Ti2SiC MAX phase is intrinsically stable31,32,33,34 but experimentally not yet been realized due to higher stability of other

thermodynamically competing phases in the complex Ti-Si-C phase diagram35. At the onset of oxidation process, α-SiO2 forms, which is the most stable oxide that appears at all temperatures

and all oxygen molar-concentrations. Other phases to form are Ti2O3, Ti3SiC2, Ti4SiC3, and TiSi. At higher oxygen concentration, Ti3SiC2 and Ti4SiC3 further transforms into TiC to maintain

Si supply required for α-SiO2 formation and completely disintegrates into α-SiO2/TiC/C/Ti2O3 as shown in Table 1. This can be seen by reduced amount of another MAX phase with smaller Si

content, namely Ti3SiC2 and Ti4SiC3 phases in Fig. 3. Ti2O3 further transforms into TiO2 at high oxygen concentrations. We can also see in Fig. 3 and Supplementary Table 3 that Ti3O5 and

Ti2O3 have competing ∆Gform, therefore, depending on phase-fraction size Ti2O3 disappears at some temperatures for low oxygen content. However, for the high oxygen contents, Ti3SiC2, Ti4SiC3

Ti3O5, and Ti2O3 disintegrate to pave the way to the formation of more stable rutile phase, i.e., TiO2. Note that Ti2SiC never belongs to the convex hull, i.e., Ti2SiC phase fraction is

“zero” for all oxygen mole percent for the full temperature range. The absence of Ti2SiC in the heat map in Fig. 3 further confirms this robustness of our approach in predicting correct

thermodynamic behavior of Ti2SiC MAX phase.

a–i Phase fractions of [Ti2SiC + O2] reaction products at different temperatures with changing molar percent oxygen (0–11 moles). The color gradient (shades of blue) shows molar phase

fractions. Blank spot [white (0)] suggests no phases. Note that Ti2SiC never belongs to the convex hull, which has zero phase fraction at all oxygen mole fractions.

Predicted set of thermodynamically favored reaction products in Ti2SiC + O2 at reaction temperature of 1500 K.Full size table

Thermodynamically feasible oxidation reaction products predicted using GCLP analysis at 1500 K for x.Ti2SiC + y.O2 at varying oxygen concentrations are shown in Table 1. The reaction product

of x moles of Ti2SiC and y moles of O2 can qualitatively be written for selective oxidation of Ti or Si as:

x({\mathrm{Ti}}_3{\mathrm{Si}}_{1 - x}{\mathrm{C}}_2 + {\mathrm{Ti}}_4{\mathrm{Si}}_{1 - x}{\mathrm{C}}_3) + y.{\mathrm{SiO}}_2,$$ (1)

or

\right)}{\mathrm{Si}}_{1 - x}{\mathrm{C}}_3 + {\mathrm{TiO}}_2.$$ (2)

At high enough oxygen content, TiC further breaks away and C diffuses through rutile layer (TiO2) and oxidizes into CO2, i.e.,

{\mathrm{Ti}}_3{\mathrm{SiC}}_2 + {\mathrm{Ti}}_4{\mathrm{SiC}}_3 + {\mathrm{Ti}}_2{\mathrm{O}}_3 \to {\mathrm{SiO}}_2 + {\mathrm{TiO}}_2 + {\mathrm{CO}}_2 + {\mathrm{O}}_2.$$ (3)

The chemical activity of constituent elements of the Ti2SiC + O2 during oxidation process at 1500 K are shown in Fig. 4. The (partial) chemical potential of (Ti, Al, C, O) is calculated for

an open system using unknown molar concentration of reaction products by mixing of grand-canonical ∆Gform at 1500 K. The reaction chain is associated with the reductions in the partial

chemical potentials of Ti, Si, and C, but increase in the chemical potential of O with increasing oxygen content. The higher Ti/Si/C activity at the early oxidation stage is directly related

to their partial chemical potentials. Two chemical potentials zones in Fig. 4 with increasing oxygen content are identified—(a) slowly varying (I–III); and (b) sharp changing (IV–V). The

sharp change in chemical potential occurs in the region IV–V as Ti3SiC2/Ti4SiC3/TiC completely disintegrates by then, moreover, C oxidizes to form gaseous CO2. The occurrence of C and CO2 at

higher temperature suggests loss of carbon. The predicted trend in chemical potential suggests increased oxygen activity at higher oxygen content.

during oxidation process.

Oxidation reaction chain showing change in chemical potential of Ti2SiC as a function of changing molar percent oxygen at 1500 K. On oxidation, the partial chemical potentials of Ti/Si/C

reduce while the chemical potential of invading O2 increases.

In Fig. 5, we analyze the oxidation behavior of Ti2AlC and show the heat map of the molar phase-fractions of Ti2AlC + O2 reaction product (the color bar on right represents the molar

percent, or phase fraction, of each phase). The heat map shows the presence of Al2O3 at all oxygen mole fractions and for 300–2000 K, whereas, different Ti-O phases are observed at low

(TiO), intermediate (TiO, Ti2O3, Ti3O5), and high (TiO2) oxygen contents. At the onset of oxidation process Al2O3, Ti3AlC2, and TiO forms first, which is followed by the reaction of oxygen

with Ti3AlC2 that gradually transforms to TiC. At high oxygen contents, the MAX phase eventually disintegrates completely into solid Al2O3 and TiO2, and gaseous CO2 phase.

Competing phases and phase-fraction of Ti2AlC + O2 MAX phase.

a–i Phase fractions of [Ti2AlC + O2] reaction product at different temperature with changing molar percent oxygen (1–11 moles). The color gradient (shades of blue) shows molar phase

fractions. Blank spot [white (0)] suggests no phases present.

The predicted oxidation reaction chain for Ti2AlC at 1500 K is shown in Table 2. The reaction table shows thermodynamically stable oxidation reaction products at varying oxygen mole

fractions. The molar-oxygen content is varied to show its effect on reaction products, which represents the exposure time of the alloy to static air in experimental conditions. The reaction

products of the chemical process during the selective oxidation of Al or Ti in Ti2AlC can be written as:

4{\mathrm{Ti}}_2{\mathrm{Al}}_{1 - x}{\mathrm{C}} + 2y.{\mathrm{Al}}_2{\mathrm{O}}_3,$$ (4)

and

products in Ti2AlC + O2 at reaction temperature of 1500 K.Full size table

Considering longer exposure time to static air, C diffuses through TiO2 and oxidizes into CO2–

{\mathrm{TiO}}_2 + {\mathrm{CO}}_2.$$ (6)

i.e., C from Ti-C diffuses through the mixed Ti-oxides layer and oxidize. The diffusion of Ti to the surface and O into the MAX phase or oxidation product during the oxidation process works

as the rate-limiting condition.

More importantly, Al2O3 is seen at all temperatures and all oxygen concentrations due to the high chemical activity of Al, see Fig. 5, as well as the very exothermic nature of the Al2O3

phase itself. The weak metallic bonding between Ti-Al can also contribute to the increased Al diffusivity36. The formation of Al2O3 results into Al depletion in Ti2AlC substrate at the early

stage oxidation. This in turn leads to the decomposition of the MAX phases into TiO, Al2O3, and Ti3AlC228 at low oxygen concentration. This indicates that Ti and Al are the first oxidizing

elements when Ti2AlC is exposed to ambient air at elevated temperatures. On further increasing the oxygen concentrations, the Al2O3 oxide scale remains stable compared to other oxides as

partial pressure to form Al2O3 is much lower than of TiO235. The weaker binding of Al with C or Ti in Ti2AlC37,38 and better Al diffusion36 eases the Al2O3 growth39. Al diffusion becomes

easier at higher temperature that helps Al2O3 to grow further. The better thermodynamic stability of Al2O3 compared to other phases (see Supplementary Table 5) during oxidation of Ti2AlC

also helps in stabilizing Al2O3 at elevated temperatures. The C and CO2 appear as the reaction products at higher temperature, which suggests C loss and the evaporation of CO2 from the oxide

scale40. The reaction product of Ti2AlC oxidation reaction correctly reproduces experimentally observed phase-fractions.

We show that using proposed high-throughput scheme that combines Gibbs free energies useful to predict high-temperature reaction paths without doing expensive DFT calculations. The approach

is general, and can be used to assess the oxidation stability of arbitrary inorganic crystalline solids. Among the alumina-forming MAX phases, Ti2AlC is one of the most widely studied, and

it is, by far, the most attractive for practical applications because it forms protective oxide layer that is resistant to thermal cycling28. The chemical activity of Al in Ti2AlC are large

enough to result in preferential oxidation of Al into protective a α-Al2O3 passivating layer28. Therefore, we choose to test the oxidation behavior of Ti2AlC MAX phase to establish the

applicability of proposed ML-based high-throughput scheme.

We plot the chemical activity of constituent elements of Ti2AlC + O2 oxidation process at 1500 K in Fig. 6. The (partial) chemical potential of (Ti, Al, C, O) is calculated for an open

system using unknown molar concentration of reaction products by mixing of grand-canonical ∆Gform for 300–2000 K (see Supplementary Fig. 5). The reaction chain is associated with the

reductions in the partial chemical potentials of Ti, Al, and C but increase in the chemical potential of O2 with increasing oxygen content. Expectedly, the Ti/Al/C activity at the early

oxidation stage comes out higher, which is directly related to the partial chemical potentials. Similar as in the case of Ti2SiC, we could see two different zones of chemical potentials in

Fig. 6, (a) slowly varying region I–III; and (b) sharply changing region IV–V with increasing oxygen content. The sharp change in chemical potential in region IV–V occurs as C oxidizes into

gaseous CO2. The occurrence of C and CO2 at higher temperature suggests loss of carbon. The calculated trend in chemical potential in Fig. 6 suggests increased oxygen activity at higher

oxygen content (see Supplementary Fig. 5).

Oxidation reaction chain showing change in chemical potential of Ti2AlC as a function of changing molar percent oxygen at 1500 K. On oxidation, the partial chemical potentials of Ti/Al/C

reduce while the chemical potential of invading O2 increases (see Supplementary Fig. 3).

The low oxygen content regime, i.e., region I–II, replicates the shorter exposure time to oxygen. This region occurs below a critical thickness level of Ti2AlC substrate, also shown by

schematic of wedge experiment in Supplementary Fig. 4b. In the oxygen rich region (IV–V; see Supplementary Fig. 3j), the Ti2AlC substrate has large surface to volume ratio, i.e., larger

exposure to air/oxygen. The chemical activity of the oxygen significantly changes compared to low oxygen region I–III. As oxygen content increases, the Ti2AlC MAX phase decomposes into

stable TiO2, Al2O3 and CO2 phases. In Fig. 6, the oxidation of Ti2AlC lowers the chemical potential Al and Ti, which results into increased outward diffusion of Al and Ti. The lowered

chemical potential with increasing oxygen content and weak Ti–Al bonding keep the constant supply of Al at all temperatures for the Al-O reaction. The chemical activity of Al, as shown in

Fig. 6, is much higher than that of Ti and C, suggesting that the formation of Al2O3 is a much faster process. Therefore, protective Al2O3 layers are formed quickly on Ti2AlC substrate and

stops further degrading due to oxygen attack. Al2O3 formation is also preferred because of lower vapor pressure of Al with respect to O when compared to Ti with respect to O. At low oxygen

content (region I–III), the oxidized surface of the film is a mixture of the Al2O3, as well as TiO (I), TiC (I), Ti2O3 (I), and/or Ti3O5 (II) depending on exposure time or oxygen content to

O2.

When compared to alumina-forming alloys41,42,43, MAX phases do experience different breakaway oxidation mechanisms after long-term exposure44 to static air. As soon as the Al-containing

reservior exceeds a certain Al loss level, the reservoir decomposes into competing phases rather than remaining in an Al-deficient form, which can not form anymore Al2O3.

To test our predictions of oxidation reaction mechansism for Ti2AlC under controlled oxygen exposure as predicted by our GCLP analysis in Table 2, we prepared wedge-shaped samples and

performed breakaway oxidation at 1500 K temperature in the presence of static air. The oxidation tests are carried out in a box furnace (Carbolite, UK) (see the methods). The use of

wedge-shaped samples to study breakaway oxidation have been applied successfully to FeCrAl-based alloys45. We used scanning electron microscopies (FE-SEM, Quanta 600 FEG, FEI, Oregon, USA)

equipped with energy dispersive spectroscopy (EDS) to identify the microstructure and phases along the wedge. Electron microprobe analysis (EPMA) is used for a quantitative phase evaluation

in the breakaway oxidation region in Ti2AlC. The SEM sshows five distinct regions as also shown in Fig. 7 based on oxidation activity as marked:

Very thin protective Al2O3 oxide layer forms on the surface,

Small Al2O3 + TiO2 nodules in this region, with no other phases except Ti2AlC substrate in the middle,

Mixed Al2O3 + TiO2 oxides on the surface. Part of the Ti2AlC substrate survived with Ti3AlC2 phase according to EPMA,

Mixed Al2O3 + TiO2 oxide layer on the surface with pure TiO2 replacing the pure Ti2AlC,

Ti2AlC at thin end is completely oxidized to TiO2 + Al2O3, which is in agreement with our predictions in Fig. 7.

(a) Backscattered Electron SEM images of selected wedge-shaped Ti2AlC oxidized at 1200 °C for 30 min. Insert b, c, and d shows magnified tip, middle and end, respectively, of the

wedge-shaped sample oxidized at 1200 °C for 30 min.

The five regions in Fig. 7 can further be categorized as low (I–III), intermediate (IV), and high (V) oxygen activity zones, which compares well with the highlighted regions in the chemical

activity plot Fig. 6 (see Supplementary Fig. 3j) calculated at 1500 K. The mixed oxide (Al2O3 + TiO2) in region III and IV is quite similar to the small nodules observed in region II. This

indicates the start of nucleation that grows into large and continuous regions (also see Fig. 7, inset-b). We believe that the intermediate phase (III) plays a key role in the decomposition

path from Ti2AlC to TiO2 and Al2O3. Therefore, the oxygen content is important at the onset of phase III to evaluate oxidation stability of different MAX phases because if onset is at higher

O concentrations, the MAX phase is more stable. This is in agreement with the theoretically proposed reaction path in Table 2. Notably, our EPMA analysis in Fig. 7 (inset-a) on the

wedge-shaped Ti2AlC sample, which oxidized at 1200 °C for 30 minutes, shows that Ti2AlC decomposes into Ti3AlC2 and TiC (also marked in inset-a). For Ti3AlC2, the reported critical Al loss

is 5.99 at.%43, whereas Ti-C binary is believed to form due to the depletion of Al in the substrate46. A recent study also suggest the increase in volume fraction of Ti3AlC2 and TiC phases

in the substrate in Region III. The thick oxide layer (mixed) in region III conforms with the breakaway mechanism. The formation of Al-deficient Ti3AlC2 and TiC phases are leading factors

for the mixed oxide layer formation. Our high-throughput study suggests the presence of mixed Al2O3 + TiO2 oxide layer in region IV and region V as shown in Table I. The experiments on

region IV and region V shows the presence of thick mixed oxide layer in Fig. 7. This is similar to the mixed oxide phase observed in region III. In region V (at the tip of the wedge sample),

the fast Al depletion from Ti2AlC allows only mixed oxide layers, e.g., even very short exposure to static air at 1500 K, the very tip of the wedge-shaped sample oxidizes to the mixed Al2O3

and TiO2 phase. Similar to the high-throughput predictions at higher oxygen content, experiments suggest that on longer exposure to oxygen, O2 will penetrate and react with Ti2AlC, which

will lead to gradual decomposition of Ti2AlC to Ti3AlC and TiC along with the formation of Al2O3 and TiOx phases. The formation of Al2O3 (7.9 × 10−6–8.8 × 10−6 °C−1) have outstanding match

of thermal expansion with Ti2AlC (9–9.6 × 10−6 °C−1) compared to other MAX phases47, which makes Ti2AlC better candidate for high-temperature application.

Experiments indicates that the breakaway oxidation is possibly caused by gradual decomposition of Al-deficient Ti2Al1–xC, to Ti3AlC2 and further to TiC and subsequent oxidation of those

phases to form mixed oxide. To understand this, we perform direct calculations considering (3.125; 6.25; 9.375) at.% vacancy concentration in Ti2AlC.

Given that oxygen diffuses into the bulk material via the Al2O3 grain-boundary channels, sub-interface oxidation would result into the formation and distributions of various phases according

to the predicted reaction chain. This is, however, the less likely case as the diffusion of Al from within the Ti2AlC towards its interface is a faster process. As the latter happens,

depletion of Al in Ti2AlC can result in decomposition of the MAX phase into energetically more favorable competing reaction products. We assess this possibility of Ti2[Al1–xVax]C stability

relative to the other competing phases.

Even though the ∆Gform for Ti2[Al1–xVax]C in Fig. 8 suggests the intrinsic stability (i.e., negative heats of formation), it remains less stable when compared to competing phases, i.e.,

Ti2AlC (90.625; 81.25; 71.875), Ti3AlC (3.125; 6.25; 9.375), and Ti3AlC2 (3.125; 6.25; 9.375) for all considered vacancy cases −xvac (3.125; 6.25; 9.375) (all compositions are in at.%). This

indicates that Al-deficient Ti2AlC is not energetically favored and tends to decompose into Ti3AlC2. The predicted decomposition, however, depends on the energy barrier required to nucleate

the precipitates of those phases, which is not easily accessible due computational complexity of the Ti2AlC supercells with vacancy. In spite of this, similar to the experiments, not only

do we predict the formation of Al2O3 and TiOy with increasing O2 but also the gradual decomposition of Al-deficient Ti2AlC into Ti3AlC and TiC. Our experiments found Al deficiency of ~5 at.%

in Ti2AlC (see Supplementary Fig. 6) that leads to the breakaway oxidation, i.e., formation of alumina and titania, instead of a protective predominately Al2O3 oxide layer.

Vacancy phase stability during breakaway oxidation of Ti2AlC.

Calculated ∆Gform of Al-depleted Ti2[Al1–xVax]C, i.e., with vacancy, relative to the competing phases (CP) (Ti2AlC, Ti3AlC, and Ti3AlC2) at 1500 K shows that Ti2(Al1–xVax)C is energetically

less stable. The configurational entropy term is included for vacancy cases using ∆Sconfig = −[(xvac ln xvac + (1 − xvac) ln(1 − xvac))], here xvac = (0.03125; 0.0625; 0.09375).


The Al deficiency further leads to the decomposition of Ti2AlC and the formation of Ti3AlC2, however, the traces of Ti3AlC and Ti3AlC2 precipitates are not discernable in Regions I and II.

This could be either due to a high-energy barrier for nucleation of Ti3SlC2 that arrests the decomposition of the metastable Ti2[Al1 – xVax]C, or Ti3AlC and Ti3AlC2 precipitates are formed

below oxide/substrate interface in relatively smaller fractions and the phase-fraction remains well below the experimental detection limit.

In spite of some degree of disagreement between phase stability in vacancy-containing Ti2AlC with experiments, the relative shift in stability with respect to competing phases could be used

as a metric for selection and/or screening of potentially promising Al-forming MAX compounds or alloys. In previous work36, for example, we have discovered that alloying in the A sublattice

creates energetically favorable environment for the formation of vacancies, while at the same time benefitting from the configurational entropic contributions. This would necessarily result

in a delay to the onset of decomposition into competing phases once vacancies start to form in the A sublattice of Al-containing MAX phases, for example. The search for alloys with reduced

vacancy formation energy and fast vacancy mobility could guide the development of more oxidation resistant MAX alloys and compounds.

Prediction of oxidation behavior in Cr2AlC MAX phase—higher stiffness, smaller Vickers hardness, and machinable48, similar to Ti2AlC49, makes Cr2AlC an outstanding candidate for the

high-temperature application. Lin et al.50 reported excellent oxidation resistance, which is probably due to the formation of protective Al2O3 and Cr2O3 layers as oxides. The oxidation is an

important factor28, however, we found no detailed discussion on Cr2AlC. Therefore, we analyze the oxidation behavior of Cr2AlC.

The heat map of the molar phase-fractions of Cr2AlC + O2 reaction product in Fig. 9 (the color bar on right represents the molar percent, or phase fraction) at 300, 500, 700, 900, 1200,

1500, 1700, and 2000 K for 0–11 moles of oxygen content. We considered 13 thermodynamically most stable phases based on Gibbs formation energy, see Supplementary Fig. 7. Different Cr-based

phases were observed: at low/intermediate (Cr7C3, Cr2O3, Cr, Cr3C2), intermediate (Cr7C3, Cr2O3, Cr3C2), and high (Cr2O3) oxygen content51. At the onset of oxidation process, at low oxygen

content, Cr7C3, Cr, and Cr3C2 forms first, which is followed by the reaction of oxygen with Cr2AlC that gradually transforms from Cr7C3 to Cr3C2 and disappears at oxygen higher exposure,

i.e., the Cr2AlC MAX phase eventually disintegrates into Al2O3 and Cr2O3, and gaseous CO2.

a–i Phase fractions of [Cr2AlC + O2] reaction product at different temperature with changing molar percent oxygen. Each block refers to specific oxygen molar content from 1–11 moles. The

color gradient (shades of blue) shows molar phase fractions. Blank spot [white (0)] suggests no phases present.

The predicted oxidation reaction chain for Cr2AlC at 1200 K is shown in Table 3 (also see Supplementary Table 8) The reaction table shows thermodynamically stable oxidation reaction products

at varying oxygen mole fractions. The molar-oxygen content is varied to show its effect on reaction products, which represents the exposure time of the alloy to static air in experimental

conditions. The reaction products of the chemical process during the selective oxidation of Al or Cr in Cr2AlC for low/intermediate oxygen exposure can be written

as:

favored reaction products in Cr2AlC + O2 at reaction temperature of 1200 K.Full size table

i.e., the Cr2AlC oxidation shows Al2O3 and Cr7C3 as the reaction product. The Cr7C3 forms just below the surface layer of Al2O3 due to Al consumption28.

For longer exposure time to static air, Cr7C3 further decomposes and allows the formation of Cr2O3 while excess C diffuses through Cr2O3 and oxidizes into

CO2–

Here, the diffusion of Cr to the surface and O into the MAX phase or oxidation product during the oxidation process works as the rate-limiting condition. The C and Al2O3 were formed at

intermediate/higher mole oxygen in region III/IV, see Table 3, while no Cr was found. Also, the presence of Cr2O3 along with Al2O352 agrees with our prediction, which is known to help the

formation of Al2O353.

Importantly, Al2O3 starts appearing from intermediate (region II–III) to higher (IV–V) at all temperatures due to the high chemical activity of Al compared to Cr/C, see Fig. 10. The strong

ionic/covalent bonding of Cr with C in Cr2AlC54,55 decreases the oxygen affinity of Cr. The presence of Al2O3 can also be understood in terms of weaker bonding of Cr with Al, where weak

metallic bonding between Cr-Al36 can contribute to the increased Al diffusivity at higher temperature and oxygen content. This makes the reaction Al with O more favorable, which leads to the

formation of Al2O3 surface layer. The formation of the Al2O3 layer at the surface will slow down the oxidation of Cr2AlC, i.e., protects the MAX phase.

elements during oxidation process.

Oxidation reaction chain showing change in chemical potential of Cr2AlC as a function of changing molar percent oxygen at 1200 K. On oxidation, the partial chemical potentials of Cr/Al/C

reduce while the chemical potential of invading O2 increases (see Supplementary Fig. 3).

In spite of good oxidation behavior, Cr2AlC also has some drawbacks, e.g., the thermal-expansion coefficients of three major phases Cr2AlC, Al2O3, and Cr7C3 were 13.3 × 10−6 (per K)48, 10.6 

× 10−6 (per K)56, and (7.2 × 8.6) x 10−6 (per K), respectively. Large difference in thermal-expansion coefficient of Al2O3 and Cr7C3 with respect to Cr2AlC that forms immediately below the

Al2O3 surface layer can generate excessive thermal and compressive stress in Al2O3, which may lead to spalling and cracking.

The chemical activity of constituent elements in Cr2AlC + O2 oxidation process at 1200 K is shown in Fig. 10. Four zones in chemical potentials plot can be classified as (region I–II) quick

change in Al/O2 activity for Al/O; (region III–IV) slow activity region, and (region V) sharply varying region at higher increasing oxygen content. The sharp change in chemical potential in

region V occurs as C oxidizes into gaseous CO2. The occurrence of C and CO2 at higher temperature suggests loss of carbon. The calculated trend in chemical potential in Fig. 10 suggests

increased oxygen activity at higher oxygen content.

At higher oxygen content in region V, the Cr2AlC MAX phase decomposes into stable Cr2O3, and Al2O3 phases, which lowers the chemical potential Cr/Al/C compared to O2. This suggests an

increased outward diffusion of Al and Cr and leads to formation protective oxide layers. The lowered chemical potential with increasing oxygen content and weak Cr-Al bonding36,46 keep the

constant supply of Al at all temperatures for the Al-O reaction. The chemical activity of Al, as shown in Fig. 10, is slightly higher than that of Cr and C, suggesting that the formation of

Al2O3 is relatively faster process. Therefore, protective Al2O3 layers are formed quickly on Cr2AlC substrate and stops further degrading due to oxygen attack. Al2O3 formation is also

preferred because of lower vapor pressure of Al with respect to O when compared to Cr with respect to O. At low oxygen content (region I–III), the oxidized surface of the film is a mixture

of the Al2O3 and Cr2O3depending on exposure time or oxygen content to O2.

The thermodynamic stability, outstanding mechanical behavior, and superior oxidation resistance make MAX phases a promising material for high-temperature applications, such as, nuclear,

aerospace, and/or turbines. We present a ML-based high-throughput scheme to assess oxidation behavior of crystalline MAX phases. The workflow combines the Bartel (SISSO) model (based on

SISSO approach) with grand-canonical linear programming (GCLP) method into a single framework. The scheme predicts temperature-dependent ∆Gform, possible reaction products, and chemical

activity of alloying elements. The validation test performed on binary oxides, e.g., Ti-O and Al-O, which shows good agreement with existing experiments. We performed phase stability of

analysis of 30 MAX phases of 211 chemistry. To exemplify our approach, we choose Ti2AlC MAX phase due to its superior oxidation resistance. The theoretically predicted reaction path with

increasing oxygen content at high operating temperatures confirmed by our breakaway oxidation experiments. We believe that the prediction of improved high-temperature behavior due to

ever-growing demand of new structural materials for high-temperature application makes our scheme useful, and timely. The application of the proposed method for Cr2AlC establishes the

generality of the scheme, which will further guide experimentalists in understanding the relative phase stability of any inorganic alloy system and its reaction path during oxidation. We

successfully explain the metastable Ti2SiC MAX phase, which further establishes the strength of our framework.

Our proposed high-throughput scheme enables the quick assessment of the oxidation stability of a large alloy space and reduce the time and cost for alloy selection for design––this approach

is many orders of magnitude faster than when using conventional DFT-only approaches and is applicable even when no suitable CALPHAD databases are available. This will help to filter specific

elements during alloy design to minimize material degradation due to formation unstable oxides. We also note some minor disagreement between prediction and the experiment. The most

plausible reason for disagreement may arise from not including all possible non-stoichiometric compounds, ternary-oxides/oxycarbides, and/or contributions from kinetics, i.e., sluggish

diffusion and/or significant barriers to nucleation and growth of phases. However, keeping the complexity of the problem in mind, the proposed scheme provides good quantitative agreement

with experiments.

We develop an in-house machine-learning-based high-throughput scheme (see schematic in Fig. 11), which is capable of predicting ∆Gform using SISSO21 and phase-prediction, as well as chemical

activity of constituent elements using GCLP model23,24 in inorganic stoichiometric phases. The SISSO model21 uses NIST-JANAF26,27, and OMD (DFT)27 database to predict ∆Gform across the

temperature range.

The SISSO and GCLP-based machine-learning workflow to predict oxide phase selection and stability of MAX phases.

The experimental formation energy (Eform) data for transition metal oxides was extracted from the NIST-JANAF thermochemical database25,26. We also calculated Eform from DFT using structure

files from DFT-based Open Quantum Materials Database (OQMD)27 for each oxide phase.

Much of the research into developing models for predicting MAX phase stability has utilized computationally intensive methods57,58, such DFT calculations carried out using the Vienna Ab

initio Simulation Package (VASP)59,60. Expensive DFT estimates of the entropic (∆S) contributions in the calculation of ∆Gform limits their use in accelerated material design61. Fortunately,

it has been demonstrated that DFT calculations augmented with machine learning and experimentally acquired information provides the means for predicting material properties quickly and

accurately21. The SISSO framework, for example, is an emerging machine-learning algorithm capable of arriving at accurate predictions of material properties through models that employ

physically meaningful features17,18,19. Here, we utilize the descriptor-based model from Bartel for the finite-temperature Gibbs energy of an arbitrary inorganic stoichiometric

phase21:

\cdot 10^{ - 5} \cdot {\mathrm{mV}}^{ - 1}} \right)\\ {\mathrm{T}} + 0.181 \cdot \ln \left( {\mathrm{T}} \right) - 0.882\end{array}$$ (9)

for the fast assessment of ∆Gform \(= \Delta H_{{\mathrm{form}}} + \Delta G^{{\mathrm{SISSO}}}\left( T \right) - \mathop {\sum}\nolimits_{\mathrm{i}} {x_{\mathrm{i}}\Delta

G_{\mathrm{i}}(T)}\), and validate the approach for binary oxides (Ti-O and Al-O) with respect to temperature and oxygen concentration. We test the predicted ∆Gform of transition metal

oxides in 300–2000 K temperature range18,19. The predicted ∆Gform were compared to experimental data from the NIST-JANAF thermochemical tables to determine the model accuracy across a wide

temperature range. Additionally, a convex hull was generated for the titanium-oxygen chemical system using the model predictions as a validation test. The SISSO model was then used to assess

the thermodynamic stability of M2AC MAX phases to identify the effect of transition metal-elements (M), where M=Sc, Y, Ti, Zr, Hf, V, Nb, Ta, Cr, Mo, Mn, Fe, Co, Ni, and Cu) in MAX phases

with A=Al, and Si.

The linear nature of the Gibbs energy minimization problem allows the use of linear programming-based algorithms to identify the equilibrium configuration of chemical systems under arbitrary

thermodynamic conditions. The GCLP method is one such approach24,25, and we use it in this study to predict thermodynamically favorable phases from Ti2AlC + O2 reactions by breaking down

the system into a series of linear equations for the different chemical reactions that can take place at given temperature and given oxygen content. The GCLP minimizes the Gibbs energy of

the mixture of the elements at a given Ti, M, C, and O composition (for example):

G_{{\mathrm{phase}}}$$

where, ΔGphase is the Gibbs free energy of each competing phase “phase” and fphase is the phase-fraction. We minimize ΔG to determine the molar fraction of each phase. The predicted phase

stability is used to estimate chemical potential of each element against given oxygen molar composition. These results are then compared with experimental data to assess the accuracy of the

predictions. We note that the oxidation reaction at the interface of MAX phase is a phase selection process and the most favorable product phases tend to be those possessing the lowest

combined energy relative to the reactants, i.e., this yields highest possible oxidation reactivity. The reliability of GCLP approach depends on the accuracy of free energy database. We use

free-energy database constructed from NIST-JANAF (experiments)25,26, OQMD27, and DFT62,63.

Our experiments indicate the importance of Al deficiency (vacancy formation) in the selective oxidation and oxidation stability of Ti2AlC MAX phase (see supplemental Supplementary Fig. 6).

The input structures of Ti2(Al1–xVax)C for x (in at.%) = 3.125, x = 6.25, and x = 9.375 for the DFT calculations were modeled using 128-atom special quasi-random structures64,65. The

stability of Al-depleted Ti2AlC, Ti2(Al1–xVax)C, relative to the competing intermetallic phases was investigated using GCLP. DFT-VASP59,60 was used for structural minimization, total energy

and formation enthalpy calculation of vacancy structures. Forces and total energies are converged to −0.001 eV per Å and 10−5 eV per cell, respectively. Both for relaxation and energy

calculation, we used Perdew, Burke and Ernzerhof (PBE) generalized gradient approximation with a planewave cut-off energy of 533 eV66. The geometry-optimization and charge self-consistency

of each MAX phase is done using gamma-centered Monkhorst-Pack67 k-mesh a 3 × 3 × 3 and 5 × 5 × 5, respectively. The formation enthalpies of with and without vacancy MAX phases are calculated

using the information of element energies.

Ti, Al, and TiC powders are mixed in 1.05:1.05:0.95 atomic ratio in a glass jar. The (Ti, Al, TiC) powder is ball milled for mixed for 24 h. The ZrO2 balls are used to grind the mixture to

make the powder finer at the rotation speed of 300 rmp. The powder mixture is poured into an alumina crucible (AdValue Technology, US) and heated up to 1400 °C at a 10 °C/min heating rate in

Ar atmosphere for 4 h in a tube furnace (MTI Corporation, CA). The low-density Ti2AlC is drilled and meshed into powder with particle size smaller than 90 μm. The fine Ti2AlC powder is

poured into a graphite die (20 mm in diameter) loaded with 100 MPa pressure heated by Pulsed Electric Current Sintering (PECS, GT Advanced Technologies, CA) to 1400 °C in the Ar atmosphere

and densified for 15 min. The full-dense Ti2AlC cylinders are cut into discs of 19.6 mm diameter and 2 mm thickness using wire electrical discharge machining (EDM). The EDM layers are then

removed followed by mechanical polishing to 0.1 μm prior and diamond paste finish before joining the pieces.

An Al coupon is placed on a hot plate (Thermo Scientific) and heated up to 80 °C. Then, the crystalbond (Ted Pella) is used to join the Ti2AlC discs with Al coupon. After cooling down, the

bonded couples are carefully polished on the Ti2AlC side to a wedge shape with a 3.5 ± 0.2o taper and the thickness from 30 to 500 μm. Oxidation tests are carried out in a box furnace

(Carbolite, UK). The couples are placed in acetone (Macron Fine Chemicals) to debond and the wedge-shaped Ti2AlC samples are kept on the alumina crucibles in the hot chamber and oxidized in

static air.

The cross sections of the oxidized wedge-shaped Ti2AlC samples are mechanically polished to 0.1 μm diamond paste finish. Scanning Electron Microscopies (FE-SEM, Quanta 600 FEG, FEI, Oregon,

USA) equipped with Energy Dispersive Spectroscopy (EDS) are used to analyze the microstructure and composition of phases along the wedge. The average critical thickness is measured from SEM

images. Electron microprobe analysis (EPMA) is used for a quantitative phase evaluation in the breakaway oxidation region in Ti2AlC. We use electron backscattered diffraction (EBSD) in the

same region to identify exact phases. The sample is polished using a 0.05 μm colloidal silica solution prior to the EBSD characterization. A Zeiss Ultra Plus FEGSEM equipped with an Oxford

Instrument Aztec EBSD system and a Nordlys nano EBSD detector was used for the characterization.

The authors declare that the data supporting the plots and findings of this study are available within the paper/supplement, and also with the corresponding authors upon reasonable

request.

The authors declare that the code supporting this study are available with the corresponding authors upon reasonable request.

References Barsoum, M. W. MAX Phases: Properties of Machinable Ternary Carbides and Nitrides. (Wiley, 2013).

Dahlqvist, M., Alling, B. & Rosén, J. Stability trends of MAX phases from first principles. Phys. Rev. B 81, 220102 (2010).

Article  CAS  Google Scholar

Sokol, M., Natu, V., Kota, S. & Barsoum, M. W. On the chemical diversity of the MAX phases. Trend. Chem. 1, P210–223 (2019).

Radovic, M. & Barsoum, M. W. MAX phases: Bridging the gap between metals and ceramics. Am. Ceram. Soc. Bull. 92, 20–27 (2013).

CAS  Google Scholar

Barsoum, M. W. & Radovic, M. Elastic and mechanical properties of the MAX phases. Annu. Rev. Mater. Res. 412011, 195–227 (2011).

Article  CAS  Google Scholar

Radovic, M. et al. On the elastic properties and mechanical damping of Ti3SiC2, Ti3GeC2, Ti3Si0.5Al0.5C2 and Ti2AlC in the 300–1573K temperature range. Acta Mater. 54, 2757–2767 (2006).

Article  CAS  Google Scholar

Tallman, D. J., Anasori, B. & Barsoum, M. W. A critical review of the oxidation of Ti2AlC, Ti3AlC2 and Cr2AlC in air. Mater. Res. Lett. 1, 115–125 (2013).

Article  CAS  Google Scholar

Barsoum, M. W., Ho-Duc, L. H., Radovic, M. & El-Raghy, T. Long time oxidation study of Ti3SiC2, Ti3SiC2/SiC, and Ti3SiC2/TiC composites in air. J. Electrochem. Soc. 150, B166–B175 (2003).

Article  CAS  Google Scholar

Smialek, J. L. Unusual oxidative limitations for Al-MAX phases. (NASA/TM-2017-219444, Cleveland, OH, 2017).

Prescott, R. & Graham, M. J. The formation of aluminum oxide scales on high-temperature alloys. Oxid. Met. 38, 233–254 (1992).

Article  CAS  Google Scholar

Wang, J. & Zhou, Y. Recent progress in theoretical prediction, preparation, and characterization of layered ternary transition-metal carbides. Annu. Rev. Mater. Res. 39, 415–443 (2009).

Article  CAS  Google Scholar

Cui, B. & Lee, W. E. High-temperature oxidation behaviour of MAX phase ceramics. Refractories Worldforum 5, 105–112 (2013).

Google Scholar

Lee, W. E., Zhang, S. & Karakus, M. Refractories: controlled microstructure composites for extreme environments. J. Mater. Sci. 39, 6675–6685 (2004).

Article  CAS  Google Scholar

Cui, B., Jayaseelan, D. D. & Lee, W. E. Microstructural evolution during high-temperature oxidation of Ti2AlC ceramics. Acta Mater. 59, 4116–4125 (2011).

Article  CAS  Google Scholar

Cui, B., Jayaseelan, D. D. & Lee, W. E. TEM study of the early stages of Ti2AlC oxidation at 900 °C. Scr. Mater. 67, 830–833 (2012).

Article  CAS  Google Scholar

Tolpygo, V. K., Dryden, J. R. & Clarke, D. R. Determination of the growth stress and strain in α-Al2O3 scales during the oxidation of Fe–22Cr–4.8Al–0.3Y alloy. Acta Mater. 46, 927–937

(1998).

Article  CAS  Google Scholar

Tolpygo, V. K. & Clarke, D. R. Competition between stress generation and relaxation during oxidation of an Fe-Cr-Al-Y Alloy. Oxid. Met. 49, 187–212 (1998).

Article  CAS  Google Scholar

Huntz, A. M. Stresses in NiO, Cr2O3and Al2O3oxide scales. Mat. Sci. Eng. A 201, 211–228 (1995).

Article  Google Scholar

Duong, T. C., Talapatra, A., Son, W., Radovic, M. & Arroyave, R. On the stochastic phase stability of Ti2AlC-Cr2AlC. Sci. Rep. 7, 5138 (2017).

Article  CAS  Google Scholar

Ghiringhelli, L. M., Vybiral, J., Levchenko, S. V., Draxl, C. & Scheffler, M. Big data of materials science: critical role of the descriptor. Phys. Rev. Lett. 114, 105503 (2015).

Article  CAS  Google Scholar

Bartel, C. J. et al. Physical descriptor for the Gibbs energy of inorganic crystalline solids and temperature-dependent materials chemistry. Nat. Commun. 9, 4168 (2018).

Article  CAS  Google Scholar

Ouyang, R., Curtarolo, S., Ahmetcik, E., Scheffler, M. & Ghiringhelli, L. M. SISSO: A compressed-sensing method for identifying the best low-dimensional descriptor in an immensity of offered

candidates. Phys. Rev. Mater. 2, 083802 (2018).

Article  CAS  Google Scholar

Akbarzadeh, A. R., Ozolins, V. & Wolverton, C. First-principles determination of multicomponent hydride phase diagrams: application to the Li-Mg-N-H system. Adv. Mater. 19, 3233–3239 (2007).

Article  CAS  Google Scholar

Kirklin, S., Meredig, B. & Wolverton, C. High-throughput computational screening of new li-ion battery anode materials. Adv. Energy Mater. 3, 252–262 (2013).

Article  CAS  Google Scholar

Chase, M. W. et al. JANAF Thermochemical Tables, 3rd edn. (ed. Lide, Jr., D. R.). (American Institute of Physics, New York, 1986).

Chase, M. W. Jr. et al. JANAF thermochemcial table 3d edition. J. Phys. Chem. Ref. Data 14, 2 (1985).

Google Scholar

Saal, J. E., Kirklin, S., Aykol, M., Meredig, B. & Wolverton, C. Materials design and discovery with high-throughput density functional theory: the open quantum materials database (OQMD).

JOM 65, 1501–1509 (2013).

Article  CAS  Google Scholar

Wang, X. H. & Zhou, Y. C. High-temperature oxidation behavior of Ti2AlC in air. Oxid. Met. 59, 303–320 (2003).

Article  CAS  Google Scholar

Basu, S., Obando, N., Gowdy, A., Karaman, I. & Radovic, M. Long-term oxidation of Ti2AlC in air and water vapor at 1000–1300 °C temperature range. J. Electrochem. Soc. 159, C90–C96 (2012).

Article  CAS  Google Scholar

Oses, C. et al. AFLOW-CHULL: cloud-oriented platform for autonomous phase stability analysis. J. Chem. Inf. Model. 58, 2477–2490 (2018).

Article  CAS  Google Scholar

Eklund, P., Beckers, M., Jansson, U., Hogberg, H. & Hultman, L. The Mn+1AXn phases: materials science and thin-film processing. Thin Solid Films 518, 1851–1878 (2018).

Article  CAS  Google Scholar

Hug, G. Electronic structures of and composition gaps among the ternary carbides Ti2MC. Phys. Rev. B 74, 184113 (2006).

Article  CAS  Google Scholar

Thore, A., Dahlqvist, M., Alling, B. & Rosen, J. Temperature dependent phase stability of nanolaminated ternaries from first-principles calculations. Comp. Mater. Sci. 91, 251–257 (2014).

Article  CAS  Google Scholar

Palmquist, J.-P. et al. Mn+1AXn phases in the Ti-Si-C system studied by thin-film synthesis and ab initio calculations. Phys. Rev. B 70, 165401 (2004).

Article  CAS  Google Scholar

Bandyopadhyay, D. The Ti-Si-C system (Titanium-Silicon-Carbon). J. Phase Equilib. Diffus. 25, 415–420 (2004).

Article  CAS  Google Scholar

Singh, P., Sauceda, D. & Arroyave, R. The effect of chemical disorder on defect formation and migration in disordered MAX phases. Acta Mater. 184, 50–58 (2019).

Article  CAS  Google Scholar

Liao, T., Wang, J. & Zhou, Y. Ab initio modeling of the formation and migration of monovacancies in Ti2AlC. Scr. Mater. 59, 854–857 (2008).

Article  CAS  Google Scholar

Du, Y. et al. Anisotropic corrosion of Ti2AlC and Ti3AlC2 in supercritical water at 500°C. Ceram. Int. 43, 7166–7171 (2017).

Article  CAS  Google Scholar

Rao, J. C. et al. TEM study of the initial oxide scales of Ti2AlC. Acta Mater. 59, 5216–5223 (2011).

Article  CAS  Google Scholar

Basu, S., Obando, N., Gowdy, A., Karaman, I. & Radovic, M. Long-term oxidation of Ti2AlC in air and water vapor at 1000–1300 C temperature range. J. Electrochem. Soc. 159, C90–C96 (2011).

Article  CAS  Google Scholar

Pint, B. A., Walker, L. R. & Wright, I. G. Characterization of the breakaway al content in alumina-forming alloys. Mater. High. Temp. 21, 175–185 (2004).

Article  CAS  Google Scholar

Quadakkers, W. J. & Bennett, M. J. Oxidation induced lifetime limits of thin walled, iron based, alumina forming, oxide dispersion strengthened alloy components. Mater. Sci. Technol. 10,

126–131 (1994).

Article  CAS  Google Scholar

Quadakkers, W. J. & Bongartz, K. The prediction of breakaway oxidation for alumina forming ODS alloys using oxidation diagrams. Mater. Corros. 45, 232–241 (1994).

Article  CAS  Google Scholar

Li, X., Zheng, L., Qian, Y., Xu, J. & Li, M. Breakaway oxidation of Ti3AlC2 during long-term exposure in air at 1100 °C. Corros. Sci. 104, 112–122 (2016).

Article  CAS  Google Scholar

Al-Badairy, H., Tatlock, G. J. & Bennett, M. J. A comparison of breakaway oxidation in wedge-shaped and parallel sided coupons of FeCrAl alloys. Mater. High. Temp. 17, 101–107 (2000).

Article  CAS  Google Scholar

Lin, Z. J., Li, M. S., Wang, J. Y. & Zhou, Y. C. High-temperature oxidation and hot corrosion of Cr2AlC. Acta Mater. 55, 6182–6191 (2007).

Article  CAS  Google Scholar

Pint, B. A. Experimental observations in support of the dynamic-segregation theory to explain the reactive-element effect. Oxid. Met. 45, 1–37 (1996).

Article  CAS  Google Scholar

Tian, W. et al. Synthesis and thermal and electrical properties of bulk Cr2AlC. Scr. Mater. 54, 841–846 (2006).

Article  CAS  Google Scholar

Zhou, Y. C. & Sun, Z. M. Electronic structure and bonding properties of layered-machinable Ti2AlC and Ti2AlN ceramics. Phys. Rev. B 61, 12570–12573 (2000).

Article  CAS  Google Scholar

Lin, Z., Zhou, Y., Li, M. & Wang, J. In-situ hot pressing/solid-liquid reaction synthesis of bulk Cr2AlC. Z. Metallkd. 96, 291–296 (2005).

Article  CAS  Google Scholar

Lee, D. B. & Park, S. W. Oxidation of Cr2AlC between 900 and 1200oC in Air. Oxid. Met. 68, 211–222 (2007).

Article  CAS  Google Scholar

Besmann, T. M., Kulkarni, N. S. & Spear, K. E. Thermochemical analysis and modeling of the Al2O3-Cr2O3, Cr2O3-SiO2, and Al2O3-Cr2O3-SiO2 systems relevant to refractories. J. Am. Ceram. Soc.

89, 638–644 (2006).

Article  CAS  Google Scholar

Birks, N., Meier, G. H. & Pettit, F. S. in Introduction to the High-temperature of Metals, 2nd edn. (Cambridge University Press, England, 2006), p.124.

Lin, Z., Zhou, M., Zhou, Y., Li, M. & Wang, J. Atomic scale characterization of layered ternary Cr2AlC ceramic. J. Appl. Phys. 99, 076109 (2006).

Article  CAS  Google Scholar

Schneider, J. M., Sun, Z., Mertens, R., Uestel, F. & Ahuja, R. Ab initio calculations and experimental determination of the structure of Cr2AlC. Solid State Commun. 130, 445–449 (2004).

Article  CAS  Google Scholar

Berg, G., Friedrich, C., Broszeit, E. & Berger, C. in Handbook of Ceramic Hard Materials (ed. Riedel, R.) (Wiley-VCH, Germany, 2000), p. 968.

Dahlqvist, M. & Rosen, J. Predictive theoretical screening of phase stability for chemical order and disorder in quaternary 312 and 413 MAX phases. Nanoscale 12, 785–794 (2020).

Article  CAS  Google Scholar

Dahlqvist, M., Alling, B. & Rosen, J. Stability trends of MAX phases from first principles. Phys. Rev. B 81, 220102R (2010).

Article  CAS  Google Scholar

Kresse, G. & Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B 47, 558–561 (1993).

Article  CAS  Google Scholar

Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775 (1999).

Article  CAS  Google Scholar

Bai, Y., Srikanth, N., Chua, C. K. & Zhou, K. Density functional theory study of Mn+1AXn phases: a review. Crit. Rev. Solid State Mater. Sci. 44, 56–107 (2019).

Article  CAS  Google Scholar

Sun, W. Q., Wolverton, C., Akbarzadeh, A. R. & Ozolins, V. First-principles prediction of high-capacity, thermodynamically reversible hydrogen storage reactions based on (NH4)2B12H12. Phys.

Rev. B 83, 3–6 (2011).

Article  Google Scholar

Aidhy, D., Zhang, Y. & Wolverton, C. Prediction of a Ca(BH4)(NH2) quaternary hydrogen storage compound from first-principles calculations. Phys. Rev. B 84, 1–8 (2011).

Article  CAS  Google Scholar

Zunger, A., Wei, S. H., Ferreira, L. G. & Bernard, J. E. Special quasirandom structures. Phys. Rev. Lett. 65, 353–356 (1990).

Article  CAS  Google Scholar

van de Walle, A. et al. Efficient stochastic generation of special quasirandom structures. Calphad 42, 13–18 (2013).

Article  CAS  Google Scholar

Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865–3868 (1996).

Article  CAS  Google Scholar

Monkhorst, H. J. & Pack, J. D. Special points for Brillouin-zone integrations. Phys. Rev. B 13, 5188–5192 (1976).

Article  Google Scholar

Download references

We acknowledge support from National Science Foundation through grants no. (DMREF) CMMI-1729350. First-principles calculations were carried out at the Supercomputing Facility at Texas A&M

University. D.S. acknowledges the support of the National Science Foundation through grant no. NSF-DGE 1545403 (NRT-DESE: Data-Enabled Discovery and Design of Energy Materials).

Author informationAuthor notes P. Singh

Present address: Ames Laboratory, US Department of Energy, Iowa State University, Ames, IA, 50011, USA

These authors contributed equally: D. Sauceda, P. Singh.

Authors and Affiliations Department of Materials Science & Engineering, Texas A&M University, College Station, TX, 77843, USA

D. Sauceda, P. Singh, A. R. Falkowski, Y. Chen, T. Doung, G. Vazquez, M. Radovic & R. Arroyave

Department of Mechanical Engineering, Texas A&M University, College Station, TX, 77843, USA

R. Arroyave

AuthorsD. SaucedaView author publications You can also search for this author inPubMed Google Scholar

P. SinghView author publications You can also search for this author inPubMed Google Scholar

A. R. FalkowskiView author publications You can also search for this author inPubMed Google Scholar

Y. ChenView author publications You can also search for this author inPubMed Google Scholar

T. DoungView author publications You can also search for this author inPubMed Google Scholar

G. VazquezView author publications You can also search for this author inPubMed Google Scholar

M. RadovicView author publications You can also search for this author inPubMed Google Scholar

R. ArroyaveView author publications You can also search for this author inPubMed Google Scholar

R.A. proposed and supervised the entire project. D.S., A.R.F., and P.S. worked on the development and testing of the model. G.V. assisted at the final stage of model development. P.S. and

T.D. performed DFT simulations. D.S., P.S., and R.A. analyzed and discussed theory results. Y.C. prepared the wedge samples and performed oxidation experiments. M.R. supervised the

experimental work. P.S. and R.A. prepared the final draft of the manuscript with input from all the authors.

Corresponding authors Correspondence to P. Singh or R. Arroyave.

The authors declare no competing interests.

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

InformationRights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or

format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or

other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in

the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the

copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this articleCite this article Sauceda, D., Singh, P., Falkowski, A.R. et al. High-throughput reaction engineering to assess the oxidation stability of MAX phases. npj Comput Mater 7, 6

(2021). https://doi.org/10.1038/s41524-020-00464-7

Download citation

Received: 11 May 2020

Accepted: 10 November 2020

Published: 04 January 2021

DOI: https://doi.org/10.1038/s41524-020-00464-7

Share this article Anyone you share the following link with will be able to read this content:

Get shareable link Sorry, a shareable link is not currently available for this article.

Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative

This article is cited by Distinct amorphization resistance in high-entropy MAX-phases (Ti, M)2AlC (M=Nb, Ta, V, Zr) under in situ irradiation Hao XiaoShuang ZhaoChenxu Wang npj Computational

Materials (2024)

A theoretical investigation of the effect of Ga alloying on thermodynamic stability, electronic-structure, and oxidation resistance of Ti2AlC MAX phase Daniel SaucedaPrashant SinghRaymundo

Arroyave Scientific Reports (2022)

Phase Stability Through Machine Learning Raymundo Arróyave Journal of Phase Equilibria and Diffusion (2022)

Describing chain-like assembly of ethoxygroup-functionalized organic molecules on Au(111) using high-throughput simulations LokamaniJeffrey KellingSibylle Gemming Scientific Reports (2021)
