Efficient oral vaccination by bioengineering virus-like particles with protozoan surface proteins

ABSTRACT Intestinal and free-living protozoa, such as _Giardia lamblia_, express a dense coat of variant-specific surface proteins (VSPs) on trophozoites that protects the parasite inside

the host’s intestine. Here we show that VSPs not only are resistant to proteolytic digestion and extreme pH and temperatures but also stimulate host innate immune responses in a TLR-4

dependent manner. We show that these properties can be exploited to both protect and adjuvant vaccine antigens for oral administration. Chimeric Virus-like Particles (VLPs) decorated with

VSPs and expressing model surface antigens, such as influenza virus hemagglutinin (HA) and neuraminidase (NA), are protected from degradation and activate antigen presenting cells in vitro.

Orally administered VSP-pseudotyped VLPs, but not plain VLPs, generate robust immune responses that protect mice from influenza infection and HA-expressing tumors. This versatile vaccine

platform has the attributes to meet the ultimate challenge of generating safe, stable and efficient oral vaccines. SIMILAR CONTENT BEING VIEWED BY OTHERS BIVALENT NOROVIRUS MRNA VACCINE

ELICITS CELLULAR AND HUMORAL RESPONSES PROTECTING HUMAN ENTEROIDS FROM GII.4 INFECTION Article Open access 01 October 2024 MRNA-BASED VP8* NANOPARTICLE VACCINES AGAINST ROTAVIRUS ARE HIGHLY

IMMUNOGENIC IN RODENTS Article Open access 22 December 2023 LOSS OF HIV CANDIDATE VACCINE EFFICACY IN MALE MACAQUES BY MUCOSAL NANOPARTICLE IMMUNIZATION RESCUED BY V2-SPECIFIC RESPONSE

Article Open access 22 October 2024 INTRODUCTION Successful vaccination against infectious diseases is considered one of the major accomplishments of medical sciences in history1. However,

the current trend of vaccine refusal and hesitancy, in part due to perceived potential hazards of parenteral vaccines and the aversion to needles, calls for the development of more friendly

and efficient vaccines2,3. Mucosal vaccines provide painless and safe administration4. While the oral route would be the most convenient mucosal vaccination approach, the nature of the

digestive system causes degradation of the ingested antigen by the low gastric pH and digestive enzymes of the small intestine5. Consequently, for oral immunization to be effective, protein

antigens must be protected from the harsh environment of the upper gastrointestinal tract (GIT). The early-branching eukaryote _Giardia lamblia_ is perhaps the only protozoan capable of

colonizing the lumen of the upper small intestine of many vertebrates, including humans6. _Giardia_ has a simple life cycle consisting of the intestinal flagellated trophozoite and the

environmentally resistant cyst6. How _Giardia_ trophozoites can survive in the hostile milieu of the small intestine is unclear, but the _Giardia_ surface is completely covered with

molecules belonging to a family of cysteine-rich proteins called variant-specific surface proteins (VSPs)7,8,9. To evade the host immune responses, _Giardia_ undergoes antigenic variation by

continuously switching its VSPs generated from a repertoire of ~200 homologous genes present in the parasite genome7,9,10. Previously, we reported that a mechanism similar to

RNA-interference (RNAi) ensures that only one VSP is expressed on the surface of _Giardia_ at any time11. By knocking down key enzymes of the RNAi pathway, we generated trophozoites

expressing their entire repertoire of VSPs11,12. Importantly, adjuvant-free oral administration of native VSPs purified from these altered trophozoites afforded efficient vaccination against

_Giardia_ without causing any symptoms of giardiasis12,13. This result indicated that VSPs remain stable and immunogenic after passage through the GIT environment and that they are not

toxic to cells or animals12,13. VSPs are integral membrane proteins consisting of an extracellular variable region rich in cysteine (mainly as CXXC motifs), a single hydrophobic

transmembrane domain and a highly conserved cytoplasmic tail10. The molecular mass of _Giardia_ VSPs varies from 20 to 200 kDa and the number of CXXC motifs depends on the length of the VSP

extracellular region10. Surface proteins with the VSP signature (protein family database PF03302) are also present in other parasitic protozoa such as _Entamoeba histolytica_ and _E.

dispar_, which colonize the large intestine14, and in the free-living ciliates _Paramecium tetraurelia_ and _Tetrahymena thermophila_15,16. Therefore, _Giardia_ VSPs, or molecules sharing

similar characteristics, could be responsible for protecting cells under stress conditions. It is well known that the most successful vaccines are attenuated or inactivated pathogen-based

formulations; i.e., naturally occurring particles1. The importance of the particulate form of antigens for efficient vaccination was highlighted by the success of recombinant vaccines based

on non-infectious virus-like particles (VLPs)17,18. Retrovirus-derived VLPs offer a very versatile and efficient platform for vaccine formulation19. We previously showed that many

heterologous antigens can be addressed at the surface of these VLPs by fusing their extracellular region with the transmembrane domain and the cytoplasmic tail of the G protein of the

vesicular stomatitis virus (VSV-G)19,20,21. Based on these previous findings, we hypothesized that protecting VLPs with VSPs could enable their use for efficient oral vaccination. To test

this idea, antigens of the influenza virus, which enter the body through mucosal surfaces of the respiratory tract, were used as model antigens. Influenza are enveloped viruses in which

hemagglutinin (HA) is responsible for virus binding to sialic acid-containing molecules, being the main target of neutralizing antibodies (NAbs) that protect against infection22. HA can be

efficiently pseudotyped onto retrovirus-derived VLPs and its co-expression with neuraminidase (NA) allows efficient VLP release20,21. We here show that different VSPs are resistant to

proteolytic digestion, fluctuations in pH and temperature and that they have an intrinsic adjuvant activity. When influenza antigens are included in VSP-pseudotyped VLPs, they produce a

remarkable immune response against the flu antigens. Oral vaccination with those VLPs protects mice from live influenza virus challenges and from the development of tumors expressing the

vaccinal antigen. These results demonstrate that by taking advantage of the properties of surface molecules of protozoan microorganisms oral vaccines can generate protective humoral and

cellular immunity locally and at distant sites of the body. RESULTS SURFACE PROTEINS CONTAINING CXXC MOTIFS ARE HIGHLY RESISTANT Regions of different _Giardia_ VSPs and VSP-like molecules

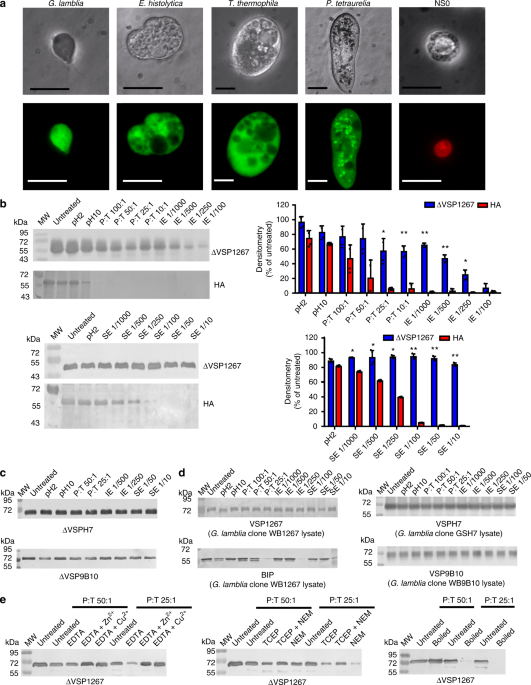

from _E. histolytica_, _T. thermophila_, and _P. tetraurelia_ are shown in Supplementary Fig. 1. The only characteristic common to these cysteine-rich domains is the presence of multiple

CXXC motifs, which have been involved in metal-binding23,24,25, making intra- and intermolecular disulfide bonds26 and protecting cells from redox damage27,28. Interestingly, all these

protozoa were capable of resisting high protease concentrations and remained viable. Conversely, mammalian cells suffered marked morphological alterations and destruction under the same

conditions (Fig. 1a and Supplementary Fig. 1). The presence of these proteins on the surface of microorganisms living in harsh environments, characterized by changes of pH, temperature and

redox potential as well as the presence of proteolytic enzymes, suggests that surface proteins containing multiple CXXC motifs play a key role in protecting cells under hostile conditions.

To delve into the biochemical properties of VSPs, recombinant extracellular regions of VSPs from three different _Giardia_ clones derived from different isolates were produced as soluble

proteins in insect cells. The extracellular cysteine-rich region of VSPs was preserved and the C-terminal transmembrane region and the cytoplasmic residues were replaced by a His6

purification tag (ΔVSPs). We first assessed the in vitro behavior of ΔVSP1267 against conditions present in the GIT and observed its high resistance to extreme pH and proteolytic digestion

by trypsin, intestinal and stomach extracts (Fig. 1b). ΔVSP9B10 and ΔVSPH7 showed a similar behavior (Fig. 1c). This resistance to proteolysis was identical to that observed in native VSPs

from _Giardia_ trophozoites (Fig. 1d). In contrast, heterologous antigens such the influenza virus surface protein HA22 (Fig. 1b) and the _Giardia_ intracellular molecule GRP78/BiP29 (Fig.

1d) showed high susceptibility to degradation, suggesting that the resistance observed in VSPs may depend on the presence of multiple CXXC motifs. For that reason, ΔVSP1267 was treated with

either reducing agents or metal chelators and subsequently confronted to trypsin. In these cases, the VSP became sensitive to degradation, which was reversed by metal addition (Fig. 1e),

confirming that inter- and intra-molecular cross-linking by metal coordination and/or disulfide bonds are crucial to provide stability to VSPs23,24,25,26. CXXC-RICH SURFACE PROTEINS ACTIVATE

INNATE IMMUNE CELLS Previous findings showed that _Giardia_ VSPs were naturally immunogenic7,12,13. Therefore, their potential immunostimulatory properties were analyzed. Signaling through

toll-like receptors (TLRs) is a key trigger of immune activation by infectious agents30. Using a panel of reporter HEK293 cells constitutively expressing human TLRs, ΔVSP1267 was able to

signal through TLR-4 and, to a lesser extent, through TLR-2 (Fig. 2a). Additional studies using mouse receptors demonstrated that this activation was dose-dependent and quite specific for

TLR-4 (Fig. 2b). ΔVSP9B10 and ΔVSPH7 also showed a strong and dose-dependent activation of TLR-4. Conversely, recombinant HA expressed and purified using the same approach did not show

activation of any of these receptors (Fig. 2b). To rule out any contamination with LPS, which is a known agonist of TLR-4, this compound was quantified in all samples and parallel assays in

the presence of polymyxin B were performed. Both strategies showed the absence of detectable bacterial compound in these protein preparations. These results were confirmed by analyzing the

activation of bone marrow-derived dendritic cells (BMDCs). ΔVSP1267 induced a significant up-regulation of the expression of CD40 and CD86 co-stimulatory molecules and this activation was

not observed when BMDCs from TLR-4 KO mice were used (Fig. 2c), suggesting that multiple CXXC motifs represent a novel pathogen-associated molecular pattern (PAMP) recognized by the pattern

recognition receptor (PRR) TLR-431. VSP-VLPS PROTECT ANTIGENS FROM DEGRADATION AND ENHANCE THEIR IMMUNOGENICITY The expression of murine leukemia virus (MLV) capsid protein Gag in eukaryotic

cells suffices to generate genome free retroviral particles. These particles can be pseudotyped by various type of envelope proteins or by fusing peptides to the transmembrane domain and

cytoplasmic tail of VSV-G19,20. We thus engineered VLPs pseudotyped with HA and NA from influenza A H5N1 or H1N1, with or without the co-expression of the extracellular region of VSPs fused

to the transmembrane domain and cytoplasmic tail of VSV-G (VLP-HA/VSP-G and VLP-HA, respectively). In some cases, the enhanced yellow fluorescent protein (eYFP) was fused to Gag to obtain

fluorescent particles (schematic representation is shown in Supplementary Fig. 2). The expression of each VLP constituent was analyzed by immunofluorescence and transmission electron

microscopy (TEM) and the correct assembly and antigen expression of VLPs was determined by western blotting and hemagglutination assays (Fig. 3a–c). Particles showed an average size of 137 

nm (VLP-HA) and 165 nm (VLP-HA/VSP-G), according to nanoparticle tracking analysis and electron microscopy (Table 1 and Fig. 3d, e). The surface of the VSP-pseudotyped VLPs looked like the

surface of _Giardia_ trophozoites, showing the same dense coat that protects _Giardia_ from degradation within the gut8. Therefore, the resistance to proteolysis of molecules displayed onto

VLPs was evaluated. These chimeric VSPs with heterologous transmembrane and cytoplasmic domains displayed similar proteolysis resistance to that of the native ones (Fig. 4a). Most

importantly, HA from three VLP-HA/VSP-G expressing different VSPs was more resistant to proteolysis than HA from VLP-HA, showing that VSPs can protect heterologous molecules from degradation

(Fig. 4a). As observed with the recombinant proteins, VLP-HA/VSP1267-G but not VLP-HA induced the activation of TLR-4 reporter cells (Fig. 4b). Additionally, VSP pseudotyping enhanced

binding and uptake of VLPs by BMDCs (Fig. 4c) and triggered expression of CD40 and CD86 (Fig. 4d), and increased the release of TNF-α, IL-10, and IL-6 when compared to VLP-HA (Fig. 4e).

These effects were abolished when DCs from TLR-4 KO mice were used (Fig. 4d, e), indicating that the presence of VSPs on VLPs improved VLP immunogenicity in a TLR-4 dependent manner.

Importantly, VLP-HA/VSP-G particles were resistant to freezing and thawing and remained stable at different temperatures for over one month without losing their immune-enhancing properties

(Fig. 4f). VSP-VLPS ORALLY ADMINISTERED INDUCE ROBUST IMMUNE RESPONSES TO HA To determine whether the properties of VSPs observed in vitro would translate into efficient mucosal vaccination;

mice were immunized by orogastric administration of different VLP formulations (four weekly doses). VLP-HA or VLP-HA/VSP1267-G were given to the animals and the local and systemic anti-HA

immune responses were analyzed. HA-specific antibody responses were first studied in serum, fecal extracts and bronchoalveolar lavage (BAL). During the immunization period, the animals did

not show any signs of discomfort nor significant weight loss. Sera from mice orally vaccinated with VLP-HA had no reactivity against HA. In contrast, VLP-HA/VSP-G vaccinated mice showed

detectable levels of serum total IgG anti-HA (Fig. 5a). After four administrations, all mice immunized with VLP-HA/VSP-G showed anti-HA IgG1 and IgG2a responses (Fig. 5b). These mice also

showed secretory IgA responses in BAL and feces32, which were not observed with plain VLP-HA vaccination (Fig. 5c). The antibodies elicited by oral VLP-HA/VSP-G vaccination persisted in

serum at high levels for up to 125 days post immunization (Fig. 5d). To test whether VSPs must be physically associated with HA on the same VLP, a mixture of VLP-HA and VLP-VSP-G was

administered orally to mice and the induction of specific antibodies anti-HA was analyzed. When HA was in VLPs separated from VLP expressing VSP-G, no anti-HA antibodies were found in serum

(Fig. 5e), indicating that VSP-G must be in the same particle as HA to provide protection to the heterologous antigen. Given that parentally administered VLPs are highly immunogenic19,33, we

also evaluated the effect of VSP using this route of administration. Similar to oral administration, subcutaneously administered HA-VLPs induced specific anti-HA serum antibodies. However,

subcutaneous immunization with VLP-HA/VSP-G achieved higher levels of anti-HA IgG than with VLP-HA. This indicates that the presence of VSP onto the VLP not only fulfills the protective

effect observed using oral administration but also increases the immunogenicity of systemically administered VLPs (Fig. 5f). Conversely, a significant amount of fecal anti-HA IgA was only

observed with oral VLP-HA/VSP-G vaccination (Fig. 5f). A great number of VLPs have been used as vectors for the delivery of heterologous vaccine antigens. However, for some of these vectors,

a pre-existing immunity could reduce the immune response to a vectored antigen34. For this reason, VSP1267-pseudotyped VLP-HA was used in mice previously immunized with recombinant

ΔVSP1267. Despite the expected presence of anti-VSP antibodies13, VLP-HA/VSP-G elicited the production of anti-HA serum IgG and fecal IgA at similar levels than in non-pre-immunized mice

(Fig. 5g). Finally, mice vaccinated with VLP-HA/VSP-G also developed a cellular immune response evidenced by HA-specific IFN-γ-producing T cells (Fig. 5h) and a significant increase of TNF-α

and IL-6 production by activated splenocytes (Fig. 5i). Thus, VSP pseudotyping was effective in protecting and adjuvanting the heterologous HA antigen in vivo by triggering systemic and

mucosal, cellular and humoral immune responses after oral vaccination. VSP-VLPS ORALLY ADMINISTERED INDUCE PROTECTIVE IMMUNE RESPONSES We then investigated the efficacy of these induced

humoral and cellular responses against viral and tumor cell challenges, which are mainly controlled by antibody and cellular responses, respectively. Vaccinated and control mice were

infected by the nasal route with a mouse adapted strain of live influenza A H5N1 virus35. VLP-HA given orally did not protect the mice from the virus challenge, whereas mice orally immunized

with VLP-HA/VSP1267-G were fully protected, indicating the presence of a highly efficient humoral response in the respiratory tract. Control animals receiving recombinant HA plus alum

intramuscularly were only partially protected (Fig. 6a), similar to the reported efficacy of the current human vaccines22. Challenged mice were monitored daily for disease signs (ruffled

fur, dyspnea, lethargy) and body weight changes for 2 weeks (Fig. 6b). No significant body weight loss or clinical signs of infection were observed in non-challenged mice or in mice

vaccinated with oral VLP-HA/VSP-G. In contrast, unvaccinated mice, mice orally vaccinated with VLP-HA and subcutaneously vaccinated with recombinant HA plus alum rapidly lost weight and died

or had to be euthanized at 4 to 6 days post challenge due to severe clinical symptoms. For the tumor challenge, vaccinated and control mice were injected with the murine AB1 malignant

mesothelioma that expresses HA from influenza A H1N136,37. AB1 tumors of large size developed in non-vaccinated mice and in those orally vaccinated with VLP-HA, whereas oral immunization

with VLP-HA/VSP-G showed an almost complete control of tumor growth (Fig. 6c, d). Antibodies generated by oral vaccination were capable of neutralizing influenza A H1N1 virus from infecting

MDCK cells in vitro (Fig. 6e), confirming not only the correct conformation of HA on the surface of the VLPs but also the capability of NAbs to bind to essential epitopes of the viral

molecule. In line with these results, oral vaccination with VSP-pseudotyped particles generated a robust IFN-γ T-cell response (Fig. 6f) and in vitro cytotoxicity against the HA-expressing

tumor cells (Fig. 6g). We thus tested whether these responses would be sufficient for therapeutic vaccination of mice that were already developing tumors. Vaccination consisting of four oral

doses given every three days after detectable tumor formation did not prevent expansion of the HA-expressing AB1 mesothelioma tumor (Fig. 6h, left panel). In contrast, under the same

conditions, therapeutic vaccination remarkably reduced HA-expressing 4T1 murine breast cancer tumor size to undetectable levels (Fig. 6h, right panel). Altogether, the humoral and cellular

anti-HA immune responses produced by oral immunization with VLP-HA/VSP-G translated well into protective anti-viral and anti-tumor immune responses. DISCUSSION Achieving efficient oral

immunization is considered the ultimate goal of vaccinology. However, despite the introduction of the Sabin oral polio vaccine in the early 1960s, only a few mucosal vaccines have been

successfully developed and most of them have been withdrawn from the market38,39. One main reason for these failures is the loss of antigen immunogenicity due to the digestive conditions of

the GIT5. Of the many biotechnological approaches used to protect antigens, encapsulating microparticles and liposomes are among the most used cores for delivering vaccinal antigens by the

oral route40. However, particle components, including vaccine antigens, are usually destroyed by bile emulsifying factors as well as intestinal and pancreatic secretions containing

hydrolytic enzymes released to the lumen of the small intestine with the purpose of favoring food digestion5,32. Therefore, we hypothesized that using the strategies developed by intestinal

microorganisms to survive under hostile conditions could protect antigens from degradation within the GIT. _Giardia_ colonizes the lumen of the upper small intestine of many vertebrate

hosts6. In that harsh environment, _Giardia_ is protected by a tight coat composed of VSPs6,8. Our results demonstrate that VSPs are highly resistant to degradation, likely due to their

capability of coordinating metals and forming both intra- and intermolecular disulfide bonds24,26. Formerly, it was reported that only certain VSPs were able to protect _Giardia_

trophozoites from the action of intestinal proteases and suggested that those differences may be related to VSP host specificity41. Our results, however, show that all tested protozoan

expressing surface proteins containing multiple CXXC motifs were resistant to high protease concentration and that three different VSPs (VSP1267 and VSP9B10 belonging to assemblage A isolate

WB and VSPH7 belonging to assemblage B isolate GS/M) not only were resistant to purified intestinal proteases but also to stomach and intestinal extracts containing a variety of serine-,

carboxy- and endo- proteinases12,13, which also demonstrates that VSPs are not acting as inhibitors of proteolytic enzymes. Considering the exploitation of VSPs in vaccine design, we also

investigated their immune-enhancing properties. Microbial PAMPs are recognized by the innate immune system through PRRs. PRRs on the surface of DCs, M cells and epithelial cells of the

intestine are known to be important in antigen transcytosis and presentation42. In this work, we observed that _Giardia_ VSPs were able to signal through TLR-4 both in DCs and in a reporter

cell line. Activation of this receptor has been shown to be immunostimulatory, generating not only an inflammatory response but also the activation of the adaptive arm of the immune

system30. Thus, proteins containing multiple copies of the CXXC motif can be considered a novel PAMP31. This finding might explain the efficacy of the protective response generated by the

anti-_Giardia_ oral vaccine composed of the entire repertoire of VSPs in experimental and domestic animals such as gerbils, dogs and cats12,13. Therefore, VSPs could be used not only to

protect antigens from degradation but also to provide a desirable mucosal adjuvant effect. We investigated the use of VSPs in vaccine design using VLPs as a platform. The most widely used

vaccines are based on attenuated or inactivated bacteria or viruses, emphasizing the importance of a particulate structure for proper immunization. Recombinant vaccines are safer than

traditional vaccines, but are often less immunogenic and usually require multiple doses and effective adjuvants43. VLPs used for homologous vaccination are a highly effective subunit vaccine

that mimics the overall structure of virus particles and thus preserves the native antigenic conformation of the immunogenic proteins without containing infectious genetic material17,18.

VLPs also make excellent carrier molecules for the delivery of heterologous antigens because their particulate structure is readily taken up by antigen-presenting cells, and is thus able to

prime long-lasting cytotoxic T lymphocytes (CTL) responses in addition to antibody responses44,45. In addition, VLPs based on enveloped viruses, such as retrovirus-based VLPs, have the

unique property of being able to express the envelope protein of heterologous viruses under their proper tertiary and even quaternary structures, thus ideal for the triggering of

NAbs18,19,20,21. The ease of designing antigen-presenting VLPs offers a promising approach for the industrial production of vaccines against many diseases. VLPs have been produced in a wide

range of taxonomically and structurally distinct viruses, combining unique advantages in terms of safety and immunogenicity as exemplified by the current vaccines against the Human Papilloma

Virus (HPV) and Hepatitis B virus (HBV)17,18. On the other hand, although several routes of administration have been used in different vaccination trials with VLPs, including nasal46,

intravaginal33, rectal47, skin48, and oral49 routes, VLP vaccines that are available on the market have only been delivered parenterally, showing the same disadvantages that any other

vaccine given by injection18. Therefore, we hypothesized that harnessing VLP vaccines with VSPs could allow their oral administration while providing adjuvant properties. For this purpose,

we used retrovirus-based VLPs, which allow efficient generation of NAbs, as demonstrated for a variety of antigens17,18,19,20,21. Retrovirus-based VLPs expressing heterologous antigens have

already been produced for clinical trials, demonstrating the ability to be manufactured with yields and purity that are expected to be suitable for vaccine production at a commercial

scale21. As a proof of concept, we used antigens from influenza virus4. We designed and produced enveloped chimeric VLPs that co-express VSPs and the main influenza virus antigens on their

membrane. Remarkably, VSP expression protected HA from the action of proteolytic enzymes and intestinal and stomach extracts. Previously, protection of membrane molecules in trans was

observed only during _Giardia_ infections7,50. Protection of HA on the surface of VSP-pseudotyped VLPs is the first demonstration that such effect can be generated artificially and

translated to other membranes. How VSPs protect heterologous antigens is still an open question. However, we have shown that (a) the heterologous antigens must be present on the same

particles that express the VSP-G, (b) NA and HA are exposed on the surface of VLPs since NA is accessible to its substrate and HA retains its hemagglutinating activity, (c) HA and VSP are

exposed because they are detected on the surface of VLPs by immunoelectron and immunofluorescence microscopy, and (d) VSPs do not act as protease inhibitors. All these results suggest that

the heterologous antigens are not directly shielded by VSP-G molecules on the surface of the VLPs. Therefore, we hypothesize that intra- and intermolecular interactions among these proteins,

likely involving metal and disulfide bridges, play crucial roles in antigen protection. Indeed, when VSPs are treated with metal chelators or reducing agents their protective properties are

lost. Nevertheless, the completion of the high-resolution structures of ΔVSP and ΔVSP-antigen complexes, which has been elusive until now, will allow a better understanding of the mechanism

by which VSPs interact and protect heterologous antigens from the action of proteolytic enzymes. VSPs not only protected HA from degradation but also enhanced the in vitro immunogenic

properties of VLP-HA. Particle binding and uptake, up-regulation of co-stimulatory molecules as well as secretion of the pro-inflammatory cytokines TNF-α and IL-6 by DCs were improved in

VSP-pseudotyped VLPs with respect to plain VLPs. Production of cytokines by DCs is crucial in modulating immune responses generated through microbial products51. TNF-α is an important

pleiotropic cytokine involved in host defense and inflammation52. IL-6 is a multifunctional cytokine involved in regulation of immune responses, acute-phase responses, and inflammation53.

IL-6 promotes T-cell proliferation, B-cell differentiation and survival, and plasma cell production of IgG, IgA, and IgM54. The adjuvant effects of VSP-pseudotyped VLPs were TLR-4 dependent

since they were abolished when DCs from TLR-4 KO mice were used. Most likely, intestinal DCs sampling the lumen of the small intestine for particulate antigens are key players in activating

a broad immune response55. These observed effects in vitro translated well in the capacity to elicit efficient immune responses in vivo. When mice were orally immunized with HA-expressing

VLPs, without added adjuvants, a strong cellular and antibody response was generated with VLP-HA/VSP-G, but not with plain VLPs. These results indicate that VSP pseudotyping was necessary to

protect and adjuvant VLPs to generate a humoral response that not only is present in serum but also prevails in mucosal fluids, which are the first barrier encountered by infectious

agents38,39,56. The gut is also a site for mucosal tolerance induction, as occurs with food antigens57. While tolerance is important in preventing pathology, it has been considered an

obstacle for the development of oral vaccines57,58. However, this is not the case with VSP-pseudotyped VLPs, as intact antigens rather than degraded peptides can reach the immune cells of

the small intestine and VSPs have strong adjuvant properties. Most importantly, these cellular and humoral immune responses translated into vaccine efficacy. We used two prototypic models

for assaying humoral and cellular responses, in which the protective immunological mechanisms are essentially very different: protection from live virus infection and killing of tumor cells.

It is widely accepted that an effective anti-influenza vaccine must elicit NAbs. Here, the protection from an intranasal challenge with live influenza virus was indeed correlated with the

generation of neutralizing anti-HA antibodies. As the formation of these antibodies is CD4+ helper T-cell dependent, these results also indicate that efficient immune cellular responses were

triggered by orally administered VSP-pseudotyped-VLPs59. On the other hand, protection from tumor challenge is largely dependent on the generation of CTL, with a possible contribution of

antibody-dependent cell-mediated cytotoxicity and the induction of IFN-γ. Here, the protection from AB1 HA-expressing tumor cells observed after oral immunization with the

VSP-pseudotyped-VLPs indicates that efficient cytotoxic responses were mounted. A positive correlation was also noted between IFN-γ production and the tumor growth control (Fig. 6d, f) while

no such correlation was observed with antibody levels (Figs. 5a and 6d). VSP-based oral immunization against tumors could possibly be used therapeutically. Although therapeutic oral

vaccination was not effective against the mesothelioma tumor, it led to tumor eradication when using the HA-expressing 4T1 murine breast cancer. Several factors could contribute to the

observed differential outcome. Among these, the anti-tumor immune response, tumor cell number, growth rate, size, and the particular tumoral microenvironment are likely the most

significant36. Nevertheless, the 4T1 tumor control/reversion highlights the strength, quality and the effectiveness of the induced cytotoxic immune response elicited by VLP-HA/VSP-G vaccine.

It is well known that tumor fate is the uncertain result of a battle between tumor and immune cells in a particular environment36. Nevertheless, the unexpected differences between these two

HA-expressing tumors make them valuable starting models to better understand the molecular mechanisms underlying the observed effects and the potential manipulation of this vaccine platform

to enhance its therapeutic potential against a variety of tumors36,37. In the intestine, induction and regulation of mucosal immunity take place primarily in gut-associated lymphoid tissue

(GALT)60. _G. lamblia_ colonizes the upper small intestine where it releases VSPs that are known to interact with the gut epithelial and immune cells61. Our results propose that a marked

difference takes place between the large intestine and the upper small intestine in determining the outcome of the immune response. Thus, our results would suggest that efficiently targeting

the GALT of the upper small intestine, instead of the tolerogenic large intestine, can generate protective immunity rather than tolerance. Since _Giardia_ species are intestinal parasites

of many vertebrates, VSPs may have the same protecting and immune-enhancing capabilities for oral vaccination of a variety of animals, including humans. This versatile oral vaccine platform

based on VSP-pseudotyped VLPs can be easily adapted to different antigens from infectious agents or tumors and has the attributes to potentially help reduce reticence to vaccination,

facilitate mass vaccination programs and be used in remote areas of the world where vaccine refrigeration is impractical. METHODS ANIMALS BALB/c, C57BL/6, and C57BL/10ScNJ (TLR-4 KO) mice

(6–8 week-old) of both sexes were obtained from the Facultad de Ciencias Veterinarias, Universidad Nacional de la Plata (Argentina) and housed in the vivarium of the CIDIE under specific

pathogen-free (SPF) conditions in microisolator cages (Techniplast, Italy); they were cared for following NIH guidelines for laboratory animals. No animals were harmed during the collection

of blood and fecal samples. For immunization and challenge studies the group sizes were chosen based on previous experience and littermates of the same sex were randomly assigned to

experimental groups. The number of animals for each experiment and all procedures followed the protocols approved by the Institutional Committee for Care and Use of Experimental Animals

(CICUAL protocols UCC.2010-36-15p, CIDIE.2016-36-15p-2, and CIDIE.2018-36-15p-3). Tumor volume determinations were carried out in a blinded fashion in different laboratories. All data points

were included in the analyses, and no outliers were excluded in calculations of means/statistical significance. The number of samples and experimental replicates are indicated on each

figure legend. CELL LINES All cell lines were regularly tested and remained negative for _Mycoplasma spp_. Endotoxin levels in all media and antigens were determined by the _Limulus_

amebocyte lysate test (Lonza) using the _Escherichia coli_ 0111:B4 internal control62. _Giardia lamblia_ trophozoites isolate WB (ATCC® 50803) clones 126741 and 9B1063 and isolate GS/M

(ATCC® 50581) clone H764 were used. HEK293-1267, HEK293-H7 and HEK293-9B10 cell lines were generated following the instructions of the Flp-In® 293 kit (Invitrogen, Cat. # R75007). They

constitutively express on their surface the extracellular portion of a VSP of _G. lamblia_ (GenBank: M63966.1/VSP1267; AF293416.1/VSP9B10; M80480.1/VSPH7) fused to the transmembrane domain

and the cytoplasmic tail of the VSV-G. HEK293, Flp-In® derivatives, HEK-Blue® TLRs (Invitrogen, Cat. # hkb-mtlr2 and hkb-mtlr4), MDCK cells (ATCC® CCL-34™), HEK-Blue® Nulls (Invitrogen, Cat.

# hkb-null1v and hkb-null2), NS0 murine myeloma cells (ECACC 85110503), BALB/c AB1-HA malignant mesothelioma derived from AB1 cells (ECACC 10092305) and the 4T1-HA mammary carcinoma cells

derived from 4T1 cells (ATCC® CRL-2539™) were maintained at 37 °C in 5% CO2 in DMEM medium (Gibco) supplemented with 2 mM l-glutamine, 100 U ml−1 of penicillin and streptomycin (Invitrogen)

and 10% heat-inactivated fetal bovine serum (FBS, Gibco). _Spodoptera frugiperda_ Sf9 cells (Invitrogen, Cat. # LSB82501) were maintained at 27 °C in SF900-II SFM medium (Gibco, Cat. #

10902096). BMDCs were obtained by differentiation from BM precursors after culture for 8 days with granulocyte macrophage colony-stimulating factor (GM-CSF)65. Cells were determined to be 

> 90% CD11c+ by flow cytometry. Spleen cells were cultured in plates containing RPMI 1640, 10% FBS, 100 U ml−1 of penicillin, 100 µg ml−1 of streptomycin, 0.25 µg ml−1 of Fungizone® and

50 µM of 2-mercaptoethanol. _Entamoeba histolytica_ strain HM-1:IMSS (ATCC® 30459), _Tetrahymena thermophila_ strain SB210 (ATCC® 30007) and _Paramecium tetraurelia_ strain d4-2 (ATCC®

30759) were cultured as previously reported66,67. Briefly, _E. histolytica_ was cultured at 37 °C in TYI-S-33 supplemented with 10% adult bovine serum and a vitamin mix; _T. thermophila_ at

room temperature (RT) in PPYE 1X medium and _P. tetraurelia_ at 27 °C in a culture medium consisting of a sterile wheat grass infusion inoculated with bacteria (_Klebsiella pneumoniae_) the

day before use and supplemented with β-sitosterol. VIRUS STRAINS A mouse-adapted variant strain (muH5N1) obtained from an avian H5N1 virus (A/crested eagle/Belgium/1/2004) was obtained by

five passages by lung-to-lung, after that, the muH5N1 rapidly caused the death of naive mice and began to propagate stably in lungs35. The mouse-adapted influenza virus A/Puerto Rico/8/1934

(H1N1) (PR8) was cultured by inoculation into the allantoic cavity of embryonated chicken eggs and passaging by MDCK cells68. PRODUCTION OF RECOMBINANT VSPS AND HA Sf9 cells were used for

the production of recombinant proteins by the Bac-to-Bac Baculovirus Expression System® (Invitrogen, Cat. # 10359016). The specific DNA fragments, containing the full-length VSP

extracellular region and the His6 protein purification tag at the carboxy-terminus were cloned into pFastBac1 and amplified in _E. coli_ DH5α. The proteins were purified by immobilized metal

affinity chromatography (IMAC) using the ÄKTA® pure chromatography apparatus. Protein analysis was carried out using sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS–PAGE) and

the western blots were performed using an anti-His6 antibody (Roche, Cat. # 04905318001, dilution 1/5000) and specific monoclonal antibodies (mAb G10/4 for VSPH7, dilution 1/1000; mAb 9B10

for VSP9B10, dilution 1/1000 and mAb 7F5 for VSP1267, dilution 1/1000)12 and AP-conjugated anti-mouse immunoglobulins (Cappel, Cat. # 59294, dilution 1/2000). For the production of

recombinant HA from the influenza A virus (A/Hong Kong/156/97), the specific DNA fragment containing the HA (GenBank: AAF02306.1) full extracellular domain and the His6 protein purification

tag at the C-terminus was cloned into the pFastBac1 plasmid and expressed and purified as the ΔVSPs. MOUSE ANTI-HA (H5N1) AND ANTI-VSP1267 MONOCLONAL ANTIBODIES BALB/c mice were immunized

intraperitoneally on days 0, 7, 14, and 21 with 25 μg of purified recombinant proteins, emulsified in Sigma Adjuvant System (Sigma, Cat. # S6322). Mice were boosted on day 28 intravenously

with 10 μg of the protein. Three days later, mice were euthanized and the spleen cells used for fusion to NS0 myeloma cells. Polyethylene glycol was used as the fusing agent and the cells

were incubated for 16 h. Subsequently, HAT (hypoxanthine, aminopterin, and thymidine) (Sigma, Cat. # H0262) was added to the medium69. The hybridomas were cloned by limiting dilution and the

supernatants were screened by western blotting and indirect immunofluorescence with _G. lamblia_ trophozoites (mAb 7F5, anti-VSP1267) or by western blotting and enzyme-linked immunosorbent

assay (ELISA; mAb 15E4, anti-HA H5N1). MAbs were purified from supernatants screened using the ÄKTA® pure chromatography apparatus (HiTrapTM Protein G HP column, GE Cat. # 17-0405-03).

_GIARDIA LAMBLIA_ CULTURES, LYSATES, AND IMMUNOFLUORESCENCE _G. lamblia_ WB and GS/M were cultured and cloned in the TYI-S-33 medium at pH 7.0 with 10% adult bovine serum and bovine bile

(0.5 mg ml−1) in anaerobiosis at 37 °C11. For lysates, trophozoites were sonicated in PBS with eight 30-s bursts and centrifuged at 10,000 × _g_ for 20 min. The supernatant was collected and

the protein concentration was determined using the Bradford method. For immunofluorescence, trophozoites were obtained and fixed by incubation in 100% cold methanol. Cells were labeled with

mAb 7F5-FITC (dilution 1/1000) for VSP126711,12. DNA staining was performed with DAPI. PROTEOLYTIC ASSAYS Trophozoites from _G. lamblia_, _E. histolytica_, _T. thermophila_, and _P.

tetraurelia_, and mouse myeloma cells NS0 were incubated during 90 min under different conditions. In the cases of _T. thermophila_ and _P. tetraurelia_, PBS 0.1X was used to prevent osmotic

stress. Cell viability was determined by simultaneous staining with Fluorescein Diacetate/Propidium Iodide70. For proteins, 1 μg of purified ∆VSP and HA, or 10 μg of _Giardia_ lysate and

VLP, were treated at 37 °C for 90 min with variable concentrations of trypsin (Sigma-Aldrich); different mouse intestinal (IE) or stomach (SE) extract dilutions; or at variable pHs. In

addition, previous to trypsin digestion, 1 μg of purified ∆VSP1267 was subjected to different treatments: boiling (5 min, 100 °C); EDTA (2 mM, 15 min, RT); EDTA (2 mM, 15 min, RT) plus CuSO4

or ZnCl2 (10 mM, 15 min, RT); TCEP (5 mM, 15 min, RT); TCEP (5 mM, 15 min, RT) plus NEM (1.5 mM, 2 h, RT); NEM (1.5 mM, 2 h, RT). The reactions were stopped by adding a protease inhibitor

cocktail (Complete®, EDTA-free, Roche), placed in sample buffer and boiled for 5 min. The IE and SE were obtained from normal BALB/c mice, fasted overnight. For SE, stomach was mechanically

homogenized in 200 μl of ice-cold PBS pH 2, centrifuged at 10,000 × _g_ for 15 min, and the supernatants were then used. For IE, the first portion of the small intestine (10 cm) was filled

with 1 ml of PBS pH 7.4 and incubated at 4 °C for 30 min. The IE was recovered and centrifuged at 10,000 × _g_. Uncropped scans of western blots are provided in Supplementary Fig. 4. VLP

EXPRESSION PLASMIDS For pGag-eYFP, the cDNA sequence encoding the Gag capsid protein of the MLV Gag (UniProt: P0DOG8.1) without its C-terminal Pol sequence was obtained by enzymatic

digestion from plasmid pBL36-HCV21 and cloned into the phCMV expression vector as a fusion protein with the enhanced yellow fluorescent protein (eYFP). For pHA and pNA, the cDNA sequences

encoding HA and NA from the H5N1 influenza A/Hong Kong/156/97 (H5N1) virus (AF028709, AF046089, respectively) and the sequences encoding HA and NA from the H1N1 influenza strain A/Puerto

Rico/8/34 (AGQ48050.1 and AGQ48041.1, respectively) were also cloned in the phCMV expression vector. All plasmids were verified by sequencing. IMMUNOFLUORESCENCE AND TEM OF TRANSFECTED

HEK293 CELLS Transfected cells were harvested 48 h post-transfection and fixed by incubation in 100% cold methanol. Cells were labeled with the specific corresponding antibodies: mAb 7F5 for

VSP1267, mAb 15E4 for HA-H5N1 (dilution 1/1000), rabbit pAb for NA-H5N1 (USBiologicals, Cat. # I7649-48, dilution 1/2000)) and mAb R187 for Gag (ATCC® CRL-1912™, dilution 1/2000). DNA

staining was performed with DAPI. Images were taken using a Hamamatzu ORCA ER-II camera mounted on a Leica IRBE inverted fluorescence microscope (N.A. 1.40). TEM of cryosections was

performed by applying the Tokuyasu technique and incubated with anti-HA or anti-VSP and anti-mouse coupled 5-nm gold particles (Sigma-Aldrich, Cat. # G7527, dilution 1/50). Finally, the

samples were infiltrated with a mixture of 1.8% methylcellulose and 0.5% uranyl acetate for 5 min and air-dried. Images were obtained using a Zeiss LEO 906-E TEM. VLP GENERATION, PRODUCTION,

PURIFICATION, AND VALIDATION VLPs were produced by transient transfection of either HEK293 cells or HEK293-1267/H7/9B10 cells, with pGag, pHA and pNA plasmid DNA using PEI as transfection

reagent. Cells were transfected at 70% confluence in T175 flasks with 70 μg of total DNA per flask at a PEI: DNA mass ratio of 3:1. VLP-containing supernatants were harvested 72 h

post-transfection, filtered through a 0.45 μm pore size membrane, concentrated 20x in a centrifugal filter device (Centricon® Plus-70-100K, Millipore Cat. # UFC710008) and purified by

ultracentrifugation through a 20% sucrose cushion in an SW41T Beckman rotor (25,000 rpm, 4 h, at 4 °C). Pellets were resuspended in sterile TNE buffer (50 mM Tris-HCl pH 7.4, 100 mM NaCl,

0.1 mM EDTA)21,22. Proteins were measured using the Bradford method. For western blotting proteins were resolved by 10% SDS–PAGE and transferred onto PVDF membranes before incubation with

specific primary antibodies. Alkaline phosphatase-conjugated secondary antibodies were used and they were detected by BCIP/NBT substrate. Uncropped scans of western blots are provided in

Supplementary Fig. 4. Direct immunofluorescence assay using 7F5-FITC was performed to confirm the presence of VSP onto VLPs. Hemagglutination assay was based on a previously described

method71 using a commercial flu vaccine as positive control. Briefly, two-fold serial dilutions of 50 μl of VLPs starting at 25 ng μl–1 were used and 50 µl of a 0.5% chicken red blood cell

suspension were added to each well, and the plates incubated for 2 h at RT. The HA titer was calculated as the highest dilution of VLPs agglutinating red blood cells. Additionally, VLP

samples were prepared for TEM using the air-dried negative staining method. The samples were examined in a JEOL EXII 1200 electron microscope. Finally, the samples were analyzed using a

Nanosight NS300 in a light scatter mode. The nanoparticle tracking analysis software (NTA 3.1) defined the concentration, size, and intensity of the particles within the samples. Each sample

was analyzed in triplicate, and each replicate was measured twice. DENDRITIC CELLS ANALYSIS BMDCs were cultured with different stimuli for 48 h. Supernatants were collected and assayed for

cytokine production using the CBA Mouse Inflammation Kit (IL-6, IL-10, IFN-γ, TNF-α, and IL-12p70) (BD Biosciences, Cat. # 552364), according to the manufacturer’s instructions. Cells were

stained with: CD11c-PE (eBioscience, Cat. #12-0114, dilution 1/50), CD86-APC (eBioscience, Cat. # 17-0862, dilution 1/250) and CD40-PerCP-eFluo710 (eBioscience, Cat. # 46-0401, dilution

1/50) and analyzed in an Accuri® C6 flow cytometer (BD). Gating strategy is shown in Supplementary Fig. 3a. Appropriate isotype controls were used. TLR REPORTER CELLS ASSAYS For the

Quanti-Blue SEAP Reporter Assay (InvivoGen, Cat. # rep-qb1), HEK-Blue® TLRs cells were stimulated with the different compounds for 16 h, according to the manufacturer’s instructions. Each

reporter line was induced in parallel with a positive control sample. The HEK-Blue® Null2 and Null1-v were used as a negative control; the secretion of SEAP was induced with TNF-α. No

activation of Null lines was observed, indicating the specificity of the reactions. VLP UPTAKE/BINDING ASSAY BMDCs were placed on ice for 30 min. A total of 50 μg ml−1 eYFP fluorescent

VLP-VSP/G or plain VLP were added to the cells. Sixty minutes later, the cells were washed to remove the unbound VLPs and placed either on ice or at 37 °C for 1 h. Finally, the cells were

harvested and the fluorescence was analyzed by flow cytometry. Gating strategy is shown in Supplementary Fig. 3a. VLP uptake was quantified by measuring the signal of cells treated at 37 °C.

IMMUNIZATIONS BALB/c mice were fasted 4 h and then orally immunized with four weekly doses of 100 µg of different VLPs. For subcutaneous immunization, four weekly doses of 10 µg of

different VLPs were administered. Animals from the negative control group (naive) received oral immunizations with vehicle alone. Animals were not anesthetized during immunizations. The

control groups received two doses of alum/antigen mixture: 10 μg recombinant HA (H5N1) or 10 µg of VLP-HA (H1N1) in 50 μl of PBS plus 50 μl Imject® Alum. For the assays of pre-existing

anti-VSPs antibodies, BALB/c mice were orally immunized with four oral weekly doses of 50 μg of recombinant ΔVSP1267. In parallel, another set of animals were administered with control PBS.

One week after the last immunization, blood and fecal samples were collected to evaluate the presence of anti-ΔVSP1267 antibodies. These two groups were then immunized with VLP-HA/VSP-G

(H5N1), according to the protocol previously described, and 1 week after the last dose blood and fecal samples were obtained to evaluate the presence of anti-HA antibodies. SPLENOCYTES

ISOLATION AND ANALYSIS Single cell suspensions from spleen were obtained and cultured on 96-well plates for 48 h with PBS, recombinant HA (1 µg ml−1) or ConA (5 μg ml−1). Cytokines in

supernatants were measured using the CBA Mouse Th1/Th2/Th17 kit (BD Biosciences Cat. # 560485) according to the manufacturer’s instructions. T-CELL RESPONSE The frequency of HA-specific T

cells was analyzed by a standard IFN-γ ELISPOT assay (MabTech, Cat. # 3321-2 H). Splenocytes (5 × 105 cells per well) were stimulated with 1 µg ml−1 of recombinant HA. PBS and Con A (5 μg 

ml-1) were used as negative and positive controls, respectively. Spots were counted using the AID® ELISPOT reader. FLUID COLLECTION Blood was collected weekly from the retro-orbital sinus of

mice and serum was separated. Fecal pellets were resuspended in PBS containing protease inhibitor (Complete® Protease Inhibitor Cocktail; Roche) and 0.1% sodium azide, at a ratio of 0.1 g

per 500 µl. After 30 min on ice, the mixture was centrifuged at 10,000 × _g_ and the supernatant was stored at −80 °C. BAL was collected through the trachea by injection-aspiration of 1 ml

PBS with protease inhibitors. ENZYME-LINKED IMMUNOSORBENT ASSAY (ELISA) TESTS The levels of IgG, IgG1, IgG2a or IgA antibodies against HA (H5N1 or H1N1) were determined by ELISA. The

following horseradish peroxidase-conjugated antibodies were used: goat anti-mouse IgG1 (SouthernBiotech, Cat. # 1070-05, dilution 1/2000); goat anti-mouse IgG2 (SouthernBiotech, Cat. #

1080-05, dilution 1/2000); goat anti-mouse IgG (Molecular Probes, Cat. # G-21040, dilution 1/2000). For IgA, biotin anti-mouse IgA (BioLegend, Clone RMA-1, dilution 1/5000), and

streptavidin-horseradish peroxidase-conjugate (BD Biosciences, Cat. # 51-9002208, dilution 1/1500) were used. The 3,3’,5,5’-tetramethylbenzidine (TMB, BD Biosciences) was used to reveal the

reaction. Optical density (OD) was measured on a microplate reader at 450 nm. To evaluate the presence of anti-VSP1267 IgG and IgA antibodies, ELISA plates were sensitized with recombinant

ΔVSP1267 (10 μg ml−1). Serum dilution 1/1000 and fecal dilution 1/2 were assayed. ANTIBODY MICRONEUTRALIZATION ASSAYS Microneutralization assays using MDCK cells and 100 TCID50 of A/Puerto

Rico/8/1934 (H1N1) were performed. Briefly, serial dilutions of complement-inactivated serum were incubated with live virus at RT for 1 h and then added to monolayers of MDCK cells, which

were incubated for a further 3 day period to examine the presence of cytopathic effect. The neutralizing titer was defined as the reciprocal of the highest dilution of serum at which the

virus infectivity was completely neutralized in 50% of the wells71. CYTOTOXICITY ASSAY AB1-HA mesothelioma cells were used as target cells and labeled with 2 μM carboxyfluorescein

succinimidyl ester (CFSE) followed by a 4 h incubation period with splenocytes from immunized mice (effector cells) at an E:T ratio of 20:1 in U-bottom 96-well culture plates at 37 °C72. The

cells were harvested, stained with propidium iodide for 5 min and then subjected to flow cytometry analysis. Gating strategy is shown in Supplementary Fig. 3b. The death percentage was

calculated on CFSE-positive cells. The mean percentage of each condition was calculated from three replicate wells. VIRUS PROTECTION ASSAYS Ten days after the last immunization, mice were

anesthetized and intranasally challenged with 50 μl of a suspension containing 102 or 104 50% lethal dose (LD50) of mouse-adapted variant strain muH5N1 virus20. Mice were monitored daily for

weight loss and survival during 2 weeks and those mice that exhibited over 25% body weight loss were sacrificed in accordance with the guidelines. TUMOR PROTECTION ASSAYS Ten days after the

immunization protocol, 1 × 105 AB1-HA mesothelioma cells were injected subcutaneously into the right flank of mice. Tumor-inoculated mice were sacrificed when average tumor diameters

reached 15–20 mm. Tumor volume (mm3) was determined using Vernier calipers (_L_ x _W_2/2)36. For therapeutic vaccination, 20,000 4T1-HA cells were injected into the mammary gland or 1 × 105

AB1-HA cells were injected as described above into groups of BALB/c mice. Then, when the tumor was palpable, the animals were orally immunized with four doses of 100 µg of different VLPs or

vehicle every 3 days. STATISTICAL ANALYSES For in vitro proteolytic densitometry experiments, two-tailed unpaired Student’s _t_-test was used. Prism (GraphPad Software) was used to perform

one-way or two-way ANOVA on datasets with Tukey’s multiple comparisons test or Bonferroni post-test, respectively. Kaplan–Meier life survival curve analysis was performed using the log-rank

Mantel-Cox method for curve comparison analysis. All figures show mean ± s.e.m. Statistically significant differences are indicated in each graph as *_p_ < 0.05, **_p_ < 0.01, and

***_p_ < 0.001 and n.s. = not significant. REPORTING SUMMARY Further information on experimental design is available in the Nature Research Reporting Summary linked to this article. DATA

AVAILABILITY All relevant data are available from the authors. The source data underlying Figs. 1b–e, 2a–c, 3c, 4a–b, 4d–f, 5a–i, and 6a–h are provided as a source data file. The data

associated with the paper has been deposited in a persistent repository with this identifier: https://doi.org/10.17605/OSF.IO/9WDCA [https://osf.io/9WDCA/]. REFERENCES * Andre, F. E. et al.

Vaccination greatly reduces disease, disability, death and inequity worldwide. _Bull. World Health Organ_ 86, 140–146 (2008). Article  CAS  Google Scholar  * Dube, E., Vivion, M. &

MacDonald, N. E. Vaccine hesitancy, vaccine refusal and the anti-vaccine movement: influence, impact and implications. _Expert Rev. Vaccin._ 14, 99–117 (2014). Article  Google Scholar  *

Salmon, D. A., Dudley, M. Z., Glanz, J. M. & Omer, S. B. Vaccine hesitancy: Causes, consequences, and a call to action. _Am. J. Prev. Med._ 49, S391–S398 (2015). Article  Google Scholar

  * Amorij, J. P., Hinrichs, W., Frijlink, H. W., Wilschut, J. C. & Huckriede, A. Needle-free influenza vaccination. _Lancet Infect. Dis._ 10, 699–711 (2010). Article  Google Scholar  *

Mowat, A. M. Anatomical basis of tolerance and immunity to intestinal antigens. _Nat. Rev. Immunol._ 3, 331–341 (2003). Article  CAS  Google Scholar  * Adam, R. D. Biology of _Giardia

lamblia_. _Clin. Microbiol. Rev._ 14, 447–475 (2001). Article  CAS  Google Scholar  * Nash, T. E. Antigenic variation in _Giardia lamblia_ and the host’s immune response. _Philos. Trans. R.

Soc. Lond. B Biol. Sci._ 352, 1369–1375 (1997). Article  ADS  CAS  Google Scholar  * Pimenta, P. F., da Silva, P. P. & Nash, T. Variant surface antigens of _Giardia lamblia_ are

associated with the presence of a thick cell coat: thin section and label fracture immunocytochemistry survey. _Infect. Immun._ 59, 3989–3996 (1991). CAS  PubMed  PubMed Central  Google

Scholar  * Prucca, C. G., Rivero, F. D. & Lujan, H. D. Regulation of antigenic variation in _Giardia lamblia_. _Annu. Rev. Microbiol._ 65, 611–630 (2011). Article  CAS  Google Scholar  *

Adam, R. D. et al. The _Giardia lamblia vsp_ gene repertoire: characteristics, genomic organization, and evolution. _BMC Genom._ 11, 424 (2010). Article  Google Scholar  * Prucca, C. G. et

al. Antigenic variation in _Giardia lamblia_ is regulated by RNA interference. _Nature_ 456, 750–754 (2008). Article  ADS  CAS  Google Scholar  * Rivero, F. D. et al. Disruption of antigenic

variation is crucial for effective parasite vaccine. _Nat. Med._ 16, 551–557 (2010). Article  CAS  Google Scholar  * Serradell, M. C. et al. Vaccination of domestic animals with a novel

oral vaccine prevents _Giardia_ infections, alleviates signs of giardiasis and reduces transmission to humans. _NPJ Vaccin._ 1, 16018 (2018). Article  Google Scholar  * Weedall, G. D. &

Hall, N. Evolutionary genomics of _Entamoeba_. _Res. Microbiol._ 162, 637–645 (2011). Article  CAS  Google Scholar  * Bannon, G. A., Perkins-Dameron, R. & Allen-Nash, A. Structure and

expression of two temperature-specific surface proteins in the ciliated protozoan _Tetrahymena thermophila_. _Mol. Cell. Biol._ 6, 3240–3245 (1986). Article  CAS  Google Scholar  * Forney,

J. D. et al. Structure and expression of genes for surface proteins in _Paramecium_. _Mol. Cell. Biol._ 3, 466–474 (1983). Article  CAS  Google Scholar  * Ludwig, C. & Wagner, R.

Virus-like particles-universal molecular toolboxes. _Curr. Opin. Biotechnol._ 18, 537–545 (2007). Article  CAS  Google Scholar  * Grgacic, E. V. & Anderson, D. A. Virus-like particles:

passport to immune recognition. _Methods_ 40, 60–65 (2006). Article  CAS  Google Scholar  * Garrone, P. et al. A prime-boost strategy using virus-like particles pseudotyped for HCV proteins

triggers broadly neutralizing antibodies in macaques. _Sci. Transl Med._ 3, 94ra71 (2011). Article  CAS  Google Scholar  * Bellier, B. et al. DNA vaccines expressing retrovirus-like

particles are efficient immunogens to induce neutralizing antibodies. _Vaccine_ 27, 5772–5780 (2009). Article  CAS  Google Scholar  * Kirchmeier, M. et al. Enveloped virus-like particle

expression of human cytomegalovirus glycoprotein B antigen induces antibodies with potent and broad neutralizing activity. _Clin. Vaccin. Immunol._ 21, 174–180 (2013). Article  Google

Scholar  * Johansson, B. E. & Brett, I. C. Changing perspective on immunization against influenza. _Vaccine_ 25, 3062–3065 (2007). Article  CAS  Google Scholar  * Zhang, Y. Y., Aley, S.

B., Stanley, S. L. Jr. & Gillin, F. D. Cysteine-dependent zinc binding by membrane proteins of _Giardia lamblia_. _Infect. Immun._ 61, 520–524 (1993). CAS  PubMed  PubMed Central  Google

Scholar  * Lujan, H. D. et al. Purification of a variant-specific surface protein of _Giardia lamblia_ and characterization of its metal-binding properties. _J. Biol. Chem._ 270,

13807–13813 (1995). Article  CAS  Google Scholar  * Nash, T. E. & Mowatt, M. R. Variant-specific surface proteins of _Giardia lamblia_ are zinc-binding proteins. _Proc. Natl Acad. Sci.

USA_ 90, 5489–5493 (1993). Article  ADS  CAS  Google Scholar  * Aley, S. B. & Gillin, F. D. _Giardia lamblia_: post-translational processing and status of exposed cysteine residues in

TSA 417, a variable surface antigen. _Exp. Parasitol._ 77, 295–305 (1993). Article  CAS  Google Scholar  * Wouters, M. A., Fan, S. W. & Haworth, N. L. Disulfides as redox switches: from

molecular mechanisms to functional significance. _Antioxid. Redox Signal_ .12, 53–91 (2009). Article  Google Scholar  * Fomenko, D. E. & Gladyshev, V. N. Identity and functions of

CxxC-derived motifs. _Biochemistry_ 42, 11214–11225 (2003). Article  CAS  Google Scholar  * Lujan, H. D., Mowatt, M. R., Conrad, J. T. & Nash, T. E. Increased expression of the molecular

chaperone BiP/GRP78 during the differentiation of a primitive eukaryote. _Biol. Cell_ 86, 11–18 (1996). CAS  PubMed  Google Scholar  * Bryant, C. E. et al. Advances in toll-like receptor

biology: Modes of activation by diverse stimuli. _Crit. Rev. Biochem. Mol. Biol._ 50, 359–379 (2015). Article  CAS  Google Scholar  * Vance, R. E., Isberg, R. R. & Portnoy, D. A.

Patterns of pathogenesis: discrimination of pathogenic and nonpathogenic microbes by the innate immune system. _Cell Host Microbe_ 6, 10–21 (2009). Article  CAS  Google Scholar  *

Brandtzaeg, P. Induction of secretory immunity and memory at mucosal surfaces. _Vaccine_ 25, 5467–5484 (2007). Article  CAS  Google Scholar  * Hunter, Z., Tumban, E., Dziduszko, A. &

Chackerian, B. Aerosol delivery of virus-like particles to the genital tract induces local and systemic antibody responses. _Vaccine_ 29, 4584–4592 (2011). Article  CAS  Google Scholar  *

Saxena, M., Van, T. T., Baird, F. J., Coloe, P. J. & Smooker, P. M. Pre-existing immunity against vaccine vectors—friend or foe? _Microbiology_ 159, 1–11 (2012). Article  Google Scholar

  * Torrieri-Dramard, L. et al. Intranasal DNA vaccination induces potent mucosal and systemic immune responses and cross-protective immunity against influenza viruses. _Mol. Ther._ 19,

602–611 (2010). Article  Google Scholar  * Bergot, A. S. et al. Antigen quality determines the efficiency of antitumor immune responses generated in the absence of regulatory T cells.

_Cancer Gene Ther._ 17, 645–654 (2010). Article  CAS  Google Scholar  * Davis, M. R., Manning, L. S., Whitaker, D., Garlepp, M. J. & Robinson, B. W. Establishment of a murine model of

malignant mesothelioma. _Int. J. Cancer_ 52, 881–886 (1992). Article  CAS  Google Scholar  * Holmgren, J. & Czerkinsky, C. Mucosal immunity and vaccines. _Nat. Med._ 11, S45–S53 (2005).

Article  CAS  Google Scholar  * Levine, M. M. “IDEAL” vaccines for resource-poor settings. _Vaccine_ 29(Suppl. 4), D116–D125 (2012). Google Scholar  * Singh, B. et al. Combinatorial approach

of antigen delivery using M cell-homing peptide and mucoadhesive vehicle to enhance the efficacy of oral vaccine. _Mol. Pharm._ 12, 3816–3828 (2015). Article  CAS  Google Scholar  * Nash,

T. E., Merritt, J. W. Jr. & Conrad, J. T. Isolate and epitope variability in susceptibility of Giardia lamblia to intestinal proteases. _Infect. Immun._ 59, 1334–1340 (1991). CAS  PubMed

  PubMed Central  Google Scholar  * Kyd, J. M. & Cripps, A. W. Functional differences between M cells and enterocytes in sampling luminal antigens. _Vaccine_ 26, 6221–6224 (2008).

Article  CAS  Google Scholar  * Nascimento, I. P. & Leite, L. C. Recombinant vaccines and the development of new vaccine strategies. _Braz. J. Med. Biol. Res._ 45, 1102–1111 (2012).

Article  CAS  Google Scholar  * Noad, R. & Roy, P. Virus-like particles as immunogens. _Trends Microbiol._ 11, 438–444 (2003). Article  CAS  Google Scholar  * Naskalska, A. & Pyrc,

K. Virus-like particles as immunogens and universal nanocarriers. _Pol. J. Microbiol._ 64, 3–13 (2015). PubMed  Google Scholar  * Ball, J. P. et al. Intranasal delivery of a bivalent

norovirus vaccine formulated in an in situ gelling dry powder. _PLoS ONE_ 12, e0177310 (2017). Article  Google Scholar  * Fraillery, D., Zosso, N. & Nardelli-Haefliger, D. Rectal and

vaginal immunization of mice with human papillomavirus L1 virus-like particles. _Vaccine_ 27, 2326–2334 (2009). Article  CAS  Google Scholar  * Kim, M. C. et al. Microneedle patch delivery

to the skin of virus-like particles containing heterologous M2e extracellular domains of influenza virus induces broad heterosubtypic cross-protection. _J. Control. Release_ 210, 208–216

(2015). Article  CAS  Google Scholar  * Ren, Z. et al. Inclusion of membrane-anchored LTB or flagellin protein in H5N1 virus-like particles enhances protective responses following

intramuscular and oral immunization of mice. _Vaccine_ 36, 5990–5998 (2018). Article  CAS  Google Scholar  * Gargantini, P. R., Serradell, M. D. C., Rios, D. N., Tenaglia, A. H. & Lujan,

H. D. Antigenic variation in the intestinal parasite _Giardia lamblia_. _Curr. Opin. Microbiol._ 32, 52–58 (2016). Article  CAS  Google Scholar  * Osugi, Y., Vuckovic, S. & Hart, D. N.

Myeloid blood CD11c(+) dendritic cells and monocyte-derived dendritic cells differ in their ability to stimulate T lymphocytes. _Blood_ 100, 2858–2866 (2002). Article  CAS  Google Scholar  *

Aringer, M. Vaccination under TNF blockade-less effective, but worthwhile. _Arthritis Res. Ther._ 14, 117 (2012). Article  CAS  Google Scholar  * Rose-John, S., Winthrop, K. &

Calabrese, L. The role of IL-6 in host defence against infections: immunobiology and clinical implications. _Nat. Rev. Rheumatol._ 13, 399–409 (2017). Article  CAS  Google Scholar  * Mantis,

N. J., Rol, N. & Corthesy, B. Secretory IgA’s complex roles in immunity and mucosal homeostasis in the gut. _Mucosal Immunol._ 4, 603–611 (2011). Article  CAS  Google Scholar  * Fries,

P. N. & Griebel, P. J. Mucosal dendritic cell diversity in the gastrointestinal tract. _Cell Tissue Res._ 343, 33–41 (2010). Article  Google Scholar  * Lavelle, E. C. & O’Hagan, D.

T. Delivery systems and adjuvants for oral vaccines. _Expert Opin. Drug Deliv._ 3, 747–762 (2006). Article  CAS  Google Scholar  * Weiner, H. L., da Cunha, A. P., Quintana, F. & Wu, H.

Oral tolerance. _Immunol. Rev._ 241, 241–259 (2011). Article  CAS  Google Scholar  * Pabst, O. & Mowat, A. M. Oral tolerance to food protein. _Mucosal Immunol._ 5, 232–239 (2012).

Article  CAS  Google Scholar  * Greczmiel, U. et al. Sustained T follicular helper cell response is essential for control of chronic viral infection. _Sci. Immunol._ 2, eaam8686 (2017). *

Brandtzaeg, P. Mucosal immunity: induction, dissemination, and effector functions. _Scand. J. Immunol._ 70, 505–515 (2009). Article  CAS  Google Scholar  * Ma’ayeh, S. Y. et al.

Characterization of the _Giardia intestinalis_ secretome during interaction with human intestinal epithelial cells: The impact on host cells. _PLoS Negl. Trop. Dis._ 11, e0006120 (2017).

Article  Google Scholar  * Mizumura, H. et al. Genetic engineering approach to develop next-generation reagents for endotoxin quantification. _Innate Immun._ 23, 136–146 (2016). Article

Google Scholar  * Carranza, P. G. et al. Simultaneous expression of different variant-specific surface proteins in single _Giardia lamblia_ trophozoites during encystation. _Infect. Immun._

70, 5265–5268 (2002). Article  CAS  Google Scholar  * Mowatt, M. R., Nguyen, B. Y., Conrad, J. T., Adam, R. D. & Nash, T. E. Size heterogeneity among antigenically related _Giardia

lamblia_ variant-specific surface proteins is due to differences in tandem repeat copy number. _Infect. Immun._ 62, 1213–1218 (1994). CAS  PubMed  PubMed Central  Google Scholar  * Mayer, C.

T. et al. Selective and efficient generation of functional Batf3-dependent CD103+dendritic cells from mouse bone marrow. _Blood_ 124, 3081–3091 (2014). Article  CAS  Google Scholar  *

Beisson, J. et al. Mass culture of _Paramecium tetraurelia_. _Cold Spring Harb. Protoc._ 2010, pdb.prot5362 (2010). * Clark, C. G. & Diamond, L. S. Methods for cultivation of luminal

parasitic protists of clinical importance. _Clin. Microbiol. Rev._ 15, 329–341 (2002). Article  Google Scholar  * Chockalingam, A. K. et al. Deletions in the neuraminidase stalk region of

H2N2 and H9N2 avian influenza virus subtypes do not affect post-influenza secondary bacterial pneumonia. _J. Virol._ 86, 3564–3573 (2012). Article  CAS  Google Scholar  * Ropolo, A. S.,

Saura, A., Carranza, P. G. & Lujan, H. D. Identification of variant-specific surface proteins in _Giardia muris_ trophozoites. _Infect. Immun._ 73, 5208–5211 (2005). Article  CAS  Google

Scholar  * Jones, K. H. & Senft, J. A. An improved method to determine cell viability by simultaneous staining with fluorescein diacetate-propidium iodide. _J. Histochem. Cytochem_. 33,

77–79 (1985). Article  CAS  Google Scholar  * Nayak, D. P. & Reichl, U. Neuraminidase activity assays for monitoring MDCK cell culture-derived influenza virus. _J. Virol. Methods_ 122,

9–15 (2004). Article  CAS  Google Scholar  * Kim, G. G., Donnenberg, V. S., Donnenberg, A. D., Gooding, W. & Whiteside, T. L. A novel multiparametric flow cytometry-based cytotoxicity

assay simultaneously immunophenotypes effector cells: comparisons to a 4 h 51Cr-release assay. _J. Immunol. Methods_ 325, 51–66 (2007). Article  CAS  Google Scholar  Download references

ACKNOWLEDGEMENTS We thank Damian Peralta for production of recombinant VSPs, Sergio Oms for providing professional animal care, Carolina Leimgruber for performing electron microscopy, and

Marcela F. Lopes for critical reading of the manuscript. This work was supported by grants from FONCYT (PICT-13469, PICT-2703, PICT-E 0234, and PICT-2116), CONICET (D4408), UCC

(80020150200144CC) and MinCyT (Res. 204/11) of Argentina, a Georg Forster Award of the Alexander von Humboldt Foundation of Germany to H.D.L., and grants from the Institut National du Cancer

(LSHB-CT-04-005246) and the European Union (EC-FP6-COMPUVAC) to D.K. AUTHOR INFORMATION Author notes * Román A. Martino & César G. Prucca Present address: Centro de Investigaciones en

Química Biológica de Córdoba (CIQUBIC), Departamento de Química Biológica, Facultad de Ciencias Químicas, CONICET/Universidad Nacional de Córdoba, Córdoba, X5000HUA, Argentina * Pedro G.

Carranza Present address: Centro de Investigaciones y Transferencia de Santiago del Estero (CITSE), Facultad de Ciencias Médicas, CONICET/Universidad Nacional de Santiago del Estero,

Santiago del Estero, CP 4200, Argentina * Eliane Piaggio Present address: Institut Curie, PSL Research University, INSERM U932, Paris, 75248, France * These authors contributed equally:

Marianela C. Serradell, Lucía L. Rupil. * These authors jointly supervised this work: David Klatzmann, Hugo D. Luján. AUTHORS AND AFFILIATIONS * Centro de Investigación y Desarrollo en

Inmunología y Enfermedades Infecciosas (CIDIE), Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET)/Universidad Católica de Córdoba (UCC), Córdoba, X5016DHK, Argentina

Marianela C. Serradell, Lucía L. Rupil, Román A. Martino, César G. Prucca, Pedro G. Carranza, Alicia Saura, Elmer A. Fernández, Pablo R. Gargantini, Albano H. Tenaglia & Hugo D. Luján *

Facultad de Ciencias de la Salud, Universidad Católica de Córdoba (UCC), Córdoba, X5004ASK, Argentina Lucía L. Rupil, Alicia Saura & Hugo D. Luján * Instituto de Investigaciones en

Ciencias de la Salud (INICSA), Centro de Microscopía Electrónica, Facultad de Ciencias Médicas, CONICET/Universidad Nacional de Córdoba, Córdoba, X5000, Argentina Juan P. Petiti *

Departamento de Ciências Farmacêuticas, Instituto de Ciências Ambientais, Químicas e Farmacêuticas, Universidade Federal de São Paulo, Diadema, CEP 09913-030, Brazil Renata R. Tonelli *

Centro de Investigaciones en Bioquímica Clínica e Inmunología (CIBICI), Departamento de Bioquímica Clínica, Facultad de Ciencias Químicas, CONICET/Universidad Nacional de Córdoba, Córdoba,

X5000HUA, Argentina Nicolás Reinoso-Vizcaino & José Echenique * Institute of Infection Immunology, Twincore, Centre for Experimental and Clinical Infection Research, Hannover Medical

School and Helmholtz Centre for Infection Research, Hannover, 30625, Germany Luciana Berod & Tim Sparwasser * Department of Medical Microbiology and Hygiene, University Medical Center of

Mainz, Obere Zahlbacherstr, 6755131 Mainz, Germany Luciana Berod & Tim Sparwasser * Sorbonne Université, INSERM, Immunology-Immunopathology-Immunotherapy (i3), AP-HP, Hôpital

Pitié-Salpêtrière, Biotherapy (CIC-BTi) and Inflammation-Immunopathology-Biotherapy Department (i2B), 75005, Paris, France Eliane Piaggio, Bertrand Bellier & David Klatzmann Authors *

Marianela C. Serradell View author publications You can also search for this author inPubMed Google Scholar * Lucía L. Rupil View author publications You can also search for this author

inPubMed Google Scholar * Román A. Martino View author publications You can also search for this author inPubMed Google Scholar * César G. Prucca View author publications You can also search

for this author inPubMed Google Scholar * Pedro G. Carranza View author publications You can also search for this author inPubMed Google Scholar * Alicia Saura View author publications You

can also search for this author inPubMed Google Scholar * Elmer A. Fernández View author publications You can also search for this author inPubMed Google Scholar * Pablo R. Gargantini View

author publications You can also search for this author inPubMed Google Scholar * Albano H. Tenaglia View author publications You can also search for this author inPubMed Google Scholar *

Juan P. Petiti View author publications You can also search for this author inPubMed Google Scholar * Renata R. Tonelli View author publications You can also search for this author inPubMed

Google Scholar * Nicolás Reinoso-Vizcaino View author publications You can also search for this author inPubMed Google Scholar * José Echenique View author publications You can also search

for this author inPubMed Google Scholar * Luciana Berod View author publications You can also search for this author inPubMed Google Scholar * Eliane Piaggio View author publications You can

also search for this author inPubMed Google Scholar * Bertrand Bellier View author publications You can also search for this author inPubMed Google Scholar * Tim Sparwasser View author

publications You can also search for this author inPubMed Google Scholar * David Klatzmann View author publications You can also search for this author inPubMed Google Scholar * Hugo D.

Luján View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS M.C.S. and L.L.R. performed most the experiments, blinded or in parallel. C.G.P.,

P.G.C., and B.B. constructed the mammalian plasmids and performed preliminary experiments; E.P. performed and supervised preliminary experiments; R.A.M. constructed and validated the insect

expression plasmids and generated the recombinant ΔVSPs; A.S. generated monoclonal antibodies; P.R.G., R.R.T., A.H.T., and J.P.P. performed VLP size determination and validation by electron

microscopy; N.R.-V. and J.E. helped perform neutralizing antibodies assays; E.A.F. helped on the statistic analyses of the data; L.B. and T.S. suggested experiments and analyzed the data;

D.K. and H.D.L. conceived the project and designed the experiments. M.C.S., L.L.R., D.K., and H.D.L. wrote the paper. All authors read and commented on the manuscript. CORRESPONDING AUTHOR

Correspondence to Hugo D. Luján. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION JOURNAL PEER REVIEW INFORMATION: _Nature

Communications_ thanks Jagannadha Sastry and the other anonymous reviewers for their contribution to the peer review of this work. Peer reviewer reports are available. PUBLISHER’S NOTE:

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE

REPORTING SUMMARY RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation,

distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and

indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to

the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will

need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE

CITE THIS ARTICLE Serradell, M.C., Rupil, L.L., Martino, R.A. _et al._ Efficient oral vaccination by bioengineering virus-like particles with protozoan surface proteins. _Nat Commun_ 10, 361

(2019). https://doi.org/10.1038/s41467-018-08265-9 Download citation * Received: 02 August 2018 * Accepted: 22 December 2018 * Published: 21 January 2019 * DOI:

https://doi.org/10.1038/s41467-018-08265-9 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
