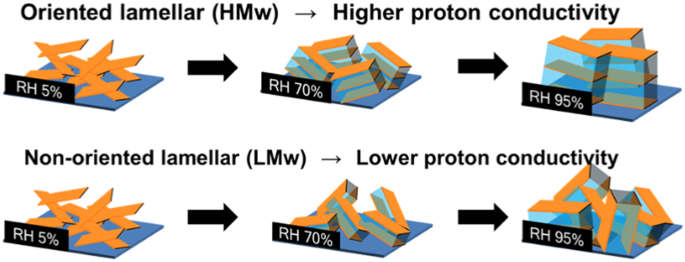

ABSTRACT The influence of the semialiphatic backbone on molecular ordering and proton conductivity was investigated in comparison to the rigid aromatic backbone in highly proton-conductive


organized polyimide thin films. We newly synthesized two alkyl-sulfonated semialiphatic polyimides (ASSPIs) with different molecular weights and investigated their molecular organized


structure, proton conductivity, water uptake, and the dissociation state of protons from sulfonic acid groups in thin films by in situ measurements for grazing incidence small-angle X-ray


scattering (GISAXS), quartz crystal microbalance (QCM), fourier transform infrared (FT-IR) spectra, and impedance spectra. Declining planarity in the semialiphatic backbone reduced the


aggregative character and molecular ordering in the lyotropic liquid-crystalline (LC) structure. However, the higher-molecular-weight ASSPI exhibited the oriented lamellar structure despite


the lower planarity of the main chain. The proton conductivity of the oriented lamellar thin film had more than half an order of magnitude higher value of 1.5 × 10-1 S cm-1 than did the


nonoriented lamellar thin film (3.0 × 10-2 S cm-1) at 25 °C and 95% RH. These results indicate that in sulfonated polyimide thin films, the lamellar orientation greatly contributes to the


high proton conductivity in ASSPI thin films. You have full access to this article via your institution. Download PDF SIMILAR CONTENT BEING VIEWED BY OTHERS ORDERED ARRANGEMENT OF F4TCNQ


ANIONS IN THREE-DIMENSIONALLY ORIENTED P3HT THIN FILMS Article Open access 18 November 2020 EFFECT OF BISPHENOLS ON THE ELECTRICAL CONDUCTIVITY AND STRUCTURE OF


POLY(3,4-ETHYLENEDIOXYTHIOPHENE): POLY(STYRENE SULFONATE) Article 08 March 2022 QUANTITATIVE ANALYSIS OF STEREOSCOPIC MOLECULAR ORIENTATIONS IN THERMALLY REACTIVE AND HETEROGENEOUS


NONCRYSTALLINE THIN FILMS VIA VARIABLE-TEMPERATURE INFRARED PMAIRS AND GI-XRD Article 01 February 2021 INTRODUCTION Structural control of highly ion-conductive channels is a notable strategy


for energy conversion system, water treatment, and biotechnology [1,2,3,4,5]. Nanostructured liquid crystals that self-organize into dimensionally ordered states represent a promising


approach to the development of structural control of ion-conductive materials [6, 7]. Thermotropic and lyotropic liquid crystal properties can drive organized structure of various kinds.


Kato et al. demonstrated switchable ionic conductivities induced by a rectangular–hexagonal phase transition in wedge-shaped liquid-crystalline (LC) ammonium salts [8]. Several groups have


also reported relationships between ionic conductivity and LC structure with thermotropic and lyotropic liquid crystal properties [9,10,11,12]. Designing phase-separated conductive channels


composed of hydrophobic backbones and hydrophilic parts is a fundamentally important strategy to create highly proton-conductive materials [13,14,15,16]. Typical proton exchange membranes


(PEMs) have sulfonic acid groups attached to the hydrophobic polymer as a side chain [17]. State-of-the-art membranes are based on perfluorosulfonic acid (PFSA) ionomers such as Nafion [13,


18, 19]. They exhibit high levels of proton conductivity, water transport, and durability. Protons are transported through water-swollen conductive channels. Understanding the relationship


between the structure and proton transport property is fundamentally important, but such attempts have often been hampered in many highly proton-conductive polymers because less structural


information can be derived from an amorphous or amorphous-like nature. Our recent studies have elucidated that proton conductivity enhancement originates from the improvement of molecular


ordering and the main chain orientation of LC domains in alkyl-sulfonated polyimide (ASPI) thin films [20,21,22,23]. In fact, ASPI thin films with rigid backbones exhibit lamellar-organized


structure by water uptake using a lyotropic LC property. However, no reports have described the influence of the semialiphatic backbones on the organized structure and proton conductivity of


alkyl-sulfonated polyimide thin films. This study elucidated the relationship between the organized structure and proton conductivity by introduction of a semialiphatic structure in the


main chain. Lower planarity of backbones can change the organized molecular structure and ordering in the lyotropic LC structure. For polyimides without sulfonic acid groups, Ando and


coworkers [24] reported the intermolecular aggregation structures in thin films of fully aromatic polyimides and semialiphatic polyimides by grazing incidence X-ray scattering measurements.


In our work, the lyotropic LC structure and proton conductivity were assessed in two alkyl-sulfonated semialiphatic polyimide (ASSPI) films with different molecular weights by in situ


studies of grazing incidence small-angle X-ray scattering (GISAXS), quartz crystal microbalance (QCM), Fourier transform infrared spectra (FT-IR) and impedance analyses. Based on those


results, we conducted systematic evaluations of the molecular structure, proton conductivity, water uptake, and dissociation state of protons from sulfonic acid groups in thin films. Two


ASSPI thin films exhibited different orientations of the lamellar structure and proton conductivity. In contrast, water uptake isotherms and the proton dissociation properties from sulfonic


acid groups were almost identical in the two thin films. Therefore, the orientation of the lyotropic lamellar structure largely contributed to the proton conductivity enhancement. Our


results indicate that not only main chain planarity but also the increment of molecular weight affects the lyotropic LC structure and, moreover, the oriented lamellar structure enhanced


proton conductivity. MATERIALS AND METHODS MATERIALS The 3,3′-dihydroxybenzidine, 1,3−propanesultone, 9,10-dihydro-9-oxa-10-phosphaphenanthrene 10-oxide (DOPO) and


1,2,4,5-cyclohexanetetracarboxylic dianhydride (HPMDA) were purchased from Tokyo Chemical Industry Co. Ltd., Japan and were used without further purification. The


3,3′-bis(sulfopropoxy)-4,4′-diaminobiphenyl (3,3′-BSPA) was synthesized from 3,3’-dihydroxybendizine and 1,3−propanesultone as described in the literature [22]. Acetone and m-cresol were


purchased from Wako Pure Chemical Ind. Ltd., Japan. Triethylamine (TEA) was used as received from Kanto Chemical Co. Inc., Japan. SYNTHESIS OF ASSPI The ASSPIs of different molecular weights


were synthesized using a similar polymerization scheme. Scheme 1 represents the synthesis of the higher-molecular-weight (HMw) ASSPIs. For HMw ASSPIs, DOPO was used as the catalyst, whereas


it was not used in the case of lower-molecular-weight (LMw) ASSPIs. Polymerization was conducted using 3,3′-BSPA (0.46 g), HPMDA (0.22 g), DOPO (0.86 g), m-cresol (5 ml), and TEA (0.3 ml)


in a 50-mL three-necked round-bottomed flask with a mechanical stirrer under an argon atmosphere. m-Cresol was used as the solvent. After reaction for 25 h at 180 °C, the polymerized mixture


was poured dropwise into cooled acetone and washed by centrifugation. The final product was dried under a vacuum and again subjected to an ion-exchange process using Amberlyst. According to


the previous literature [25], molecular weight and polydispersity were examined by gel permeation chromatography (GPC), and the results are shown in Supplementary Table S1. In this scheme,


we obtained the ASSPI polymer with a high-molecular-weight (HMw, 4.0 × 104). We also obtained the ASSPI polymer with a lower-molecular weight (LMw, 2.5 × 104), which was polymerized


according to the same scheme without DOPO (Scheme S1). The obtained product was characterized based on 1H NMR and FT-IR spectra (Supplementary Figs. S1 and S2). We selected it for


comparison. (Supplementary Fig. S3 shows the GPC results). The degree of sulfonation for the final product was estimated from the 1H NMR data as more than 98%. The calculated ion-exchange


capacity (IEC) was 2.9 meq g-1. PREPARATION OF THIN FILMS ASSPI thin films onto Si, SiO2 substrates and SiO2-coated 9 MHz quartz crystals (Seiko EG&G Co. Ltd.) were prepared from 5 wt%


of ASSPI solution with a mixed solvent of Milli-Q water and tetrahydrofuran using a spincast method with a spin-coater (ACT−200D; Active Co. Ltd.). Before film deposition, the substrates


were washed by soaking in 2-propanol and plasma treatment with a vacuum plasma system (Cute-MP; Femto Science, Korea) to improve the surface hydrophilicity. The thicknesses of the thin films


were measured using a white interference microscope (BW-S506; Nikon Corp.) and an atomic force microscope (AFM, VN-8000; Keyence Co.). GRAZING INCIDENCE SMALL-ANGLE X-RAY SCATTERING


(GISAXS) GISAXS measurements were taken with a FR-E X-ray diffractometer equipped with R-AXIS IV two-dimensional (2D) detector (FR-E; Rigaku Corp.). Thin-film samples were placed into a


humidity-controlled cell with X-ray transparent polyester film (Lumirror) windows. To control the humidity, nitrogen carrier gas was used as received from the gas cylinder without further


dehumidification. A voltage of 45 kV, current of 45 mA, and irradiation time of 1 h were applied to create copper Cu Kα radiation (_λ_ = 0.1542 nm) with a beam size of approximately 300 × 


300 μm. The camera length was 300 mm. X-ray scattering patterns were recorded on an imaging plate (Fujifilm Corp.). The incident angle was chosen as 0.20°–0.22°. For 1D out-of-plane and


in-plane patterns, the integrated regions were taken, respectively, between –0.5° to + 0.5° as 2_θ_ from the center (0°) and a width of 1° as 2_θ_, respectively. THIN-FILM CONDUCTIVITY


MEASUREMENTS For conductivity measurements of ASSPI thin films, impedance spectroscopy measurements were performed using a two-probe method to determine the proton conductivity parallel to


the film surface with a frequency response analyzer and high-frequency dielectric interface (SI1260 and SI1296; Solartron Analytical). Gold paste was used as thin-film electrodes for the


conductivity measurements. The relative humidity (RH) and temperature were monitored by a computer-controlled environmental test chamber (SH-221; Espec Corp.). Impedance data were collected


by application of an alternating potential of 50 mV over frequencies ranging from 10 MHz to 1 Hz. The thin-film conductivity (_σ_) was calculated from the resistance value (_R_) obtained


directly from the impedance measurements using $$\sigma = \frac{d}{{Rlt}}$$ where _d_ represents the space between the gold electrodes, _t_ stands for the film thickness, and _l_ expresses


the contact electrode length. WATER UPTAKE MEASUREMENTS OF THIN FILMS Water uptake of ASSPI thin films was measured by an in situ QCM system. The relative humidity (RH) was controlled by a


dry N2 gas and humidified streams using a humidity controller (BEL Flow; BEL Japan Inc.). QCM substrates were connected to an oscillation circuit with a DC power supply and frequency counter


(53131 A; Agilent Technologies Japan Ltd.). The QCM substrate was placed in an in-house constructed humidity chamber with a high-resolution RH sensor. The frequencies found before and after


spin-coating of the QCM substrate were confirmed at the dry N2 stream to determine the mass of dry film by the Sauerbrey equation as $$\Delta m = \frac{{S \times \sqrt {\rho \mu } }}{{2


\times F^2}} \times ( - \Delta F)$$ where _S_ denotes the electrode surface area, _ρ_ stands for the quartz density, _µ_ expresses the shear modulus of quartz, and _F_ signifies the


fundamental frequency of the QCM substrate. The water content _λ_, the number of water molecules per sulfonic acid, was calculated as shown below: $$\lambda = \left(\frac{m}{{m_0}} -


1\right) \times \frac{{{\mathrm{E }}{\mathrm{W }}}}{{M_{{\mathrm{H }}_2{\mathrm{O }}}}}$$ where _m_ represents the film mass at each RH, _m_0 stands for the film mass at 0% RH,\(M_{H_2O}\)


is the molecular mass of the water molecular, and EW expresses the equivalent of each ASSPI. IN SITU FT-IR The dissociation state of protons from sulfonic acid groups was examined by in situ


FT-IR measurements. ASSPI thin films on Si wafers were placed in a homemade cell. CaF2 windows were used for the humidity-controlled cell. Transmission in situ FT-IR measurements were then


collected using an FT-IR spectrometer (Nicolet 6700; Thermo Fisher Scientific Inc.) equipped with a deuterium triglycine sulfate (DTGS) detector. The relative humidity (RH) was controlled by


a humidity generator (me-40DP-2PW; Micro equipment). The thicknesses of the films prepared on oxidized Si substrates for this measurement were approximately 500 nm. RESULTS AND DISCUSSION


IN SITU GISAXS GISAXS is a powerful tool to reveal molecular packings and molecular orderings in molecular organized thin films [26,27,28]. Matsui and coworkers [29] showed anisotropic


proton conductivity in a polymer multilayer thin film with a well-defined lamellar structure that was confirmed based on GISAXS measurements. Proton conductivity was enhanced by the


formation of 2D hydrogen-bonding networks in multilayer nanosheets [30, 31]. To investigate the influence of the semialiphatic main chain on the lyotropic organized structure, RH-dependent


in situ GISAXS measurements were conducted in ASSPI thin films. The 2D scattering images are shown in Fig. 1a–d and Fig. 2a–d for HMw and LMw ASSPI thin films, respectively. A series of


in-plane and out-of-plane 1D profiles for HMw and LMw thin films with various RH values are depicted in Fig. 1e, f and Fig. 2e, f, respectively. In the in situ GISAXS measurements of the HMw


thin film, scattering peaks in the out-of-plane position were observed around the small-angle region of 2_θ_ = 4–5° (_d_ = 2.1–2.7 nm) at more than 70% RH (Fig. 1c, d). The out-of-plane


peaks in the HMw thin film implied that the repeating ordered structure was formed perpendicularly to the substrate plane in the thin film. Our earlier work demonstrated that the


out-of-plane scatterings were attributed to the lamellar structure in the in-plane stacked hydrophobic polyimide backbone with hydrophilic sulfonated side chains [21]. Under high RH


conditions, this out-of-plane scattering peak was enhanced and shifted to the smaller angle region (Fig. 1f). At 95% RH, the out-of-plane peak reached 3° (_d_ = 2.7 nm); it was markedly


enhanced relative to the X-ray specular peak. These results reflect that the lamellar structure is constructed by containing water through the thin film, which is incorporated selectively


into the interlamellar space. The scattering peak shift and intensity enhancement with humidity represented the lamellar expansion and ordering of the amphiphilic lamellar structure to the


out-of-plane direction, respectively. Molecular ordering is enhanced as the lamellar spacing expands to the out-of-plane direction as humidity further increases. In contrast, the LMw thin


film exhibited semicircle scattering under conditions of high humidity of more than 70% RH (Fig. 2d–f), unlike the anisotropic scattering in the HMw thin film. In the in-plane profile, the


scattering shifted to the small-angle region as humidity increased (Fig. 2e), indicating the formation of the same lamellar structure as the HMw thin film. In the out-of-plane direction,


however, peak shifts were not clearly observed due to the weak scattering intensity. The semicircle scattering suggested an isotropic structure, and, therefore, the LMw thin film formed a


nonoriented lamellar structure. Ando and coworkers [24] have discussed the details of main chain aggregates by ch-pack as intermolecular main chain packing and π-stacks as aromatic ring


stacking in both aromatic and semialiphatic polyimides with no sulfonated alkyl side chains. These polyimides consisting of diaminocyclohexylmethane and pyromellitic dianhydride form a


smectic LC-like ordered structure based on the main chain aggregations. Alkyl-sulfonated aromatic polyimides exhibit the scattering attributed to the periodic monomer unit length and ch-pack


for the polyimide main chain in the in-plane and out-of-plane positions, respectively [20,21,22,23, 25]. The scatterings imply smectic LC ordering of the intermolecular aggregation in the


lyotropic lamellar structure. However, in the present both cases of ASSPI thin films, scattering due to the main chain aggregations was not observed. The nonplanar aliphatic rings in the


ASSPI thin films probably inhibited the intermolecular aggregation of the main chain in the lyotropic lamellar structure so that the main chain smectic ordering was not formed. Thereby,


ASSPI thin films only exhibited scattering due to the lyotropic lamellar structure under high humidity conditions in comparison to aromatic polyimide thin films. In contrast, the HMw thin


film formed an oriented lamellar structure, although the LMw thin film exhibited a nonoriented one. The reason for this structural difference might derive from the number of shorter main


chains in ASSPI (Supplementary Fig. S3). Polarized optical microscopic observation clearly revealed the differences in the long range ordering and LC domain size between HMw and LMw thick


films (Supplementary Fig. S4). Birefringence textures were clearly observed in the HMw film (Supplementary Fig. S4a, b), whereas the LMw film only exhibited an image close to the dark field


(Supplementary Fig. S4c, d). These findings clearly indicated that the LMw film had a reduced long range order and small domain size. Hereinafter, we respectively designate HMw thin film as


oriented lamellar thin films and LMw thin films as nonoriented lamellar thin films. PROTON CONDUCTIVITY Figure 3 depicts RH-dependent proton conductivity plots for both oriented lamellar and


nonoriented lamellar thin films. A linear increase in conductivity was observed by the increase in RH, which was similar for both the oriented lamellar and nonoriented lamellar thin films.


However, the proton conductivity of the oriented lamellar film displayed more than half an order of magnitude higher value of 1.5 × 10-1 S cm-1 (at 25 °C and 95% RH) than the nonoriented


lamellar thin film (3.0 × 10-2 S cm-1 at 25 °C and 95% RH). In the high RH region, this increased proton conductivity was probably due to improved molecular ordering and an oriented lamellar


structure arising from an increased molecular weight. Generally, the IEC value is responsible for proton conductivity under high RH conditions [32, 33]. In the present work, however, the


IEC value was fixed because of the same chemical structure of ASSPI. From the lamellar structure observed in the GISAXS measurement, the hydrophilic sulfonic acid side chains and hydrophobic


polyimide main chains were segregated to form the lamellar structure parallel to the substrate. Under high humidity conditions, the hydrophilic sulfonic layers were selectively hydrated and


expanded upon the adsorption of water molecules. Such continuously formed hydrophilic layers in the highly ordered structure promoted the marked enhancement of conductivity. To elucidate


whether this increment of proton conductivity was a result of structural effects or water uptake, in situ QCM measurements were conducted. WATER UPTAKE Water uptake for the PEM affects


proton conductivity because water facilitates the transport of protons through the membrane [34]. Figure 4 shows RH-dependent water uptake plots for both the oriented lamellar and


nonoriented lamellar thin films. The water uptake for both films increased concomitantly with increasing RH, reaching a value of _λ_ = 16 in the oriented lamellar thin films and _λ_ = 14 in


the nonoriented films. Although no difference was detected in water uptake at low humidity (30–80% RH), the oriented lamellar thin film absorbed somewhat more water molecules than the


nonoriented film. The slightly higher water uptake in the oriented film resulted from the anisotropic expansion  normal to the substrate plane under high RH conditions, as observed in the


GISAXS results. To elucidate the relationship between conductivity and water uptake, plots of conductivity vs. _λ_ are shown in Fig. 5. When the proton conductivity was compared at the same


_λ_ value, the oriented lamellar thin-film showed more than half an order of magnitude higher proton conductivity than the nonoriented films. This result clearly indicated that the water


adsorption was not responsibility for the enhancement of proton conductivity. Hence, we inferred that the oriented lamellar structure facilitated proton conductivity and engendered higher


proton conductivity in the high RH region. DISSOCIATION STATE OF PROTONS FROM SULFONIC ACID GROUPS USING IN SITU FT-IR To evaluate the dissociation of protons at sulfonic acid groups during


the conductivity change, in situ FT-IR measurements under controlled humidity were conducted. Figure 6 shows the humidity-dependent FT-IR spectra for the oriented lamellar and nonoriented


lamellar thin films. The peaks were clearly observed at bands of 1715, 1640, 1200, and 1030 cm-1 corresponding to the νas(C = O) symmetric stretching vibrations of the imide groups,


δ(H–O–H), νas(SO3−), and νs(SO3−), respectively. With increases in humidity, the absorbance of the peaks was enhanced. The number of dissociated protons could be estimated by the absorbance


due to the νs(SO3−) band. Figure 7 depicts the absorbance of the νs(SO3−) band at 1030 cm-1 as a function of the _λ_ value. The absorbance of the νs(SO3-) bands increased with the _λ_ value


and was saturated for _λ_ > 6 in both the oriented lamellar and nonoriented lamellar thin films. Saturation of the νs(SO3-) band absorbance suggested an almost complete dissociation of


the protons at sulfonic acid groups with relatively low water uptake at approximately _λ_ = 6. However, the proton conductivity increased considerably to more than _λ_ = 6, as shown in Fig.


5. Miyatake and coworkers [33] reported a similar tendency to correlate the proton dissociation of sulfonic acid groups and proton conductivity during the hydration process in a sulfonated


block poly(arylene ether sulfone ketone) membrane [35]. Additionally, both oriented and nonoriented films exhibited essentially the same behaviors. Therefore, the dissociation state of


protons at sulfonic acid groups was also not responsible for the enhancement of proton conductivity in oriented lamellar thin film. In our earlier work, the highly proton-conductive


organized structure was obtained using the lyotropic LC property derived from rigid aromatic main chains. In the present work, the influence of the semialiphatic structure is discussed. The


molecular ordering weakened as a result of the reduced planarity of the main chain due to suppressed (_π_-stack) aggregation of the main chain in the lyotropic lamellar structure. The degree


of molecular ordering improved with increasing molecular weight, and an oriented lamellar-organized structure was obtained. Although the IEC values, water uptake and dissociation behavior


of proton were identical in both films, the oriented lamellar film exhibited half an order of magnitude higher proton conductivity compared with the nonoriented film. Therefore, we inferred


that the oriented lamellar structure enhanced proton conductivity more than the nonoriented lamellar structure. CONCLUSION As described herein, the influence of the semialiphatic backbone on


molecular ordering and proton conductivity was discussed for sulfonated polyimide thin films. A new alkyl-sulfonated polyimide with less planarity for the main chain was synthesized. The


lower-molecular weight of the sulfonated polyimide had a nonoriented lamellar structure under conditions of 70–95% RH. However, the higher-molecular weight enhanced the degree of molecular


ordering and resulted in the oriented lamellar-organized structure based on the lyotropic LC property. The reason for the structural difference might derive from the number of shorter main


chains in ASSPIs. Moreover, proton conductivity was enhanced in the case of the lamellar-organized structure with the same water amounts and dissociation states of protons. We concluded that


higher proton conductivity was achieved with the oriented lamellar-organized structure. REFERENCES * Nagao Y. Proton-conductivity enhancement in polymer thin films. Langmuir.


2017;33:12547–58. Article  CAS  Google Scholar  * Shannon MA, Bohn PW, Elimelech M, Georgiadis JG, Mariñas BJ, Mayes AM. Science and technology for water purification in the coming decades.


Nature. 2008;452:301. Article  CAS  Google Scholar  * Peckham TJ, Holdcroft S. Structure-morphology-property relationships of non-perfluorinated proton-conducting membranes. Adv Mater.


2010;22:4667–90. Article  CAS  Google Scholar  * Nagao Y, Matsui J, Abe T, Hiramatsu H, Yamamoto H, Miyashita T, et al. Enhancement of proton transport in an oriented polypeptide thin film.


Langmuir. 2013;29:6798–804. Article  CAS  Google Scholar  * Amiri H, Shepard KL, Nuckolls C, Hernández Sánchez R. Single-walled carbon nanotubes: mimics of biological ion channels. Nano


Lett. 2017;17:1204–11. Article  CAS  Google Scholar  * Kato T, Mizoshita N, Kishimoto K. Functional liquid-crystalline assemblies: Self-organized soft materials. Angew Chem Int Ed.


2006;45:38–68. Article  CAS  Google Scholar  * Kato T, Yoshio M, Ichikawa T, Soberats B, Ohno H, Funahashi M. Transport of ions and electrons in nanostructured liquid crystals. Nat Rev


Mater. 2017;2:17001. Article  Google Scholar  * Soberats B, Yoshio M, Ichikawa T, Zeng X, Ohno H, Ungar G, et al. Ionic switch induced by a rectangular–hexagonal phase transition in


benzenammonium columnar liquid crystals. J Am Chem Soc. 2015;137:13212–5. Article  CAS  Google Scholar  * Chen Y, Lingwood MD, Goswami M, Kidd BE, Hernandez JJ, Rosenthal M, et al.


Humidity-modulated phase control and nanoscopic transport in supramolecular assemblies. J Phys Chem B. 2014;118:3207–17. Article  CAS  Google Scholar  * Hernandez JJ, Zhang H, Chen Y,


Rosenthal M, Lingwood MD, Goswami M, et al. Bottom-up fabrication of nanostructured bicontinuous and hexagonal ion-conducting polymer membranes. Macromolecules. 2017;50:5392–401. Article


CAS  Google Scholar  * Tonozuka I, Yoshida M, Kaneko K, Takeoka Y, Rikukawa M. Considerations of polymerization method and molecular weight for proton-conducting poly(p-phenylene)


derivatives. Polym (Guildf). 2011;52:6020–8. Article  CAS  Google Scholar  * Lee JH, Han KS, Lee JS, Lee AS, Park SK, Hong SY, et al. Facilitated ion transport in smectic ordered ionic


liquid crystals. Adv Mater. 2016;28:9301–7. Article  CAS  Google Scholar  * Mauritz KA, Moore RB. State of understanding of Nafion. Chem Rev. 2004;104:4535–85. Article  CAS  Google Scholar


* Li N, Guiver MD. Ion transport by nanochannels in ion-containing aromatic copolymers. Macromolecules. 2014;47:2175–98. Article  CAS  Google Scholar  * He G, Li Z, Zhao J, Wang S, Wu H,


Guiver MD, et al. Nanostructured ion-exchange membranes for fuel cells: Recent advances and perspectives. Adv Mater. 2015;27:5280–95. Article  CAS  Google Scholar  * Kreuer KD. On the


development of proton conducting polymer membranes for hydrogen and methanol fuel cells. J Membr Sci. 2001;185:29–39. Article  CAS  Google Scholar  * Hickner MA, Ghassemi H, Kim YS, Einsla


BR, McGrath JE. Alternative polymer systems for proton exchange membranes (PEMs). Chem Rev. 2004;104:4587–611. Article  CAS  Google Scholar  * Kusoglu A, Weber AZ. New insights into


perfluorinated sulfonic-acid lonomers. Chem Rev. 2017;117:987–1104. Article  CAS  Google Scholar  * Karan K. PEFC catalyst layer: Recent advances in materials, microstructural


characterization, and modeling. Curr Opin Electrochem. 2017;5:27–35. Article  CAS  Google Scholar  * Krishnan K, Yamada T, Iwatsuki H, Hara M, Nagano S, Otsubo K, et al. Influence of


confined polymer structure on proton transport property in sulfonated polyimide thin films. Electrochemistry. 2014;82:865–9. Article  CAS  Google Scholar  * Krishnan K, Iwatsuki H, Hara M,


Nagano S, Nagao Y. Proton conductivity enhancement in oriented, sulfonated polyimide thin films. J Mater Chem A. 2014;2:6895–903. Article  CAS  Google Scholar  * Krishnan K, Iwatsuki H, Hara


M, Nagano S, Nagao Y. Influence of molecular weight on molecular ordering and proton transport in organized sulfonated polyimide thin films. J Phys Chem C. 2015;119:21767–74. Article  CAS


Google Scholar  * Nagao Y, Krishnan K, Goto R, Hara M, Nagano S. Effect of casting solvent on interfacial molecular structure and proton transport characteristics of sulfonated polyimide


thin films. Anal Sci. 2017;33:35–9. Article  CAS  Google Scholar  * Wakita J, Jin S, Shin TJ, Ree M, Ando S. Analysis of molecular aggregation structures of fully aromatic and semialiphatic


polyimide films with synchrotron grazing incidence wide-angle X-ray scattering. Macromolecules. 2010;43:1930–41. Article  CAS  Google Scholar  * Ono Y, Goto R, Hara M, Nagano S, Abe T, Nagao


Y. High proton conduction of organized sulfonated polyimide thin films with planar and bent backbones. Macromolecules. 2018;51:3351–9. Article  CAS  Google Scholar  * Sirringhaus H, Brown


PJ, Friend RH, Nielsen MM, Bechgaard K, Langeveld-Voss BMW, et al. Two-dimensional charge transport in self-organized, high-mobility conjugated polymers. Nature. 1999;401:685. Article  CAS


Google Scholar  * Nagano S, Kodama S, Seki T. Ideal spread monolayer and multilayer formation of fully hydrophobic polythiophenes via liquid crystal hybridization on water. Langmuir.


2008;24:10498–504. Article  CAS  Google Scholar  * Nagano S. Inducing planar orientation in side‐chain liquid‐crystalline polymer systems via interfacial control. Chem Rec. 2016;16:378–92.


Article  CAS  Google Scholar  * Sato T, Hayasaka Y, Mitsuishi M, Miyashita T, Nagano S, Matsui J. High proton conductivity in the molecular interlayer of a polymer nanosheet multilayer film.


Langmuir. 2015;31:5174–80. Article  CAS  Google Scholar  * Sato T, Tsukamoto M, Yamamoto S, Mitsuishi M, Miyashita T, Nagano S, et al. Acid-group-content-dependent proton conductivity


mechanisms at the interlayer of poly(N-dodecylacrylamide-co-acrylic acid) copolymer multilayer nanosheet films. Langmuir. 2017;33:12897–902. Article  CAS  Google Scholar  * Matsui J, Miyata


H, Hanaoka Y, Miyashita T. Layered ultrathin proton conductive film based on polymer nanosheet assembly. ACS Appl Mater Inter. 2011;3:1394–7. Article  CAS  Google Scholar  * Saito J,


Miyatake K, Watanabe M. Synthesis and properties of polyimide ionomers containing 1H-1,2,4-triazole groups. Macromolecules. 2008;41:2415–20. Article  CAS  Google Scholar  * Miyahara T,


Miyake J, Matsuno S, Watanabe M, Miyatake K. A sulfonated polybenzophenone/polyimide copolymer as a novel proton exchange membrane. RSC Adv. 2015;5:50082–6. Article  CAS  Google Scholar  *


Chang Y, Brunello GF, Fuller J, Hawley M, Kim YS, Disabb-Miller M, et al. Aromatic Ionomers with highly acidic sulfonate groups: Acidity, hydration, and proton conductivity. Macromolecules.


2011;44:8458–69. Article  CAS  Google Scholar  * Kunimatsu K, Yagi K, Bae B, Miyatake K, Uchida H, Watanabe M. ATR-FTIR Analysis of the state of water in a sulfonated block poly(arylene


ether sulfone ketone) membrane and proton conductivity measurement during the hydration/dehydration cycle. J Phys Chem C. 2013;117:3762–71. Article  CAS  Google Scholar  Download references


ACKNOWLEDGEMENTS This work was supported in part by the Nanotechnology Platform Program (Molecule and Material Synthesis) of the Ministry of Education, Culture, Sports, Science and


Technology (MEXT), Japan. This work was partially supported by the Iketani Science and Technology Foundation (ISTF), JAPAN. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * School of Materials


Science, Japan Advanced Institute of Science and Technology, 1-1 Asahidai, Nomi, Ishikawa, 923-1292, Japan Kensaku Takakura, Yutaro Ono & Yuki Nagao * Department of Molecular Design


& Engineering Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa, Nagoya, 464-8603, Japan Kota Suetsugu & Mitsuo Hara * Nagoya University Venture Business


Laboratory, Nagoya University, Furo-cho, Chikusa, Nagoya, 464-8603, Japan Shusaku Nagano * Graduate School of Science and Technology, Niigata University, 8050 Ikarashi 2-no-cho, Nishi-ku,


Niigata, 950-2181, Japan Takashi Abe Authors * Kensaku Takakura View author publications You can also search for this author inPubMed Google Scholar * Yutaro Ono View author publications You


can also search for this author inPubMed Google Scholar * Kota Suetsugu View author publications You can also search for this author inPubMed Google Scholar * Mitsuo Hara View author


publications You can also search for this author inPubMed Google Scholar * Shusaku Nagano View author publications You can also search for this author inPubMed Google Scholar * Takashi Abe


View author publications You can also search for this author inPubMed Google Scholar * Yuki Nagao View author publications You can also search for this author inPubMed Google Scholar


CORRESPONDING AUTHOR Correspondence to Yuki Nagao. ETHICS DECLARATIONS CONFLICT OF INTEREST The authors declare that they have no conflict of interest. ELECTRONIC SUPPLEMENTARY MATERIAL


SUPPLEMENTARY MATERIAL RIGHTS AND PERMISSIONS Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Takakura, K., Ono, Y., Suetsugu, K. _et al._ Lyotropic ordering for high proton


conductivity in sulfonated semialiphatic polyimide thin films. _Polym J_ 51, 31–39 (2019). https://doi.org/10.1038/s41428-018-0111-1 Download citation * Received: 11 April 2018 * Revised: 05


June 2018 * Accepted: 04 July 2018 * Published: 03 August 2018 * Issue Date: January 2019 * DOI: https://doi.org/10.1038/s41428-018-0111-1 SHARE THIS ARTICLE Anyone you share the following


link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature


SharedIt content-sharing initiative
