Novel developments in computational spectropolarimeter

ABSTRACT Compared to conventional bulky spectropolarimeters, computational spectropolarimeters which reconstruct light-field information such as polarization and spectrum in a compact form

factor, are critical equipment enabling new applications. The key component of a computational spectropolarimeter is a tunable light-field modulator, in which liquid crystal-based device is

a promising candidate. By varying the applied voltage, the tunable liquid crystal metasurface can modulate the phase and spectral information of the incident light, and after a few trials,

this important information can be decoded mathematically. Such a novel approach paves the foundation for developing compact and low-cost spectropolarimetric imaging devices with widespread

applications in biomedical imaging, remote sensing, and optical communications. In contrast to photodetectors which can only measure light intensity, spectropolarimeter is able to measure

light-field properties such as spectrum and polarization. As a result, spectropolarimetry is a fundamental device enabling new applications. For example, by revealing the polarization and

spectrum of light passing through a target material, one can characterize the material’s composition, refractive index, and birefringence. In addition, polarimetry is also widely used in

astronomy, remote sensing, radar and so on1,2. Overall speaking, spectropolarimeters are useful instruments in physics, astronomy, chemistry, and biology. Traditional spectropolarimetry

spatially separates a light beam with different polarization by a polarizing beam splitter and different wavelength by a grating3. Afterward, a spatially 2D photodetector is used to measure

the light intensity. The intensity on each position of the photodetector corresponds to a different polarization state or wavelength. Therefore, the polarization state and spectrum of light

can be restructured by summarizing the spatial intensity distribution from the 2D photodetector. Because a 2D detector array is required for measuring the polarization and spectrum at a

single spatial location, its use for spectropolarimetric imaging is deterred. Meanwhile, the polarization and spectrum of a light beam can also be obtained by the sequential method, in which

the polarization and wavelength filters are sequentially applied to measure the light intensity with different polarization and wavelength components4. Although the above-mentioned

spectropolarimeters have been widely used, the sophisticated optical system and bulky form factor limit their application to some miniaturized platforms. Recently, a computational

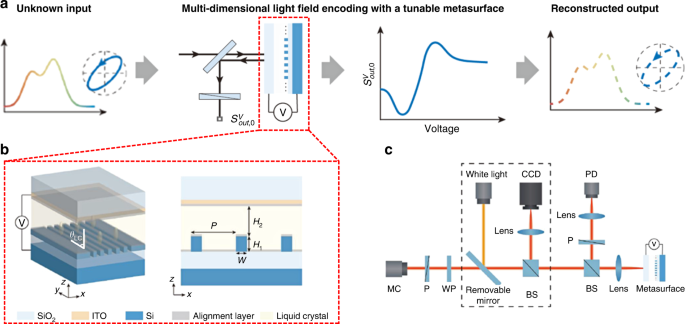

spectropolarimeter has been proposed, whose working principle is illustrated in Fig. 1a5. During this design process, the incident light with unknown optical field properties is modulated

(encoded) by a tunable metasurface and then received by a photodiode. In each trial, the tunable metasurface provides a different phase and different spectral reflectance to encode the

incident light. Then, with multiple trials, the polarization and spectrum of the incident light can be decoded by computational reconstruction. In 2018, Jung et al.6 developed a mid-infrared

polarimetry device using a graphene-integrated anisotropic metasurface. Although the accuracy of polarization measurements is degraded by the depolarization effects of sample defects, a

measurement rate up to tens of MHz can be achieved, which is about 100× faster than that of conventional mechanical rotation of polarizer/retarder modulators. Liquid crystal materials with

anisotropic optical properties have been widely used in displays and optical devices to modulate the amplitude and phase of light7,8. In this work, Ni et al.5 demonstrated a method to

modulate the wavelength and polarization information of light using an electrically tunable liquid crystal-embedded silicon metasurface as shown in Fig. 1b, which is tailored to support

multi-guided mode resonance. By applying a series of different voltages, the liquid crystal metasurface encodes the incoming light, which is then recorded by a single-pixel photodetector.

Afterward, the polarization and spectrum of the incident light can be reconstructed by computational reconstruction algorithms. To accurately reconstruct the polarization and spectrum of

light, it takes about 20–30 iterations. Considering the response time of liquid crystal devices, which is usually several milliseconds, the total measurement time amounts to tens of

milliseconds, corresponding to ~100 Hz frame rate. The total measurement time can be reduced by choosing a fast-switching liquid crystal and advanced reconstruction algorithms. Furthermore,

in practice, the orientation of liquid crystal directors may not be so uniform as illustrated in the simulation model. The anchoring energy, liquid crystal material properties, and applied

electric field all affect the alignment uniformity under different driving conditions. For example, the liquid crystal directors nearby the alignment layer with strong anchoring energy will

be more difficult to be reoriented by the applied electric field9. This uneven liquid crystal alignment adds noise to the tailored reflectance spectrum and phase modulation during the

encoding process. Therefore, further optimization of liquid crystal devices is required. Despite the above-mentioned issues, this new spectropolarimeter which can measure the polarization

and spectrum of light simultaneously with high fidelity paves the foundation for developing compact and low-cost spectropolarimeters. More importantly, as Fig. 1c depicts, a major advantage

of this approach is that the liquid crystal metasurface does not change the wavefront of the incident light. Thus, by combining with a detector array, spectropolarimetric imaging can be

realized, which could have significant implications for biomedical imaging, remote sensing, and optical communications. REFERENCES * Tyo, J. S. et al. Review of passive imaging polarimetry

for remote sensing applications. _Appl. Opt._ 45, 5453–5469 (2006). Article  ADS  Google Scholar  * Wang, L. F. & Wheeler, J. C. Spectropolarimetry of supernovae. _Annu. Rev. Astron.

Astrophys._ 46, 433–474 (2008). Article  ADS  Google Scholar  * Gori, F. Measuring Stokes parameters by means of a polarization grating. _Opt. Lett._ 24, 584–586 (1999). Article  ADS  Google

Scholar  * Berry, H. G., Gabrielse, G. & Livingston, A. E. Measurement of the Stokes parameters of light. _Appl. Opt._ 16, 3200–3205 (1977). Article  ADS  Google Scholar  * Ni, Y. B. et

al. Computational spectropolarimetry with a tunable liquid crystal metasurface. _eLight_ 2, 23, https://doi.org/10.1186/s43593-022-00032-0 (2022). Article  Google Scholar  * Jung, M. et al.

Polarimetry using graphene-integrated anisotropic metasurfaces. _ACS Photonics_ 5, 4283–4288 (2018). Article  Google Scholar  * Yin, K. et al. Advanced liquid crystal devices for augmented

reality and virtual reality displays: principles and applications. _Light Sci. Appl._ 11, 161 (2022). Article  ADS  Google Scholar  * Xiong, J. H. & Wu, S. T. Planar liquid crystal

polarization optics for augmented reality and virtual reality: from fundamentals to applications. _eLight_ 1, 3 (2021). Article  Google Scholar  * Nie, X. Y. et al. Anchoring energy and cell

gap effects on liquid crystal response time. _J. Appl. Phys._ 101, 103110 (2007). Article  ADS  Google Scholar  Download references AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * College of
