Single capillary oximetry and tissue ultrastructural sensing by dual-band dual-scan inverse spectroscopic optical coherence tomography

ABSTRACT Measuring capillary oxygenation and the surrounding ultrastructure can allow one to monitor a microvascular niche and better understand crucial biological mechanisms. However,

capillary oximetry and pericapillary ultrastructure are challenging to measure in vivo. Here we demonstrate a novel optical imaging system, dual-band dual-scan inverse spectroscopic optical

coherence tomography (D2-ISOCT), that, for the first time, can simultaneously obtain the following metrics in vivo using endogenous contrast: (1) capillary-level oxygen saturation and

arteriolar-level blood flow rates, oxygen delivery rates, and oxygen metabolic rates; (2) spatial characteristics of tissue structures at length scales down to 30 nm; and (3) morphological

images up to 2 mm in depth. To illustrate the capabilities of D2-ISOCT, we monitored alterations to capillaries and the surrounding pericapillary tissue (tissue between the capillaries) in

the healing response of a mouse ear wound model. The obtained microvascular and ultrastructural metrics corroborated well with each other, showing the promise of D2-ISOCT for becoming a

powerful new non-invasive imaging tool. SIMILAR CONTENT BEING VIEWED BY OTHERS TIME-DOMAIN DIFFUSE CORRELATION SPECTROSCOPY (TD-DCS) FOR NONINVASIVE, DEPTH-DEPENDENT BLOOD FLOW

QUANTIFICATION IN HUMAN TISSUE IN VIVO Article Open access 19 January 2021 TOWARDS SHIFTED POSITION-DIFFUSE REFLECTANCE IMAGING OF ANATOMICALLY CORRECTLY SCALED HUMAN MICROVASCULATURE

Article Open access 15 October 2020 SKIN LAYER-SPECIFIC SPATIOTEMPORAL ASSESSMENT OF MICROMETABOLISM DURING WOUND ANGIOGENESIS Article Open access 20 December 2024 INTRODUCTION Biological

functions rely on blood vessels for oxygen and nutrient delivery. Nutrient exchange happens at the capillary level, where the small vessel diameter (~10 µm) allows for maximum contact

between the red blood cell (RBC) surface and vessel wall. The pericapillary tissue (tissue between capillaries) plays a critical role in regulating capillary function through mechanical and

chemical signaling pathways1,2. For example, angiogenesis, the growth of new blood vessels and modification of existing ones, is a complex process involving angiogenic mediators, vessel

endothelial cells, the extracellular matrix (ECM), and, in the brain, neurons, and glial cells3,4. The ability to quantify the microvascular network and pericapillary tissue is highly sought

after, since alterations to these structures are manifested in several diseases, including cancer, inflammatory processes, hypertension, diabetes mellitus, chronic kidney disease, and

neurodegenerative diseases5,6,7,8,9. In particular, monitoring capillary-level oxygen saturation (sO2) can indirectly assess local tissue oxygenation and metabolic function. In the case of

diabetes mellitus and tumor development, angiogenesis is induced by local hypoxia and can be reflected by abnormal local oxygenation levels10,11. Furthermore, it has been shown that the

level of collagen crosslinking in the ECM, which is a nanoscale modification, can also influence angiogenesis12. Therefore, measuring the true in vivo nature of capillary oxygenation and

nanoscale pericapillary tissue is a highly desirable goal that, to the best of our knowledge, has not yet been achieved. As a non-invasive imaging modality, optical coherence tomography

(OCT) has recently shown promise in reaching this goal. OCT is an optical imaging modality that provides cross-sectional morphology of tissue in vivo using the coherent backscattered light

from a sample13. OCT offers a simple, practical method to image three-dimensional (3D) tissue morphology with microscopic resolution (1–10 µm) without using ionizing radiation. In addition

to 3D morphological imaging, the coupling of new signal analysis and light sources has enabled OCT to obtain functional angiography with spatially resolved sO2, flow rate, and oxygen

delivery rate (drO2)14,15,16,17,18,19. Until now, OCT has only demonstrated the ability to extract sO2 from larger arteriolar-level vessels and has not shown the capability of

capillary-level sO2 monitoring. The scattering signal from a single RBC contains information about its size, orientation, and sO220. If the size and orientation information of an RBC are

unknown, the ability to decouple this information from the sO2 is believed to be impossible. Larger vessel cross sections contain several RBCs, resulting in an average RBC signal that

reveals sO2. However, the capillary cross section contains only one or two RBCs, removing the ability to instantaneously average and obtain a meaningful capillary sO2 signal. This is

problematic since the site of oxygen exchange at the capillary level cannot be properly monitored. Therefore, it is highly desirable to advance the capabilities of OCT to provide in vivo

capillary-level sO2. While OCT can provide microscopic details and functional information, sensing the nanoscale structures that influence microvascular alterations, such as collagen

crosslinking, is challenging. Detecting nanoscale structures is beyond the resolution limit of conventional OCT. Inverse spectroscopic OCT (ISOCT) is a new method for sensing tissue

ultrastructure (structural information below the imaging resolution of microscopic histopathology). ISOCT is sensitive to structures from 30 to 450 nm and can reveal valuable tissue

information, such as changes to nuclear chromatin compaction and ECM crosslinking21,22. As a result, coupling ISOCT with OCT angiography would allow one to isolate the pericapillary space

and sense the ultrastructural changes occurring during microvascular alterations. To address the shortcomings of capillary-level sO2 and pericapillary ultrastructural sensing, we developed a

novel optical imaging system called dual-band dual-scan ISOCT (D2-ISOCT). We show for the first time that from a single measurement using endogenous contrast in vivo, D2-ISOCT can obtain

the capillary-level sO2, arteriolar-level blood flow rate, drO2, and oxygen metabolic rate (mrO2) functional microvascular parameters, and characterize pericapillary space morphology and

ultrastructure. As an illustration of the capabilities of D2-ISOCT, we monitored the wound-healing response of a mouse model. The multi-metric quantifications of capillary sO2, blood flow

rate, drO2, mrO2, and pericapillary ultrastructure were temporally analyzed and show D2-ISOCT has the promise to become a powerful new non-invasive imaging tool. RESULTS D2-ISOCT IMAGING

SYSTEM D2-ISOCT combines visible light interferometry and near-infrared (NIR) light interferometry to allow for the comprehensive quantification of capillary sO2, blood flow, and

pericapillary ultrastructure. This study used an open-air Michelson interferometer for the visible band and a fiber-based Michelson interferometer for the NIR band. The concept of using

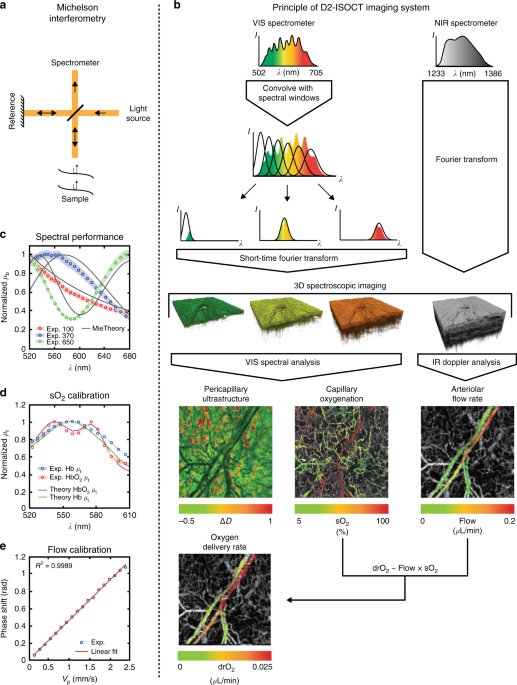

Michelson interferometry, as depicted in Fig. 1a, is based on the interference between backscattered light from the tissue with a reference reflection to coherently gate the light from

different depths in a sample. This allows the visible and NIR interferometers to obtain the 3D spectroscopic information used in computing D2-ISOCT metrics. Two broadband sources provided

visible and NIR illumination, and two spectrometers individually recorded the interferogram in the visible and NIR bands. Using a dichroic mirror placed before a galvanometric mirror

scanning system, the two bands were combined to allow for simultaneous scanning of each band across the sample. This is shown in the detailed schematic in Figure S1, and the additional

optical components of the D2-ISOCT system are described in the Materials and methods—System setup section. Fig. 1b demonstrates the principle behind D2-ISOCT’s spectroscopic analysis. By

sweeping a Gaussian window through the visible interferometric spectrum, a short-time Fourier transform (STFT) can be applied to yield spectrally dependent OCT images. The visible angiogram

allowed the hemoglobin spectroscopic signal to be analyzed separately from the pericapillary space scattering. Fitting hemoglobin light attenuation models across the 520–600 nm windows

revealed sO2 contrast (see Supplementary Information—Microvascular Spectra and sO2), while fitting the tissue mass density autocorrelation function “shape factor”, _D_, across the entire

visible range characterized pericapillary space ultrastructure15,23 (see Supplementary Information—Tissue Spectra and _D_ Values). Tissue can be characterized as a continuously varying

refractive index medium with a refractive index autocorrelation function _B__n_:22 $$B_n\left( r \right) = A_n\left( {\frac{r}{{l_c}}} \right)^{\frac{{D - 3}}{2}}K_{\frac{{D - 3}}{2}}\left(

{\frac{r}{{l_c}}} \right)$$ (1) where _A__n_ is the amplitude of the refractive index fluctuations, _l__c_ is a length scale parameter, _K_{.} is the modified Bessel function of the second

type, and _r_ is the distance between any two points for which the autocorrelation function is being calculated. When _D_ is between 0 and 3, _B__n_ behaves as a power law and _D_ then

physically describes the fractal dimension of tissue ultrastructure. _D_ values between 3 and 4 result in _B__n_ having a stretched exponential shape, and as _D_ approaches infinity _B__n_

is a Gaussian. _D_ can be related to the normalized backscattering spectra, _μ_b, of each imaging voxel by (2), and normalized _μ_b can be related to the spectral dependent OCT A-line

intensity, _I_(_k_), at each voxel by (3):22 $$\mu _{\mathrm{b}}\left( k \right)\sim k^{4 - D}$$ (2) $$I^2\left( k \right)\sim \mu _{\mathrm{b}}\left( k \right)$$ (3) where _k_ is the

wavenumber. Therefore, by fitting _D_ to the precapillary space _μ_b measured by D2-ISOCT, one can characterize ultrastructural modifications such as collagen crosslinking, which has been

shown to lead to an increased _D_22. The tissue ultrastructural change was represented by Δ_D_, i.e., the difference from the mean _D_ value. The NIR band allowed for deeper penetration to

resolve larger vessels. NIR spectrum Doppler analysis, which measured interferogram phase shifts due to sample flow, provided a large vessel flow velocity contrast that, combined with the

local microvascular sO2, led to drO2. _En face_ projections of capillary sO2, pericapillary ultrastructure, arteriolar flow rate, and drO2 are shown in Fig. 1b. SYSTEM CALIBRATION AND

CHARACTERIZATION The spectral performance of the D2-ISOCT imaging system was characterized by comparing measured normalized backscattering coefficient (_µ_b) spectra of polystyrene beads

with theoretical results calculated by Mie theory. The experimental results of beads with sizes of 650, 370, and 100 nm match well with Mie theory, as shown in Fig. 1c, with root mean square

errors (RMSE) of 0.1457, 0.1243, and 0.0452, respectively. sO2 contrast was verified by measuring the attenuation coefficient (_µ__t_) from the top 22 microns of oxygenated and deoxygenated

blood samples. The blood _µ__t_ spectra matched well with theoretical predictions (RMSE of 0.0449 and 0.0578 for oxygenated and deoxygenated blood, respectively) as shown in Fig. 1d and

served as the calibration spectra for in vivo sO2. blood flow measurements with NIR Doppler analysis were calibrated by measuring the phase shifts from a microtube phantom with known flow

velocities24. A syringe pump delivered bovine blood to a microtube with a speed range of 0.483–8.694 mm/s, covering the normal range of flow speeds in arteries, veins, and capillaries25,26.

The Doppler angle of the microtube was 0.28 rad, giving the range of the projective flow velocities along the beam axis to be 0.13–1.22 mm/s. The results of the phantom measurements, as

shown in Fig. 1e, produced a calibration curve with an excellent linear relationship between the phase shift and projective flow velocity (_R_2 = 0.999 to a linear model). This allowed for

absolute blood flow rates to be calculated from phase shifts in vivo. FUNCTIONAL AND ULTRASTRUCTURAL IMAGING To demonstrate D2-ISOCT’s capabilities, the wound-healing process in a mouse

model was monitored. Wounds were introduced into a mouse ear using a 0.35 mm biopsy punch. Large field-of-view (FOV) images (4 × 4 mosaics) of microangiography, blood flow, and

ultrastructural properties are shown in Fig. 2. The images were taken from a completely healed ear, with white circles indicating two initial puncture wounds. As shown in Fig 2a, b, the

visible microangiography clearly displays capillary networks, while the NIR microangiography reveals dermal arterioles and venules. A higher density of disorganized microvasculature at the

wounded areas is shown in Fig. 2b, indicating angiogenesis during the wound-healing response. Blood flow velocity, which is shown in Fig. 2c, was calculated by averaging the projective blood

flow velocity (_V_p) along the beam axis over depth. The decreased _V_p in the wounded areas of Fig. 2c reflects microvascular remodeling during wound healing, corresponding well with the

angiogenesis shown in Fig. 2b. Apart from neovascularization, wound healing also involves the formation of granulation tissue. To detect this formation, we used Δ_D_ to quantify the

ultrastructural properties of the pericapillary space. Δ_D_ was calculated from the dermal layer, approximately 90–200 μm from the skin surface for a mouse ear27, where granulation tissue is

formed during the wound-healing process28, as shown in Figure S6. It is clearly reflected in Fig. 2d that the wounded pericapillary space of the dermis has a higher Δ_D_. LONGITUDINAL

MONITORING OF WOUND HEALING WITH D2-ISOCT Tissue remodeling was longitudinally quantified with D2-ISOCT metrics (microvascular sO2, blood flow rate, drO2, and Δ_D_) up to 36 days after the

ear punch, as shown in Fig. 3. The complete set of D2-ISOCT metrics from eight different dates, including sO2 measurements of dermal arterioles and venules before and after the ear punch, is

shown in Figure S7. Ear punches were performed on day 1 and are marked by the dashed white circles in Fig. 3. The sO2 contrast from an arteriole and a venule could roughly be distinguished

at the bifurcation in Fig. 3a, day 0 (no wound/control), indicated by the white arrow. When the wound was made at this bifurcation, skin tissue was removed and the major blood vessels at

this branch were disrupted. This led to local ischemia and a lower sO2, as shown in Fig. 3a, day 1. As the wound began, to heal there was a rapid increase in the microvascular sO2, as noted

by the white arrows on Fig. 3a, day 7 and day 14. As the wound progressively healed, the local oxygenation level gradually returned to a state similar to that of day 0. Furthermore, in Fig.

3a, day 36 the same pair of arteriole and venules seem to reestablish their day 0 sO2, as noted by the white arrow. Single capillary sO2 sensitivity was obtained by averaging the spectra of

a capillary segment over nine time points to obtain meaningful hemoglobin oxygenation spectra. The sO2 of a single capillary is demonstrated by the white box blow up in Fig. 3a, day 36,

which had an inner diameter of ~18 µm and length of 170 µm. The segment had a sO2 of 72.3 ± 2.9%, which is different from the sO2 calculated by averaging the signals of the local capillary

network, 58.5 ± 4.3%. The discrepancy in these two calculations could be due to the spatial sO2 heterogeneity of the capillary network. Longitudinal blood flow rates were calculated by

multiplying a vessel’s displayed cross-sectional area with its corresponding projective flow velocity. The validity of in vivo flow rates can be supported by a bifurcation flow calculation.

On Fig. 3b, day 36 the flow rate before the branch (0.127 ± 0.012 μL/min) approximately matches the sum of the flow rates of the downstream branches (0.085 ± 0.004 μL/min + 0.029 ± 0.012 

μL/min = 0.114 ± 0.016 μL/min), indicating reasonable in vivo performance. It can be seen in Fig. 3b that the flow rates of vessels could be clearly distinguished. The flow rates drastically

dropped on day 1 and then increased on day 7. Once the wound was completely healed on day 36, the flow rate returned to the control levels. A correlation between flow rate and capillary

oxygenation could be seen across all days, since flow rate and capillary oxygenation increased and decreased together, as shown in Fig. 3a, b. drO2 was estimated using the sO2 of the deeper

arterioles and venules. The trend of the drO2 matched that of the sO2 and flow rates. As seen in Fig. 3c, drO2 dropped when the wound was induced, increased during wound healing, and

returned to a control-like state on day 36. We also estimated the mrO2 by calculating the drO2 difference between the arteriole and the venule. The mrO2 follows the same tendency as drO2.

mrO2 dropped when the wound was induced, peaked during the healing process, and finally returned to a level slightly lower than the control on day 36, as shown in Fig. 4a. During the

wound-healing process, Δ_D_ of the dermal pericapillary space increased. An increase in Δ_D_ (indicated by the white arrow) can clearly be noted in Fig. 3d on day 7. This increase in Δ_D_

during the wound-healing process is supported by a statistical analysis on the wounded areas. As shown in Fig. 4b, from day 14 to day 36 there was a significant difference (_p_ < 0.05)

between the control and wounded area Δ_D_s. DISCUSSION We developed a novel optical imaging system called D2-ISOCT, which enables in vivo multi-metric quantification using endogenous

contrast without ionizing radiation. It was demonstrated that from a single D2-ISOCT measurement, the capillary sO2, arteriolar-level blood flow rates, drO2, and mrO2, as well as the

pericapillary space ultrastructure, could be quantified. Using these metrics, a microvascular niche of the wound-healing process in a mouse ear was monitored over time. During the

wound-healing process, sO2, blood flow rate, drO2, and mrO2 initially decreased due to microvascular damage and were then observed to have increased 1 week after injury, a physiologic

response consistent with the intensive oxygen and nutrient demands of the healing process. Once the wound was fully healed, the microvascular metrics returned to a state similar to the

control. The pericapillary space ultrastructure, quantified by Δ_D_, increased during wound healing, indicating that the scar tissue had a higher ultrastructural fractal dimension than

non-perturbed tissue. Microvascular metrics corroborated well with each other. The low oxygenation levels on day 7 could be attributed to low flow rates, which would result in less oxygen

being supplied to the area, and thus lower the mrO2. Increased flow rates should result in an increase in the supply of oxygenation to the wounded area, which is supported by the increase in

sO2 on day 7. In addition to the bifurcation flow calculation, the in vivo flow performance of D2-ISOCT is supported by the observation of a similar flow trend during a mouse wound-healing

model from a previous study29. D2-ISOCT achieved capillary sO2 sensitivity by spatially averaging the visible spectrum to obtain local capillary sO2 or temporally averaging the visible

spectrum (over approximately 170 s) to obtain single capillary sO2. The limitation of this current work is the time required to obtain single capillary sO2. Our simulations show that by

moving to the recently developed 250 000 lines/s spectrometers and increasing sample power, this time frame can be drastically reduced. The longitudinal monitoring of the pericapillary space

ultrastructure of five to six wound sites revealed a statistically significant (_p_ < 0.05) difference in the Δ_D_ between the post-wounded and pre-wounded sites. Furthermore, as the

wounds healed, the Δ_D_ was sustained instead of gradually diminishing. This increase is most likely due to the formation of granulation tissue, which occurs during the wound-healing

process28,30. Granulation tissue contains highly crosslinked collagen, which has previously been reported to result in an increase in _D_22. Hence, it is expected that the wounded area Δ_D_

would increase from its non-perturbed state. This could be explained by the granulation tissue being replaced by a relatively acellular and permanent scar with a similar mass fractal

dimension to the granulation tissue30,31. The variations in Δ_D_ could be attributed to different healing speeds among wounds. Furthermore, the faster the wounds healed, the sooner a higher

Δ_D_ was observed, suggesting earlier collagen deposition and crosslinking. Pioneering OCT sO2 work showed values ranging from 25 to 73% in a mouse dorsal window for arteriolar-level

vessels19, which is a smaller range than that noted on day 0 in Fig. 3. However, the capillary sO2 values for the mouse ear are in a reasonable range in comparison with previously measured

capillary sO2 using photoacoustics32. The sO2 value range in this work is larger than those derived from previous OCT measurements because of D2-ISOCT’s ability to measure smaller vessels

through the utilization of spatial and temporal averaging. Smaller vessels contain fewer RBCs and should therefore have a larger range of sO2 values than vessels with sizes on the order of

10’s of microns. Furthermore, previous methods have only considered absorption in the blood attenuation model and have measured the spectra from depths just immediately below vessels19. Our

method presented herein considers scattering and absorption in the blood attenuation model and accounts for the incident light intensity on the vessel by taking the difference in the spectra

from above and below the vessel. These two advances should result in more accurate measurements of sO2 values since the complete attenuation model is considered and light attenuation from

tissue above the vessel is accounted for. In extracting the attenuation coefficient, _μ__t_, from blood vessels for sO2 calculation, we assumed the accumulative attenuation of light by

nonvascular tissues to be negligible compared to the attenuation of light by blood. Specifically, the backscattering coefficients from tissue above and below capillaries were approximated to

be the same, such that the hemoglobin-related spectral contrast can be revealed when taking their difference, as in Eq. (6) of Materials and methods—Data processing for microvascular sO2

measurements. Although in principle the form of _μ__t_ can change with depth depending on the scatterers and absorbers present, the above assumption works well when sufficient averaging is

performed, particularly in the spatial domain, as shown in Figure S9. While the local scattering coefficient may be quite unpredictable, the averaging process smoothed the spectra and

revealed the hemoglobin oxygenation contrast. Furthermore, since the spectra of blood vessels were obtained by taking the contrast immediately above and below capillaries according to the

angiography mask, the accumulated attenuation through the surrounding nonvascular tissue was reduced. The dual-wavelength bands of D2-ISOCT simultaneously provide important complementary

information to offer synergistic insight into tissue functionality. While the visible light channel offers quantification of sO2 and ultrastructural properties, the NIR channel is

complimented with better penetration to quantify the underlying blood flow, as shown in Figure S11. It can be seen in Figure S5 that the NIR deep penetration also allowed the imaging of

vessels, which could not be seen in the visible channel. Additionally, this study lays the ground work for other research applications and clinical implementation of the technology. D2-ISOCT

provides a powerful new toolbox for existing OCT imaging applications in both laboratory and clinical settings. In the brain D2-ISOCT may allow researchers to probe the functional vascular

changes that occur during organ development or disease progression33,34. In the clinic, integrating D2-ISOCT into endoscope measurements might further enrich the contrast for OCT endoscopic

imaging35,36,37,38. For example, in the colon, it has been shown that the D2-ISOCT metrics _D_ and the vessel organization can be used in evaluating colorectal cancer risk39,40.

Additionally, it is well known that changes in the local oxygenation and metabolic rate are hallmarks of tumorigenesis41. Therefore, clinical endoscopic D2-ISOCT imaging systems may provide

novel insights and diagnostic information. To summarize, we have demonstrated for the first time in vivo single capillary oximetry and pericapillary ultrastructural sensing using a novel

imaging system called D2-ISOCT. We obtained measurements of sO2, blood flow rate, drO2, and tissue ultrastructural properties during the wound-healing process in a mouse ear. Our D2-ISOCT

system successfully detected microvascular alterations and tissue remodeling during wound recovery, indicating the potential of D2-ISOCT as a powerful new imaging tool. Future plans will aim

to reduce single capillary sO2 measurement time and explore optical clearing agents to aid in deep sO2 calculations. MATERIALS AND METHODS SYSTEM SETUP Figure S1 depicts the benchtop

D2-ISOCT imaging system. The system utilized a supercontinuum light source (SuperK Extreme, NKT Photonics; spectral range: 480–2200 nm) and a super luminescent diode (SLD1325, Thorlabs;

spectral range: 1250–1380 nm) for visible and NIR illumination, respectively. To allow for a sufficient dynamic range across the spectrum, the supercontinuum spectral power was smoothed

using two prisms and a spatial filter. The visible light was then polarized using a linear polarizer (10 LP-VIS-B, Newport) and coupled into an optical fiber (SM600, Thorlabs) with an

objective (33-438, Edmund Optics). The SM600 fiber was placed in a paddle polarization controller (FPC562, Thorlabs) to allow for further polarization control to maximize interference

efficiency. The visible light was then collimated out of the fiber using a fiber port collimator (HPUCO-23-400/700-S-10AC, OZ Optics) and directed toward the sample and reference arm paths

using a 50:50 beam splitter (CM1-BS1, Thorlabs). The light in the sample path passed through a short-pass dichroic mirror (DMSP1000R, Thorlabs) where it was combined with the NIR channel.

For the NIR portion of the system, a fiber-based interference system could be utilized due to the narrow wavenumber range covered. The NIR light from the super luminescent diode was directed

to a 90:10 fiber coupler (TW1300R2A2, Thorlabs) using a fiber circulator (CIR-1310-50-APC, Thorlabs). The coupler ports directed light toward the sample (90 port) and reference arm (10

port) with both ports going through in-line fiber polarization controllers (CPC900, Thorlabs) to optimize the interference efficiency. Light was collimated in the NIR reference arm path

using a fiber collimator (F260APC-C, Thorlabs). A second short-pass dichroic mirror with a fine angle adjustment was added to the NIR reference arm path to compensate for the path length

effects of the dichroic in the sample arm path. The light was collimated in the NIR sample arm path using an aspheric lens (A397TM-C, Thorlabs). The distance between the aspheric lens and

the fiber termination was fine adjusted to allow for co-focusing of the NIR and visible light at the sample. The visible and NIR light were scanned across an objective (440320-9902, Zeiss)

using a two-dimensional (2D) galvanometric mirror system (GVS002 TSH25379-X, Thorlabs) to achieve point-wise scanning at the sample. The NIR and visible beams were adjusted to ensure they

were coaxial between the dichroic and galvanometric mirror system. Both the visible and NIR reference arms contained glass plates to correct for dispersion as well as neutral density filters

to adjust the reference arm power. Visible interference was detected using a custom-built spectrometer. In the spectrometer, the visible light was collimated using a mirror fiber collimator

(RC12APC-P01, Thorlabs) and angularly dispersed using a 1200 lines/mm grating (Wasatch). The angularly dispersed light was focused onto a 4096 × 2 pixel line scan camera (spL4096-140 km,

Basler) using a custom-built multi-element objective. The visible spectrometer had an axial imaging range of 1 mm in air with an operating bandwidth of 502–705 nm. The NIR interference

signal was directed toward a commercial spectrometer (C-1235-1385-GL2K, Wasatch) using the third port of the circulator. The NIR spectrometer had an axial imaging range of 5.7 mm in air,

with an operating bandwidth of 1233–1386 nm. (It should be noted that the spectrometer axial imaging range in air is not equivalent to the penetration in tissue. Please refer to

Supplementary Information—Penetration Limits of Visible and NIR Bands for mouse ear penetration limits). The sample was moved into focus using a 3D stage (X-XYZ-LSQ150B-K0060-SQ3, Zaber). A

custom-built LabVIEW program synchronized the galvanometric mirror scanning with the spectrometer acquisition. The power at the sample was 12.4 mW for visible light and 8 mW for NIR. The

system sensitivity was measured to be 93.2 and 104.2 dB for the visible and NIR system, respectively. The visible lateral resolution was 8.8 µm and had an axial resolution of 0.97 µm in

tissue. The NIR lateral resolution was 13.8 µm and had an axial resolution of 7.36 µm in tissue. The methods to measure the system sensitivity and resolution are discussed in the

Supplementary Information-System Sensitivity and Resolution Measurements section. INTERFEROGRAM PREPROCESSING Visible and NIR interferograms were preprocessed before calculating the D2-ISOCT

metrics. The interferograms were first normalized to the reference arm intensity followed by the DC removal. The data were then resampled into _k_-space (wavenumber space) and digitally

compensated for dispersion42 before the STFT for the visible and the Fourier transform for the NIR. The visible spectral dependent OCT A-lines, _I_(_λ_,_z_), were normalized to a Rayleigh

scattering reference medium and multiplied by a correcting factor of _k_4, where _λ_ is the center wavelength of the STFT Gaussian window, _z_ is the depth, and _k_ is the wavenumber (_k_ = 

2_π_/_λ_). The normalized _µ_b spectra of the samples were calculated by utilizing the relation that _I_2(_λ_,_z_) ~ _μ_b(_λ_,_z_)22. IMAGING STANDARDS The Rayleigh scattering reference

medium was prepared by diluting an 80 nm polystyrene latex bead solution (Molecular Probes by Life Technologies) to 4% w/v with deionized water. The beads used to characterize the spectral

performance (Molecular Probes by Life Technologies; sizes: 100, 370, and 650 nm with coefficient of variations 15%, 3%, and 3%, respectively) were also diluted to 4% w/v with deionized

water. Each bead solution was pipetted onto a glass slide before scanning with D2-ISOCT. The normalized bead _µ_b spectra were calculated by analyzing the OCT signal from the top 45 μm of

the beads. Oxygenated and deoxygenated bovine blood samples (Quad Five) used to obtain the sO2 calibration spectra were prepared in glass Petri dishes with each containing approximately 10 

mL of blood. For the deoxygenated samples, 10% w/v sodium dithionite (Na2S2O4) in phosphate-buffered saline (PBS) was added to the bovine blood at a ratio of 3:1. For the oxygenated samples,

the bovine blood was exposed to air for 1 h after adding PBS at a ratio of 3:1. A commercial oxygen probe (MI-730, Microelectrodes, Inc.) measured the blood oxygen pressure (pO2) to ensure

they were either fully oxygenated and deoxygenated. For the deoxygenated samples, each D2-ISOCT measurement was taken within 10 min of the preparation with Na2S2O4 to avoid oxygenation from

air exposure. The normalized blood _µ__t_ was extracted by analyzing the OCT signal from the top 22 microns of the blood samples. The _µ__t_ was calculated according to a simplified OCT

backscattering model for sO2 quantification (described in Data processing for microvascular sO2 measurement)43. The calibration curve for the Doppler blood flow measurements was carried out

using a syringe pump (Harvard Apparatus PhD 2000) and plastic micro-tubing (inner diameter 0.353 mm). The flow rates of the bovine blood in the microtube were set by the syringe pump from 3

to 54 µL/min, with intervals of 3 µL/min. ANIMAL PREPARATION All the experimental procedures were approved by the Northwestern University Institutional Animal Care and Use Committee. We

monitored the healing process of six ear wounds (two on the left ear and four on the right ear) on one SKH1-Elite (Crl: SKH1-Hrhr) hairless albino mouse for 36 days to demonstrate D2-ISOCT

capabilities. We used a 0.35 mm reusable biopsy punch (WPI, World Precision Instruments) to remove cylindrical tissue cores along six different major artery/vein pairs of two ear pinnae,

creating six independent wounds. Each wound location was imaged with D2-ISOCT on day 0 (no wound/control), day 1 (wound made), and days 7, 14, 23, 27, 33, and 36 post biopsy punch. For each

imaging acquisition, the hairless mouse was first anesthetized with 2.5% isoflurane in 3 standard liter per minute (SLPM) air mixed with pure oxygen for 5 min. After the initial anesthesia,

the animal was transferred to an imaging stage and anesthetized with 1.5% isoflurane in 1.5 SLPM air. To ensure the ear was stationary it was attached to a glass slide with double-sided

tape. A heating pad was used to maintain the animal’s body temperature. SCANNING PROTOCOLS The visible and NIR bands were simultaneously acquired with each spectrometer collecting 45 000

A-lines/s at an exposure time of 18 µs. Two scanning protocols were used during the data collection. The first protocol was used for microangiography, sO2 measurement, and tissue

ultrastructural property analysis. The protocol covered a square FOV of 1.77 × 1.77 mm and was composed of repetitive (4×) unidirectional B-scans of the same cross section. Each B-scan

consisted of 400 A-lines per repetition. A total of 512 B-scans × 4 repetitions was sequentially acquired to cover the full FOV, taking a total of 18.2 s to obtain local capillary sO2.

Single capillary oximetry was carried out by continuously acquiring nine volumetric scans over the same location, equating to a total acquisition time of approximately 170 s. The second

protocol was used for Doppler blood flow measurements, covered a FOV of 1.77 × 1.77 mm and was composed of repetitive counter-directional B-scans of the same cross section. Each B-scan

consisted of 2000 A-lines for each direction. A total of 256 B-scans × 2 (for bidirectional scanning) were sequentially acquired to cover the full FOV, taking a total of 22.8 s. The large

FOV image seen in Fig. 2 was collected by utilizing scanning protocols 1 and 2 over a 4 by 4 mosaic, increasing the FOV to approximately 6.0 × 6.5 mm. The imaging site was shifted using the

mechanical stage first horizontally using LabVIEW software and then vertically with manual adjustments. We allowed some overlap between adjacent scans for better stitching of individual

images of the mosaic. The total time for the large FOV under protocol 1 was ~4.8 min and under protocol 2 was ~6.1 min. DATA PROCESSING FOR MICROANGIOGRAPHY The sweeping Gaussian window for

visible microangiography sampled the spectrum into 18 equally spaced narrow bands in k-space. The swept wavelength range was 507–702 nm, and the size of the Gaussian window was 0.35/µm. This

gave a STFT bandwidth of 20.3 nm at 603 nm and relaxed the axial resolution to 7.88 µm. For the NIR microangiography, the size of the Gaussian window was 0.37/µm and covered a wavelength

range of 1233–1386 nm. This gave a STFT bandwidth of 100 nm at 1309.5 nm and relaxed the axial resolution to 7.55 μm. Angiography contrast originates from the decorrelation between

repetitive B-scans due to the sample movement found in blood vessels. Therefore, bulk sample movement must be mitigated to increase the contrast of blood vessels. We adopted a three-step

digital approach to correct for the bulk sample movement44. First, four B-scans of the same cross-sectional area were co-registered according to their cross-correlation functions. The axial

global phase fluctuations between the four scans were then corrected with two phase-modifiers. Finally, the motion-corrected data were obtained by calculating the expected value of the

amplitude between the four scans. The 3D angiography data were then averaged spatially and across different STFT windows to reduce the background noise. The visible and NIR _en face_

microangiography images had values set to zero, which were <~1.5 times their mean intensity. The 2D binary mask used in the _D_ calculations was obtained by thresholding the visible _en

face_ microangiography to ~1.5 times its mean from the surface to 150 μm. The 3D microangiography binary mask used in sO2 calculations was obtained by thresholding each visible

microangiography cross section to ~1.5 times the mean intensity from the surface to 150 μm in depth. DATA PROCESSING FOR MICROVASCULAR SO2 MEASUREMENT The _μ__t_ of blood vessels were

extracted according to the following simplified OCT backscattering model for sO2 quantification43. In this model, the intensities for the hemoglobin absorption bands (520–610 nm) along the

axial direction of the OCT A-line separated by a distance _z_ can be related to each other through _μ__t_: $$I\left( {\lambda ,z_0 + z} \right)^2 = C\rho I\left( {\lambda ,z_0} \right)^2e^{

- 2\mu _t(\lambda )z}$$ (4) where _C_ is a constant, _ρ_ is the local reflectance, and _I_(_λ_,_z_0) is the OCT A-line intensity at depth _z_0. We simplified _μ__t_(_λ_) as: $$\mu _t(\lambda

) = a\left( {g\left( \lambda \right)} \right) \times \mu _{\mathrm{s}}(\lambda ) + \mu _{\mathrm{a}}(\lambda )$$ (5) where _a_ is a function of the hemoglobin anisotropic factor _g_, and

_μ_s and _μ_a are the scattering and absorption coefficients of blood, respectively. This simplified relation was verified using Mie theory for the attenuation coefficients of oxygenated and

deoxygenated blood, as shown in Fig. 1d. According to (4), the _µ__t_ of a blood vessel could be written as the following, where _z_0 is the depth location for the top of the blood vessel,

and _z_ is the axial length of the blood vessel on the thresholded visible angiogram: $$\mu _t\left( \lambda \right)\sim \frac{1}{2}{\mathrm{log}}\left( {\frac{{I\left( {\lambda ,z_0}

\right)^2}}{{I\left( {\lambda ,z_0 + z} \right)^2}}} \right){\mathrm{/}}z$$ (6) Provided there is sufficient signal across the spectrum at the measured blood vessel, it can be seen in (6)

that the normalized _μ__t_ used in calculating sO2 can be extracted regardless of scattering above the vessel. This is because (6) only considers the contrast in the spectrum through the

vessel’s axial length on the angiogram mask. The _I_(_λ_,_z_) used in calculating sO2 with the above relation was generated using an STFT Gaussian window size of 0.91/μm. The windows were

equally spaced in wavenumber from approximately 520 to 610 nm, totaling 18 windows. This produced a measured axial resolution of 8.5 μm in tissue, as shown in the Supplementary

Information-System Sensitivity and Resolution Measurements section. To calculate the _μ__t_ of blood vessels, their spatial location needed to be identified. This was accomplished using the

threshold microangiography generated by the visible windows as described in the Materials and methods—Data processing for microangiography section. The microangiography STFT windows were not

the same as the sO2 STFT windows because the additional windows from 610 to 702 nm helped improve the signal-to-noise ratio. Furthermore, a smaller window size was necessary to prevent

low-pass filtering the sO2 contrast from the spectra. However, the sO2 STFT windows could still sense capillaries, as shown in the Supplementary Information-sO2 STFT Window Capillary Sensing

section. To isolate regions for spatial spectral averaging, lateral regions of interest (ROIs) were manually drawn on the _en face_ projective visible microangiography to select a single

arteriole/venule or a local microvascular network. Then, a 3D ROI was generated by extruding the manually selected lateral ROI along depth, corresponding to a thickness of ~150 μm from the

skin top surface. Next, blood vessels were segmented from this 3D ROI for each microangiographic wavelength band using a threshold-based algorithm. In each A-line of the 3D microangiography,

the top and bottom of the elliptically shape vessels were calculated. Blood vessel _μ__t_ in this ROI was then calculated by setting _z_ in (6) to the mean segmented vessel size. The local

capillary sO2 in the ROI was then generated using least squares fitting for the vessel _μ__t_ to the sO2 calibration curves. The sO2 of a single capillary (demonstrated in Fig. 3a, day 36)

was calculated using the same method, except that _I_(_λ_,_z_) was obtained by averaging OCT signals over nine consecutive volumetric scans. This resulted in a total temporal average of 170 

s. Nine consecutive volumetric scans were co-registered according to their cross-correlation functions before averaging to remove the possible movement of the animal between scannings.

Example spectra of blood vessels and their quantified sO2 fitted spectra are shown in the Supplementary Information-Microvascular Spectra and sO2 section. DATA PROCESSING FOR MICROVASCULAR

FLOW RATE MEASUREMENT Flow calculations assumed consecutive A-lines to be at the same location due to the high density of A-lines per B-scan. Thus, the phase shifts between any two

consecutive A-lines was proportional to the blood flow velocity projected along the beam axis. The Doppler phase images were obtained by taking the first derivative of the phase of complex

OCT B-scans. When phase wrapping was observed, a correction was applied to resolve any 2_π_ ambiguity. To reduce the phase shifts caused by the instrumental raster scan, each pair of

counter-directional phase shift B-scans were averaged. In this work, the absolute blood flow rate of vessels was calculated by multiplying a vessel’s _x_–_y_ plane (plane orthogonal to the

beam axis) displayed cross-sectional area, _A_disp, with its corresponding projective flow velocity,_V_p. The principle flow rate, _F_, can be calculated using (7) where _A_ is a vessel’s

cross-sectional area and _v_ is the flow velocity: $$\begin{array}{*{20}{c}} {F = vA} \end{array}$$ (7) _v_ can be related to _V_p through (8) and _A_ can be related to _A_disp through (9):

$$\begin{array}{*{20}{c}} {v = \frac{{V_{\mathrm{p}}}}{{{\mathrm{cos\theta }}}}} \end{array}$$ (8) $$\begin{array}{*{20}{c}} {A = A_{{\mathrm{disp}}}{\mathrm{cos}}\theta} \end{array}$$ (9)

where _θ_ is the angle between the blood vessel axis and the beam axis45. It can be seen that the cosine term cancels out when calculating _F_ from _V_p and _A_disp and, therefore, the angle

does not need to be considered. The _en face_ projective flow maps were produced by assigning each pixel to the mean flow rate of all vessel segments projected onto this pixel from the

surface to a depth of 300 μm. _A_disp was measured by binarizing the absolute value of the phase shift intensity thresholded at _π_/50, while _V_p was related to the phase shift from the

calibration shown in Fig. 1e. DATA PROCESSING FOR MICROVASCULAR DRO2 ESTIMATION To estimate the mouse ear microvascular drO2 during the wound-healing response, we calculated the oxygen

consumption (gas volume of the oxygen consumed per unit time) of major blood vessels18 according to the blood flow rate and sO2 measured by D2-ISOCT. We obtained an _en face_ projection map

of drO2 according to: $${\mathrm{drO}}_2 = 1.34 \times C_{{\mathrm{Hb}}} \times F \times {\mathrm{sO}}_2$$ (10) where 1.34 is the oxygen-binding capacity of hemoglobin (mL/g), _C_Hb is 0.13 

gm/L as the total hemoglobin concentration46, _F_ is the microvascular blood flow rate of the major blood vessels, and sO2 is the approximate oxygen saturation of major blood vessels. DATA

PROCESSING FOR MICROVASCULAR MRO2 ESTIMATION To estimate the mouse ear microvascular mrO2 during the wound-healing response, we calculated the oxygen consumption difference between the

arteriole and the venule18 according to their upstream mean blood flow rates and sO2 measured by D2-ISOCT: $${\mathrm{mrO}}_2 = 1.34 \times C_{{\mathrm{Hb}}} \times (\bar

F_{{\mathrm{arteriole}}} \times \overline {{\mathrm{sO}}_2} _{{\mathrm{arteriole}}} \\ - \bar F_{{\mathrm{venule}}} \times \overline {{\mathrm{sO}}_2} _{{\mathrm{venule}}})$$ (11) where

_F_¯arteriole and _F_¯ venule are the upstream mean flow rates of the arteriole and venule, respectively, and \(\overline {{\mathrm{sO}}_2} _{{\mathrm{arteriole}}}\) and \(\overline

{{\mathrm{sO}}_2} _{{\mathrm{venule}}}\) are the upstream mean sO2 of the arteriole and venule, respectively. PERICAPILLARY ULTRASTRUCTURAL SENSING Pericapillary ultrastructural sensing was

conducted by quantifying _D_ from the directly measured visible STFT A-line intensity. In-depth details of how _D_ can be related to the STFT A-line intensity are provided in the

Supplementary Information- Approach for Obtaining Shape Factor _D_ section. STFT A-lines used in the ultrastructural sensing were obtained using a Gaussian window size of 0.49/μm, which

sampled the visible spectrum into 13 equally spaced narrow bands in _k_-space. The swept wavelength range was 507–702 nm. This gave an STFT bandwidth of 26.8 nm at 585.5 nm and relaxed the

axial resolution to 12.6 μm. Normalized _μ_b was first calculated using a STFT according to the above sweeping Gaussian window, followed by a least-square fitting to obtain _D_ from the

relationship that _μ_b ~ _k_4−_D_. This relationship assumes that the tissue is a continuously random media21,23. The _D_ values from blood vessels were excluded using the microangiography

mask and the average _D_ value for the pericapillary space was calculated from 90 to 200 µm in depth for each FOV. The _en face_ Δ_D_ projection maps (average of Δ_D_ along depth from 90 to

200 µm) were shown with their value being the difference from their FOV average _D_ value. To illustrate the process of calculating _D_ values from the spectra of nonvascular tissues,

visible OCT measured spectra of nonvascular tissues and their _D_-fitted spectra are shown in Supplementary Information- Tissue Spectra and _D_ Values. Example spectra are from nonvascular

tissues within large and small ROIs, respectively. STATISTICAL ANALYSIS OF ULTRASTRUCTURE DURING WOUND HEALING D2-ISOCT wound recovery monitoring was statistically investigated by performing

a one-tailed Student’s _t_-test on the Δ_D_ values from the pre-wounded (control) and wounded pericapillary tissue. The Δ_D_ in the wounded sites was calculated from a manually placed ROI

circle approximately 0.8 mm in diameter around the wound. The results are presented as the mean ± SEM. In principle, the granulation tissues formed during wound recovery consisted of highly

disorganized collagen with higher intensities compared with normal non-invasive skin, leading to higher Δ_D_. Thus, we applied a one-tailed Student’s _t_-test for five or six independent

wounds and calculated their _p_ values at different time points from comparison with non-invasive control. REFERENCES * Schmidt, R. F. & Thews, G. _Human Physiology_ (Springer, Berlin,

Heidelberg, 1989). * Ingber, D. E. Mechanical signaling and the cellular response to extracellular matrix in angiogenesis and cardiovascular physiology. _Circ. Res._ 91, 877–887 (2002).

Article  Google Scholar  * Kota, S. K. et al. Aberrant angiogenesis: the gateway to diabetic complications. _Indian J. Endocrinol. Metab._ 16, 918–930 (2012). Article  Google Scholar  *

Girouard, H. & Iadecola, C. Neurovascular coupling in the normal brain and in hypertension, stroke, and Alzheimer disease. _J. Appl. Physiol._ 100, 328–335 (2006). Article  Google

Scholar  * Stefánsson, E. Ocular oxygenation and the treatment of diabetic retinopathy. _Surv. Ophthalmol._ 51, 364–380 (2006). Article  Google Scholar  * Vajkoczy, P., Ullrich, A. &

Menger, M. D. Intravital fluorescence video-microscopy to study tumor angiogenesis and microcirculation. _Neoplasia_ 2, 53–61 (2000). Article  Google Scholar  * Levy, B. I. et al. Impaired

tissue perfusion: a pathology common to hypertension, obesity, and diabetes mellitus. _Circulation_ 118, 968–976 (2008). Article  Google Scholar  * Edwards-Richards, A. et al. Capillary

rarefaction: an early marker of microvascular disease in young hemodialysis patients. _Clin. Kidney J._ 7, 569–574 (2014). Article  Google Scholar  * Kalaria, R. N. Neurodegenerative

disease: diabetes, microvascular pathology and Alzheimer disease. _Nat. Rev. Neurol._ 5, 305–306 (2009). Article  Google Scholar  * Costa, P. Z. & Soares, R. Neovascularization in

diabetes and its complications. Unraveling the angiogenic paradox. _Life Sci._ 92, 1037–1045 (2013). Article  Google Scholar  * Krock, B. L., Skuli, N. & Simon, M. C. hypoxia-induced

angiogenesis: good and evil. _Genes Cancer_ 2, 1117–1133 (2011). Article  Google Scholar  * Yao, C., Markowicz, M., Pallua, N., Noah, E. M. & Steffens, G. The effect of cross-linking of

collagen matrices on their angiogenic capability. _Biomaterials_ 29, 66–74 (2008). Article  Google Scholar  * Huang, D. et al. Optical coherence tomography. _Science_ 254, 1178–1181 (1991).

Article  ADS  Google Scholar  * Zhi, Z. W. et al. Volumetric and quantitative imaging of retinal blood flow in rats with optical microangiography. _Biomed. Opt. Express_ 2, 579–591 (2011).

Article  Google Scholar  * Yi, J., Chen, S. Y., Backman, V. & Zhang, H. F. In vivo functional microangiography by visible-light optical coherence tomography. _Biomed. Opt. Express_ 5,

3603–3612 (2014). Article  Google Scholar  * Faber, D. J., Mik, E. G., Aalders, M. C. G. & Van Leeuwen, T. G. Light absorption of (oxy-)hemoglobin assessed by spectroscopic optical

coherence tomography. _Opt. Lett._ 28, 1436–1438 (2003). Article  ADS  Google Scholar  * Yi, J., Wei, Q., Liu, W. Z., Backman, V. & Zhang, H. F. Visible-light optical coherence

tomography for retinal oximetry. _Opt. Lett._ 38, 1796–1798 (2013). Article  ADS  Google Scholar  * Yi, J. et al. Visible light optical coherence tomography measures retinal oxygen metabolic

response to systemic oxygenation. _Light Sci. Appl._ 4, e334 (2015). Article  Google Scholar  * Robles, F. E., Wilson, C., Grant, G. & Wax, A. Molecular imaging true-colour

spectroscopic optical coherence tomography. _Nat. Photonics_ 5, 744–747 (2011). Article  ADS  Google Scholar  * Liu, R. R. et al. Theoretical model for optical oximetry at the capillary

level: exploring hemoglobin oxygen saturation through backscattering of single red blood cells. _J. Biomed. Opt._ 22, 25002 (2017). Article  Google Scholar  * Yi, J. et al. Can OCT be

sensitive to nanoscale structural alterations in biological tissue? _Opt. Express_ 21, 9043–9059 (2013). Article  ADS  Google Scholar  * Yi, J. et al. Spatially resolved optical and

ultrastructural properties of colorectal and pancreatic field carcinogenesis observed by inverse spectroscopic optical coherence tomography. _J. Biomed. Opt._ 19, 36013 (2014). Article

Google Scholar  * Yi, J. & Backman, V. Imaging a full set of optical scattering properties of biological tissue by inverse spectroscopic optical coherence tomography. _Opt. Lett._ 37,

4443–4445 (2012). Article  ADS  Google Scholar  * Yazdanfar, S., Rollins, A. M. & Izatt, J. A. Imaging and velocimetry of the human retinal circulation with color Doppler optical

coherence tomography. _Opt. Lett._ 25, 1448–1450 (2000). Article  ADS  Google Scholar  * Landa, G., Jangi, A. A., Garcia, P. M. T. & Rosen, R. B. Initial report of quantification of

retinal blood flow velocity in normal human subjects using the Retinal Functional Imager (RFI). _Int. Ophthalmol._ 32, 211–215 (2012). Article  Google Scholar  * Hudetz, A. G. Blood flow in

the cerebral capillary network: a review emphasizing observations with intravital microscopy. _Microcirculation_ 4, 233–252 (1997). Article  Google Scholar  * Liba, O. et al.

Speckle-modulating optical coherence tomography in living mice and humans. _Nat. Commun._ 8, 16131 (2017). Article  ADS  Google Scholar  * Zhu, Y. X. et al. Sustained release of stromal cell

derived factor-1 from an antioxidant thermoresponsive hydrogel enhances dermal wound healing in diabetes. _J. Control. Release_ 238, 114–122 (2016). Article  Google Scholar  * Rege, A.,

Thakor, N. V., Rhie, K. & Pathak, A. P. In vivo laser speckle imaging reveals microvascular remodeling and hemodynamic changes during wound healing angiogenesis. _Angiogenesis_ 15, 87–98

(2012). Article  Google Scholar  * Singer, A. J. & Clark, A. F. Cutaneous wound healing. _N. Engl. J. Med._ 341, 738–746 (1999). Article  Google Scholar  * Gabbiani, G. The

myofibroblast in wound healing and fibrocontractive diseases. _J. Pathol._ 200, 500–503 (2003). Article  Google Scholar  * Ning, B. et al. Simultaneous photoacoustic microscopy of

microvascular anatomy, oxygen saturation, and blood flow. _Opt. Lett._ 40, 910–913 (2015). Article  ADS  Google Scholar  * Srinivasan, V. J. et al. Quantitative cerebral blood flow with

optical coherence tomography. _Opt. Express_ 18, 2477–2494 (2010). Article  ADS  Google Scholar  * Raghunathan, R. et al. Evaluating changes in brain vasculature of murine embryos in utero

due to maternal alcohol consumption using optical coherence tomography. In _Proceedings Volume 10340, International Conference on Biophotonics V; 29 April 2017; Perth, Australia_  (eds David

D. Sampson, Dennis L. Matthews, Jürgen Popp, Halina Rubinsztein-Dunlop, and Brian C. Wilson.) 1–7 (SPIE, Perth, Australia, 2017). * Cui, D. Y. et al. Flexible, high-resolution micro-optical

coherence tomography endobronchial probe toward in vivo imaging of cilia. _Opt. Lett._ 42, 867–870 (2017). Article  ADS  Google Scholar  * Yuan, W., Brown, R., Mitzner, W., Yarmus, L. &

Li, X. D. Super-achromatic monolithic microprobe for ultrahigh-resolution endoscopic optical coherence tomography at 800 nm. _Nat. Commun._ 8, 1531 (2017). Article  ADS  Google Scholar  *

Winkelmann, J. A. et al. In vivo broadband visible light optical coherence tomography probe enables inverse spectroscopic analysis. _Opt. Lett._ 43, 619–622 (2018). Article  ADS  Google

Scholar  * Liang, K. C. et al. Cycloid scanning for wide field optical coherence tomography endomicroscopy and angiography in vivo. _Optica_ 5, 36–43 (2018). Article  Google Scholar  *

Radosevich, A. J. et al. Rectal optical markers for in vivo risk stratification of premalignant colorectal lesions. _Clin. Cancer Res._ 21, 4347–4355 (2015). Article  Google Scholar  *

Gomes, A. J. et al. Rectal mucosal microvascular blood supply increase is associated with colonic neoplasia. _Clin. Cancer Res._ 15, 3110–3117 (2009). Article  Google Scholar  * Nakazawa, M.

S., Keith, B. & Simon, M. C. Oxygen availability and metabolic adaptations. _Nat. Rev. Cancer_ 16, 663–673 (2016). Article  Google Scholar  * Wojtkowski, M. et al. Ultrahigh-resolution,

high-speed, Fourier domain optical coherence tomography and methods for dispersion compensation. _Opt. Express_ 12, 2404–2422 (2004). Article  ADS  Google Scholar  * Scolaro, L. et al.

Parametric imaging of the local attenuation coefficient in human axillary lymph nodes assessed using optical coherence tomography. _Biomed. Opt. Express_ 3, 366–379 (2012). Article  Google

Scholar  * Chen, S. Y., Yi, J. & Zhang, H. F. Measuring oxygen saturation in retinal and choroidal circulations in rats using visible light optical coherence tomography angiography.

_Biomed. Opt. Express_ 6, 2840–2853 (2015). Article  Google Scholar  * Chen, S. Y. et al. Measuring absolute microvascular blood flow in cortex using visible-light optical coherence

tomography. In _Proceedings of the 36th Annual International Conference of the IEEE Engineering in Medicine and Biology Society; 26-30 August 2014; Chicago, IL, USA_ (eds Besio, W. et al.)

3881–3884 (IEEE, Chicago, IL, USA, 2014). * Leyland-Jones, B. et al. Maintaining normal hemoglobin levels with epoetin alfa in mainly nonanemic patients with metastatic breast cancer

receiving first-line chemotherapy: a survival study. _J. Clin. Oncol._ 23, 5960–5972 (2005). Article  Google Scholar  Download references ACKNOWLEDGEMENTS We acknowledge funding from the

Evans Medical Foundation at Boston Medical Center, the National Institute of Health (R01CA173745, R01CA183101, and R01CA165309), and the National Science Foundation (CBET-1240416). We also

would like to thank Benjamin Keane and The-Quyen Nguyen for their edits to the paper. AUTHOR INFORMATION Author notes * These authors contributed equally: Rongrong Liu, James A. Winkelmann

AUTHORS AND AFFILIATIONS * Department of Biomedical Engineering, Northwestern University, Evanston, IL, 60208, USA Rongrong Liu, James A. Winkelmann, Yunxiao Zhu, Aya Eid, Guillermo A. Ameer

 & Vadim Backman * Department of Chemical and Biological Engineering, Northwestern University, Evanston, IL, 60208, USA Graham Spicer * Department of Medicine, Boston University School

of Medicine, Boston, MA, 02118, USA Ji Yi Authors * Rongrong Liu View author publications You can also search for this author inPubMed Google Scholar * James A. Winkelmann View author

publications You can also search for this author inPubMed Google Scholar * Graham Spicer View author publications You can also search for this author inPubMed Google Scholar * Yunxiao Zhu

View author publications You can also search for this author inPubMed Google Scholar * Aya Eid View author publications You can also search for this author inPubMed Google Scholar *

Guillermo A. Ameer View author publications You can also search for this author inPubMed Google Scholar * Vadim Backman View author publications You can also search for this author inPubMed

Google Scholar * Ji Yi View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS R.L. and J.W. contributed equally. R.L. performed experiments and

processed the data. J.W. and G.S. designed and setup the system. J.W., G.S., and A.E. helped with experimental design and processing codes. Y.Z. prepared the mouse ear wound model. The idea

originated from discussion between J.Y., V.B., R.L., and J.W. G.A., V.B., and J.Y. directed and supervised the project. All authors discussed the results and contributed to the manuscript.

CORRESPONDING AUTHOR Correspondence to Ji Yi. ETHICS DECLARATIONS CONFLICT OF INTEREST The authors declare that they have no conflict of interest. ADDITIONAL INFORMATION ARTICLE ACCEPTED

PREVIEW Accepted article preview online: 14 August 2018 ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY INFORMATION RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a

Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit

to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are

included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and

your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this

license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Liu, R., Winkelmann, J.A., Spicer, G. _et al._ Single capillary

oximetry and tissue ultrastructural sensing by dual-band dual-scan inverse spectroscopic optical coherence tomography. _Light Sci Appl_ 7, 57 (2018).

https://doi.org/10.1038/s41377-018-0057-2 Download citation * Received: 27 February 2018 * Revised: 03 August 2018 * Accepted: 03 August 2018 * Published: 29 August 2018 * DOI:

https://doi.org/10.1038/s41377-018-0057-2 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
