Subwavelength imaging through ion-beam-induced upconversion

The combination of an optical microscope and a luminescent probe plays a pivotal role in biological imaging because it allows for probing subcellular structures. However, the optical

resolutions are largely constrained by Abbe’s diffraction limit, and the common dye probes often suffer from photobleaching. Here we present a new method for subwavelength imaging by

combining lanthanide-doped upconversion nanocrystals with the ionoluminescence imaging technique. We experimentally observed that the ion beam can be used as a new form of excitation source

to induce photon upconversion in lanthanide-doped nanocrystals. This approach enables luminescence imaging and simultaneous mapping of cellular structures with a spatial resolution of sub-30

 nm.

Photoluminescent probes play an indispensable role in labelling and manipulating biological species for many areas of application such as molecular imaging at the subcellular level1,2,3,4,

in vivo biodetection5,6,7,8 and targeted intracellular delivery of therapeutics9,10. In particular, lanthanide-doped upconversion nanocrystals11,12,13 have recently gained considerable

attention for use as biomarkers owing to their unique ability to convert low-energy light into high-energy photons, coupled with the absence of photobleaching and photoblinking14,15.

However, an infrared laser, either in continuous- or pulsed-wave mode, is generally needed to implement photon upconversion16,17,18,19,20. The use of the laser as the excitation source

inevitably imposes an inherent constraint for high-resolution imaging because of Abbe’s diffraction limit.

It has been well established that hexagonal-phase NaYF4 is one of the most efficient host materials frequently utilized for preparing upconversion nanocrystals12,21. The upconversion

nanocrystals are typically doped with ytterbium (Yb3+) sensitizer ions, which absorb infrared radiation centring at 980 nm and non-radiatively transfer their absorption to activator ions

such as thulium (Tm3+), erbium (Er3+) or holmium (Ho3+). The notable prospects of lanthanide-doped nanocrystals, including non-photobleaching, tunable emission wavelength and controllable

particle size12,14, have provided new opportunities for bioimaging applications in a variety of research fields6,7,22. In addition, the excitation of these nanocrystals in the near-infrared

region eliminates background autofluorescence6,8. However, these imaging studies have been unable to provide detailed information on the single-particle level owing to the diffraction limit

of infrared excitation light associated with conventional or even confocal microscope setups23,24.

To overcome the diffraction limit, a variety of optical super-resolution techniques, for instance stimulated-emission depletion microscopy25, have been developed. Alternatives to these

super-resolution techniques are methods involving charged particles such as electron or ion beams, with the benefit of rendering much shorter de Broglie wavelengths. For example, electron

microscope-based cathodoluminescence has been successfully utilized for high-resolution luminescence imaging26,27. However, the electrons suffer from large angle scattering when interacting

with biological samples, which in turn compromises the resolution, especially for tissue imaging at a substantial depth.

Here we report, for the first time, the observation of photon upconversion through excitation of lanthanide-doped nanocrystals under a beam of helium ions. The use of mega-electron-volt-

(MeV) focused helium ions offer significant advantages, as they can penetrate much thicker biological samples (up to several microns) with very little deviation in their trajectories28 (see

Supplementary Fig. 1). We thus reason that the MeV-focused ion beam may serve as a new form of excitation source to induce photon upconversion in lanthanide-doped nanocrystals and, more

importantly, to allow for high-resolution luminescence imaging beyond the diffraction limit.

The basic experimental setup is shown in Fig. 1a. A beam of 1.6 MeV helium ions (α-particles) is produced by a Singletron ion accelerator. A sample comprising NaYF4:Yb/Tm nanorods is placed

in a vacuum chamber (10−6 mbar) at a position situated exactly along the beam path. A customized double-piece parabolic mirror with front and rear openings is used to collect emission

photons induced by the ion beam and, concurrently, allow the ion beam to pass through the mirror (Supplementary Fig. 1). The convergent lens-coupled parabolic mirror allows the emitted light

to be focused into a fibre, which guides the light out of the vacuum chamber. The emitted photons are then captured either by a photomultiplier tube for luminescence imaging or by a

spectrometer for spectroscopic characterization. A Si surface barrier detector is used to perform scanning transmission ion microscopy imaging by measuring the energy loss during the

penetration of the ions into a given sample28,29.

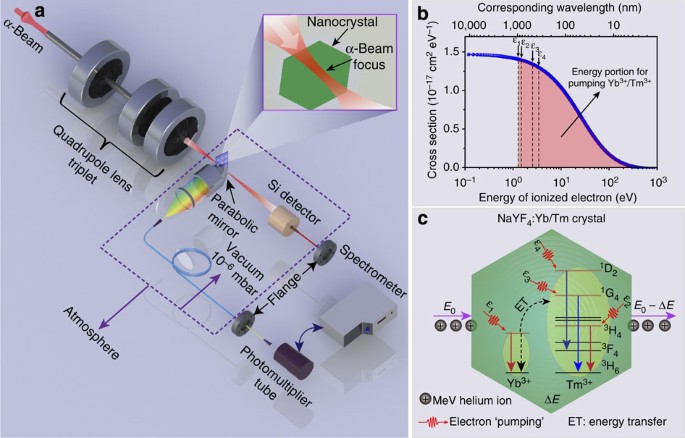

(a) Artist’s view of the basic experimental setup. The focused beam with a spot size of sub-30 nm features can be achieved using a spaced triplet of compact magnetic quadrupole lenses. A Si

surface barrier detector is equipped for measuring the energy loss distribution of the ions. (b) Calculated energy distribution of the ionized electrons by bombarding the MeV α-particles on

the lanthanide-doped nanocrystals, showing different cross-sections of the resulting electrons at specific energies. Note that most of the ionized electrons have energies mainly located in

the visible and infrared spectral region. (c) Proposed upconversion mechanism under α-beam irradiation. The incident helium ions with energy of E0 deposit a certain amount of energy (ΔE)

onto the crystal to cause the atomic ionization inside the crystal. Subsequently, the ionized secondary electrons can release their energy, most likely during the electron-hole recombination

process and successively transfer the energy to Yb3+ and Tm3+. An energy transfer from the excited Yb3+ to its neighbouring Tm3+ ions then populates the excited states (for example, 3H4,

1G4 and 1D2) of Tm3+.

The inelastic collision of helium ions with atomic electrons in a crystal can lead to energy loss dominated through an excitation and atomic ionization process30. To understand the efficacy

of the ionization in the NaYF4:Yb/Tm nanocrystal for photon upconversion, we first performed simulations on the energy distribution of the ionized secondary electrons using a

Hansen–Kocbach–Stolterfoht theoretical model (Supplementary Notes)30. Our simulation result shows that the ionized electrons with energies larger than 1.265 eV (equivalent to 980 nm) hold a

large portion (estimated to be 97.5%) of the total cross-sections (Fig. 1b). Thus, the ionized electrons within this energy portion can potentially be utilized by the Yb/Tm co-doped

nanocrystal. On the basis of the energy-matching principle, we propose an energy transfer mechanism that governs the photon upconversion in the NaYF4:Yb/Tm nanocrystal system (Fig. 1c and

Supplementary Fig. 2). It should be pointed out that the ionized electrons with energies higher than 1.265 eV may partially lose their energy by ionization, collision or phonon-coupling

processes to match the energy levels of Yb3+ or Tm3+ for effective upconversion pumping.

To validate our hypothesis, we prepared a set of NaYF4-based nanorods with different dopant compositions through a hydrothermal procedure23 and systematically investigated their response to

α-particle irradiation. Scanning electron microscopic imaging revealed the formation of monodisperse nanorods with an average size of 1.9 μm × 150 nm (Fig. 2a and Supplementary Figs 3 and

4). When singly-doped with Yb3+ (60 mol%) as the activator, the nanorods gave rise to emission at 975 nm on α-particle excitation, corresponding to 2F5/2→2F7/2 transition of Yb3+ (Fig. 2b).

In contrast, NaYF4:Tm (2 mol%) nanorods exhibited an intense emission at 800 nm and two weak emissions at 450 and 480 nm, corresponding to 3H4→3H6, 1D2→3F4 and 1G4→3H6 optical transitions of

Tm3+, respectively. These results clearly verify that both Yb3+ and Tm3+ ions can directly harvest the energy of the ionized electrons upon the excitation with the α-particles.

Intriguingly, in the case of NaYF4 nanorods co-doped with Yb/Tm (60/2 mol%), the blue emissions at 450 and 480 nm of Tm3+ showed a considerable enhancement, suggesting that the addition of

Yb3+ in the NaYF4:Tm nanorods promotes ion-beam-induced upconversion emission of Tm3+ at short wavelengths through energy transfer upconversion.

(a) Scanning electron microscopy (SEM) image of the as-synthesized Yb3+/Tm3+-co-doped NaYF4 nanorods under investigation. The inserted high-resolution SEM image shows hexagonal

cross-sections of these nanorods. Scale bar, 2 μm. (b) Comparative emission spectra of the NaYF4-based nanorods with different dopant compositions when irradiated with α-particles. (c) The

plot of the emission ratio of Tm3+ and Yb3+ (ITm/IYb) as a function of Yb3+ doping concentration, supporting the energy transfer between the two lanthanide ions. (d) Optimization of Yb3+

doping concentration for maximal emission output in the visible range. The ratio of IVis/Itotal represents the percentage of integrated visible emission in the total emission covering the

range from 350 to 1,100 nm.

To shed more light on the energy transfer between Yb3+ and Tm3+, we prepared a series of NaYF4:Yb/Tm nanorods with varied Yb3+ doping concentrations (10–98 mol%). We collected their

luminescence spectra (Supplementary Figs 5 and 6) under α-particle irradiation and integrated the overall emission intensity for Tm3+ and Yb3+ ions, respectively. The intensity ratios of

ITm/IYb, plotted against Yb doping content, was used to show the relative intensity change in Tm3+ and Yb3+ emissions. As shown in Fig. 2c, the measured intensity ratio of ITm/IYb increased

from 3.3 to 10.2 with the increase in Yb3+ concentration from 10 to 50 mol% and then decreased to 3.3 at a Yb3+ concentration of 98 mol%. Such inverse-parabolic profile provides a strong

evidence for the energy transfer between Yb3+ and Tm3+. Particularly, the rising stage of ITm/IYb indicates the occurrence of efficient energy transfer from Yb3+ to Tm3+, thus resulting in

the pronounced enhancement of upconversion emission in short wavelengths. The descending stage of ITm/IYb can be ascribed to the back-energy-transfer from Tm3+ to Yb3+ at high Yb3+

concentrations, analogous to the scenario in photon upconversion process in which a 980 nm laser (Supplementary Fig. 7 and Supplementary Table 1) is employed as the excitation source23.

High-resolution imaging can be achieved through α-beam irradiation of lanthanide-doped nanomaterials because the spot size of α-beam can be readily focused down to sub-30 nm (refs 28, 29).

Considering that the spectral-response range of the photodetector used falls within the visible spectrum, we have adopted Yb3+/Tm3+ (60/2 mol%) as the optimal combination for maximal visible

emission (Fig. 2d and Supplementary Fig. 6). Images of the NaYF4:Yb/Tm (60/2 mol%) nanorods were recorded in a 512 × 512 pixel array at a count rate of around 15,000 helium ions per second

by detecting the α-particle-induced luminescence (Fig. 3a,b). To ascertain the spatial resolution of the ionoluminescence image, a representative line-scanning profile of an individual

nanorod was collected and presented in Fig. 3c. By fitting the profile using a modified Gaussian model31, the imaging resolution of the α-particle-based ionoluminescence technique was

determined to be 28 nm as defined by full-width at half maximum. By comparison, conventional optical microscopies equipped with a 980-nm diode laser showed a resolution limit of ∼253 nm

(Fig. 3d–f and Supplementary Fig. 8). It should be noted that the effect of iono-bleaching, typically associated with the reduction in emission intensity in dye- or quantum dot-based

systems32,33, does not pose a constraint to lanthanide-doped nanomaterials (Fig. 3g and Supplementary Figs 9 and 10).

(a) Ionoluminescence image of the as-synthesized nanorods through α-particle excitation. (b) High-magnification ionoluminescence image of a single nanorod as marked in a. (c) The

corresponding line-scanning profile extracted from the intensity counting at the region marked in b along the arrow, indicating an imaging resolution of about 28 nm. (d) Photoluminescence

image of the same sample taken by using 980 nm laser excitation. (e) High-magnification photoluminescence image of the same nanorod as shown in b. (f) The corresponding line-scanning profile

from the image shown in e showing a diffraction-limited resolution of 253 nm associated with conventional upconversion microscopes. (g) Ionoluminescence intensity profile as a function of

the accumulated dosage of helium ions showing the considerable iono-bleaching resistance of the nanorods. The inserted images, taken at different time intervals (11, 33 and 66 min), indicate

that the emission brightness of the nanorods remains essentially unaltered over time. Scale bars, 500 nm. The error bar represents the standard deviation of luminescence counts obtained

from a single nanorod in two separate measurements.

Importantly, the combination of scanning transmission ion microscopy and the α-particle-induced luminescence technique enables simultaneous structural determination and luminescence imaging

on a single-cell level. As a proof of concept, we prepared NaYF4:Yb/Tm (60/2%) nanoparticles (∼95 nm) and incubated them with Human cervical carcinoma cells, which were seeded on a

100-nm-thick silicon-nitride membrane (Fig. 4a,b and Supplementary Fig. 11). By detecting the energy loss of transmitted ions through a Si surface barrier detector, we were able to generate

an areal density map of a whole HeLa cell by scanning transmission ion microscopy, which provides detailed information on cellular structures (Fig. 4b). Concurrently, α-particle-induced

photons were captured by a photomultiplier tube for luminescence mapping of the nanoparticles (Fig. 4b). The coupling of α-particle-induced luminescence imaging with scanning transmission

ion microscopy allowed us to precisely locate the nanoparticles within the whole cell (Fig. 4c). Remarkably, single nanoparticles after cellular internalization could be resolved by our

technique (see the enlarged panel in Fig. 4c). This was in stark contrast with the limit of resolution achievable by a conventional microscope equipped with a 980-nm diode laser (Fig. 4c,

top-left panel). In the latter case, the photoluminescence imaging from the same area showed much reduced resolution (Supplementary Fig. 12).

(a) Transmission electron microscopy image of the as-synthesized NaYF4:Yb/Tm (60/2 mol%) nanoparticles. The inserted histogram shows the size distribution of these nanoparticles. (b) Basic

experimental design for structural determination and ionoluminescence imaging of the HeLa cell after uptake of the nanoparticles. The luminescence mapping of the nanoparticles and the 3D

rendering of detailed cellular structures can be simultaneously implemented by capturing α-particle-induced photons through a photomultiplier tube (PMT) and by scanning transmission ion

microscopy, respectively. (c) Comparative photoluminescence (top left) and ionoluminescence (right) imaging, with the latter clearly showing the ability to resolve single nanoparticles

(marked by the arrows as shown in the magnified image). Note that top-left and bottom-left images are taken from the same section of the cell. Scale bars, 1 μm. Note that the

photoluminescence image was generated by using a 980-nm-diode laser (Supplementary Fig. 12).

Our findings could influence the study of the dynamics of upconversion processes and provide a better understanding of energy transfer in lanthanide-doped materials systems where the source

of excitation may play a crucial role. The results presented here suggest that a sub-30 nm imaging resolution for upconversion nanocrystals is achievable through the use of

α-particle-induced secondary electrons. By combining upconversion luminescence with scanning transmission ion microscopy, we have been able to map the distribution of individual

nanoparticles within a whole cell and simultaneously reveal the 3D cellular structure at ultrahigh spatial resolution. This methodology will enable important applications in probing

biological and biomedical processes at the subcellular level, for example, the quantitative measurement of intracellular bio-distribution of drugs delivered by upconversion

nanoparticles34,35.

Lanthanide-doped nanorods and nanoparticles were prepared through a hydrothermal method23 and a coprecipitation method36, respectively. The as-prepared nanocrystals were washed with HCl to

remove oleic acid molecules that were used as surface-capping ligands during the synthesis. Detailed experimental procedures are provided in the Supplementary Methods.

Human cervical carcinoma cells were seeded onto 100-nm-thick silicon-nitride membranes at a density of 9,000 cells cm−2 in Dulbecco’s Modified Eagle’s medium containing fetal bovine serum

(10%), penicillin (100 units ml−1) and streptomycin (100 μg ml−1). After 24 h and a brief wash with phosphate-buffered saline, the cells were incubated in complete medium containing the

as-synthesized NaYF4:Yb/Tm (60/2%) nanoparticles (10 μg ml−1) for another 24 h. Following another wash with Hepes-buffered saline, the particle-treated cells were then transferred to a

solution of 2% glutaraldehyde and stored overnight prior to intermediate dehydration using an increasing ethanol gradient. Complete dehydration was then achieved by critical-point drying.

Photoluminescence images were taken by an Olympus BX51 optical microscope equipped with a 980-nm diode laser. The α-particle-induced luminescence imaging was achieved by collecting the

luminescence photons with a customized double-piece parabolic mirror. The collected photons were then detected by a Hamamatsu photomultiplier tube (PMT) R7400P equipped with the photon

counting unit C9744. The data were collected and processed using the IONDAQ data acquisition system37 to generate the ionoluminescence images (Supplementary Fig. 13). The energy loss of an

ion transmitted through a sample depends on the sample composition and thickness. Thus, the areal density can be expressed by equation (1):

where E0 is the initial ion energy, Er is the remaining energy of the ion after passing through the sample, and ρ=ρ(z) is the mass density of the sample at a depth of z. Through scanning

transmission ion microscopy, the transmitted ion energies and number of ions at each pixel within the scanned area can be measured by a Si surface barrier detector to render the areal

density map.
